Position Sensor Power Source Circuit
CIRCUIT DESCRIPTIONThis circuit provides power to the slide, front vertical and reclining position sensors.

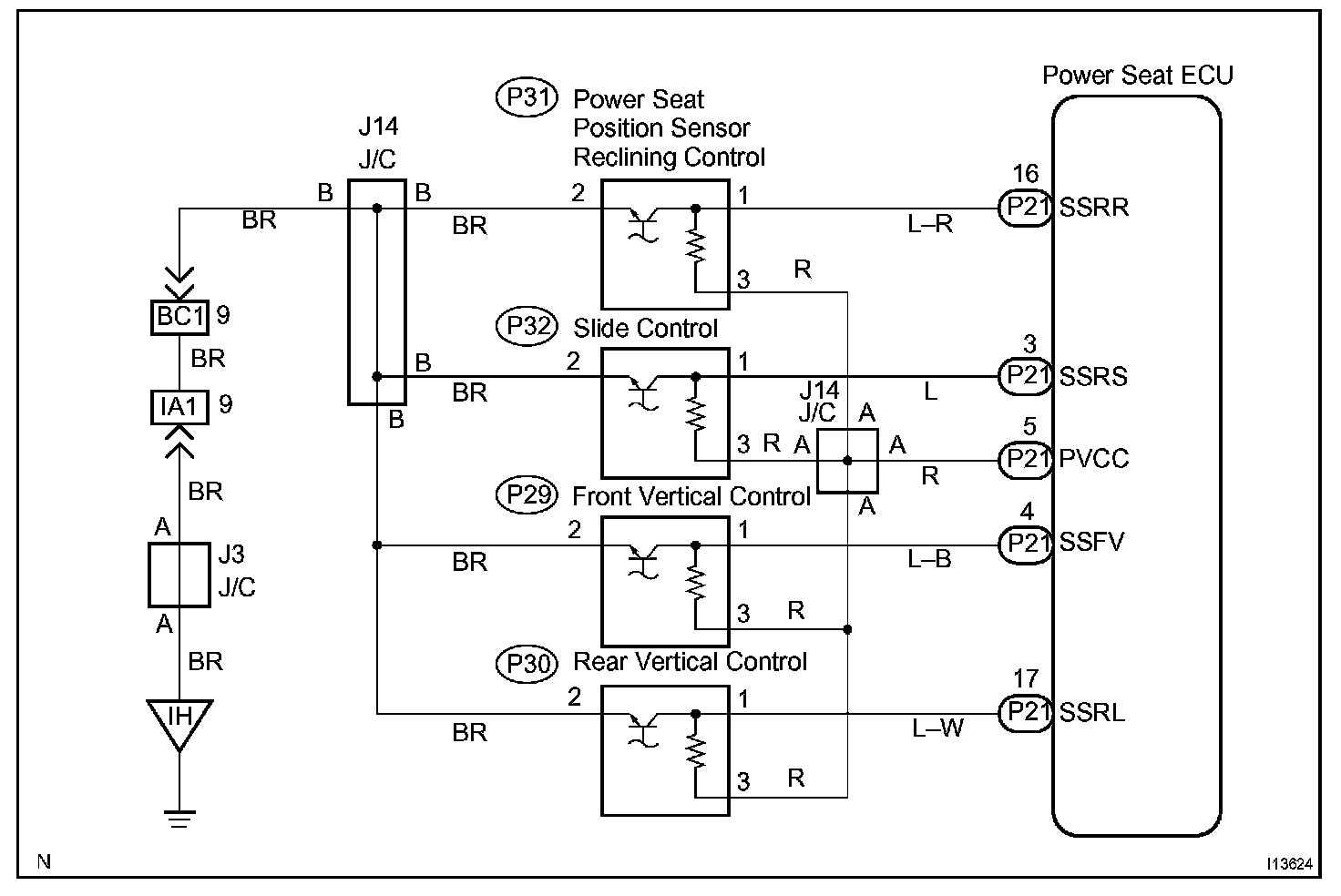

Wiring Diagram:

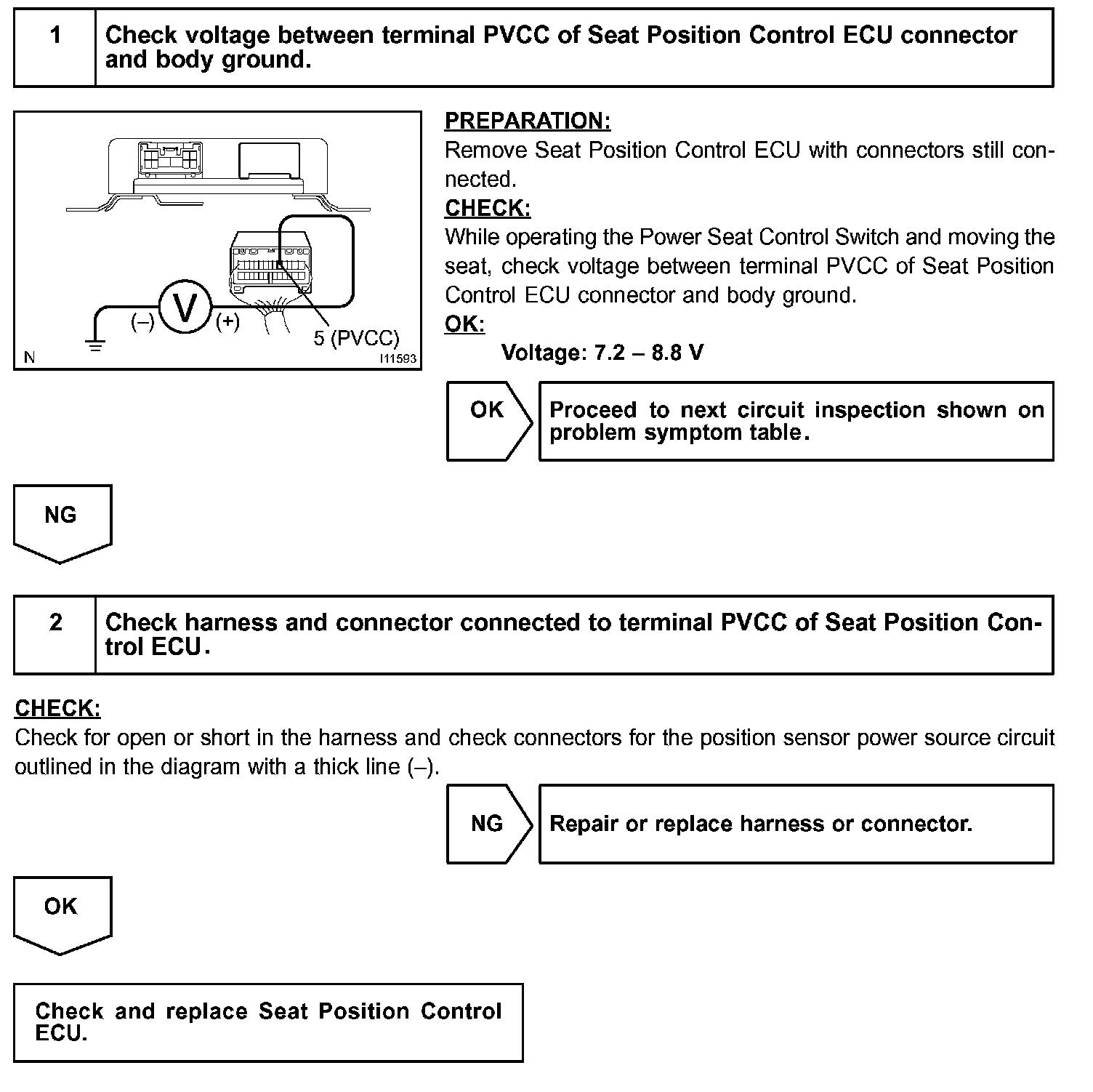

Step 1 - 2:
INSPECTION PROCEDURE
This circuit provides power to the slide, front vertical and reclining position sensors.
INSPECTION PROCEDURE
