Motor Circuit

CIRCUIT DESCRIPTION

The Seat Position Control ECU controls the 4 motors for slide, front vertical, rear vertical and reclining

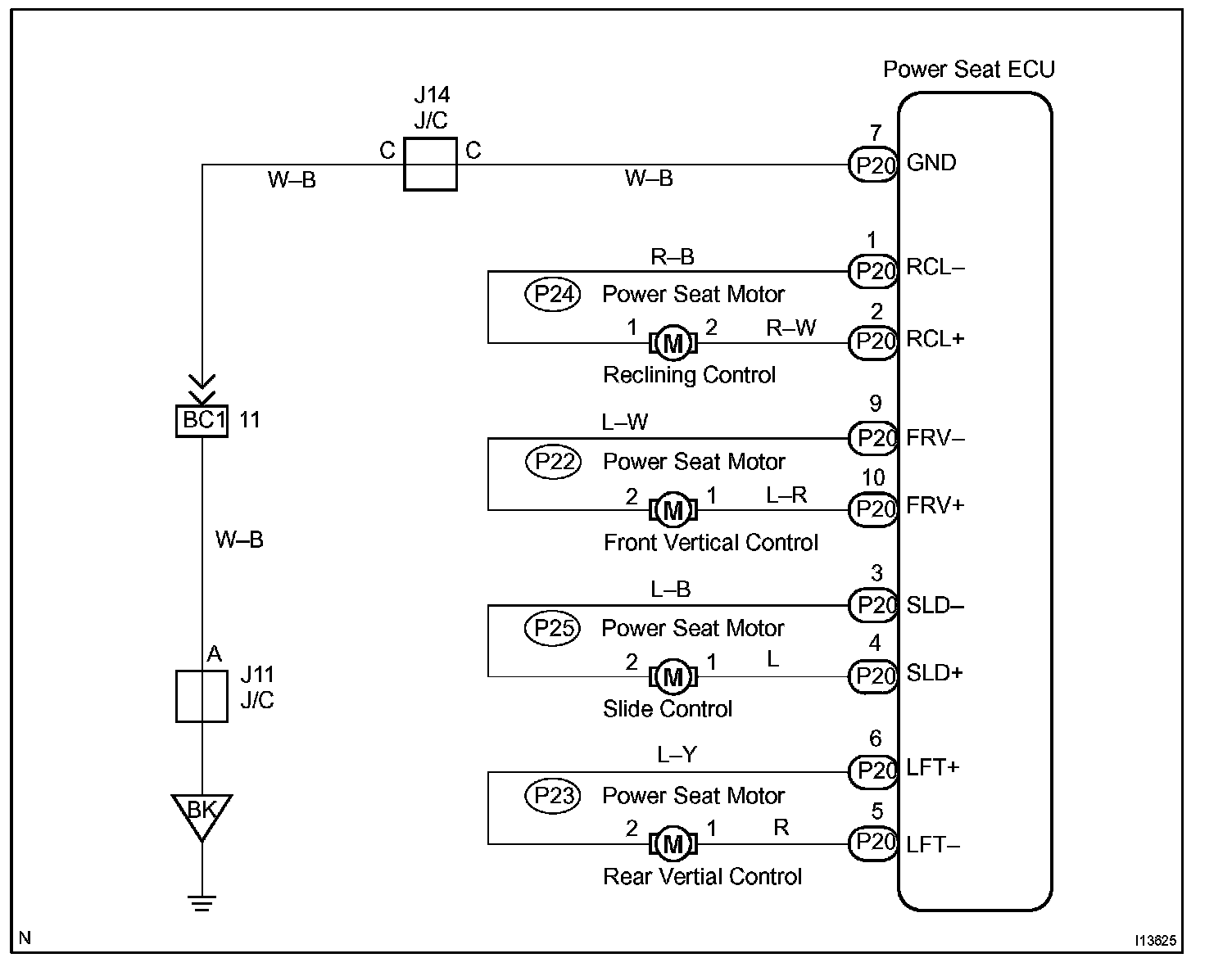

Wiring Diagram:

Step 1:

Step 1 (Continued):

Step 2:

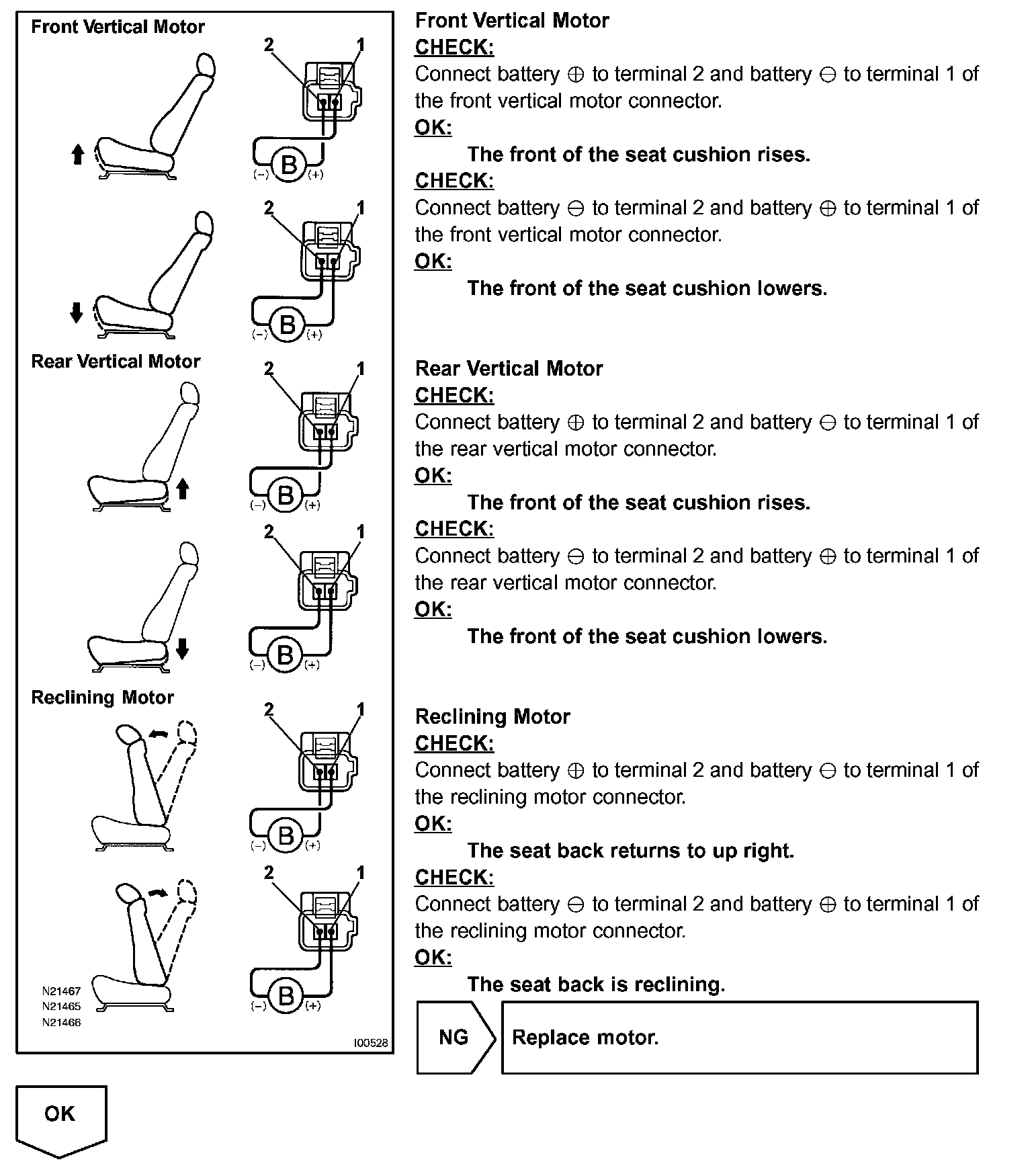

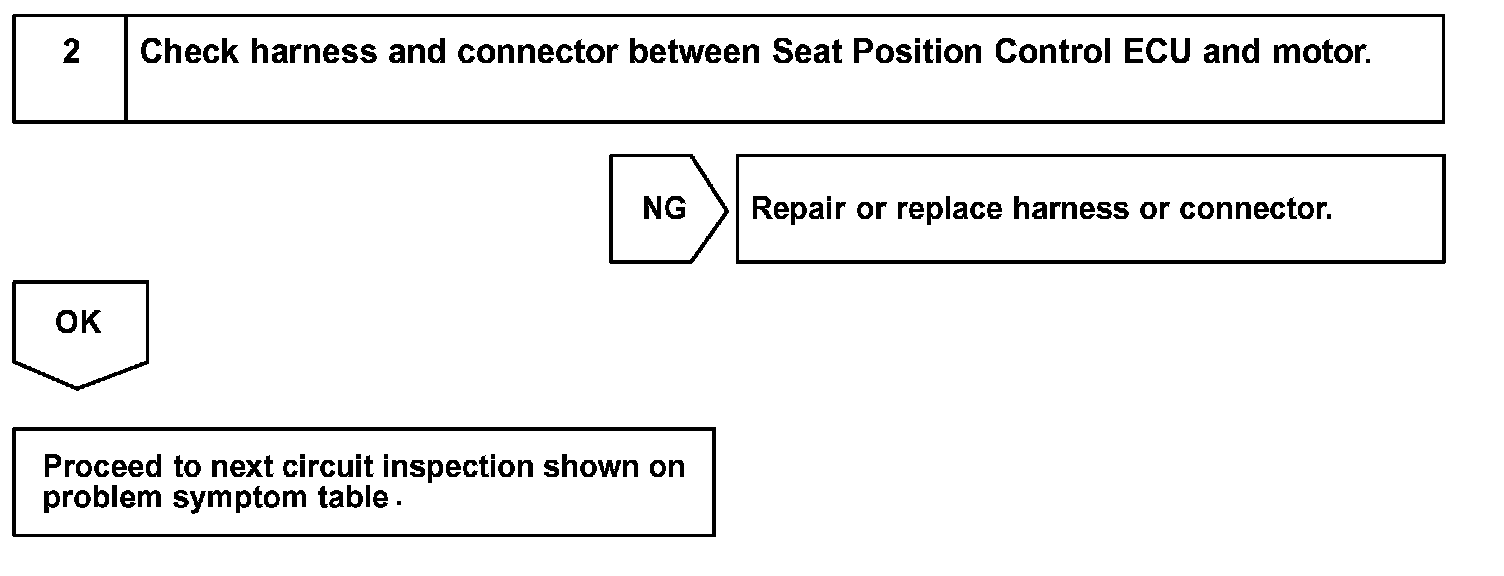

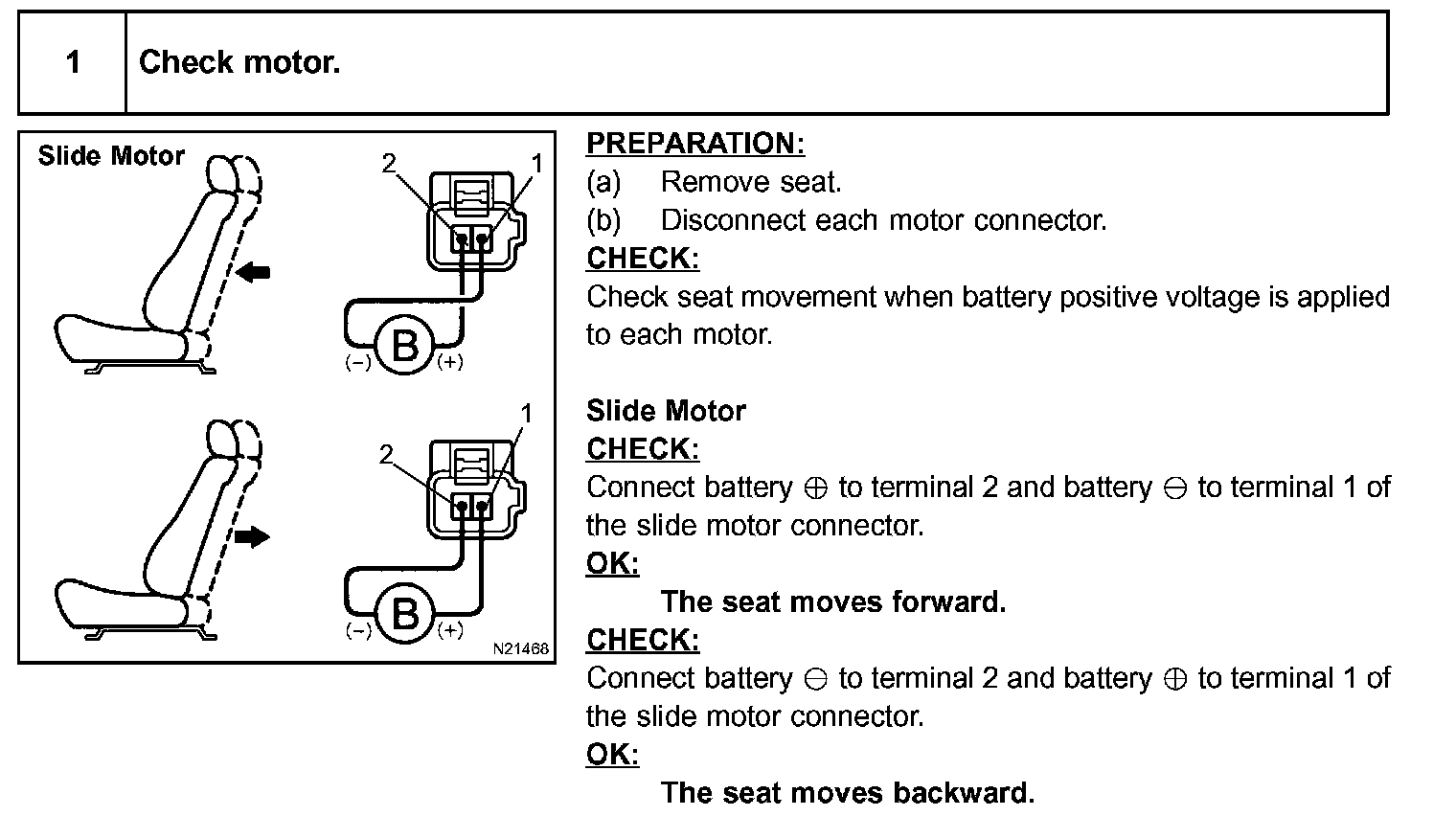

INSPECTION PROCEDURE
