ECU Power Source Circuit
CIRCUIT DESCRIPTIONThis circuit provides power for ECU operation and is also the power source for the sensor.
Wiring Diagram:

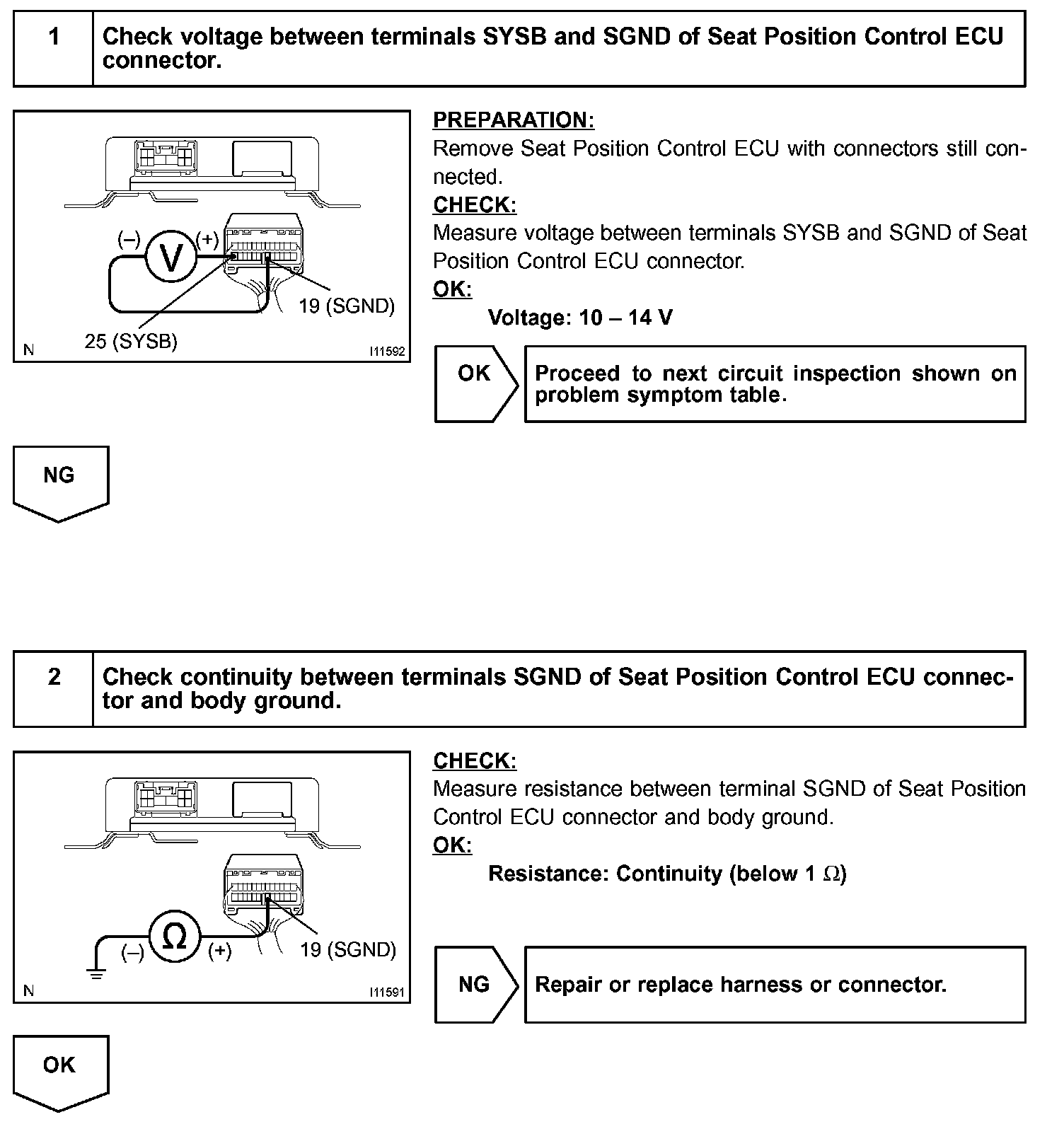

Step 1 - 2:

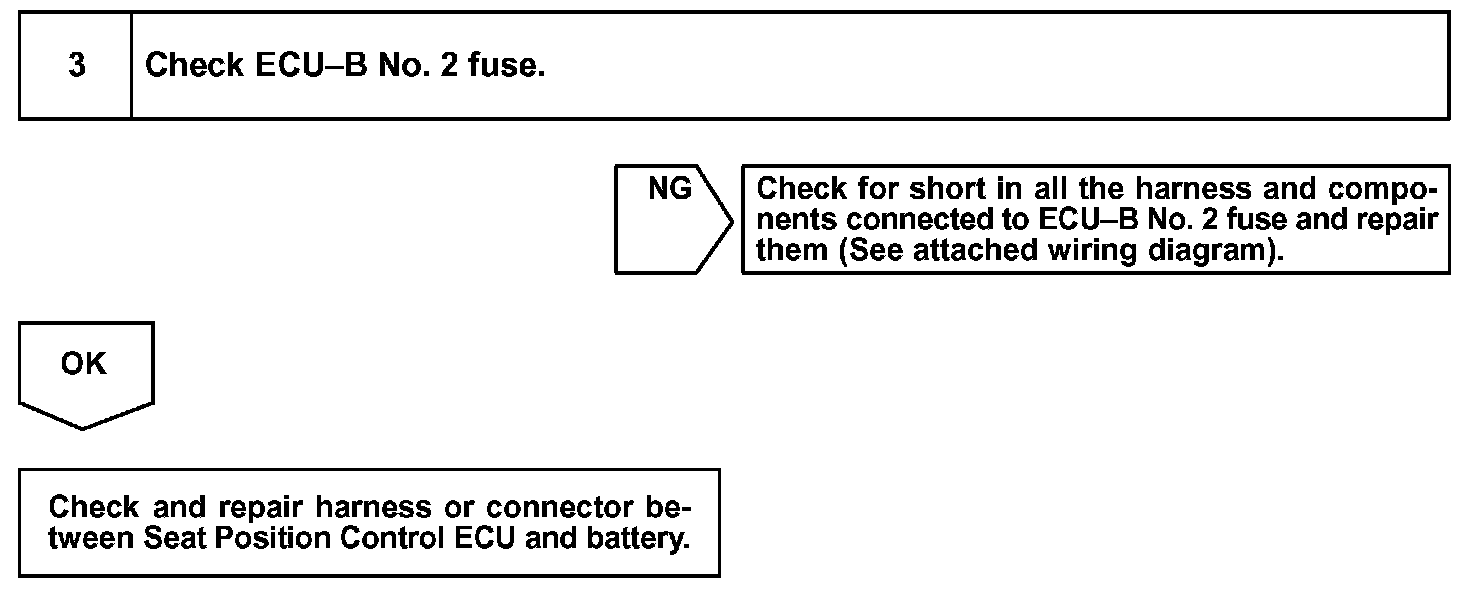

Step 3:
INSPECTION PROCEDURE
This circuit provides power for ECU operation and is also the power source for the sensor.
INSPECTION PROCEDURE
