Rear Seat

REMOVAL




1. REMOVE REAR SEAT CUSHION ASSEMBLY
Remove the rear seat cushion.

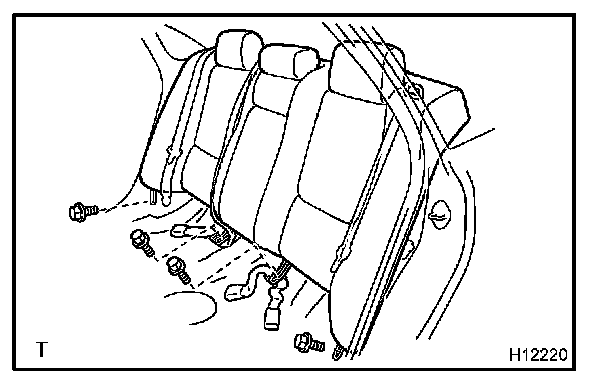

2. REMOVE REAR SEATBACK ASSEMBLY
a. Remove the 4 bolts.

Torque:
Center: 41 N.m (420 kgf.cm, 30 ft.lbf)
LH, RH Side: 18 N.m (185 kgf.cm, 13 ft.lbf)

b. Raise the seatback assembly upward to remove the seatback assembly.

INSTALLATION
Installation is in the reverse order of removal.
