Electro Chromic Mirror System

INSPECTION

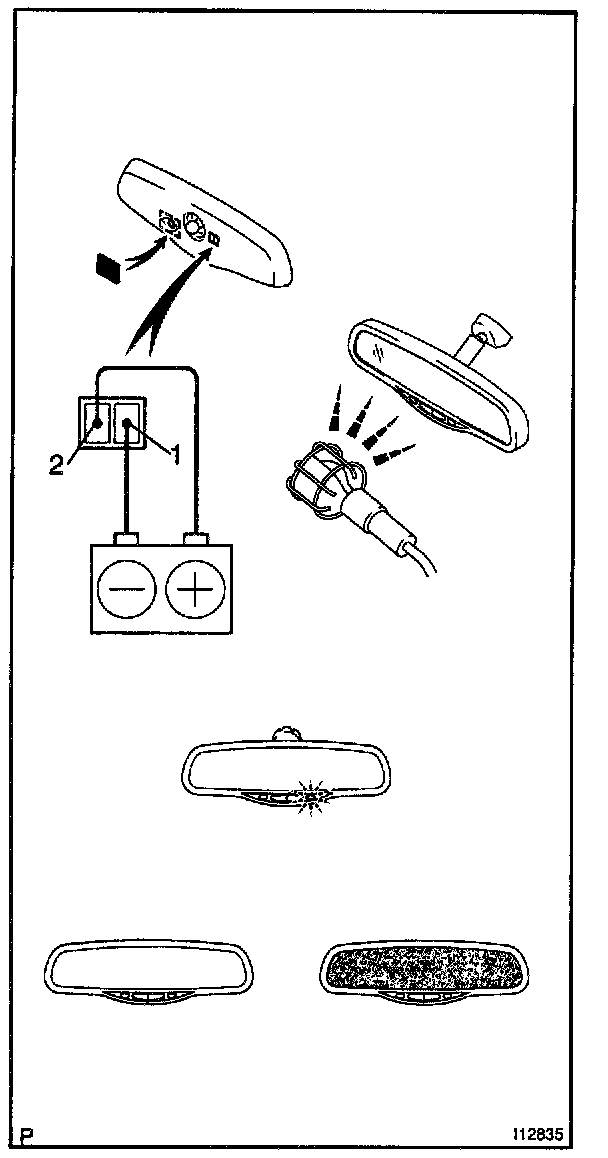

INSPECT ELECTRO CHROMIC INNER MIRROR OPERATION
a. Connect the positive (+) lead the battery to terminal 1 and the negative (-) lead to terminal 2.
b. Shine an electric light on the mirror, and check that there is battery positive voltage and mirror surface becomes "bright" to "dark".
If operation is not as specified, replace the inner mirror.
