Body - Automatic Door Lock Function/Initialization

PRODUCT GENERAL INFORMATION
PG009-04

Title:
AUTOMATIC DOOR LOCK (ADL)
FUNCTION

Models:
'04 Avalon

October 11, 2004

Introduction
2004 model year Avalon vehicles equipped with Automatic Transmission and Power Door Locks feature an Automatic Door Lock (ADL) function that locks all doors when the shift lever is moved from "P" to "D." When the shift lever is returned to P" the door locks can be set to remain locked (Mode 1 or 4) or unlock automatically (Mode 3). Details on the ADL function and all available modes can be found in the Owner's Manual.

To standardize the ADL function across all model lines, it should be initialized to automatically unlock when the shift lever is returned to "P" (Mode 3) during Pre-Delivery Service (PDS).

NOTE:
When the battery is disconnected, the ADL mode returns to the default setting (Mode 1). The following procedure must be used to set the ADL function to Mode 3 whenever the battery has been disconnected.

Applicable Vehicles

2004 model year Avalon vehicles.

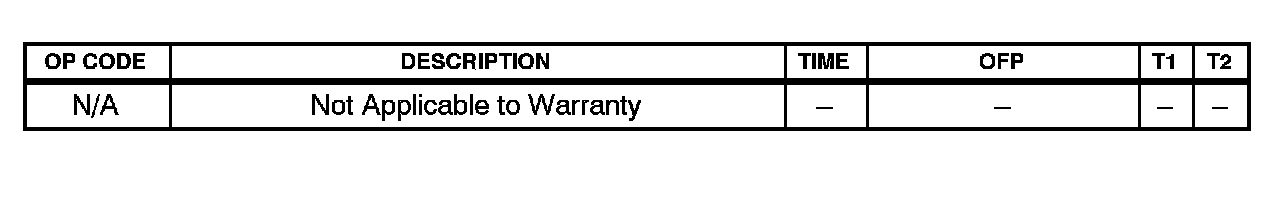

Warranty Information

Perform the following procedure to initialize the ADL function to Mode 3.

1. Move the shift lever into the "P" position and close all doors.

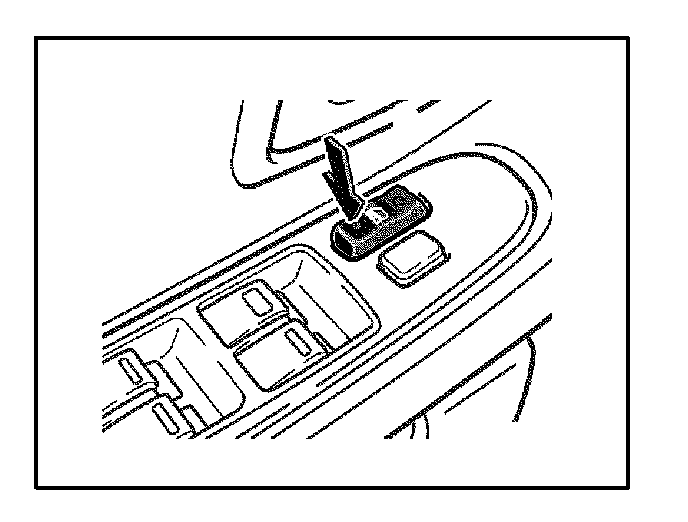

2. Unlock all doors using the power door lock switch.

3. Turn the ignition switch to the "ON" position.

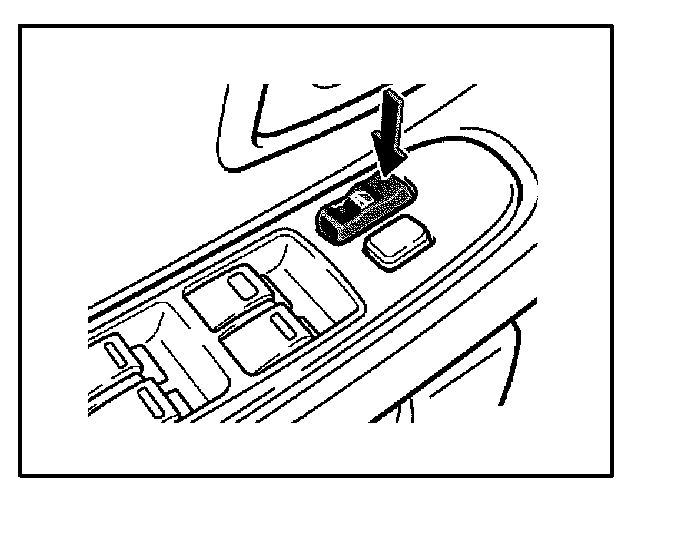

4. Within 10 seconds after the ignition switch is turned to the "ON" position, push and hold the front side (lock position) of the door lock switch for 5 seconds.

5. The open door warning light will flash to indicate the mode has changed.

6. Repeat procedure from step 1 to step 5 until the open door warning light flashes 3 times indicating that the ADL function has been set to Mode 3.
