Headliner: Service and Repair
REMOVAL1. REMOVE REAR SEAT
2. REMOVE INSIDE REAR DOOR SCUFF PLATE
a. Remove the clip.

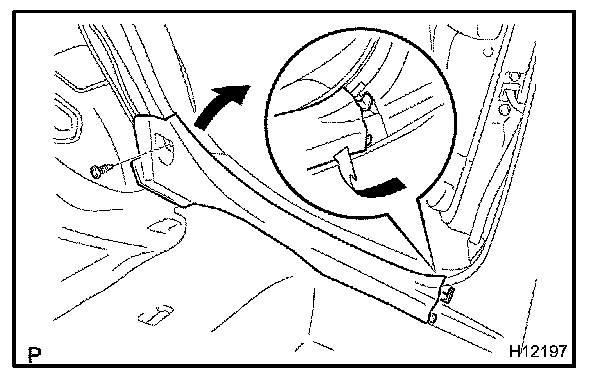

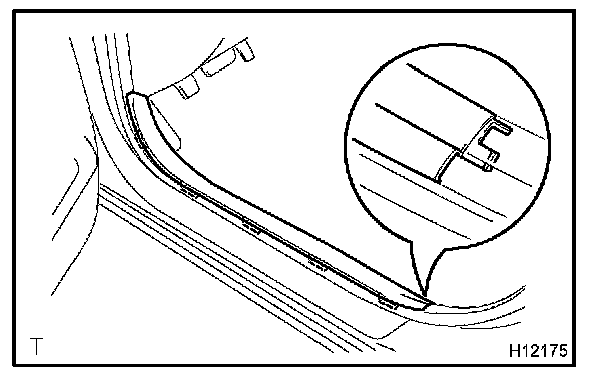

b. Remove the inside rear door scuff plate as shown in the illustration.
c. Employ the same manner described above to the other side.
3. REMOVE REAR DOOR OPENING TRIMS

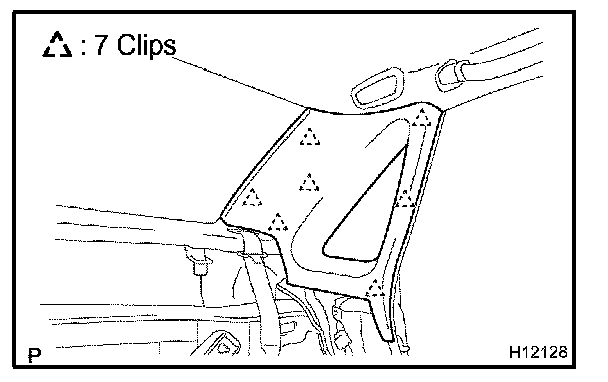

4. REMOVE ROOF SIDE INNER GARNISH
a. Using a screwdriver, remove the roof side inner garnish.
HINT: Tape the screwdriver tip before use.
b. Employ the same manner described above to the other side.
5. REMOVE ASSIST GRIPS
a. Using a screwdriver, remove the cover.
HINT: Tape the screwdriver tip before use.
b. Loosen bolts until assist grip detaches from the vehicle.
c. Repeat at 4 positions.
6. w/ Rear personal light:
REMOVE REAR PERSONAL LIGHT
a. Using a screwdriver, remove the rear personal light, then disconnect the connector.
HINT: Tape the screwdriver tip before use.
b. Employ the same manner described above to the other side.
7. REMOVE FRONT DOOR SCUFF INSIDE PLATE
a. Remove the front door scuff inside plate.
b. Employ the same manner described above to the other side.
8. REMOVE FRONT DOOR OPENING TRIMS
9. REMOVE LOWER CENTER PILLAR GARNISH

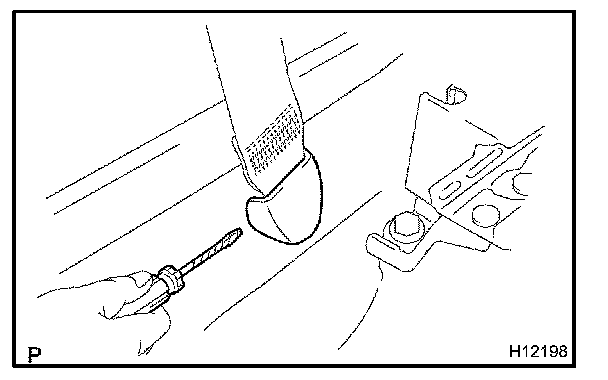

a. Using a screwdriver, remove the lap belt outer anchor cover.
b. Remove the front seat outer belt floor anchor.
Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)

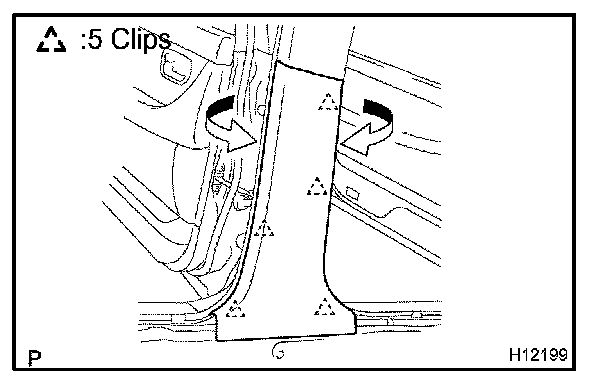

c. Remove the lower center pillar garnish as shown in the illustration.
d. Employ the same manner described above to the other side.
10. REMOVE CENTER PILLAR GARNISH
a. Remove the 2 clips.

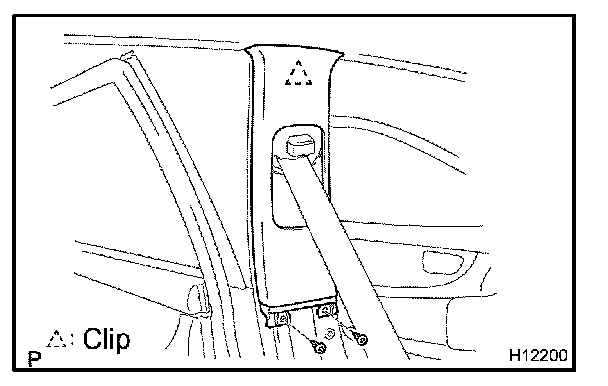

b. Using a screwdriver, remove the center pillar garnish.
HINT: Tape the screwdriver tip before use.
c. Employ the same manner described above to the other side.
11. REMOVE FRONT PILLAR GARNISH

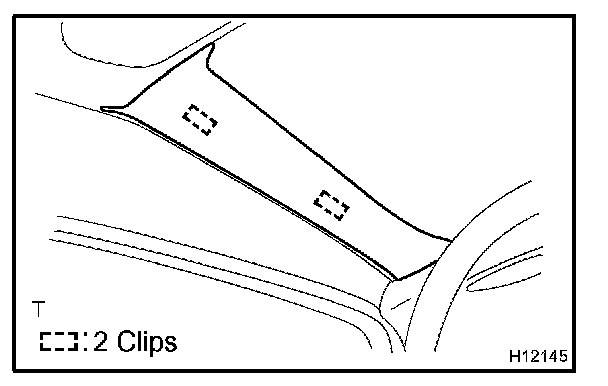

a. Remove the front pillar garnish.
b. Employ the same manner described above to the other side.
12. REMOVE ROOF CONSOLE BOX

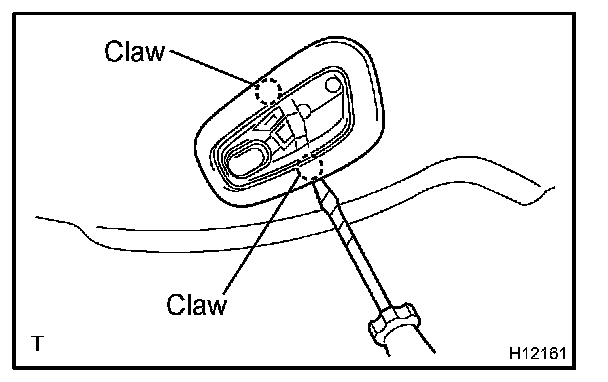

a. Using a screwdriver, remove the map light lens.
HINT: Tape the screwdriver tip before use.
b. Remove the 3 screws and roof console box, then disconnect the connector.
13. REMOVE ROOM LIGHT

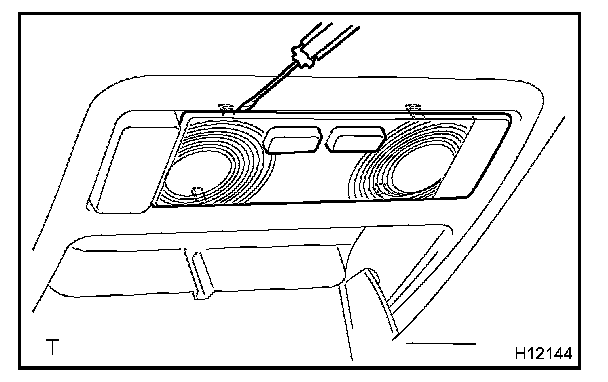

a. Using a screwdriver, remove the room light lens.
HINT: Tape the screwdriver tip before use.
b. Remove the 4 screws and room light, then disconnect the connector.
14. w/ Sliding roof:
REMOVE SLIDING OPENING TRIM
15. REMOVE SUN VISORS AND HOLDERS
a. Using a screwdriver, pry the bracket cover off from the rear.
b. Remove the 2 screws from the visor bracket and a screw from the holder.
c. Remove the visor assembly from the holder and disconnect the connector.
d. Pull off the holder.
16. REMOVE ROOF HEADLINING

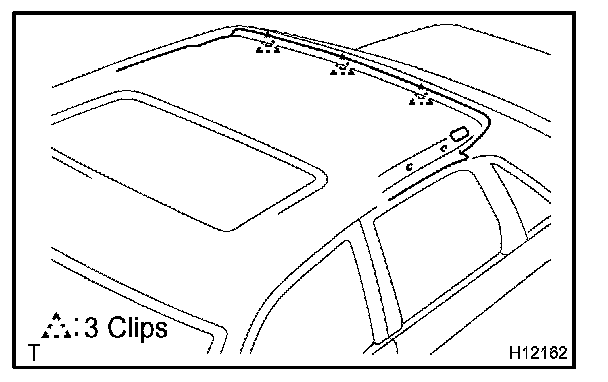

Disengage the 3 clips and remove the roof headlining.
INSTALLATION
Installation is in the reverse order of removal.
