Trunk / Liftgate: Testing and Inspection

INSPECTION

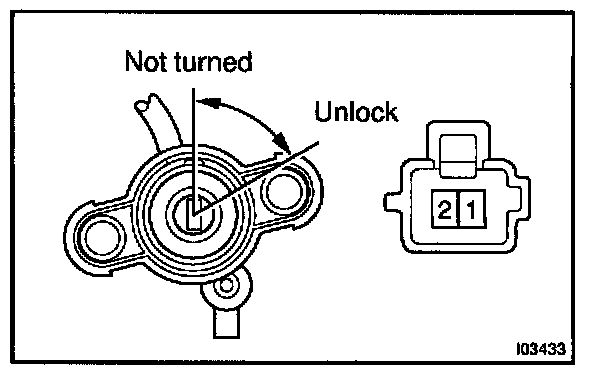

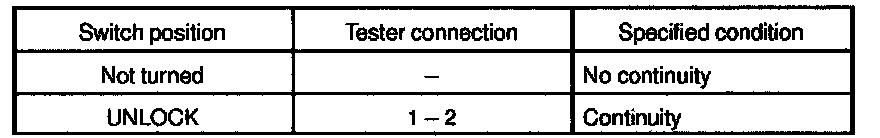

1. INSPECT LUGGAGE COMPARTMENT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

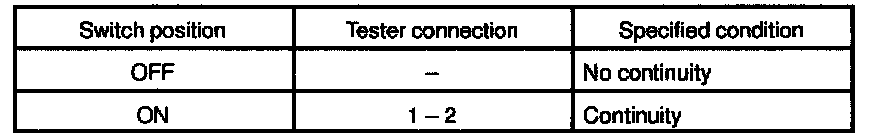

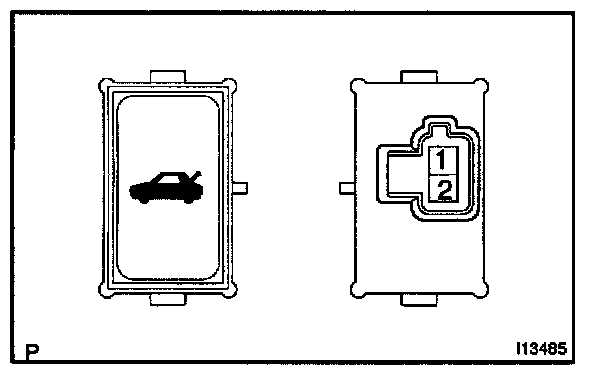

2. INSPECT LUGGAGE COMPARTMENT DOOR OPENER MAIN SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

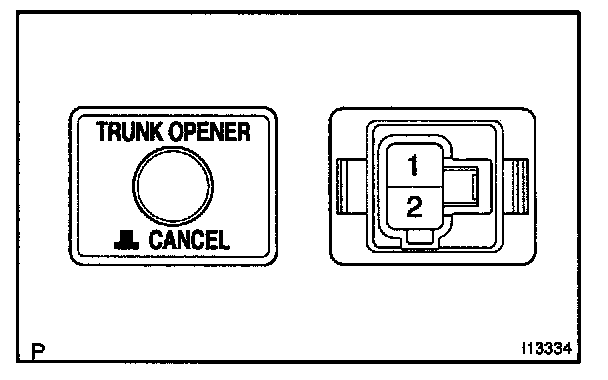

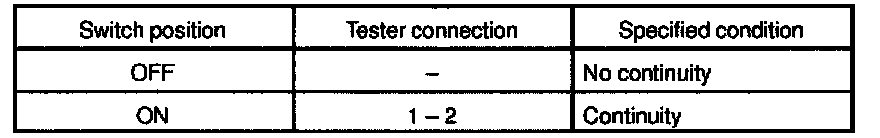

3. INSPECT LUGGAGE COMPARTMENT DOOR OPENER CANCEL SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

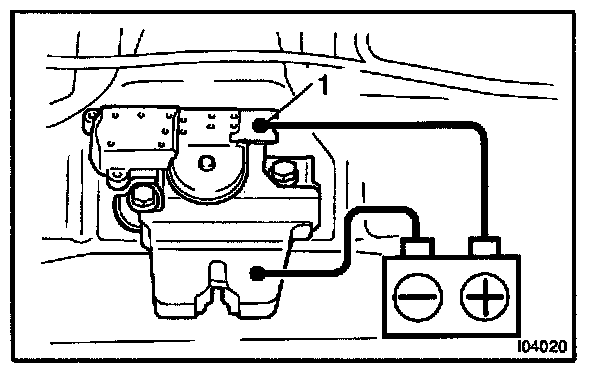

4. INSPECT LUGGAGE COMPARTMENT DOOR OPENER MOTOR OPERATION
Connect positive (+) lead to the terminal 1 and negative (-) lead to the opener motor body, and check that the motor operated. If operation is not as specified, replace the lock.
