Hood: Adjustments
HOODADJUSTMENT
HINT: Since the centering bolt is used as a hood hinge and lock set bolt, the hood and lock cannot be adjusted with it on. Substitute the bolt with washer for the centering bolts.

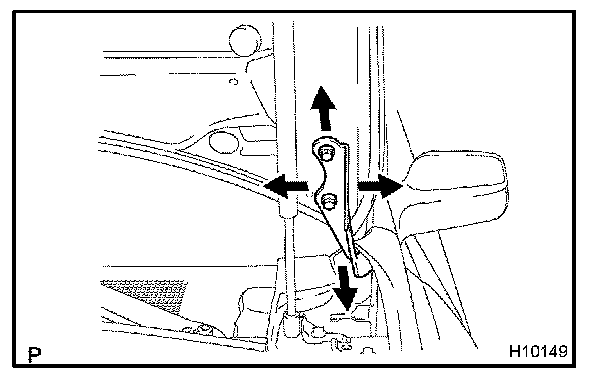

1. ADJUST HOOD IN FORWARD/REARWARD AND LEFT/RIGHT DIRECTIONS
Adjust the hood by loosening the hood side hinge bolts.
Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

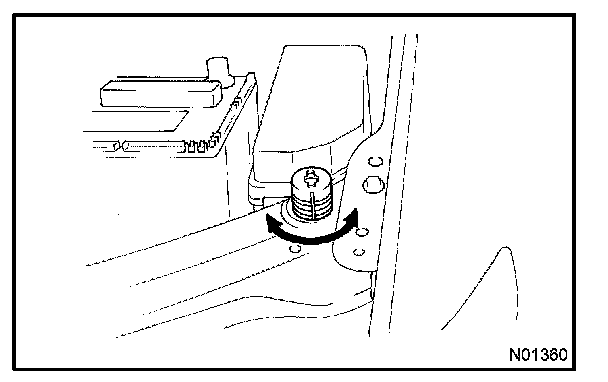

2. ADJUST FRONT EDGE OF HOOD IN VERTICAL DIRECTION
Adjust the hood by turning the cushions.

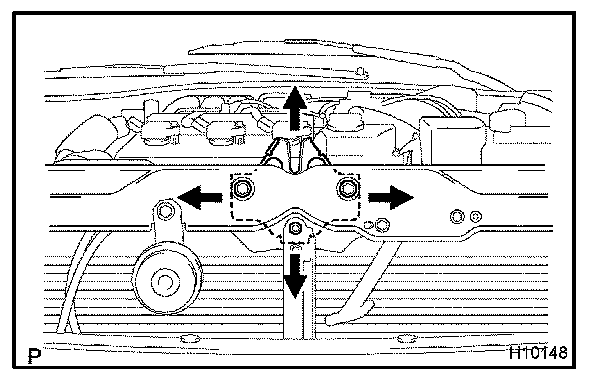

3. ADJUST HOOD LOCK
Adjust the lock by loosening the 2 bolts and nut.
Torque: 6.9 N.m (70 kgf.cm, 61 in.lbf)
