Rear Door: Adjustments
ADJUSTMENT1. ADJUST DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS
a. Remove the front door scuff plate.
b. Remove the center pillar lower garnish.
c. Remove the front seat belt floor anchor.
d. Remove the front seat belt retractor.
e. Remove the side airbag sensor assembly.

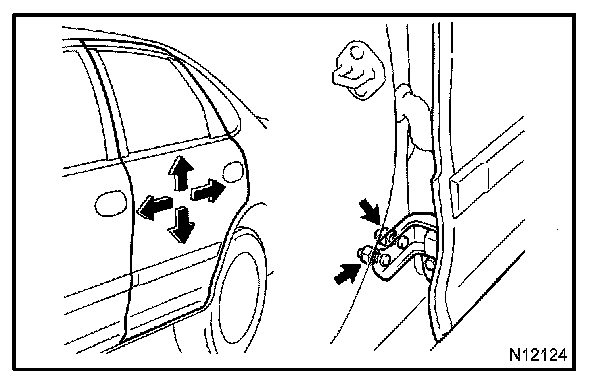

f. Loosen the body side hinge nuts to adjust.
Torque: 25 N.m (260 kgf.cm, 19 ft.lbf)
g. Reinstall the side airbag sensor assembly.
Torque: 20 N.m (205 kgf.cm, 15 ft.lbf)
h. Reinstall the front seat belt retractor.
Torque:
Upper bolt: 7.5 N.m (76 kgf.cm, 66 in.lbf)
Lower bolt: 41 N.m (420 kgf.cm, 30 ft.lbf)
i. Reinstall the front seat belt floor anchor.
Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)
j. Reinstall the center pillar lower garnish and front door scuff plate.
2. ADJUST DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS

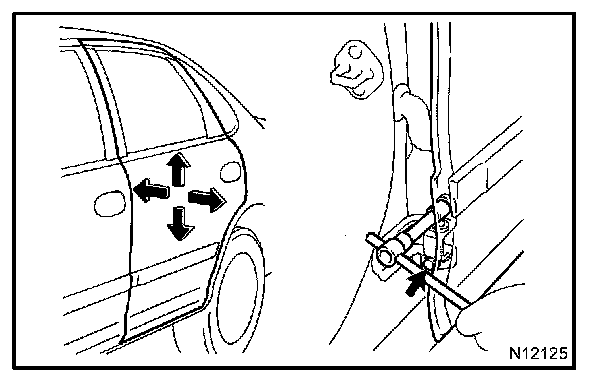

Loosen the door side hinge bolts to adjust.
Torque: 25 N.m (260 kgf.cm, 19 ft.lbf)
3. ADJUST DOOR LOCK STRIKER
a. Check that the door fit and door lock linkages are adjusted correctly.
b. Loosen the striker mounting screws to adjust.
Torque: 23 N.m (230 kgf.cm, 17 ft.lbf)

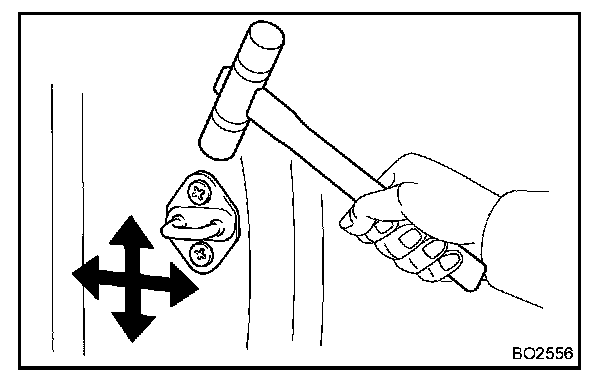

c. Using a plastic hammer, tap the striker to adjust it.
