FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Toyota >> 2004 >> Avalon V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Passenger Door Control System >> Symptom Index

Symptom Index

Problem Symptom Table - Power Window Control System:

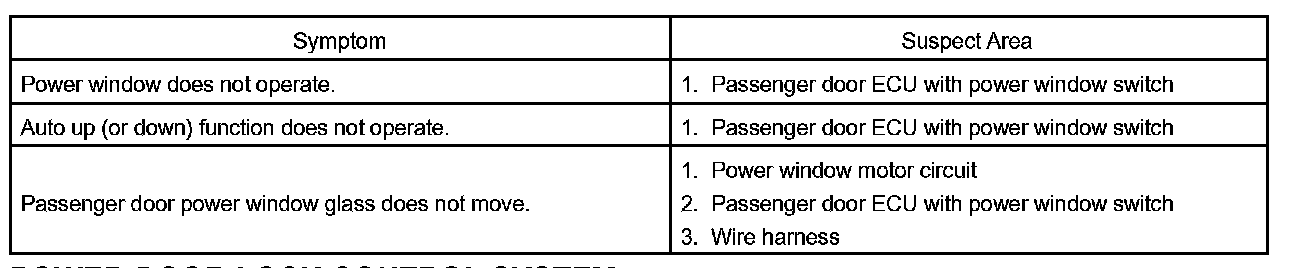

Problem Symptom Table - Power Window Control System:

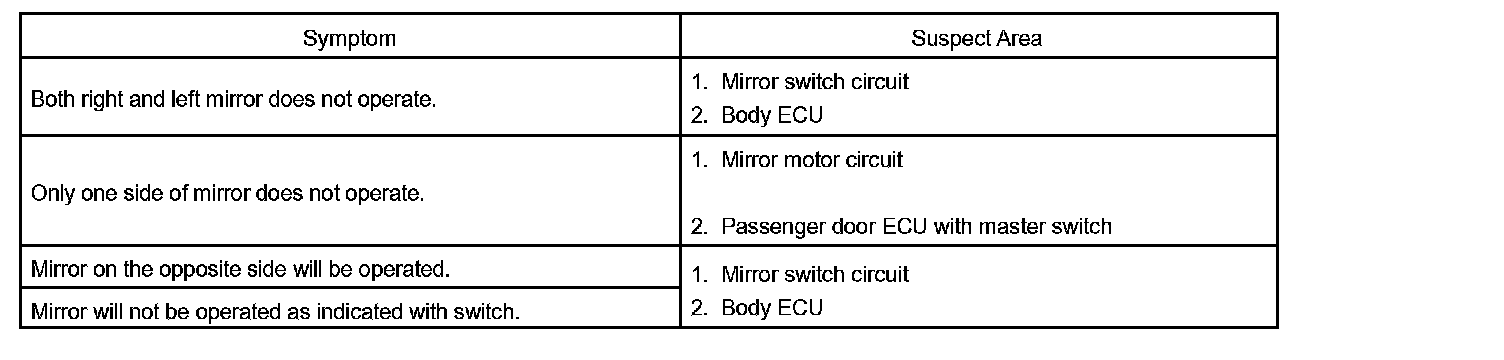

Problem Symptom Table - Power Mirror Control System:
