Door Courtesy Light Circuit
CIRCUIT DESCRIPTIONThe door courtesy switch goes on when the door is opened and goes off when door is closed.

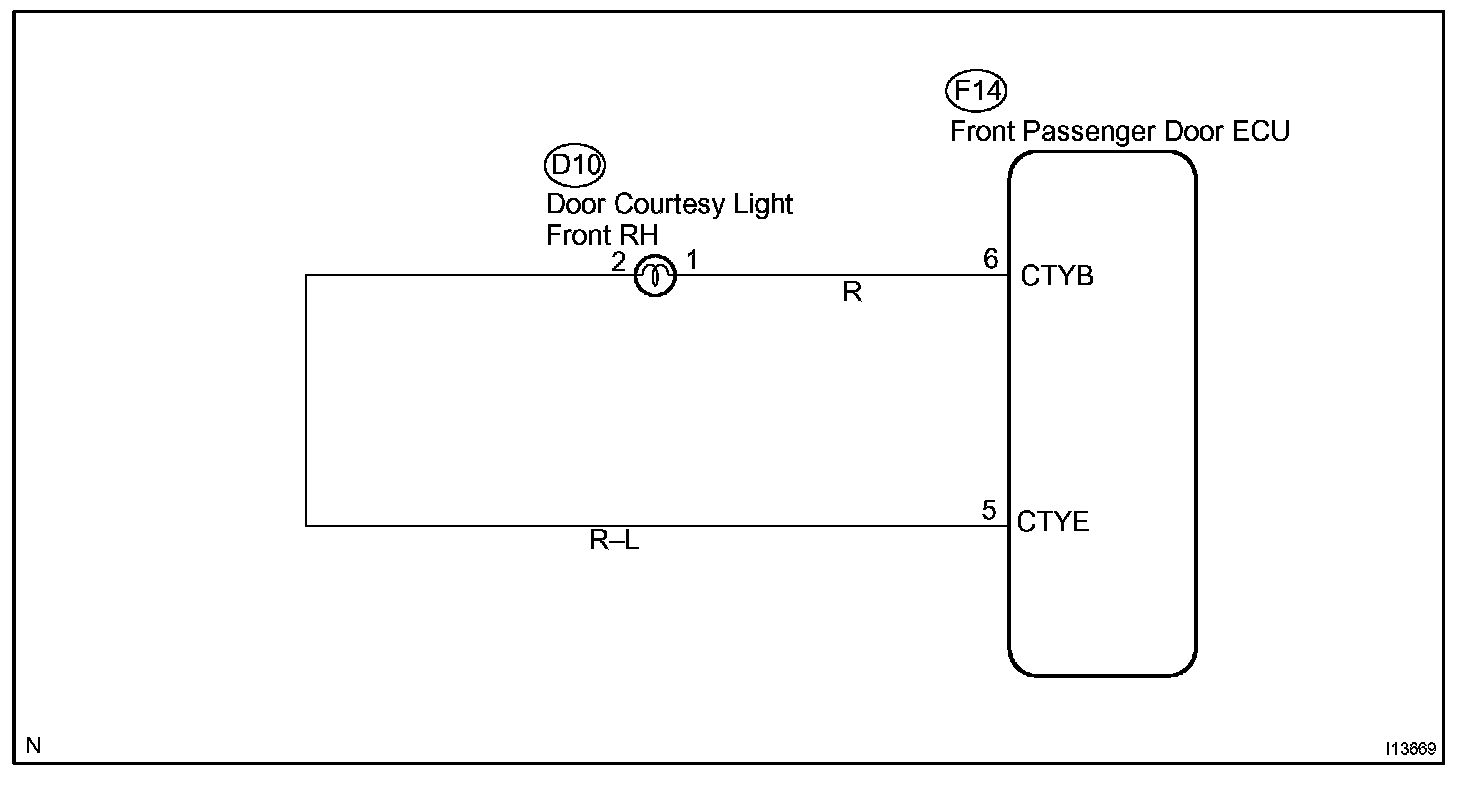

Wiring Diagram:

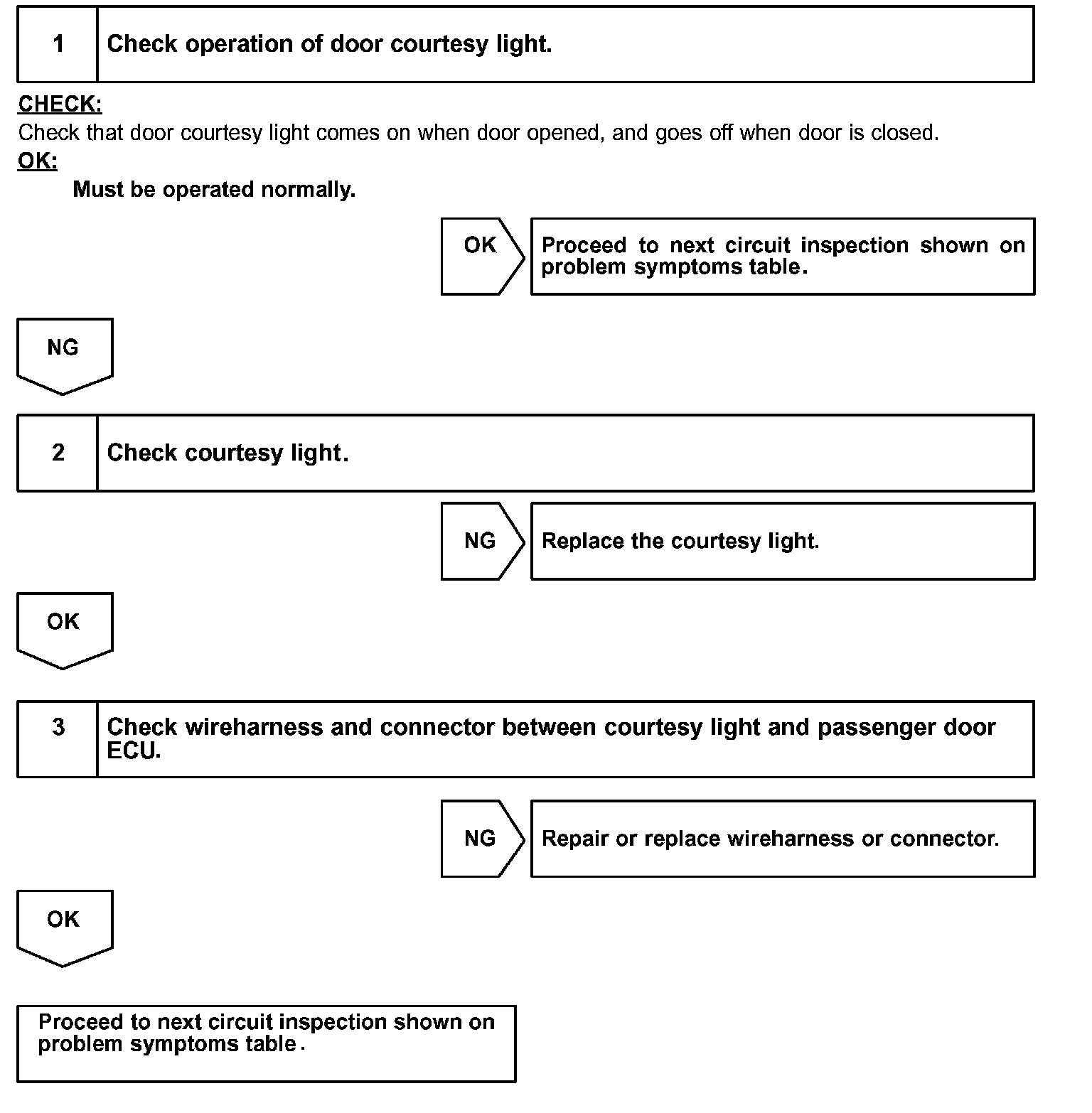

Step 1 - 3:
INSPECTION PROCEDURE
The door courtesy switch goes on when the door is opened and goes off when door is closed.
INSPECTION PROCEDURE
