Passenger Buckle Sw and Seat Belt Warning / Detection Sensor

Passenger Buckle Switch and Seat Belt Warning Occupant Detection Sensor

CIRCUIT DESCRIPTION

This circuit detects the conditions of the passenger buckle switch and the seat belt warning occupant detection sensor, and makes the passenger seat belt warning flash.

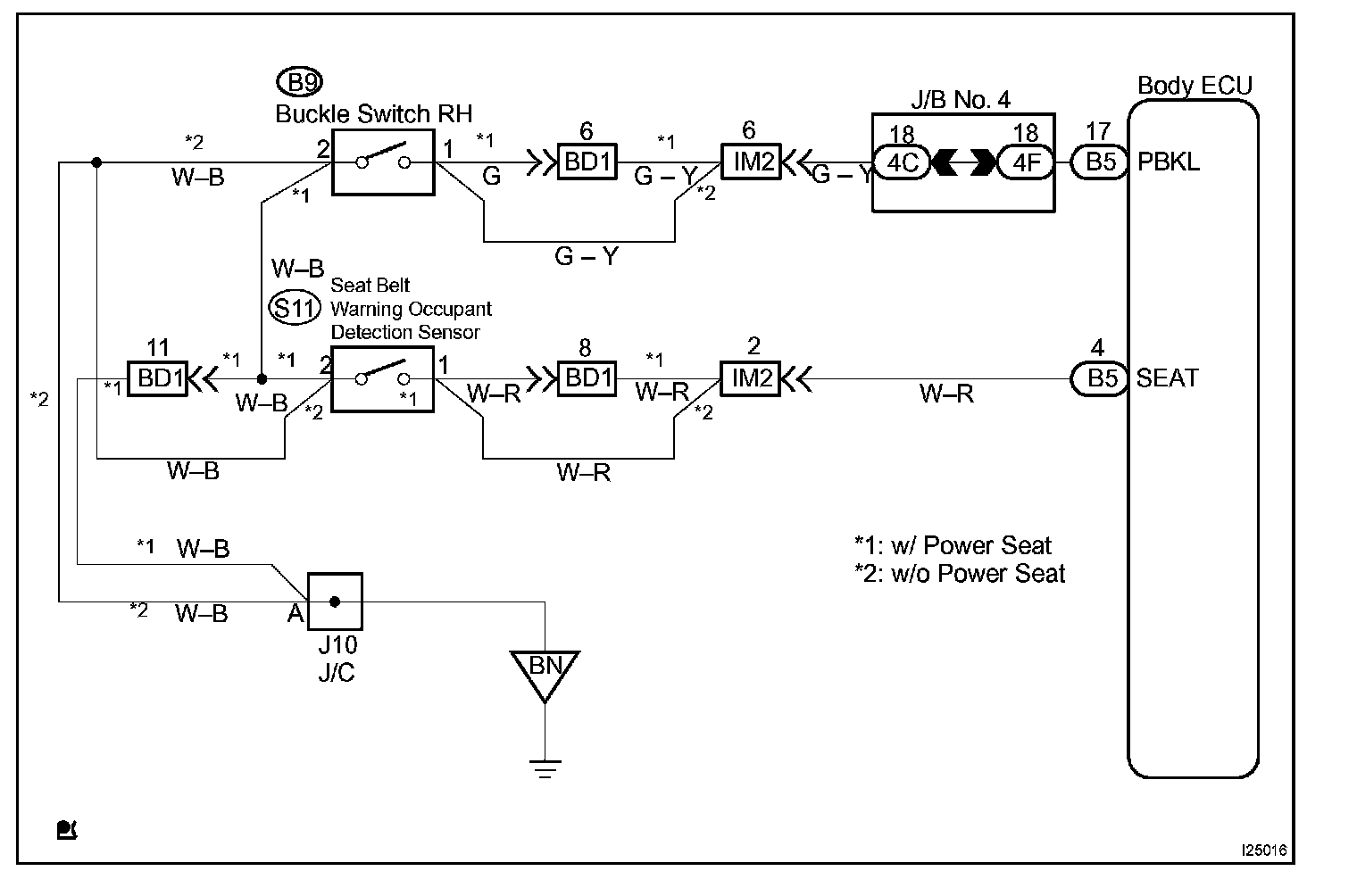

Wiring Diagram:

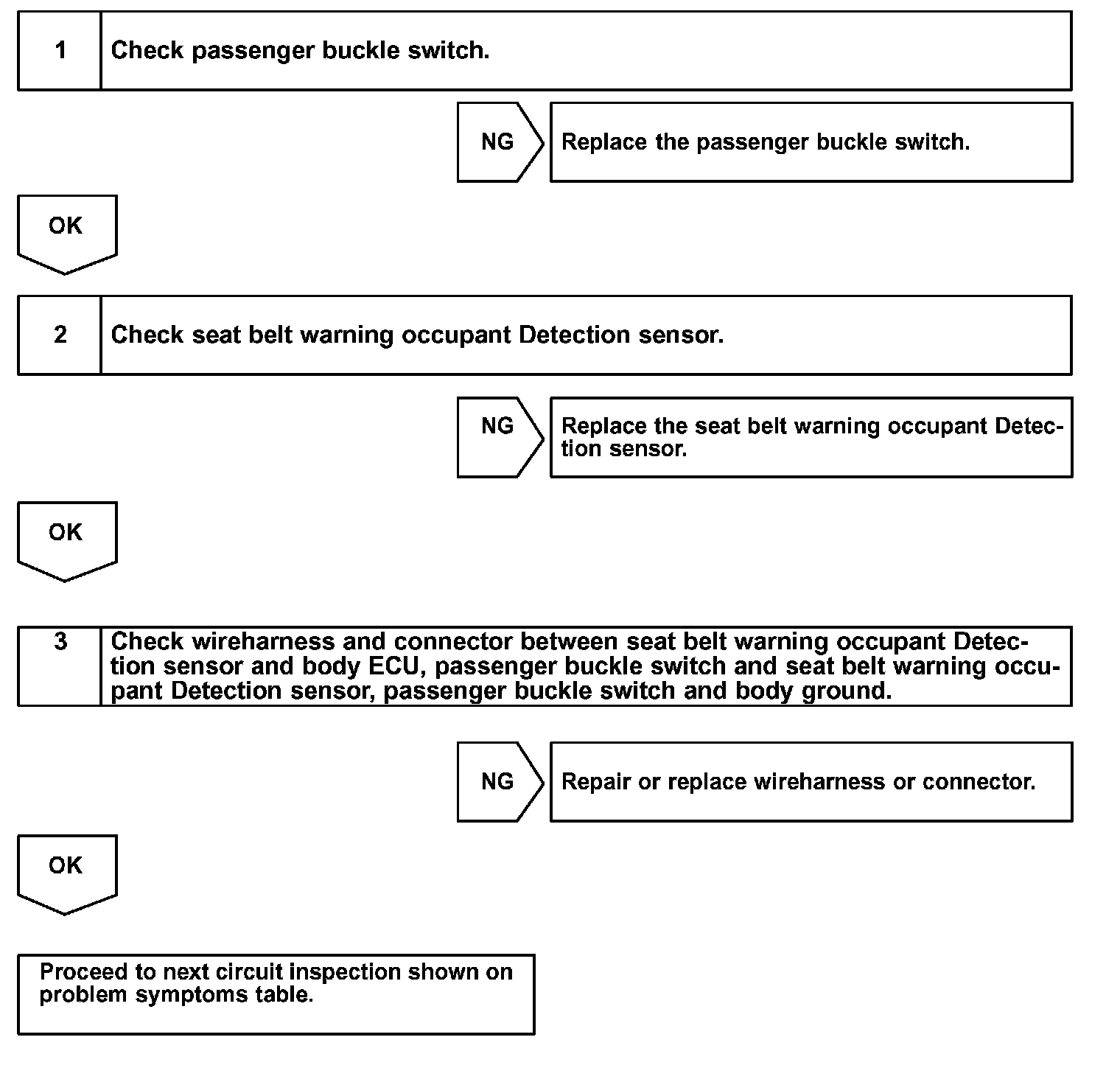

Step 1 - 3:

INSPECTION PROCEDURE
