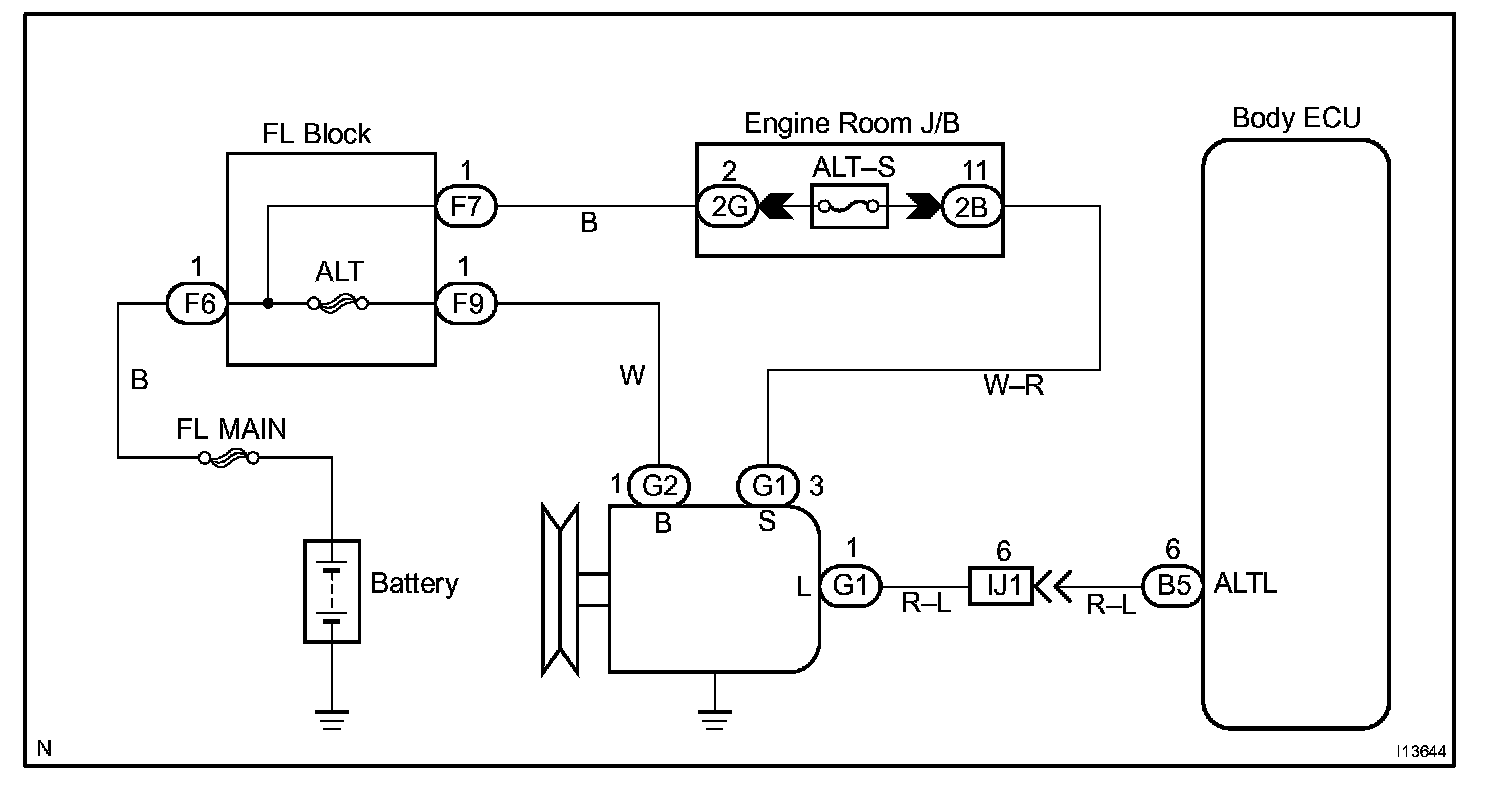

Generator L Terminal Circuit (w/ DRL Vehicle Only)

CIRCUIT DESCRIPTION

Body ECU receives the generator L signal and outputs it to the Day time running light relay.

Day time running light relay judges whether the engine rotates or not with this generator L signal and makes the Day time running light turn ON and OFF.
