Home >> Toyota >> 2004 >> Avalon V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Body Control System >> Symptom Diagnostic Procedures >> Daytime Running Light No. 2, 3 and 4 Relay Circuit

Daytime Running Light No. 2, 3 and 4 Relay Circuit

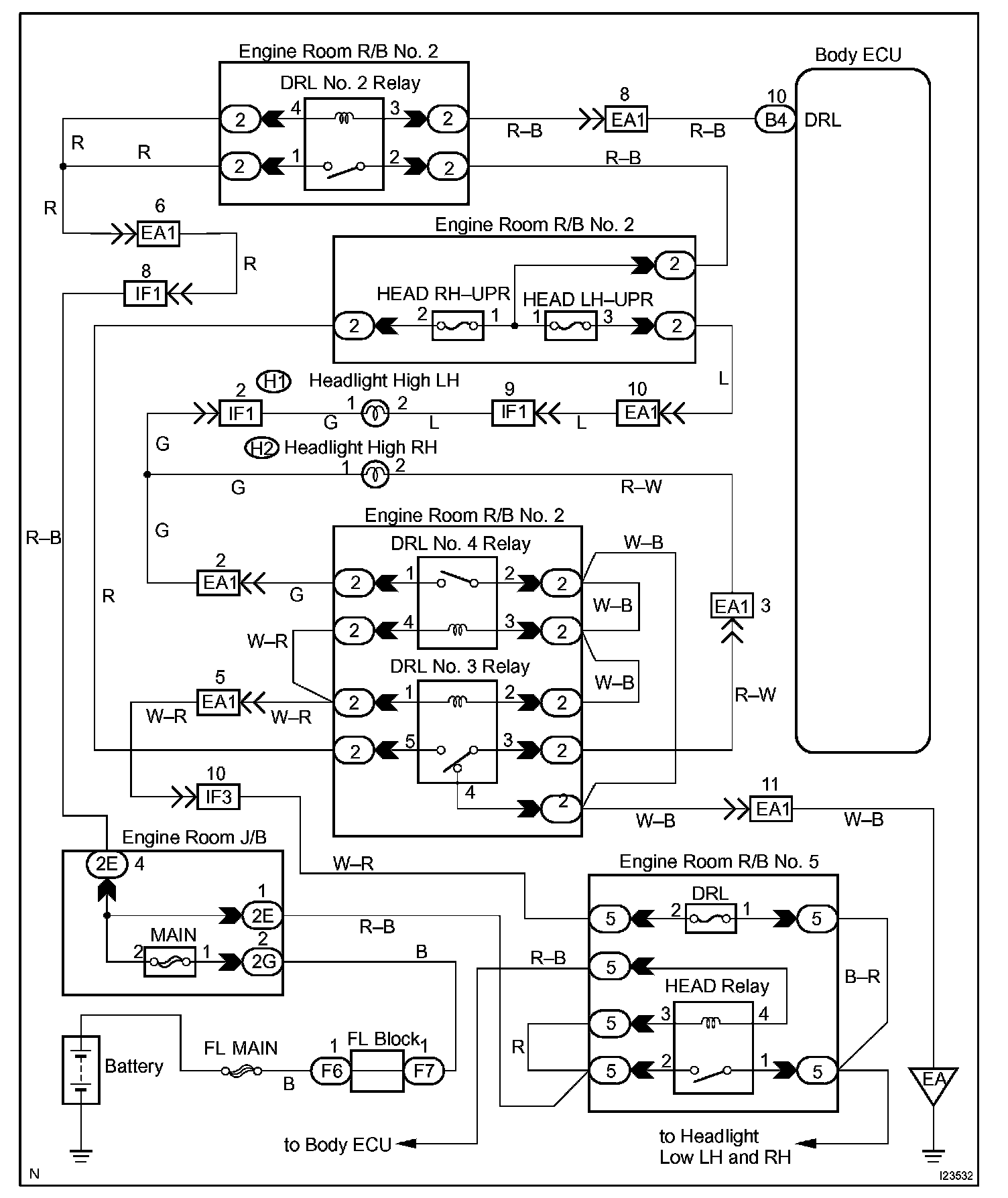

Wiring Diagram:

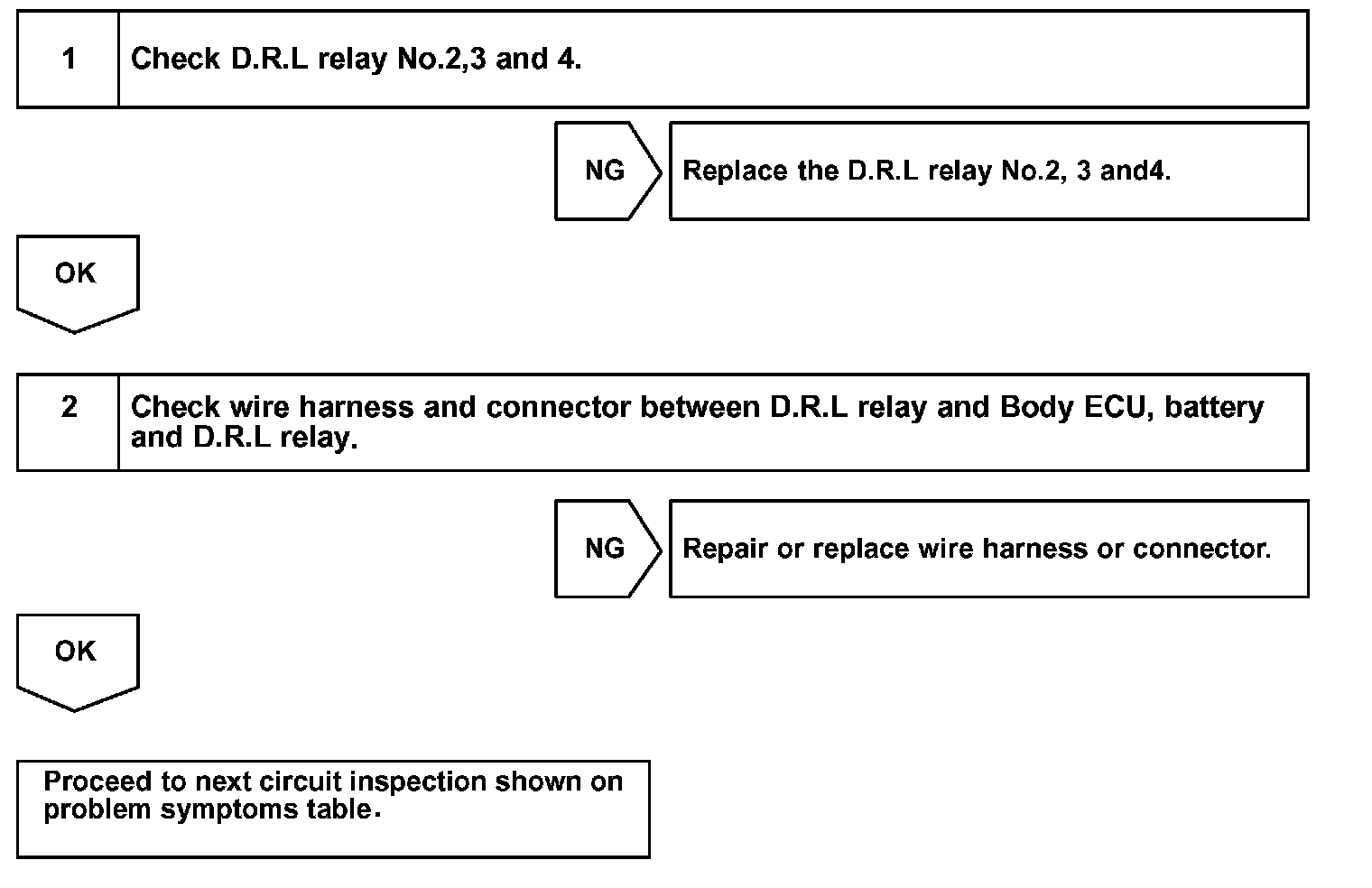

Step 1 - 2:




INSPECTION PROCEDURE
