Symptom Index

PROBLEM SYMPTOMS TABLE

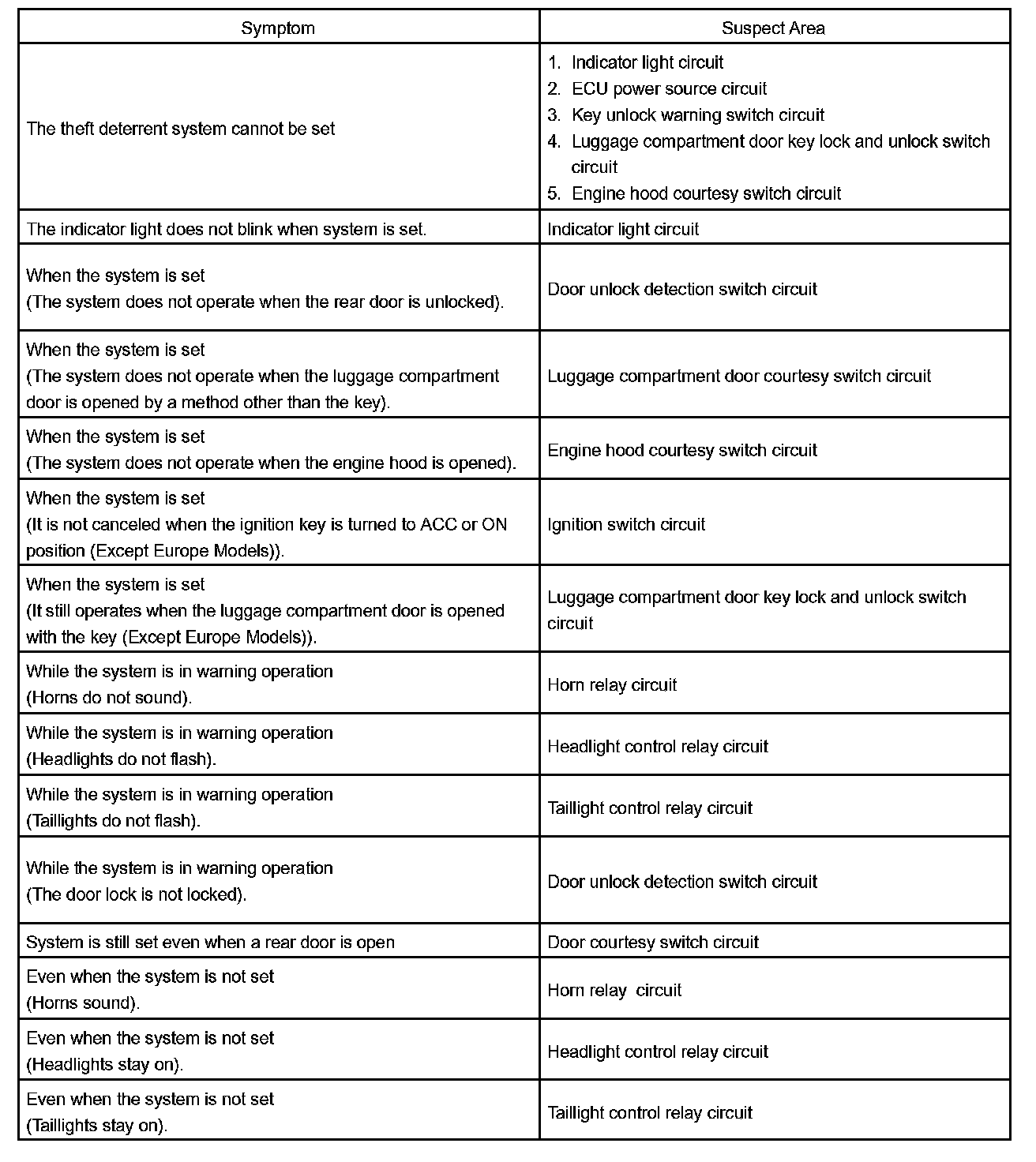

Problem Symptoms Table:

Proceed to the corresponding troubleshooting shown in the matrix chart for each malfunction symptom and troubleshoot for each circuit

HINT: Troubleshooting of the theft deterrent system is based on the premise that the door lock control system is operating normally. Accordingly, before troubleshooting the theft deterrent system, first make certain that the door lock control system is operating normally.
