Indicator Light Circuit

CIRCUIT DESCRIPTION

When the theft deterrent system is preparing to set, this circuit lights up the indicator light. When the system has been set, it continuously turns the indicator light on for 0.75 secs. and turns it off for 1.25 secs., thus blinking the indicator light.

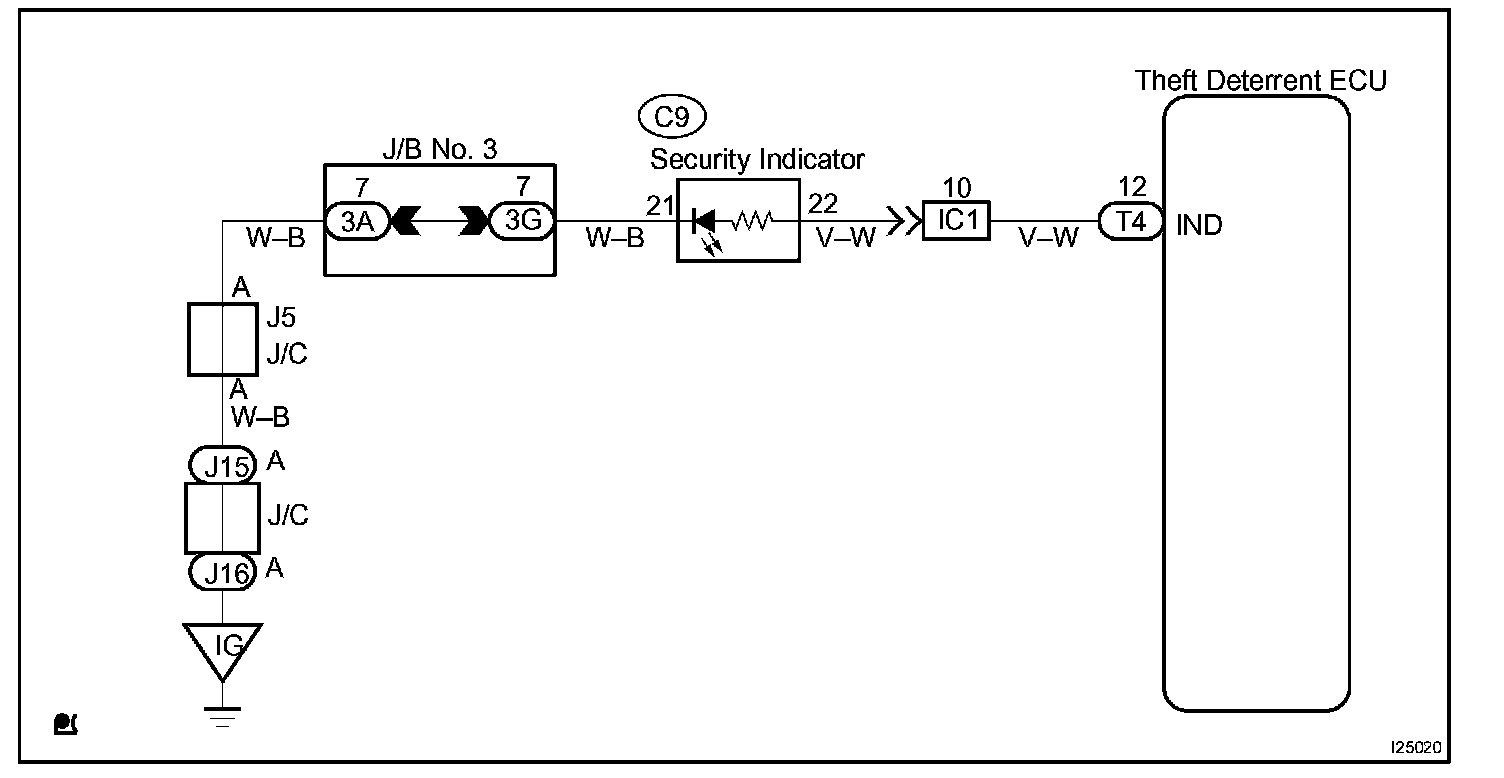

Wiring Diagram:

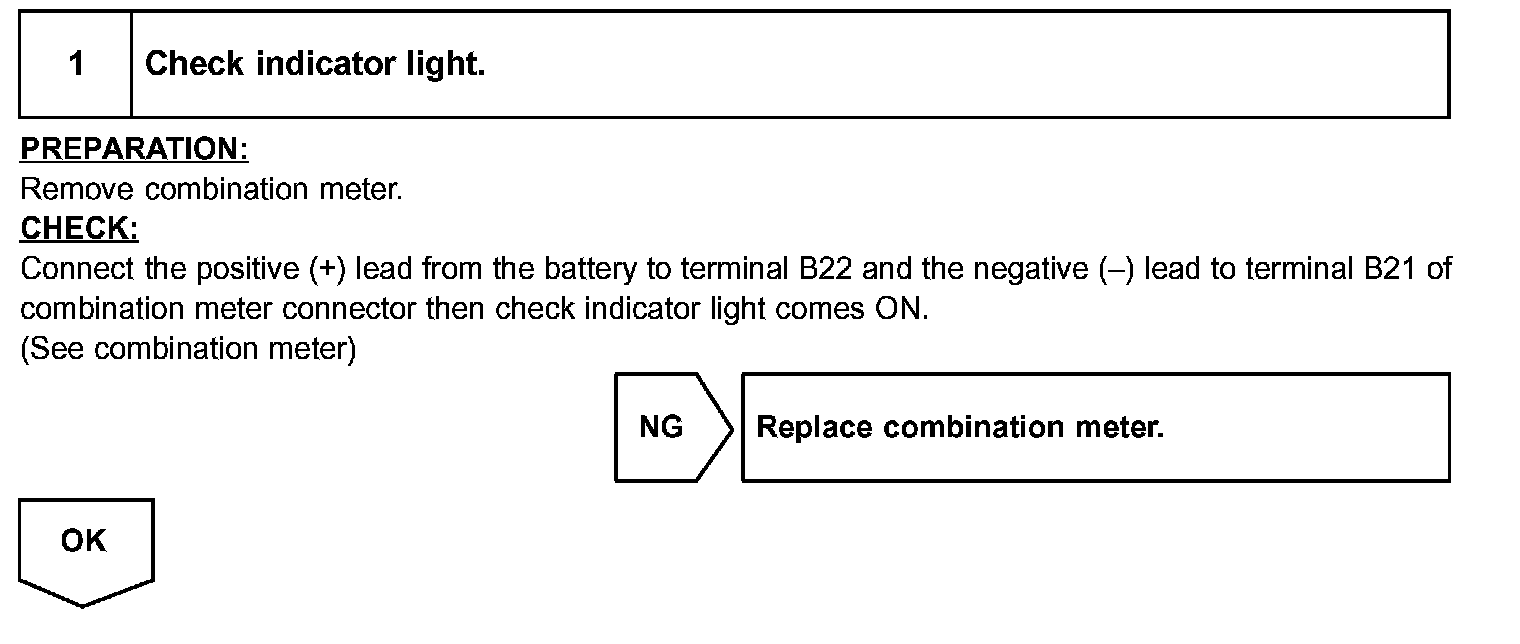

Step 1:

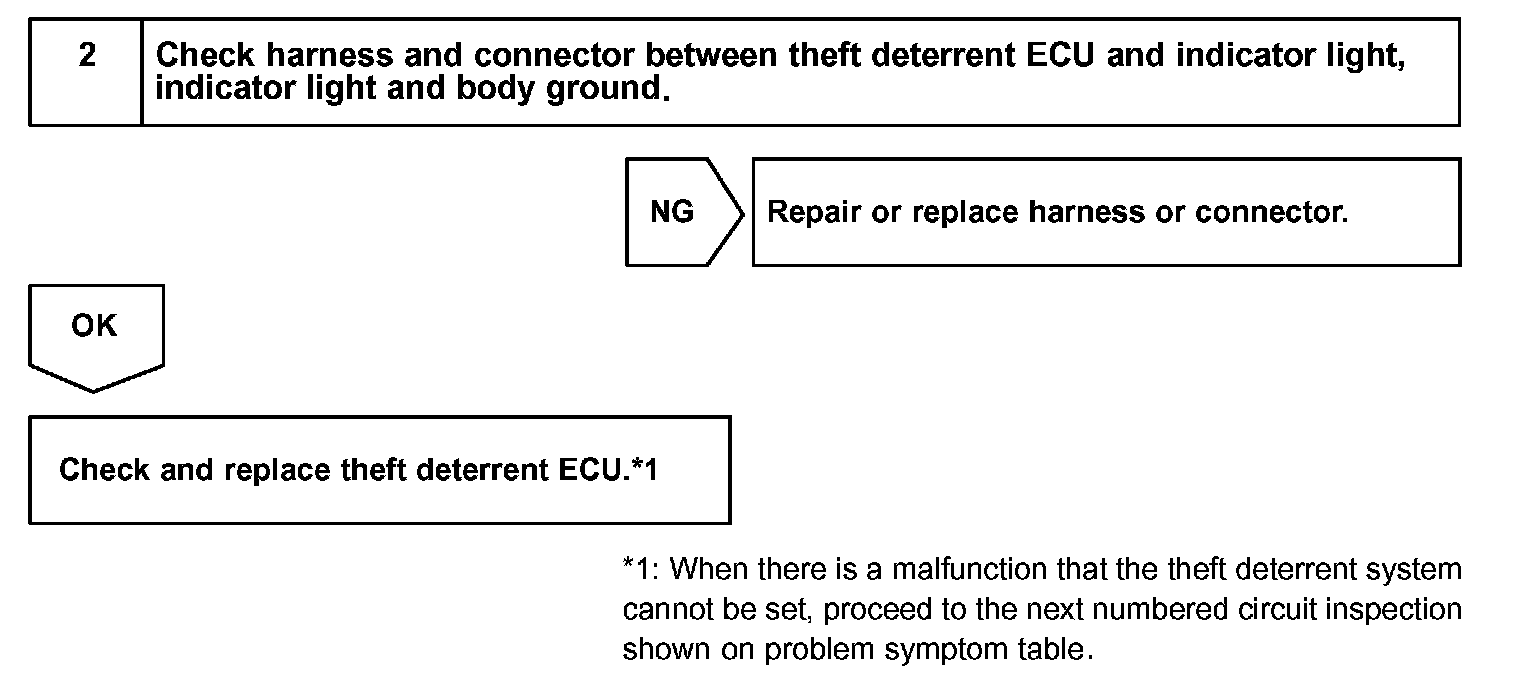

Step 2:

INSPECTION PROCEDURE
