DTC P2725 Pressure Control Solenoid "E" Electrical

CIRCUIT DESCRIPTION

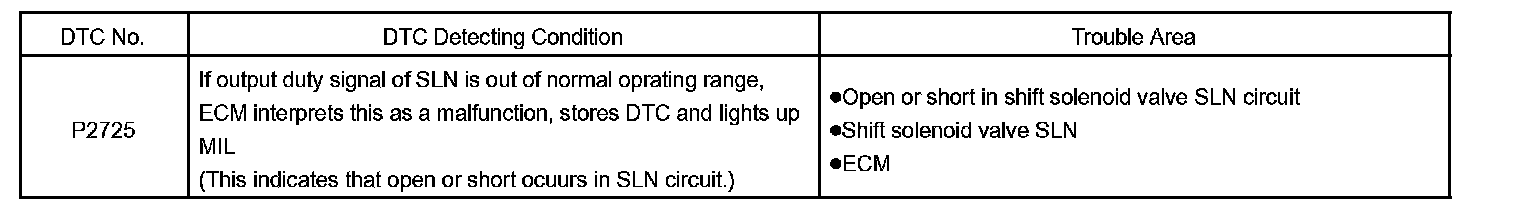

DTC Detecting Condition:

The shift solenoid valve SLN controls the hydraulic pressure acting on the accumulator control valve when gears are shifted and performs smooth gear shifting.

The ECM determines optimum operating pressure according to the signals from the throttle position sensor, vehicle speed sensor and direct clutch speed sensor and controls the volume of current flow to the solenoid valve.

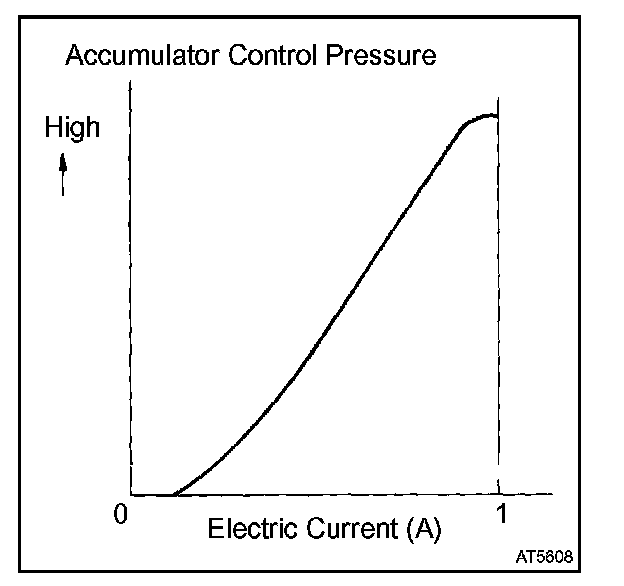

The amount of current to the solenoid is controlled by the (*) duty ratio of the ECM output signals, causing a momentary change to the hydraulic pressure acting on the clutches during gear shifting.
When the duty ratio is high, the hydraulic pressure acting on the clutches is low.

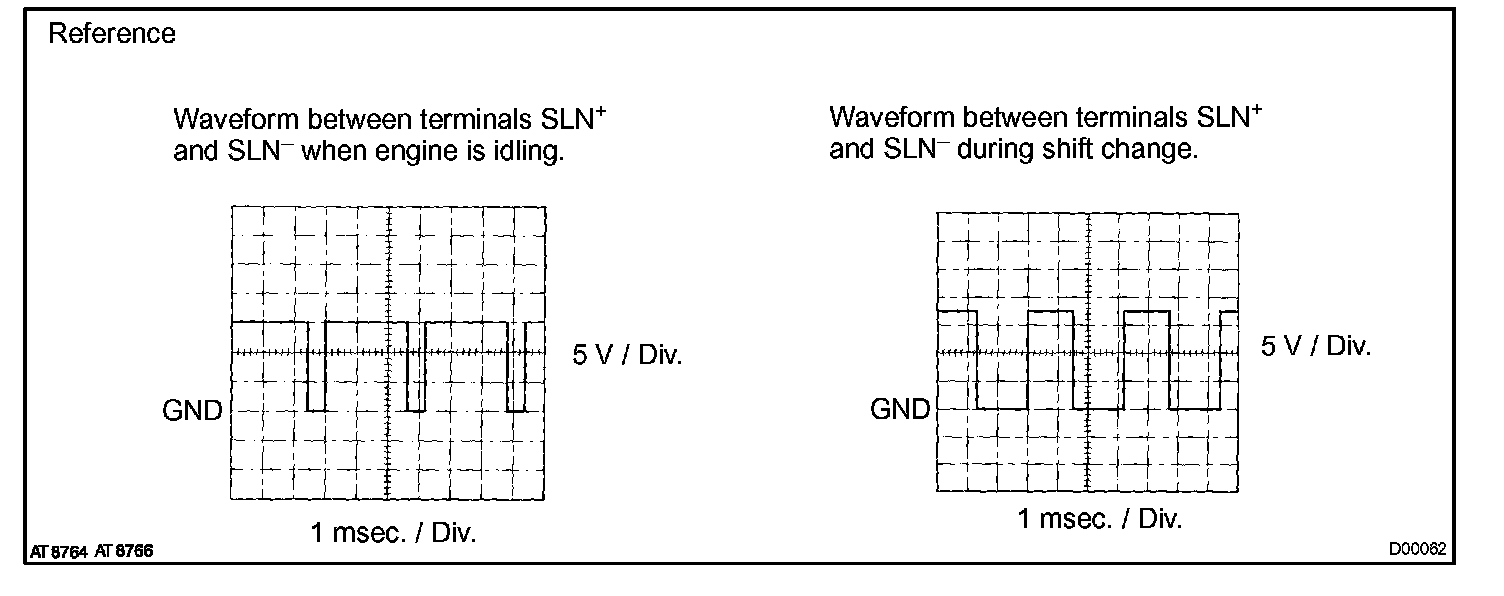

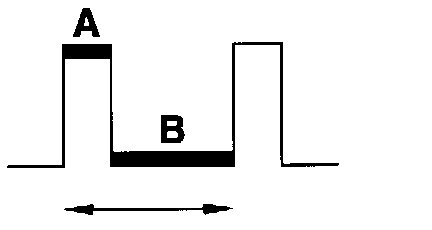

(*) Duty Ratio: The duty ratio is the ratio of the period of continuity in one cycle. For example, if A is the period of continuity in one cycle, and B is the period of non continuity, then

Duty Ratio = A/(A+B) X 100(%)

MONITOR DESCRIPTION

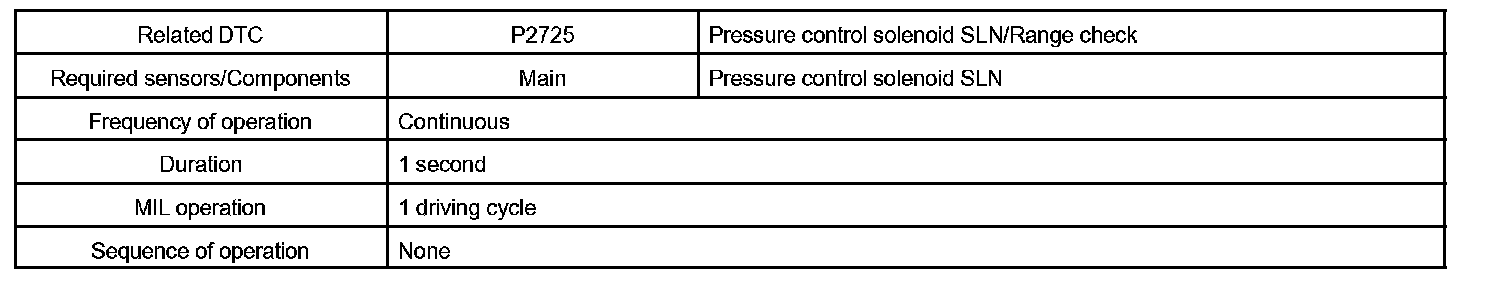

Monitor Strategy:

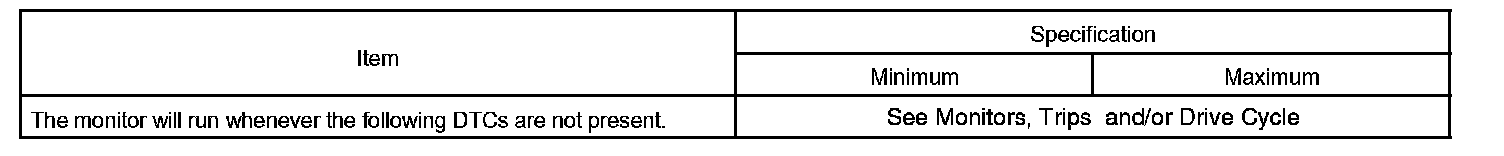

Typical Enabling Conditions:

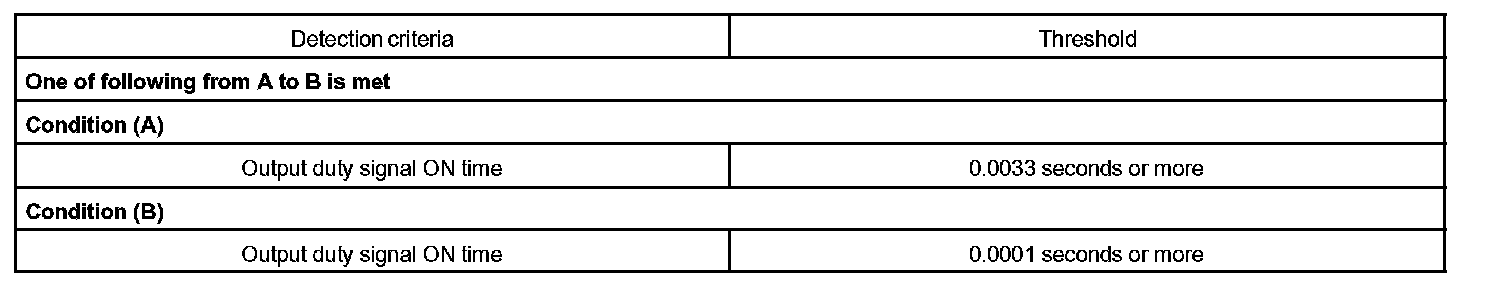

Typical Malfunction Thresholds:

The shift solenoid valve SLN controls the oil pressure to the accumulator control valve to reduce transmission gearshift shock.

The ECM decides the appropriate oil pressure based on the signals from the throttle position sensor, the output speed sensor and the input speed sensor, and adjusts the oil pressure by sending a duty-ratio signal to the shift solenoid valve SLN.

The ECM illuminates the MIL and sets a DTC when it detects an open or a short circuit malfunction in the shift solenoid valve SLN.

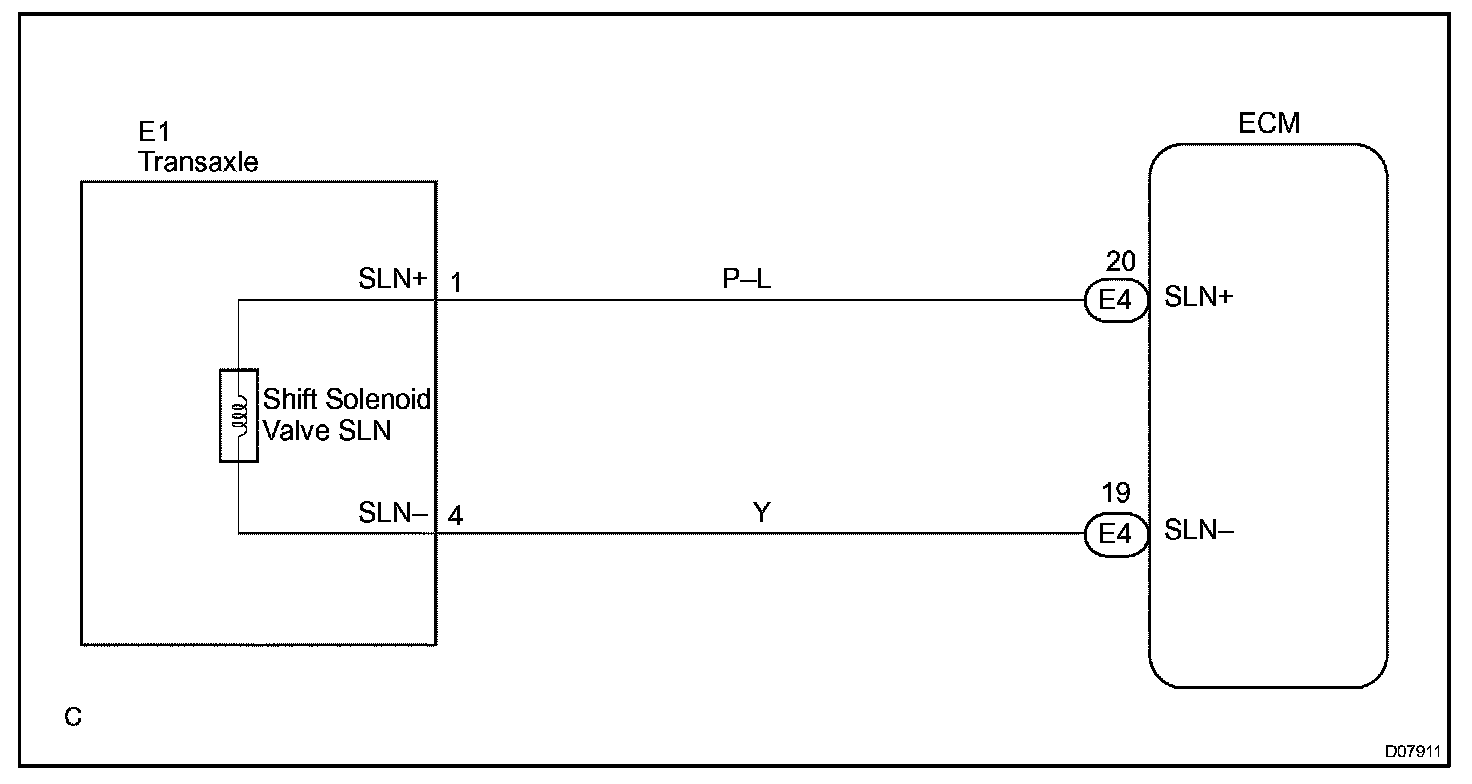

Wiring Diagram:

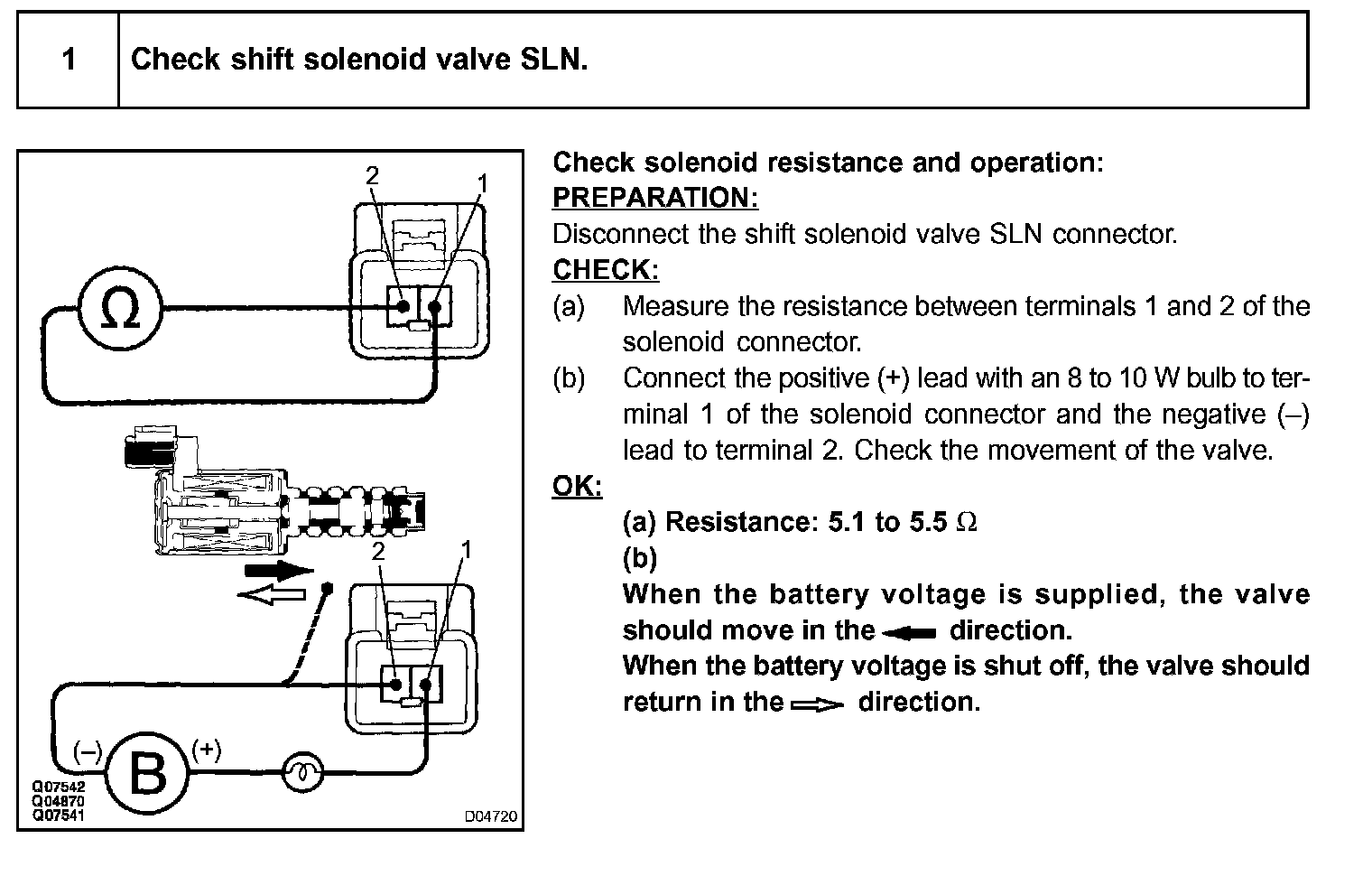

Step 1:

Step 1 (Continued) - 2:

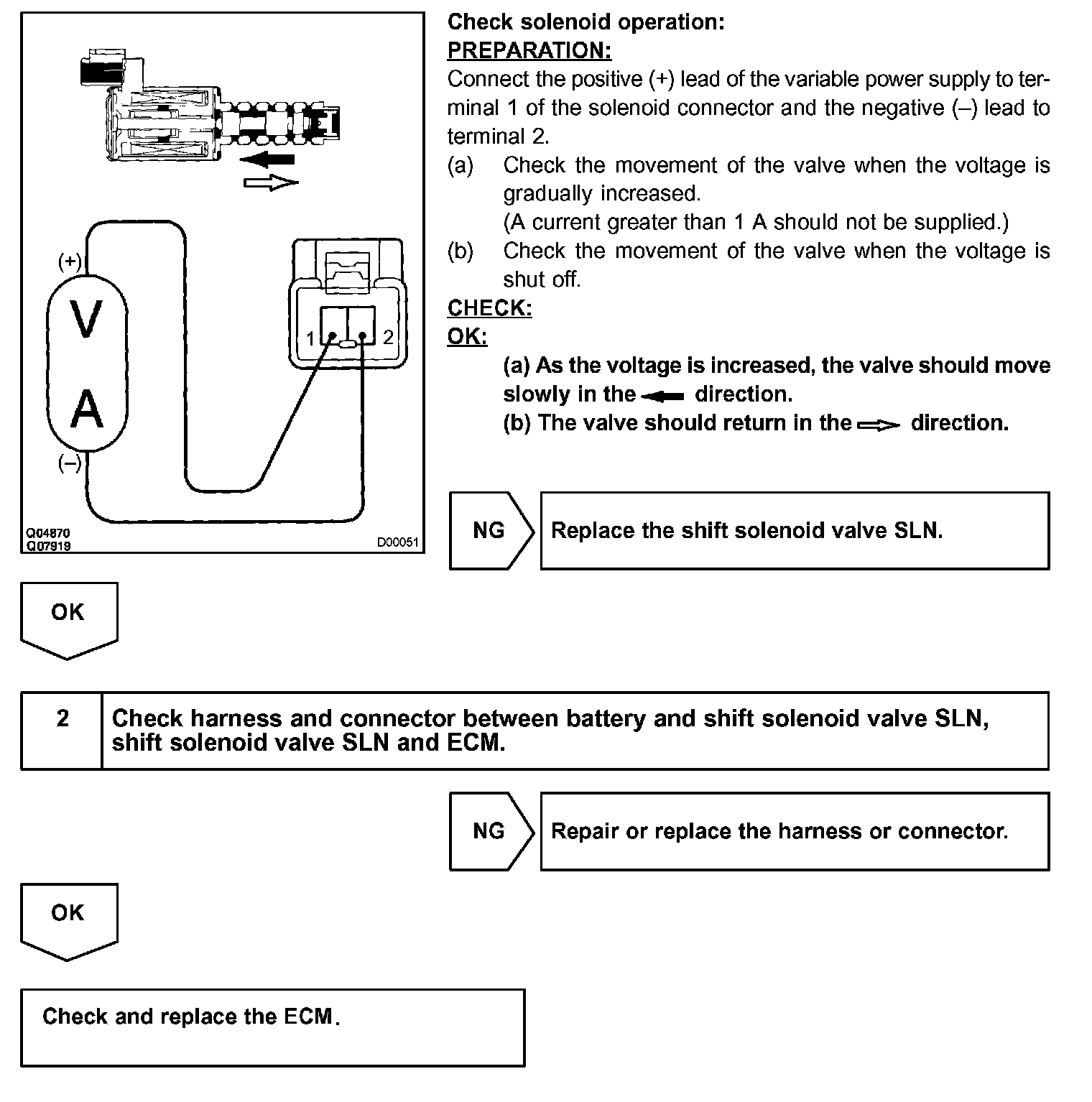

INSPECTION PROCEDURE
