Troubleshooting

DTC P0420 Catalyst System Efficiency Below Threshold (Bank 1)

CIRCUIT DESCRIPTION

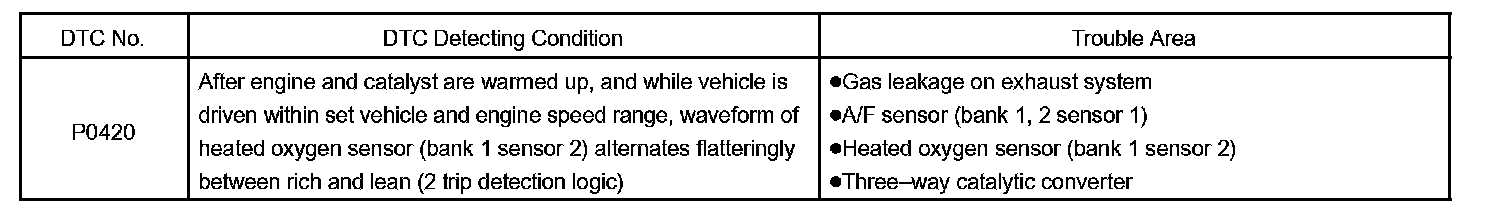

DTC Detecting Condition:

The ECM observes the waveform of the heated oxygen sensor located behind the catalyst to determine whether the catalyst performance has deteriorated.
If the catalyst is functioning normally, the waveform of the heated oxygen sensor located behind the catalyst switches back and forth between rich and lean much more slowly.

When the waveform of the heated oxygen sensor located behind the catalyst alternates flatteringly between rich and lean, it indicates that catalyst performance has deteriorated.

MONITOR DESCRIPTION

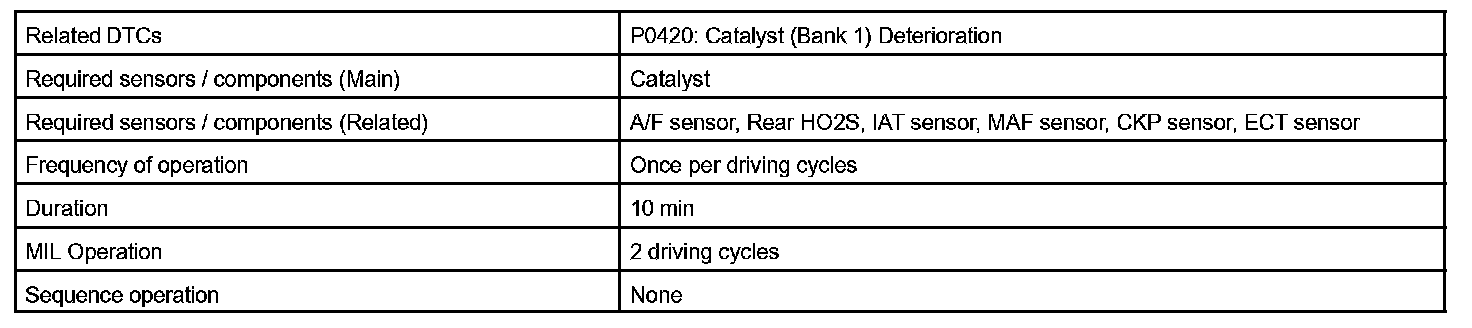

Monitor Strategy:

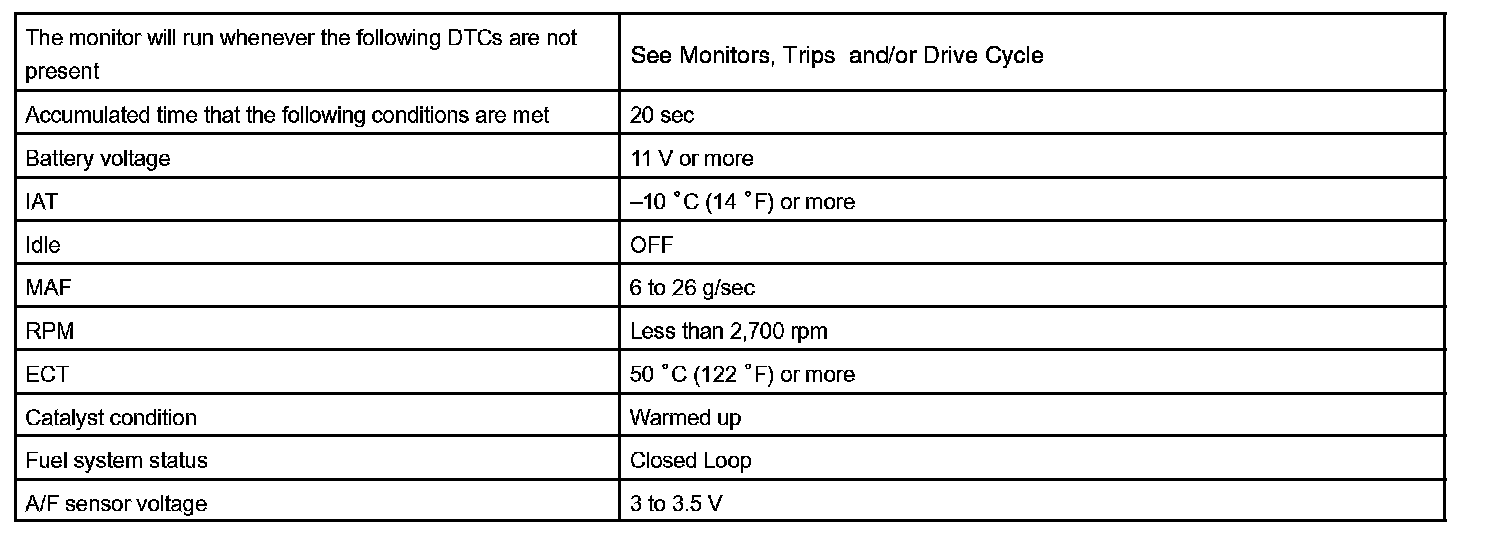

Typical Enabling Conditions:

Typical Malfunction Thresholds:

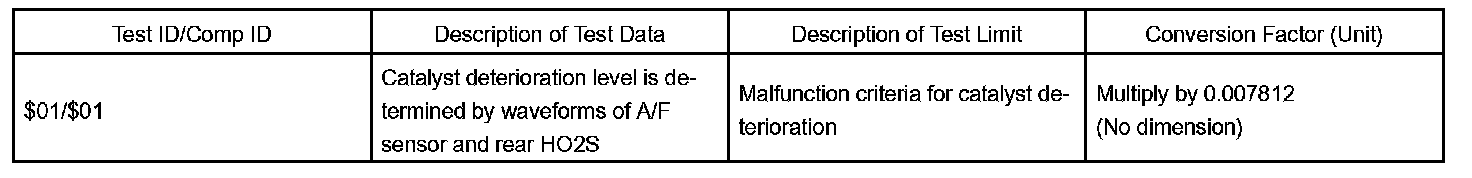

Monitor Result (Mode 06):

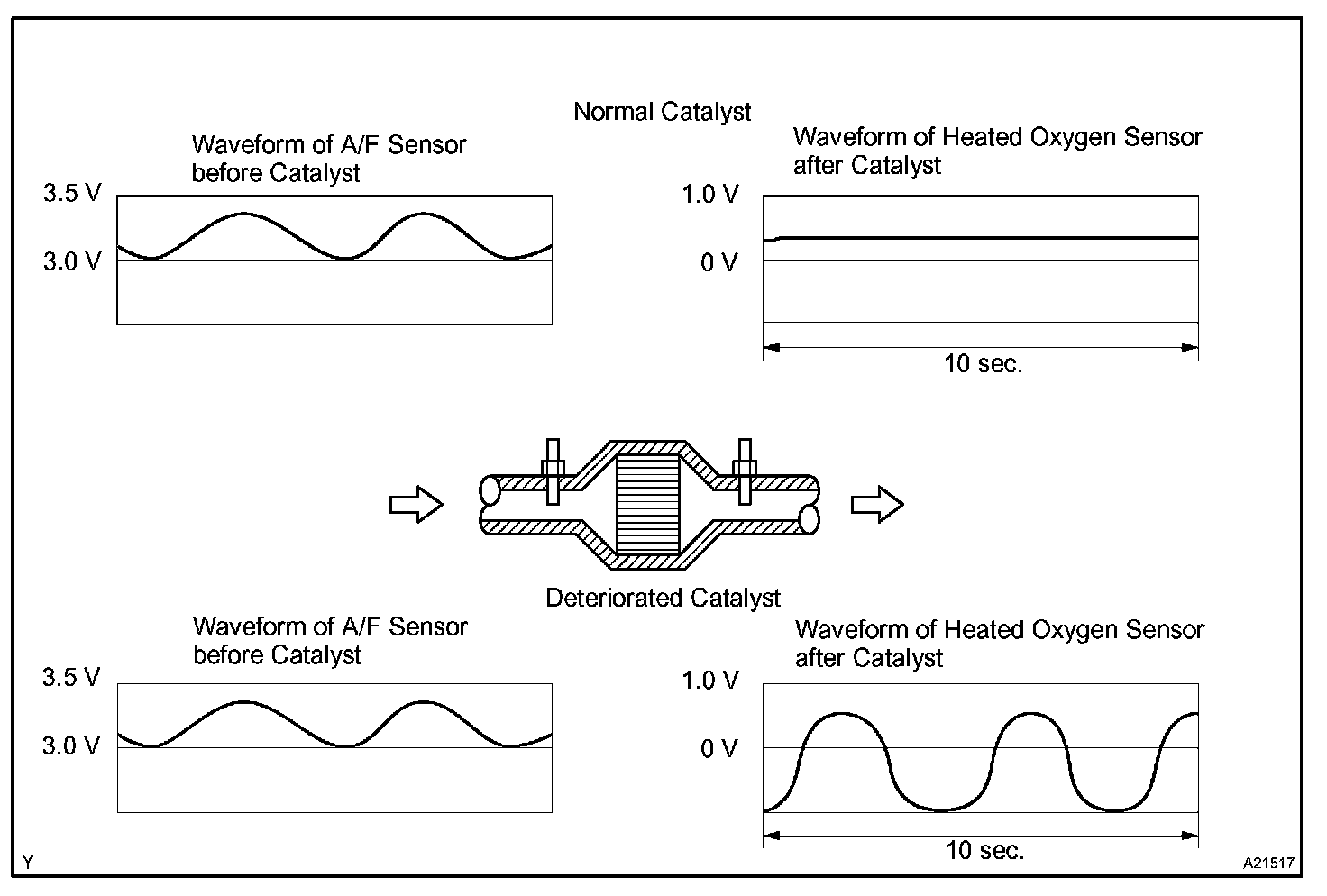

The ECM uses sensors mounted before and after the three-way catalyst (TWC) to monitor its' efficiency. The first sensor, an air fuel ratio sensor (A/F sensor), sends pre-catalyst A/F ratio information to the ECM. The second sensor, a heated oxygen sensor (O2S), sends post-catalyst information to the ECM. The ECM compares these two signals to judge the efficiency of the catalyst and the catalyst's ability to store oxygen. During normal operation, the TWC stores and releases oxygen as needed. The capacity to store oxygen results in a low variation in the post-TWC exhaust stream as shown.

If the catalyst is functioning normally, the waveform of the heated oxygen sensor slowly switches between RICH and LEAN.

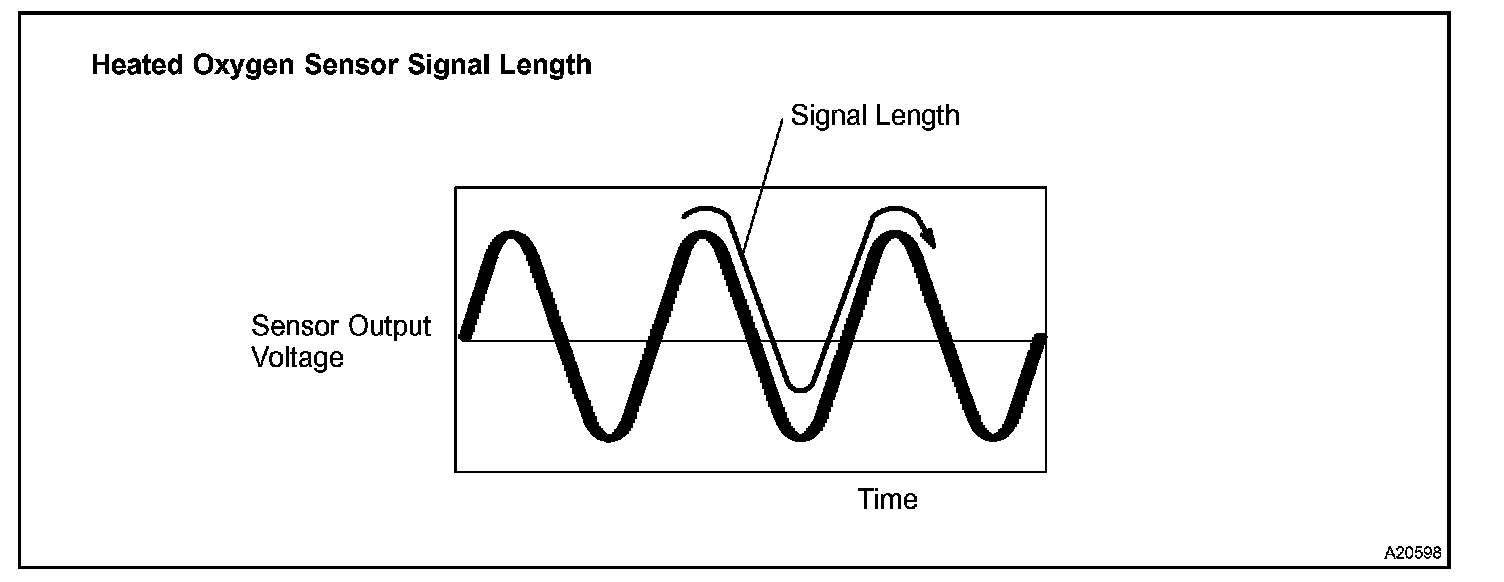

If the catalyst is deteriorated, the waveform will alternate frequently between RICH and LEAN. As the catalyst efficiency degrades, its ability to store oxygen is reduced and the catalyst output becomes more variable. When running the monitor, the ECM compares sensor 1 signals (A/F sensor) over a specific amount of time to determine catalyst efficiency. The ECM begins by calculating the signal length for both sensors (for the rear oxygen sensor, the ECM uses the output voltage signal length).

If the oxygen sensor output voltage signal length is greater than the threshold (threshold is calculated based on the A/F sensor signal length), the ECM concludes that the catalyst is malfunctioning. The ECM will turn on the MIL and a DTC will be set.

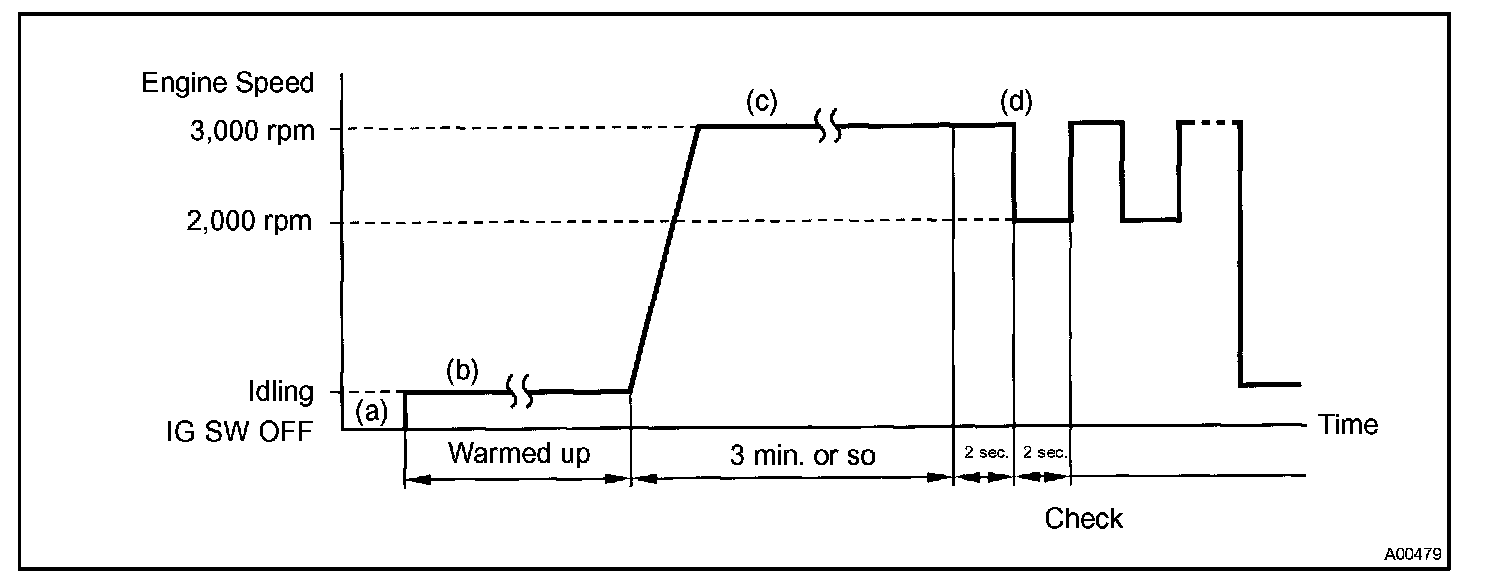

CONFIRMATION ENGINE RACING PATTERN

Confirmation Engine Racing Pattern:

a. Connect the OBD II scan tool or hand-held tester to the DLC3.
b. Start engine and warm it up with all the accessories switched OFF until the water temperature is stable.
c. Race the engine at 2,500 - 3,000 rpm for about 3 min.
d. When racing the engine at 3,000 rpm for 2 sec. and 2,000 rpm for 2 sec. alternately, check the waveform of the heated oxygen sensor (bank 1 sensor 2).

Step 1 - 2:

Step 3 - 4:

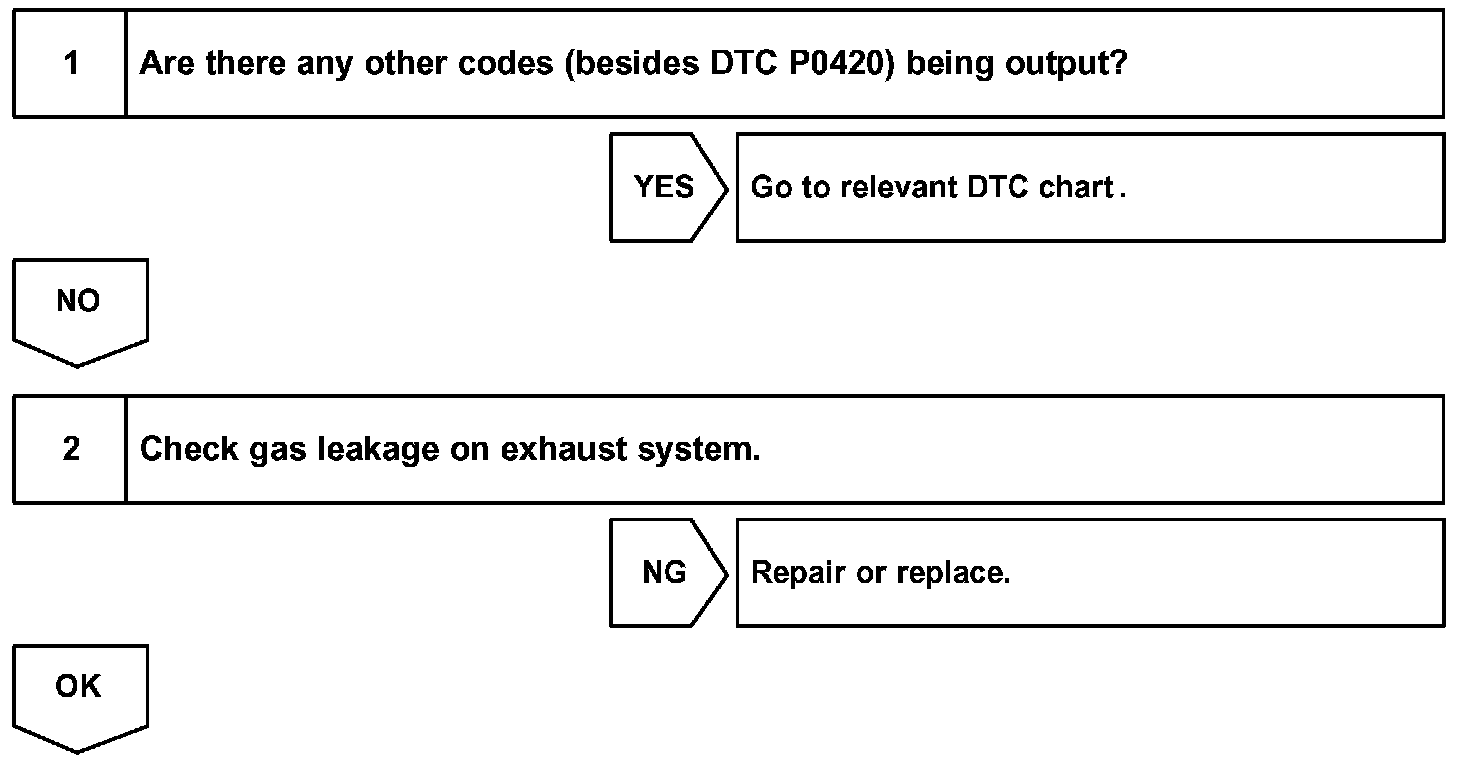

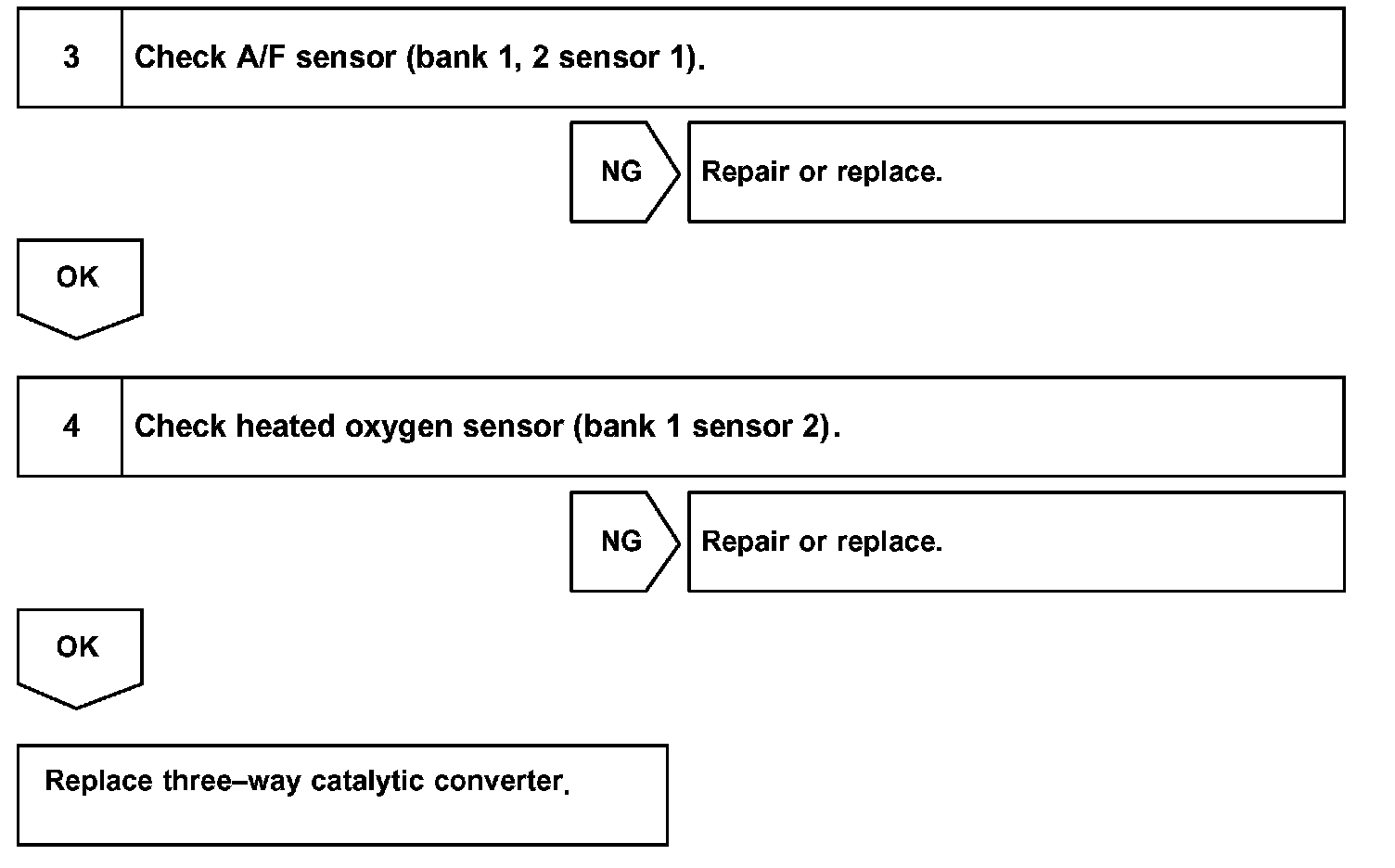

INSPECTION PROCEDURE

HINT: Read freeze frame data using OBD II scan tool or hand-held tester. Because freeze frame records the engine conditions when the malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
