Troubleshooting
DTC P0136 Oxygen Sensor Circuit Malfunction (Bank 1 Sensor 2)CIRCUIT DESCRIPTION

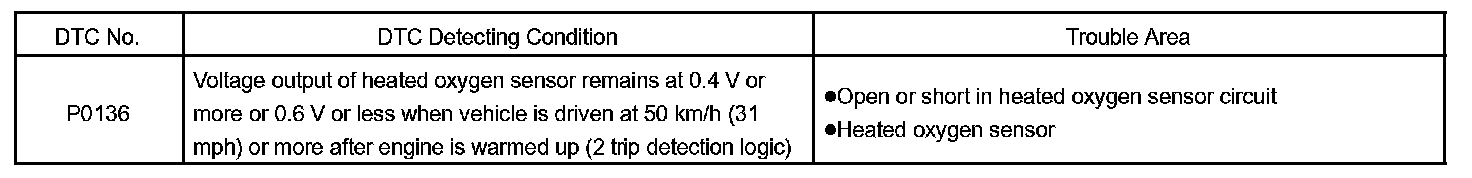

DTC Detecting Condition:
To obtain a high purification rate for the CO, HC and NOx components of the exhaust gas, a three-way catalytic converter is used, but for the most efficient use of the three-way catalytic converter, the air-fuel ratio must be precisely controlled so that it is always close to the stoichiometric air-fuel ratio.

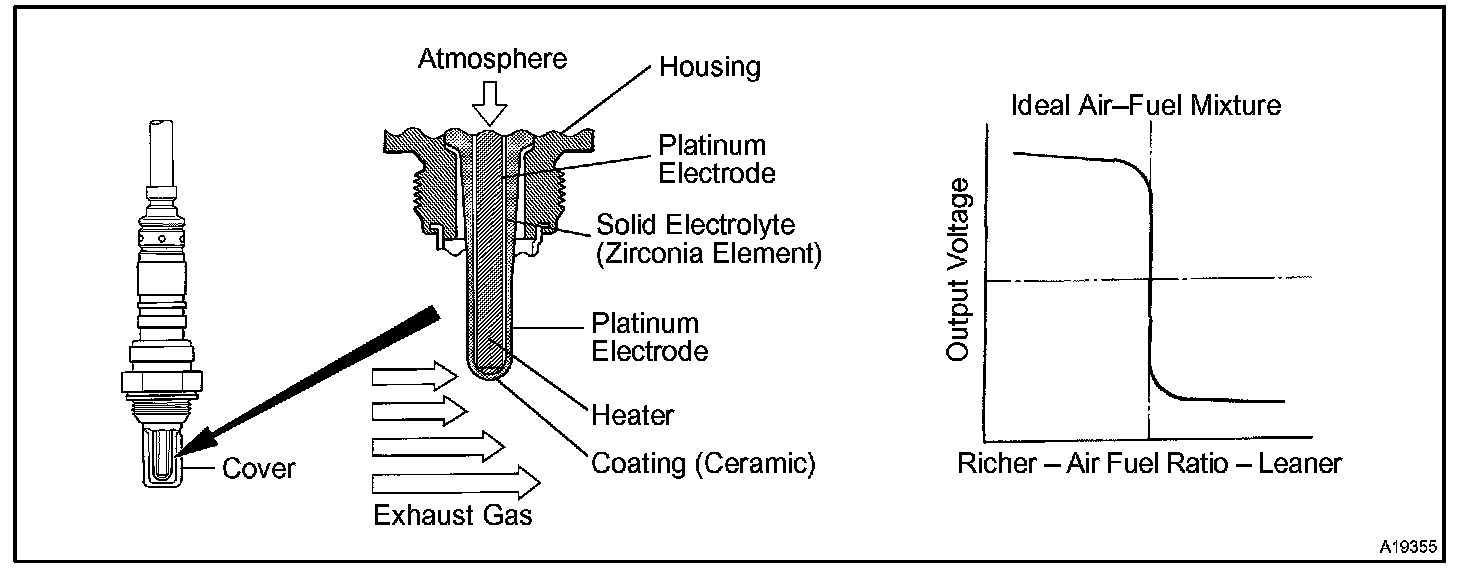

The oxygen sensor has the characteristic whereby its output voltage changes suddenly in the vicinity of the stoichiometric air-fuel ratio. This is used to detect the oxygen concentration in the exhaust gas and provide feedback to the computer for control of the air-fuel ratio.
When the air-fuel ratio becomes LEAN, the oxygen concentration in the exhaust increases and the oxygen sensor informs the ECM of the LEAN condition (small electromotive force: < 0.45 V).
When the air-fuel ratio is RICHER than the stoichiometric air-fuel ratio the oxygen concentration in the exhaust gas is reduced and the oxygen sensor informs the ECM of the RICH condition (large electromotive force: > 0.45 V). The ECM judges by the electromotive force from the oxygen sensor whether the air-fuel ratio is RICH or LEAN and controls the injection time accordingly. However, if malfunction of the oxygen sensor causes output of abnormal electromotive force, the ECM is unable to perform accurate air-fuel ratio control. The main heated oxygen sensors include a heater which heats the zirconia element. The heater is controlled by the ECM. When the intake air volume is low (the temperature of the exhaust gas is low) current flows to the heater to heat the sensor for accurate oxygen concentration detection.
HINT:
- Bank 1 refers to the bank that includes cylinder No.1.
- Sensor 2 refers to the sensor farther away from the engine body.
MONITOR DESCRIPTION

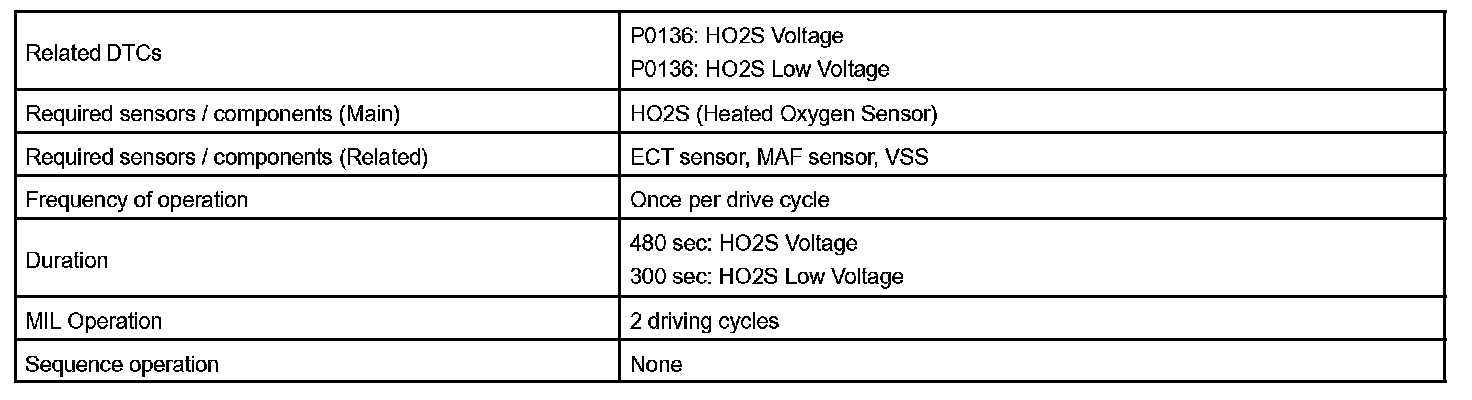

Monitor Strategy:

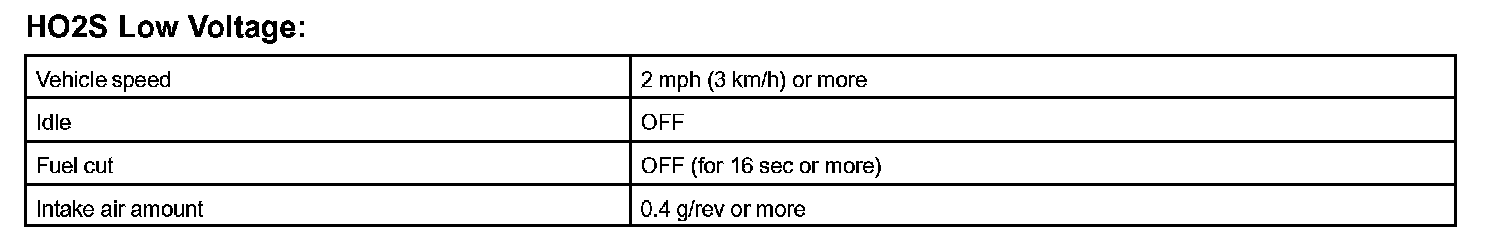

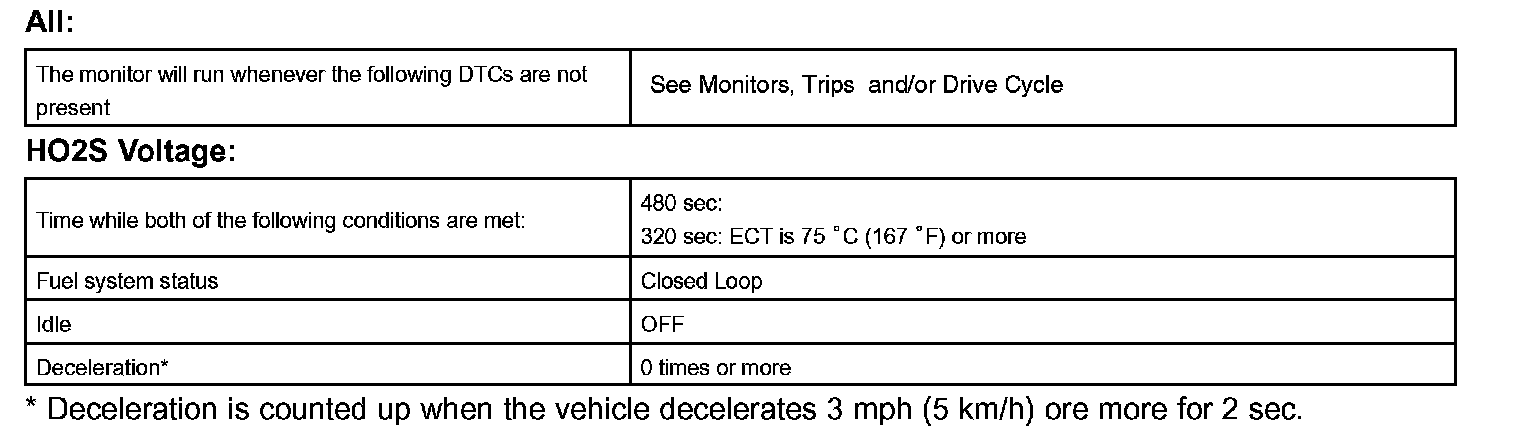

Typical Enabling Conditions Part 1:
Typical Enabling Conditions Part 2:

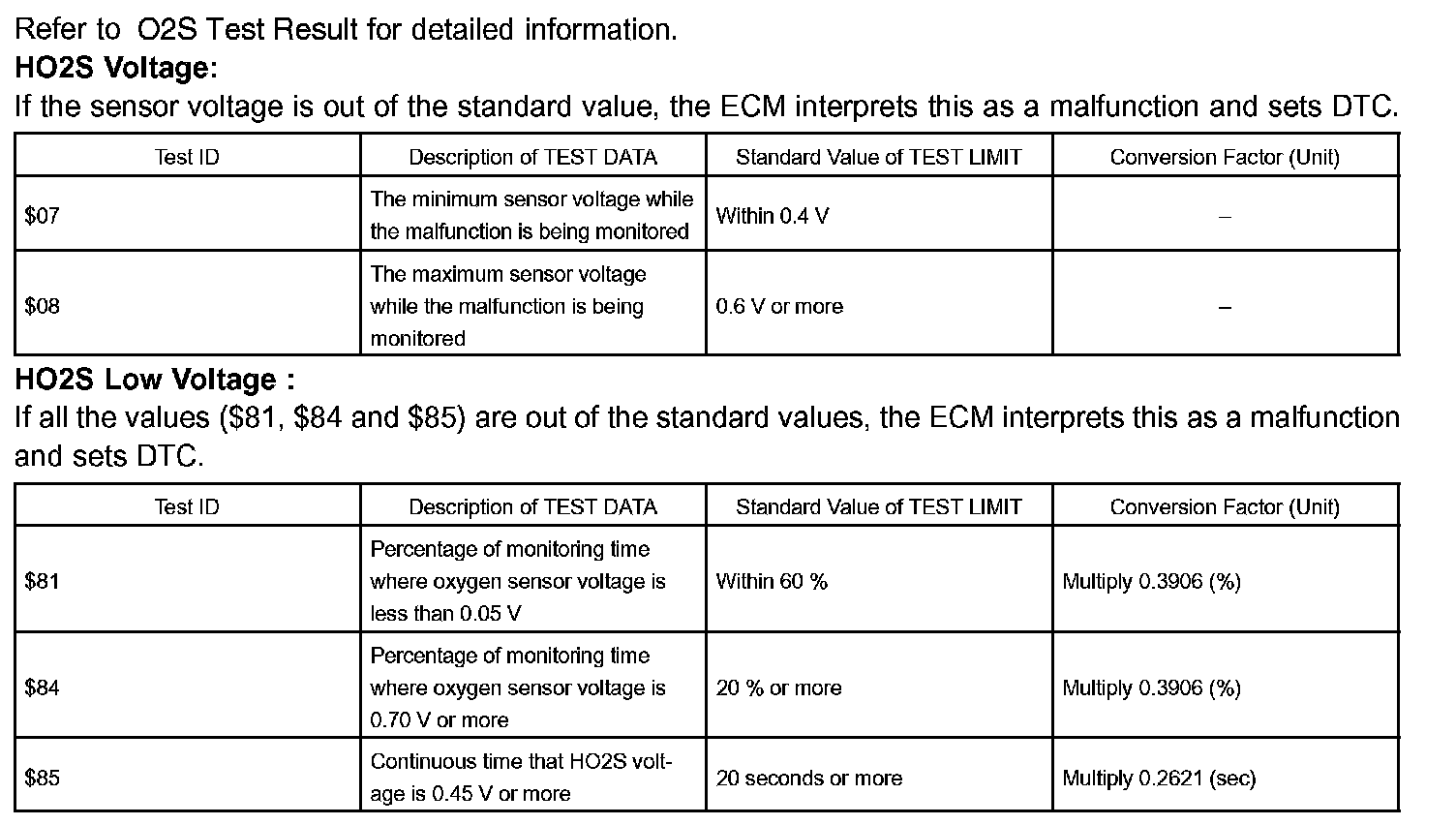

Typical Malfunction Thresholds:

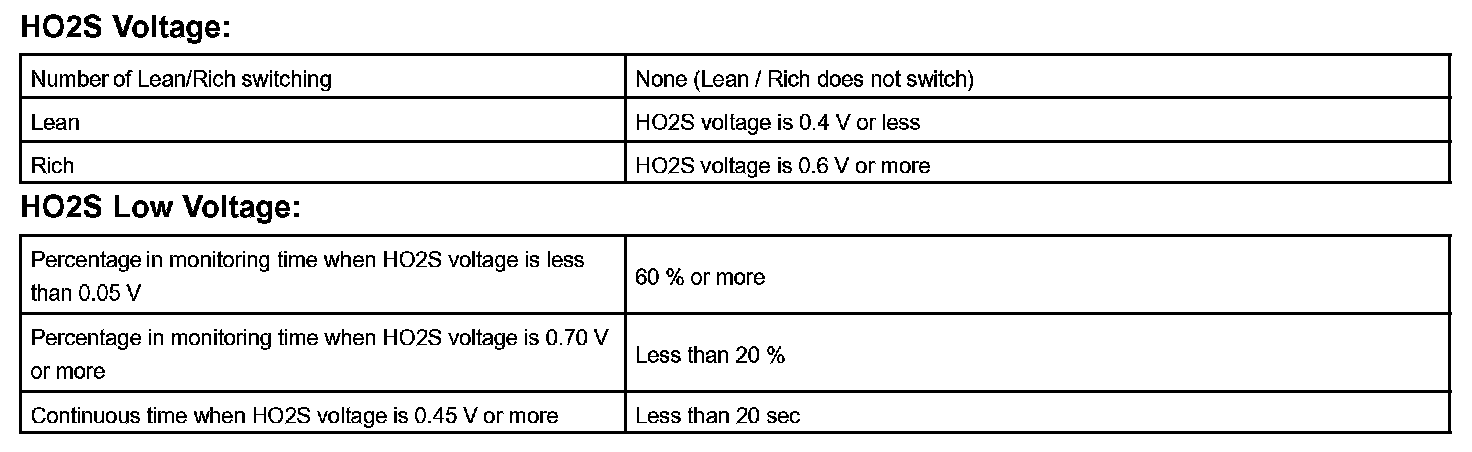

Component Operating Range:
O2S Test Result:
The ECM monitors the rear heated oxygen sensor (HO2S) in the following 2 items:
1. The HO2S voltage changes between Rich (more than 0.45 volts) and Lean (less than 0.45 volts) while the vehicle is running (repeating acceleration and deceleration). If not, the ECM interprets this as a malfunction, illuminates the MIL, and then sets DTC.
2. The HO2S voltage does not remain at less than 0.05 volts for a long time while the vehicle is running. If it does, the ECM interprets this as a malfunction, illuminates the MIL, and then sets DTC.
Wiring Diagram:
Step 1 - 3:

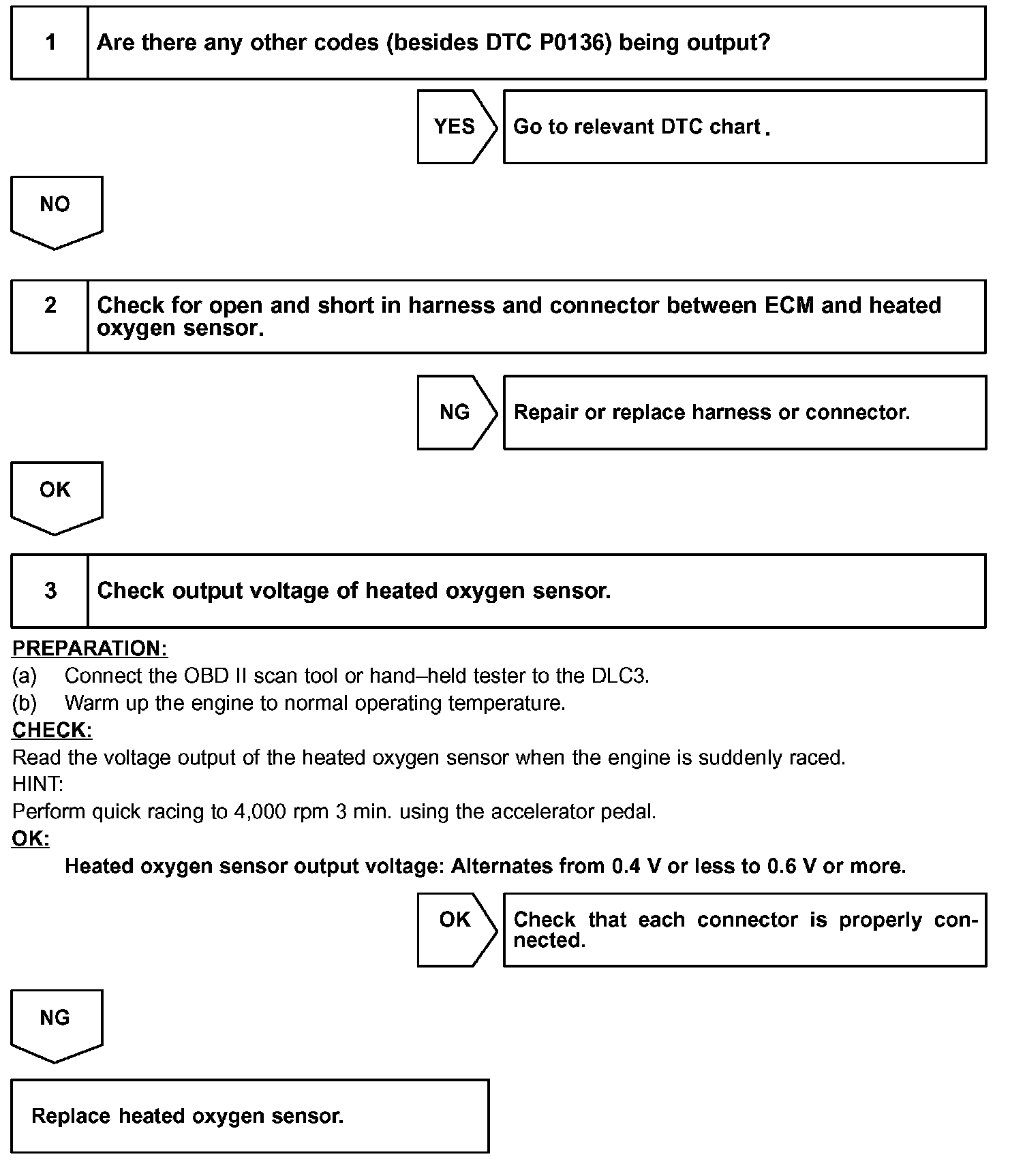

INSPECTION PROCEDURE
HINT: Read freeze frame data using OBD II scan tool or hand-held tester. Because freeze frame records the engine conditions when the malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
