Troubleshooting
DTC P0115 Engine Coolant Temperature CircuitCIRCUIT DESCRIPTION

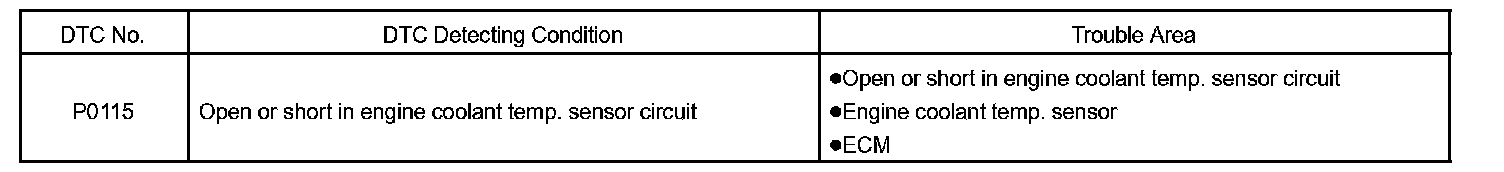

DTC Detecting Condition:
A thermistor built into the engine coolant temperature sensor changes the resistance value according to the engine coolant temperature.
The structure of the sensor and connection to the ECM is the same as in the intake air temperature circuit malfunction.
If the ECM detects the DTC P0115, it operates the fail-safe function in which the engine coolant temperature is assumed to be 80 °C (176 °C).
HINT: After confirming DTC P0115, use the OBD II scan tool or hand-held tester to confirm the engine coolant temperature from the CURRENT DATA.
MONITOR DESCRIPTION

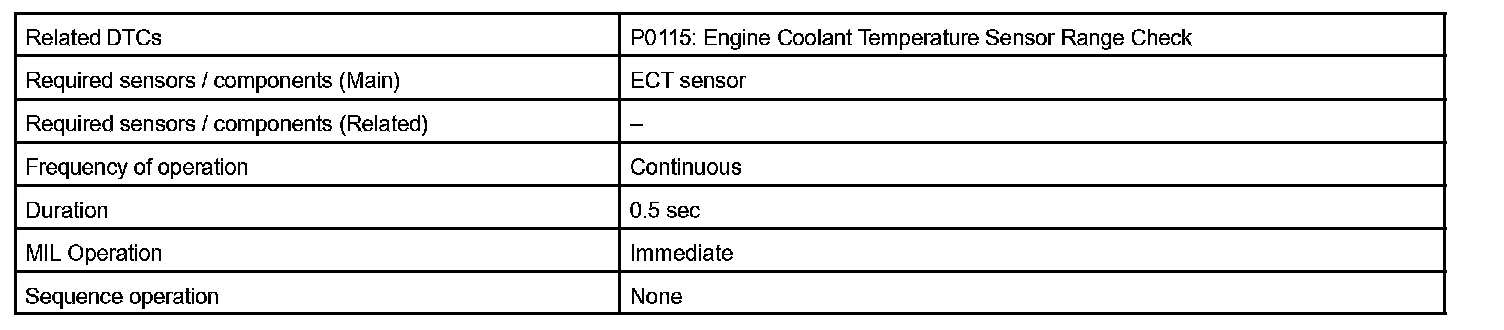

Monitor Strategy:

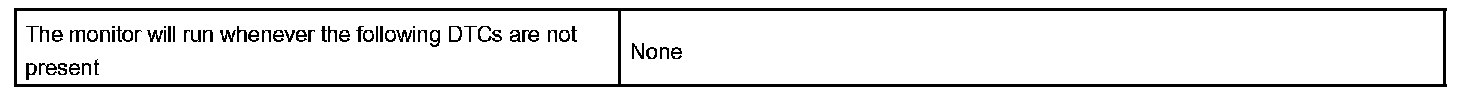

Typical Enabling Conditions:

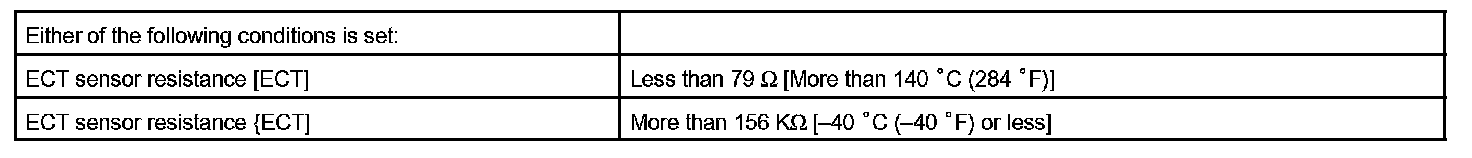

Typical Malfunction Thresholds:

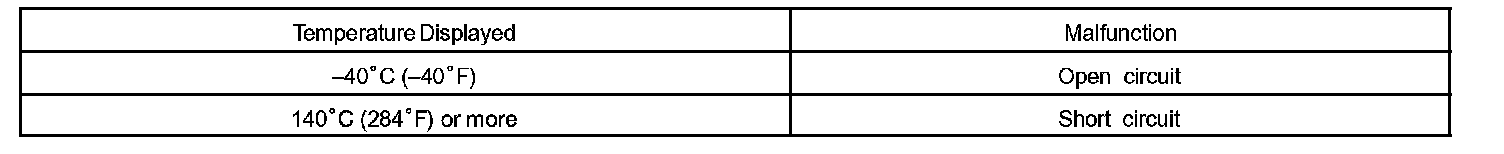

Component Operating Range:
The ECT sensor is used to monitor the engine coolant temperature. The ECT sensor has a thermistor that varies its resistance depending on the temperature of the engine coolant. When the coolant temperature is low, the resistance in the thermistor increases. When the temperature is high, the resistance drops. The variations in resistance are reflected in the voltage output from the sensor.
The ECM monitors the sensor voltage and uses this value to calculate the engine coolant temperature. When the sensor output voltage deviates from the normal operating range, the ECM interprets this as a fault in the ECT sensor and sets a DTC.
Example:
When the ECM calculates that the ECT is -40 °C (-40 °F) or more than 140 °C (284 °F) and if either condition continues 0.5 seconds or more, the ECM will set a DTC.

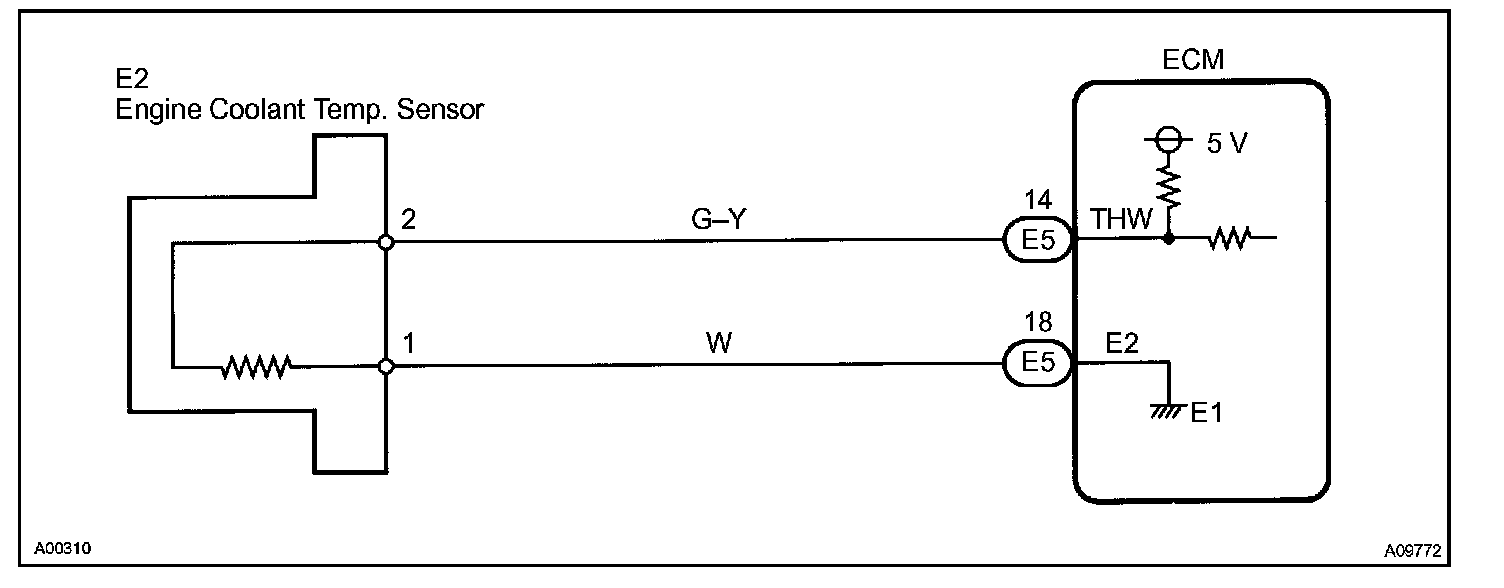

Wiring Diagram:

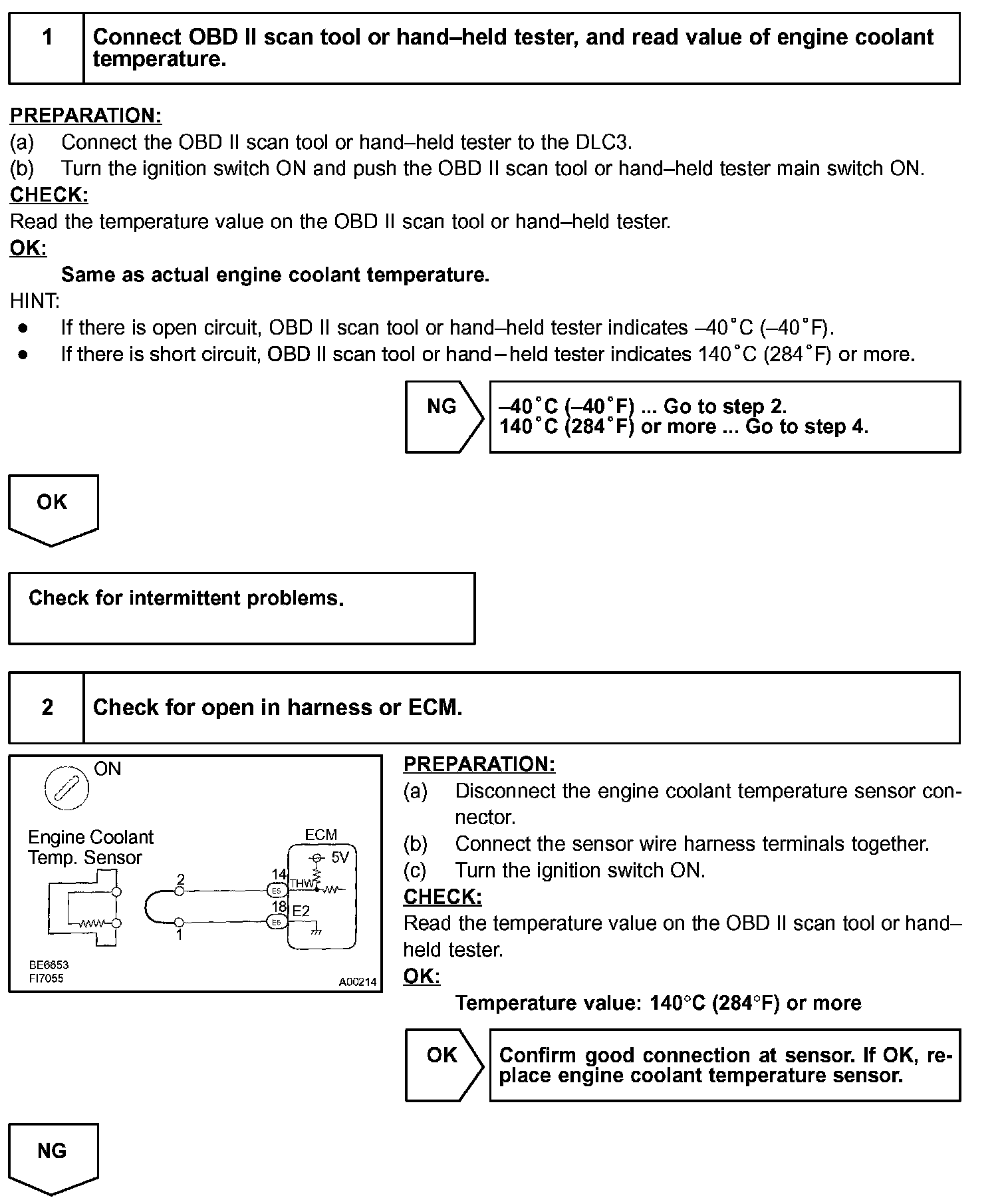

Step 1 - 2:
Step 3 - 4:

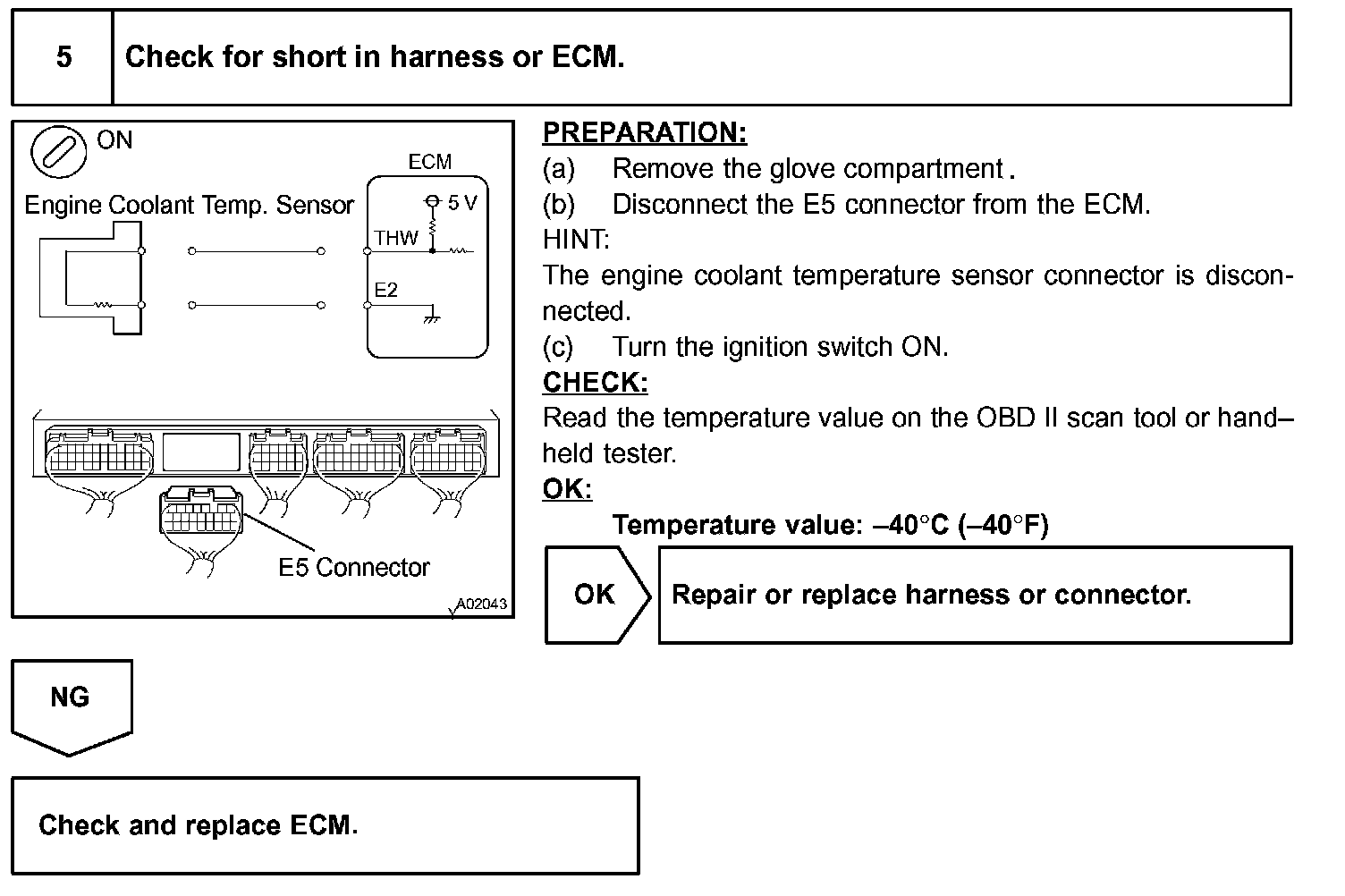

Step 5:
INSPECTION PROCEDURE
HINT:
- If DTCs P0110, P0115 and P0120 are output simultaneously, E2 (sensor ground) may be open.
- Read freeze frame data using OBD II scan tool or hand-held tester. Because freeze frame records the engine conditions when the malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich etc. at the time of the malfunction.
CHECK FOR INTERMITTENT PROBLEMS
Hand-held tester only:
Inspect the vehicle's ECM using check mode. Intermittent problems are easier to detect when the ECM is in check mode with hand-held tester. In check mode, the ECM uses 1 trip detection logic, which has a higher sensitivity to malfunctions than normal mode (default), which uses 2 trip detection logic.
a. Clear the DTCs.
b. Set the check mode.
c. Perform a simulation test.
d. Check the connector and terminal.
e. Wiggle the harness and connector.
