DTC 12

DTC 12 Front Passenger Door ECU Communication Stop

CIRCUIT DESCRIPTION

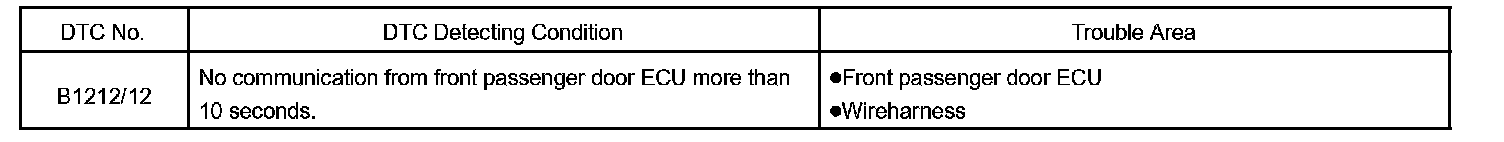

DTC Detecting Condition:

This DTC is output when communication stops between front passenger door ECU and body ECU.

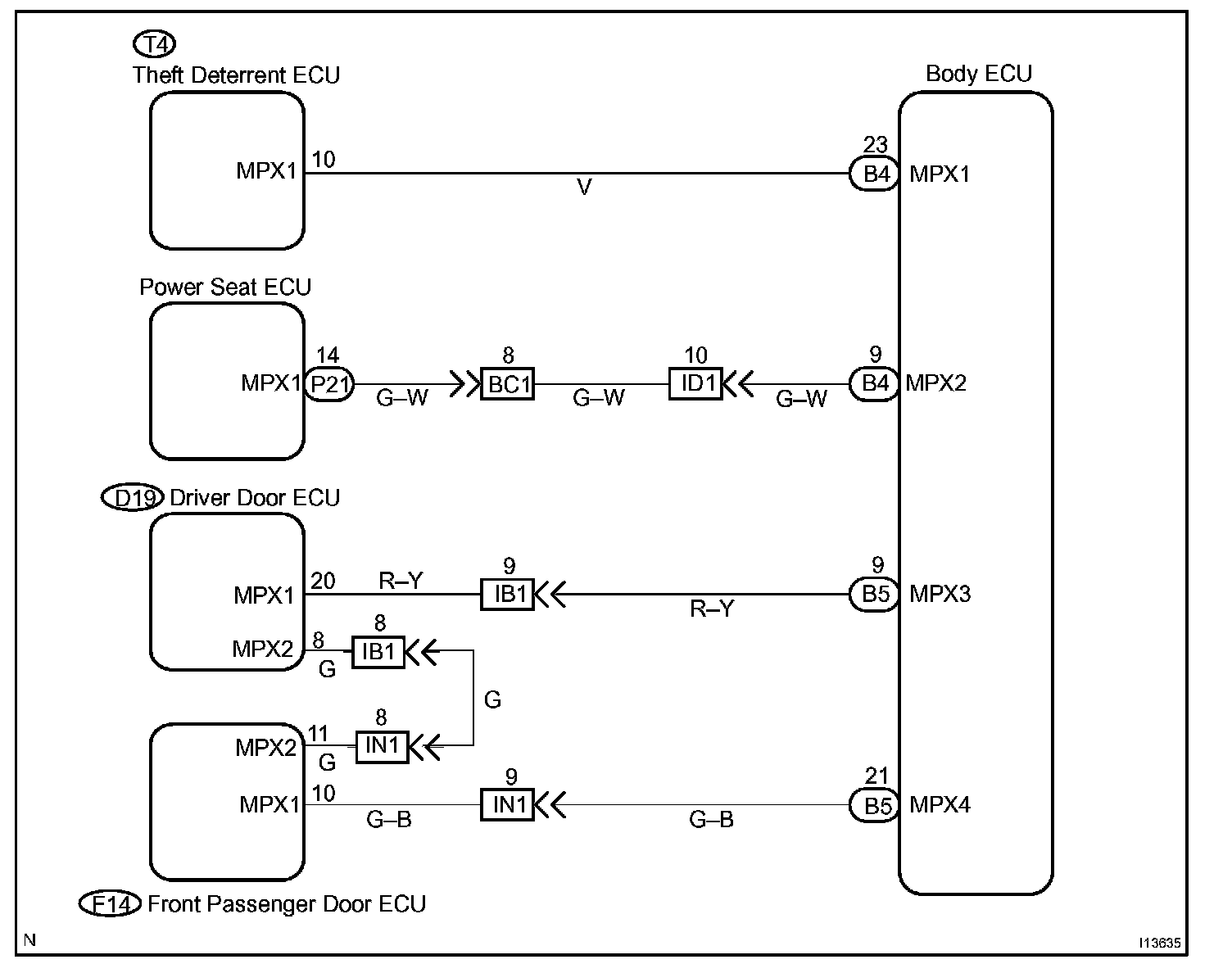

Wiring Diagram:

Step 1:

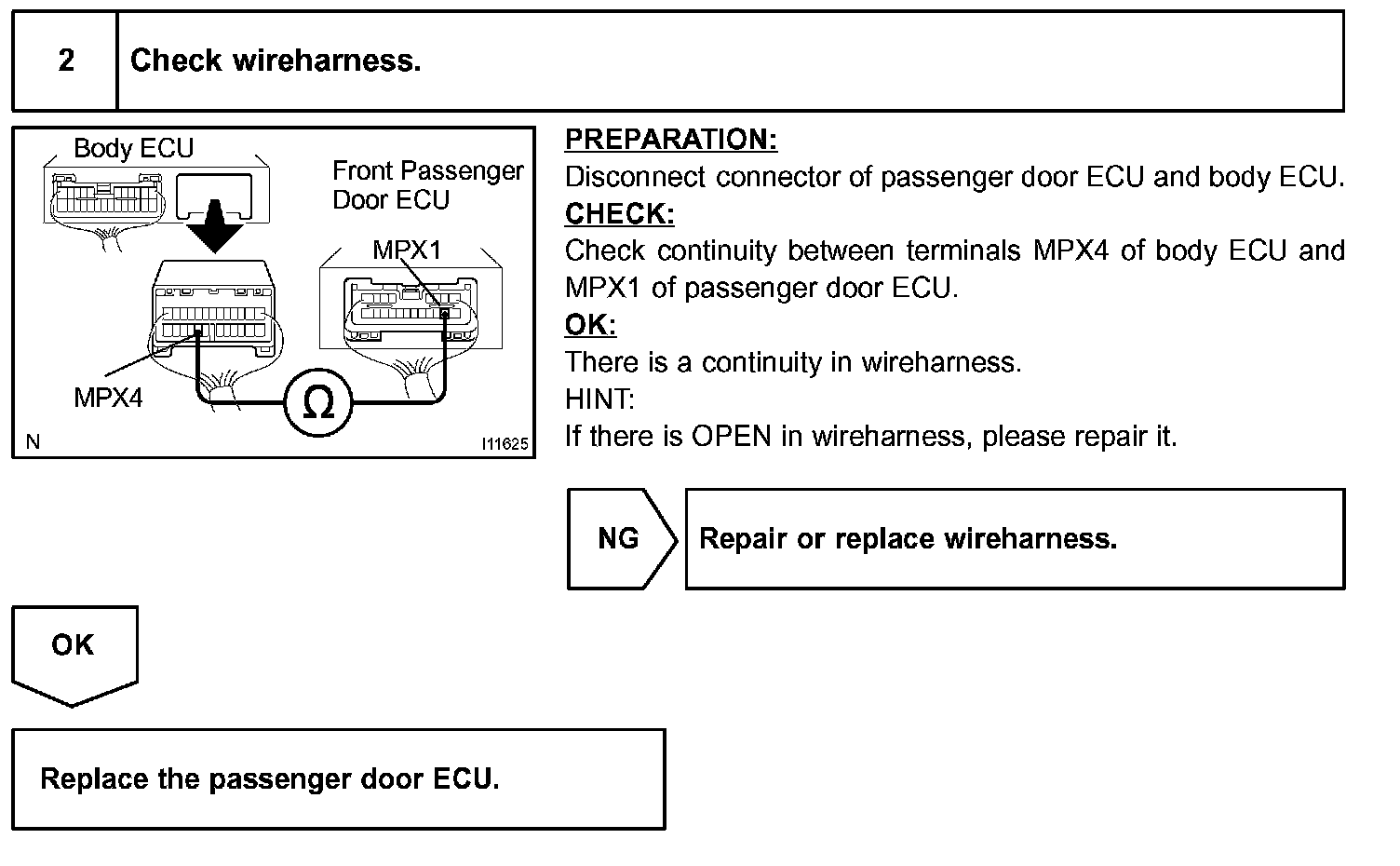

Step 2:

INSPECTION PROCEDURE
