DTC 57

DTC 57 Short in P Squib (2nd step) Circuit

CIRCUIT DESCRIPTION

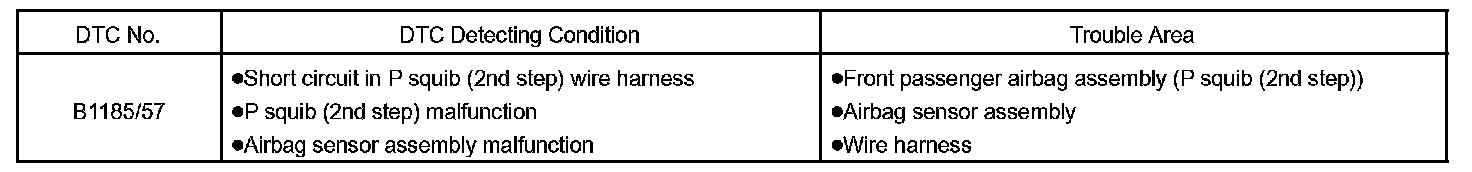

DTC Detecting Condition:

The P squib (2nd step) circuit consists of the airbag sensor assembly and front passenger airbag assembly.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B1185/57 is recorded when a short is detected in the P squib (2nd step) circuit.

Wiring Diagram:

Step 1 - 2:

Step 3:

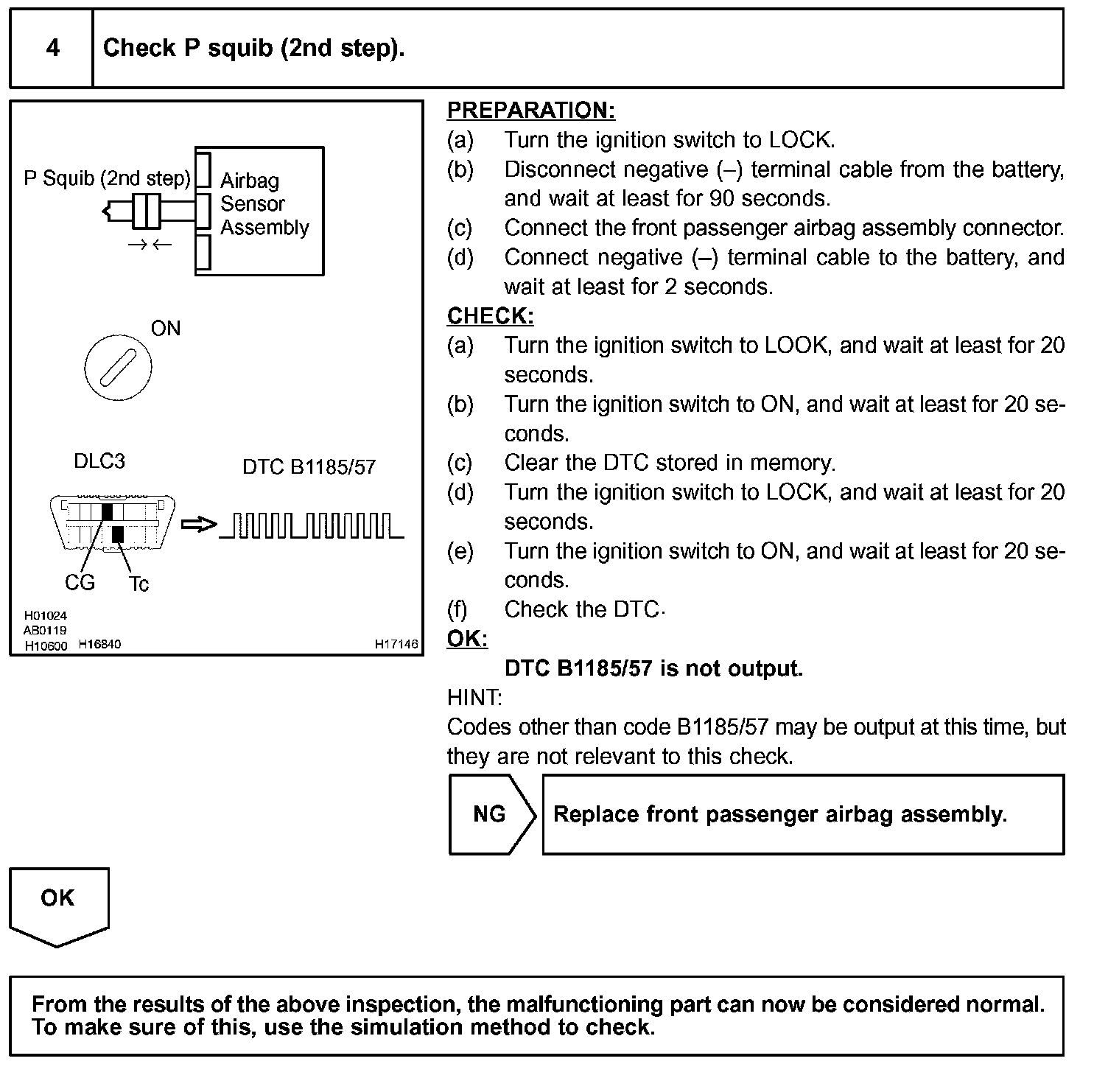

Step 4:

INSPECTION PROCEDURE
