DTC 51
>>
ABS W/EBD & BA & TRAC & VSC System
ABS W/EBD & BA & TRAC & VSC System
DTC 51 Brake Actuator Pump Motor Failure

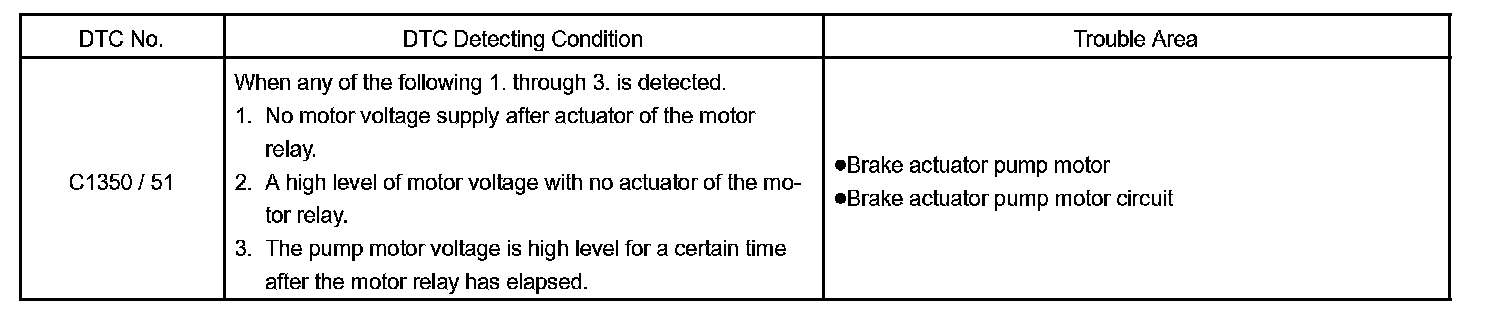

DTC Detecting Condition:
CIRCUIT DESCRIPTION

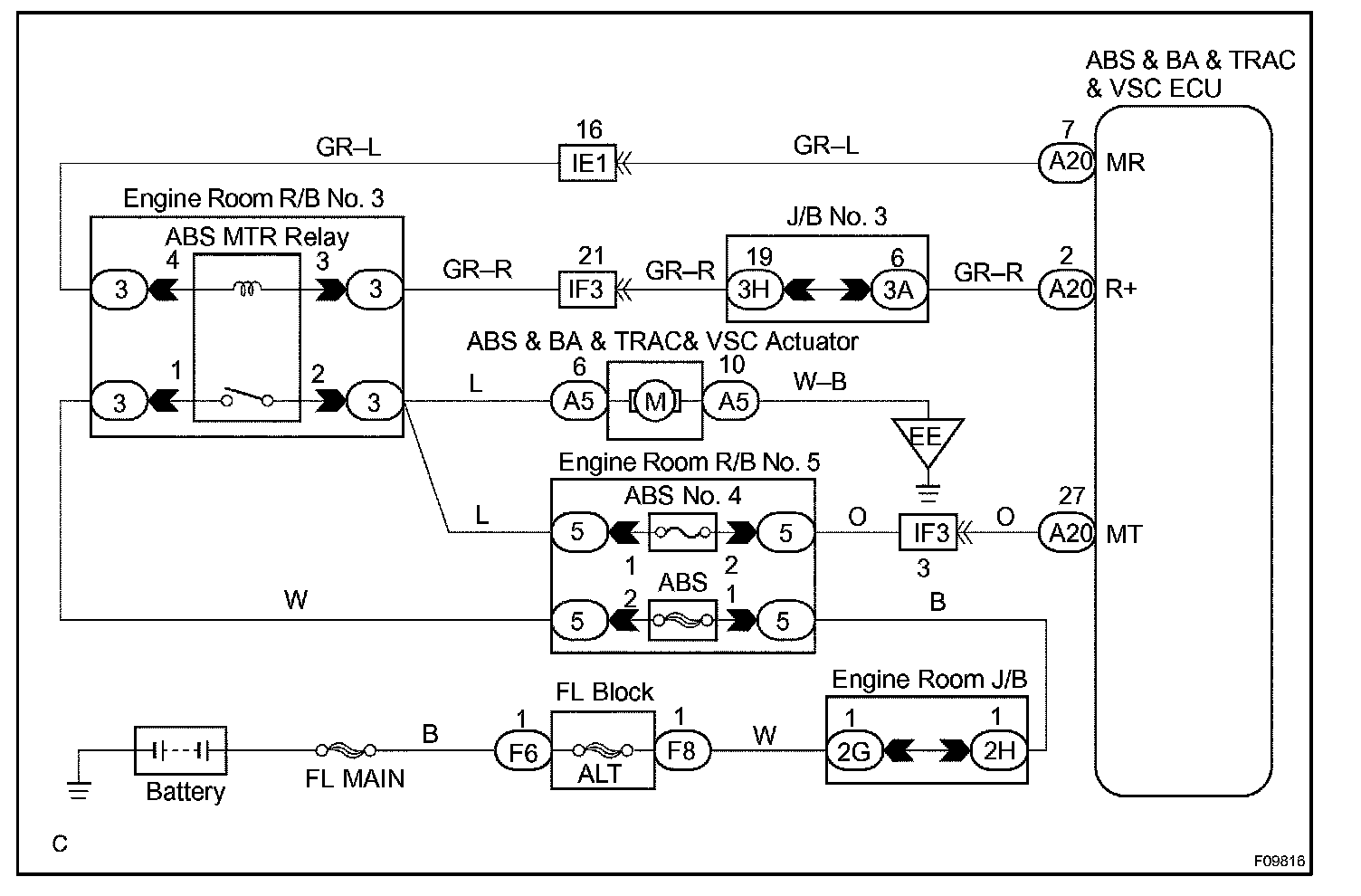

Wiring Diagram:
Step 1:
INSPECTION PROCEDURE
