Air Outlet Damper Position Sensor Circuit

DTC 43 Air Outlet Damper Position Sensor Circuit

CIRCUIT DESCRIPTION

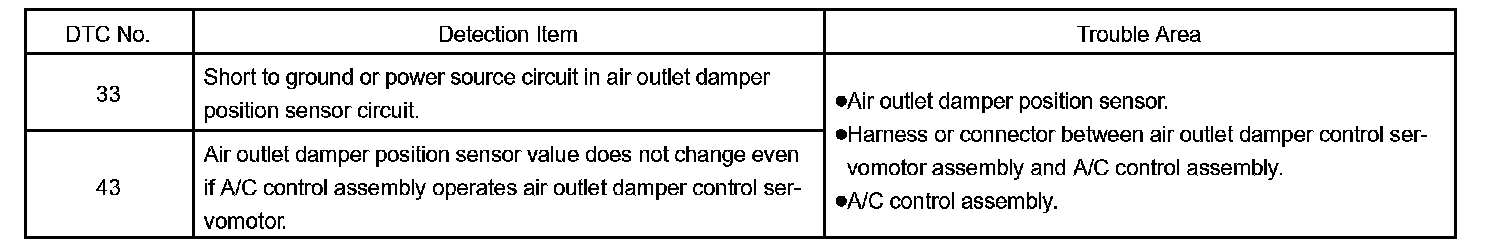

Detection Item:

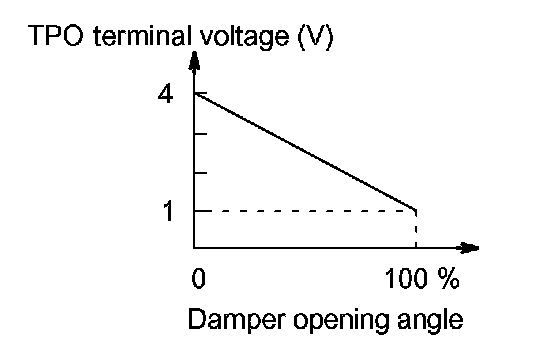

This sensor detects the position of the air outlet damper and sends the appropriate signals to the A/C control assembly. The position sensor is built into the air outlet damper control servomotor assembly.

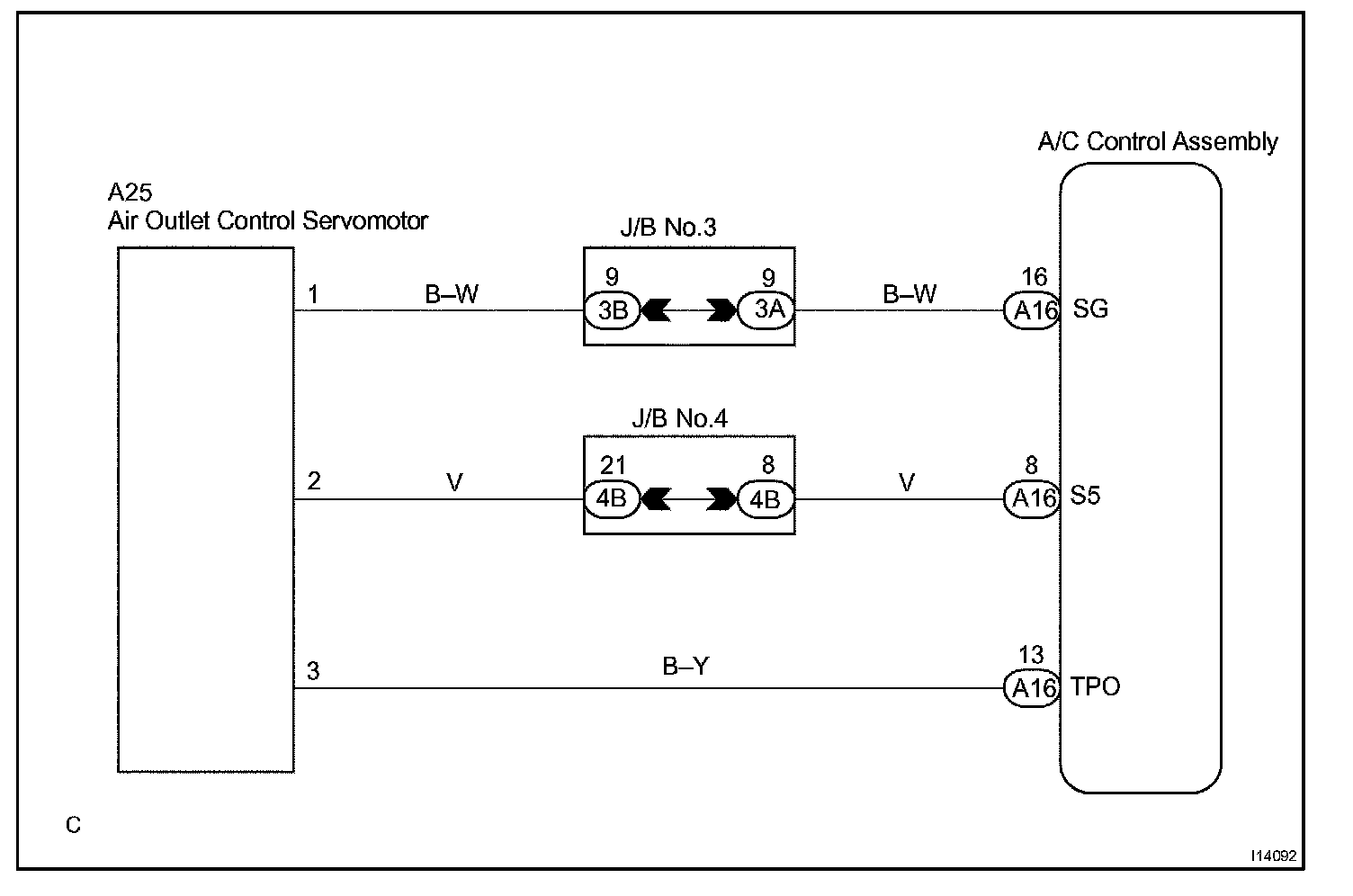

Wiring Diagram:

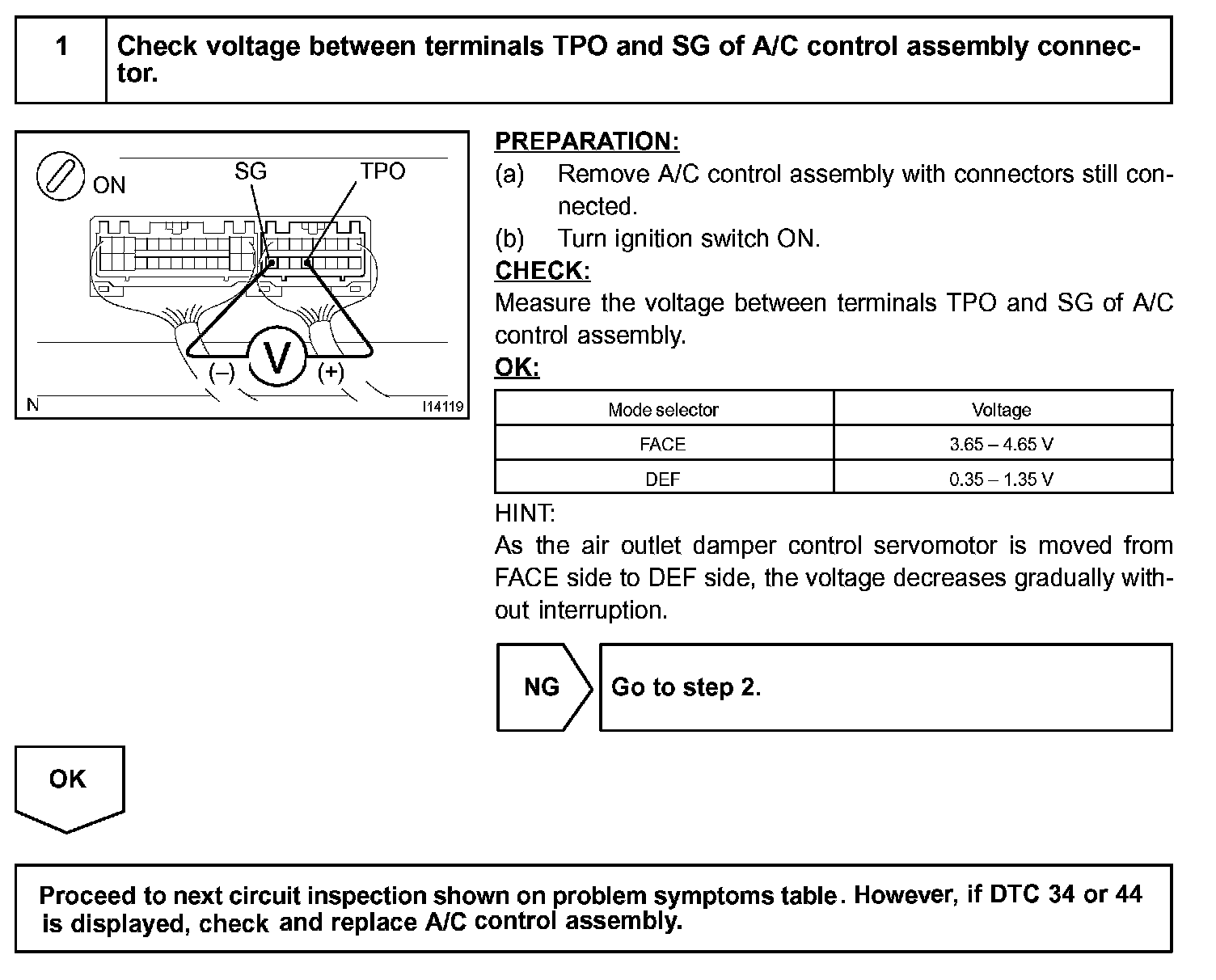

Step 1:

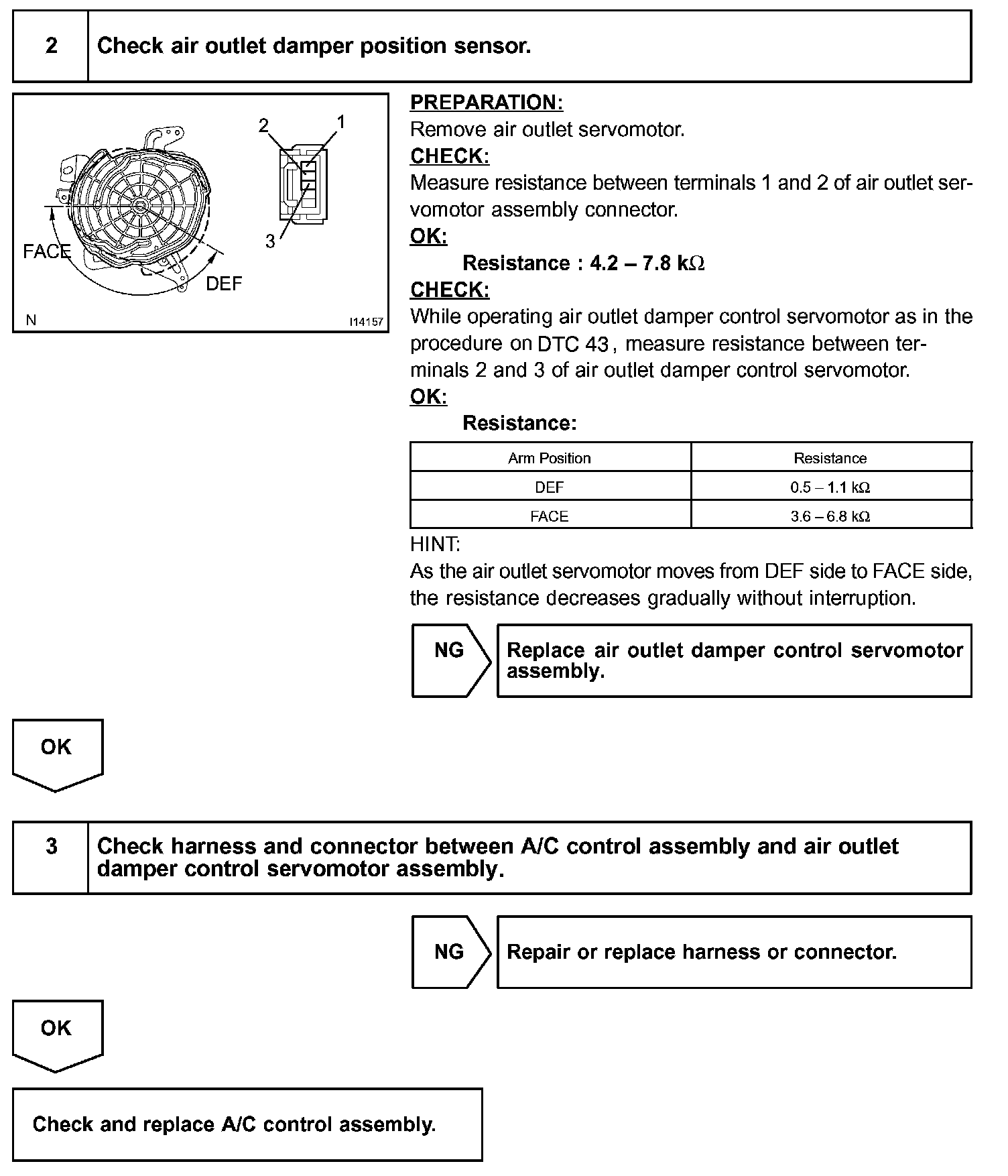

Step 2 - 3:

INSPECTION PROCEDURE
