ABS W/EBD & BA & TRAC & VSC System

DTC 42 ECU Communication System Malfunction

CIRCUIT DESCRIPTION

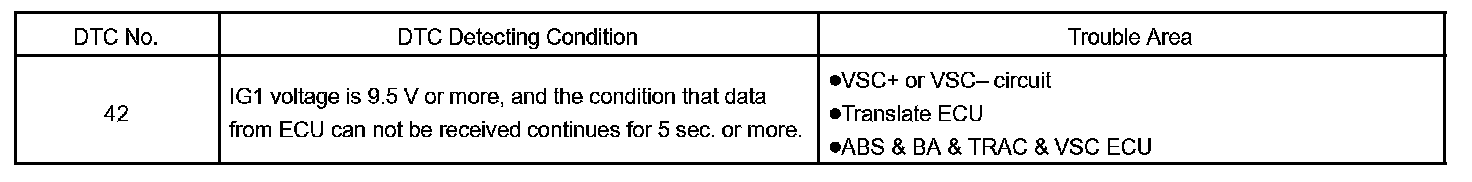

DTC Detecting Condition:

The circuit is used to send TRAC & VSC control information from ABS & BA & TRAC & VSC ECU to the translate ECU (VSC+, VSC-), engine control information and steering angle information from translate ECU to ABS & BA & TRAC & VSC ECU

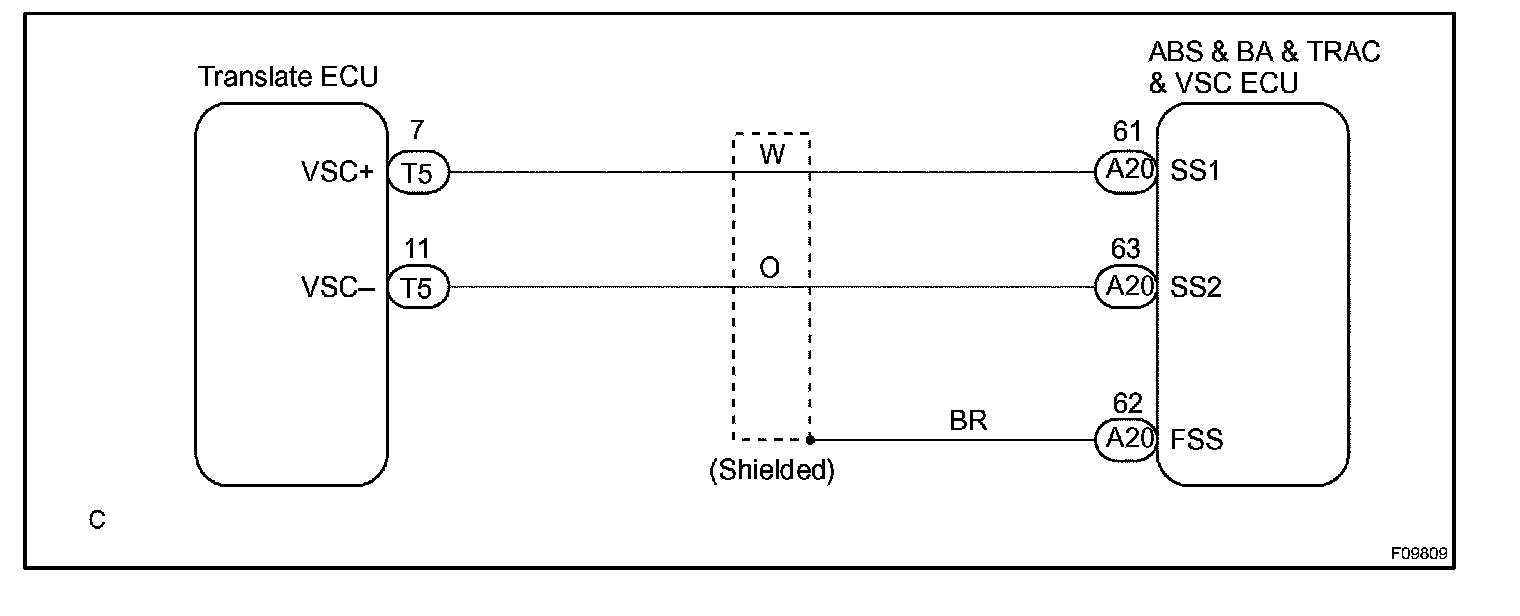

Wiring Diagram:

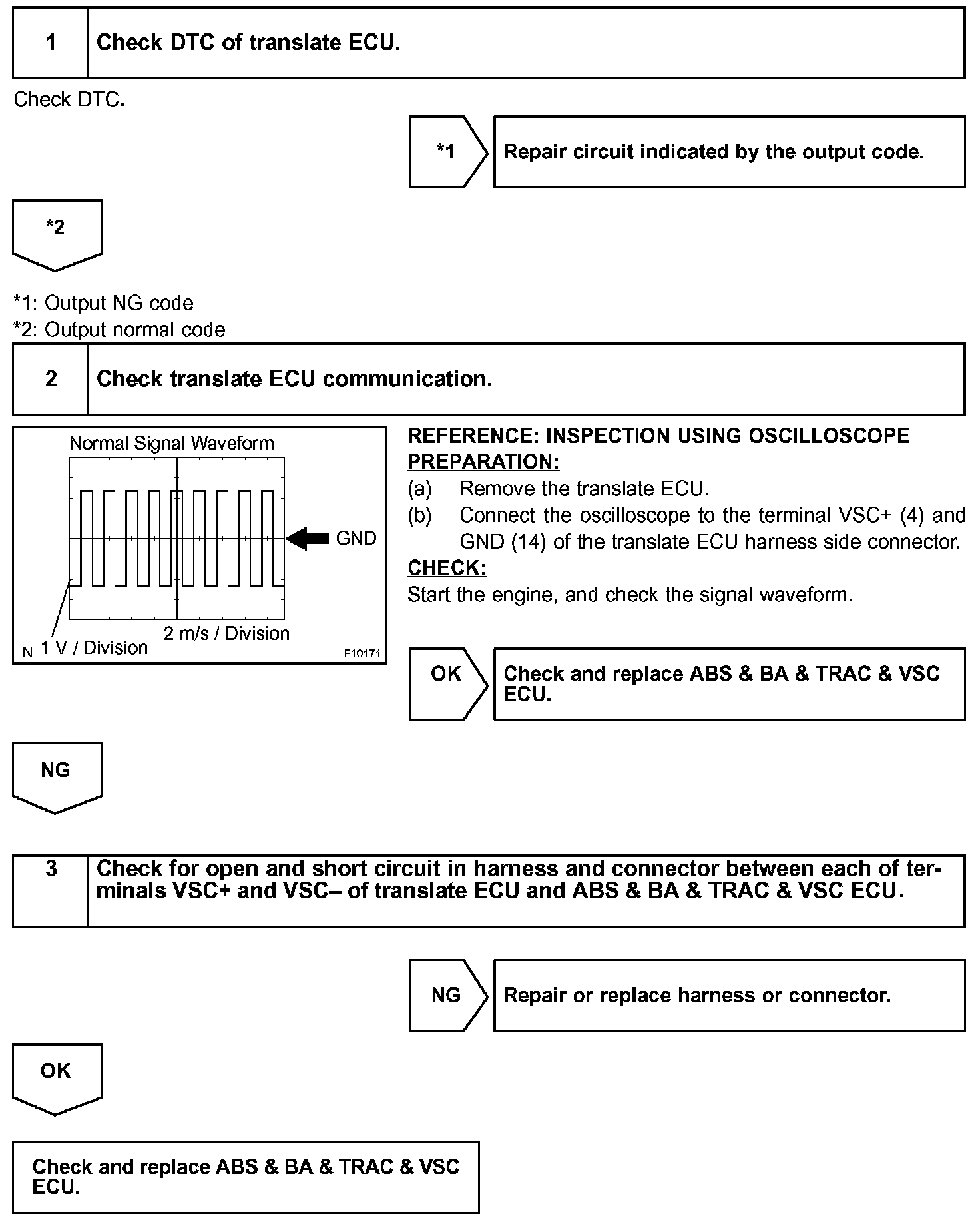

Step 1 - 3:

INSPECTION PROCEDURE
