Air Mix Control Servomotor Circuit (Passenger Side)

DTC 41 Air Mix Control Servomotor Circuit (Passenger Side)

CIRCUIT DESCRIPTION

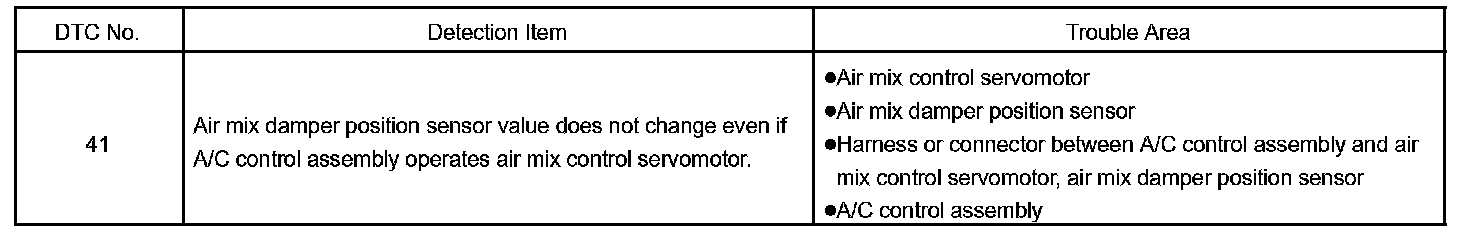

Detection Item:

This air mix control servomotor is controlled by the A/C control assembly and moves the air mix damper to the desired position.

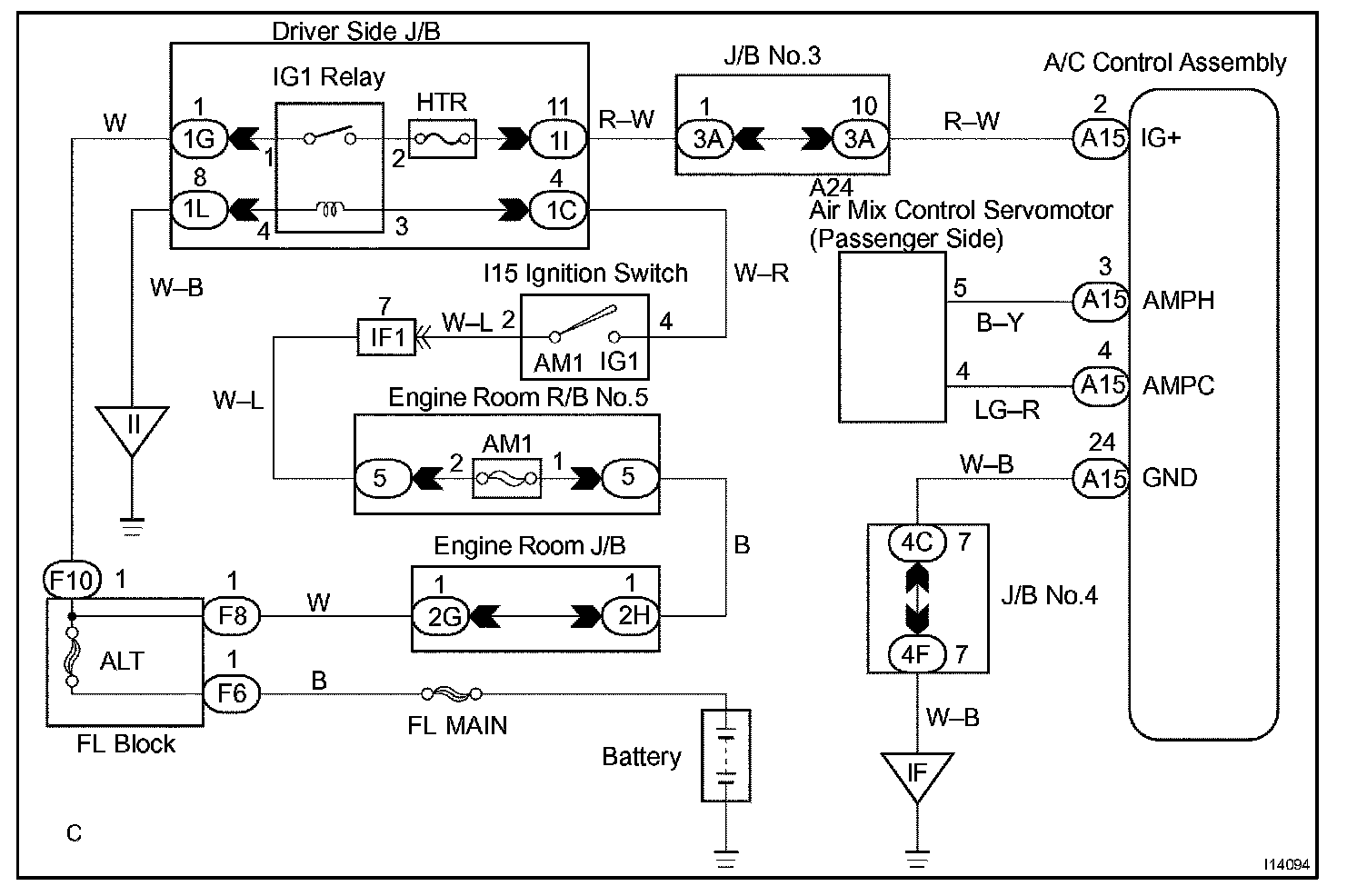

Wiring Diagram:

Step 1:

Step 2 - 3:

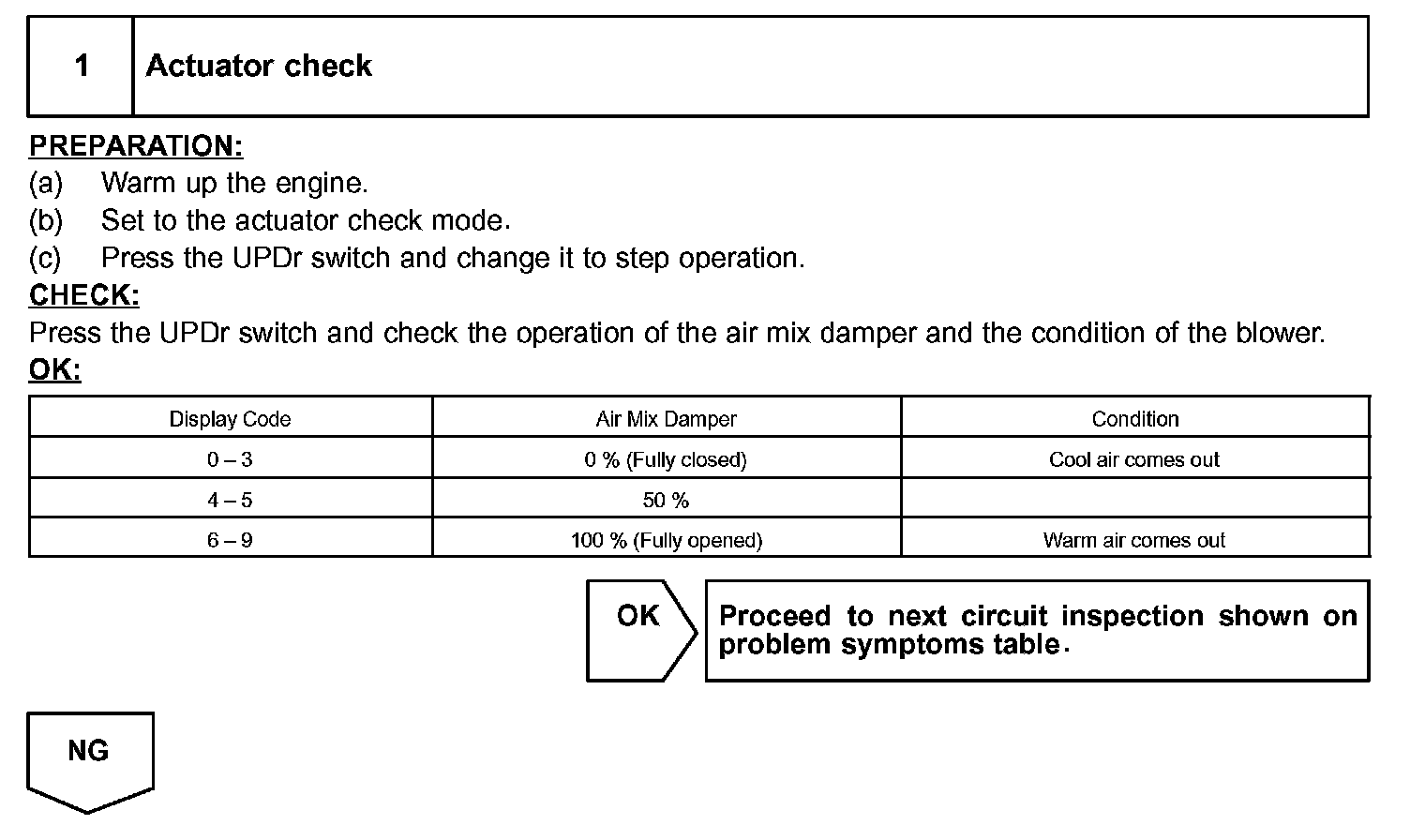

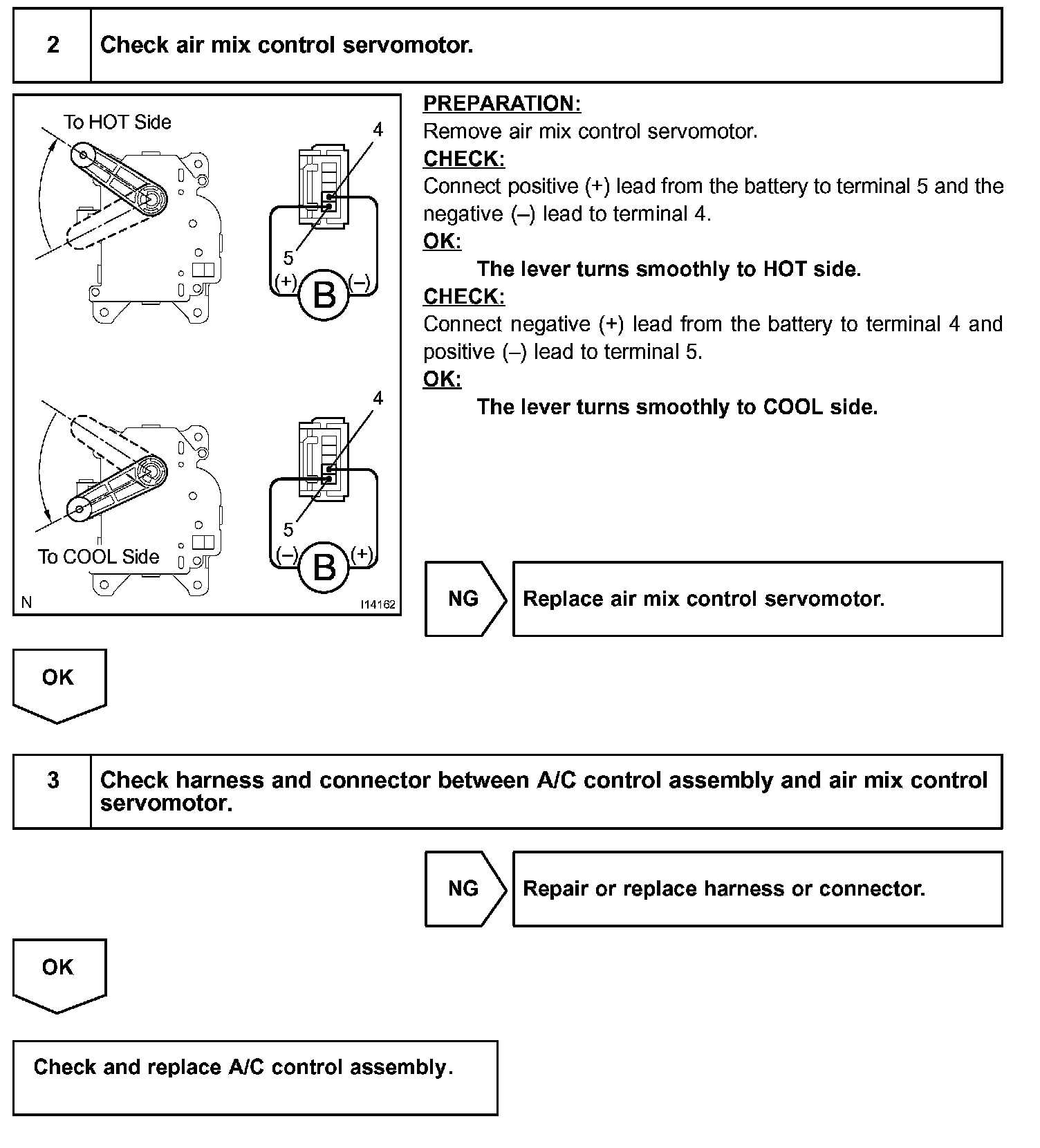

INSPECTION PROCEDURE
