ABS W/EBD System

DTC 41 Power Source Circuit

CIRCUIT DESCRIPTION

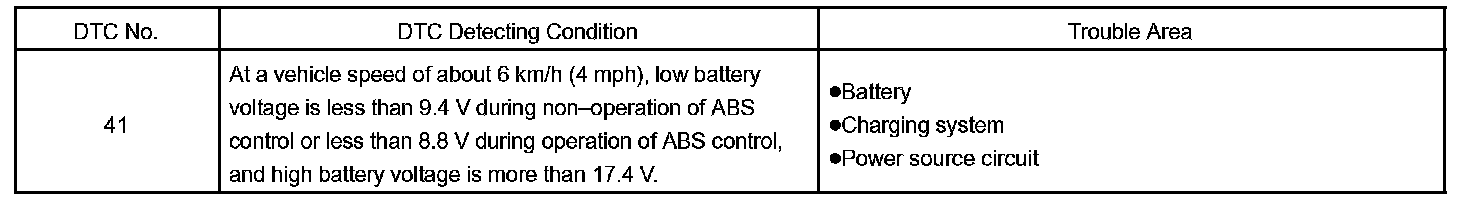

DTC Detecting Condition:

This is the power source for the ECU, hence the actuators.

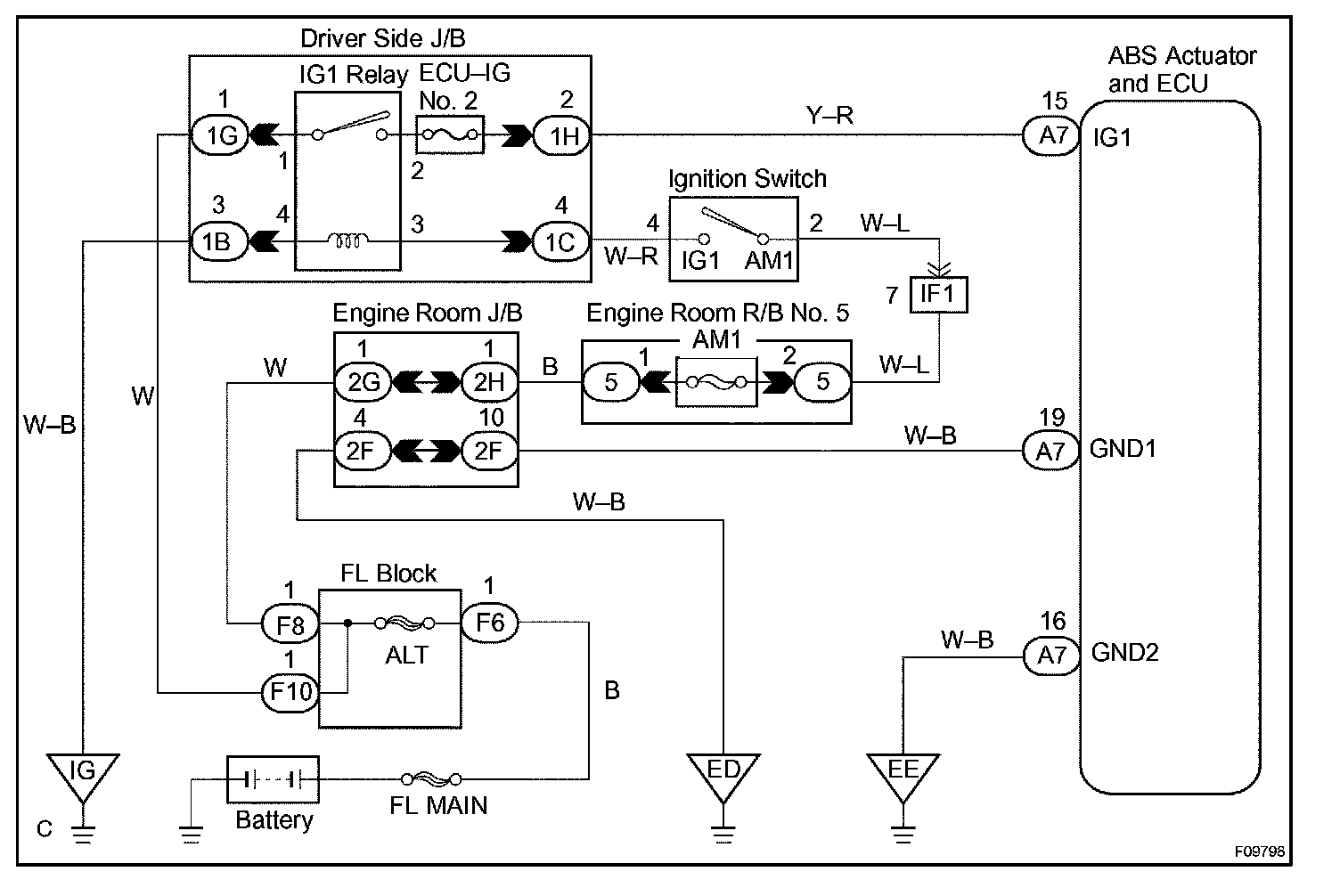

Wiring Diagram:

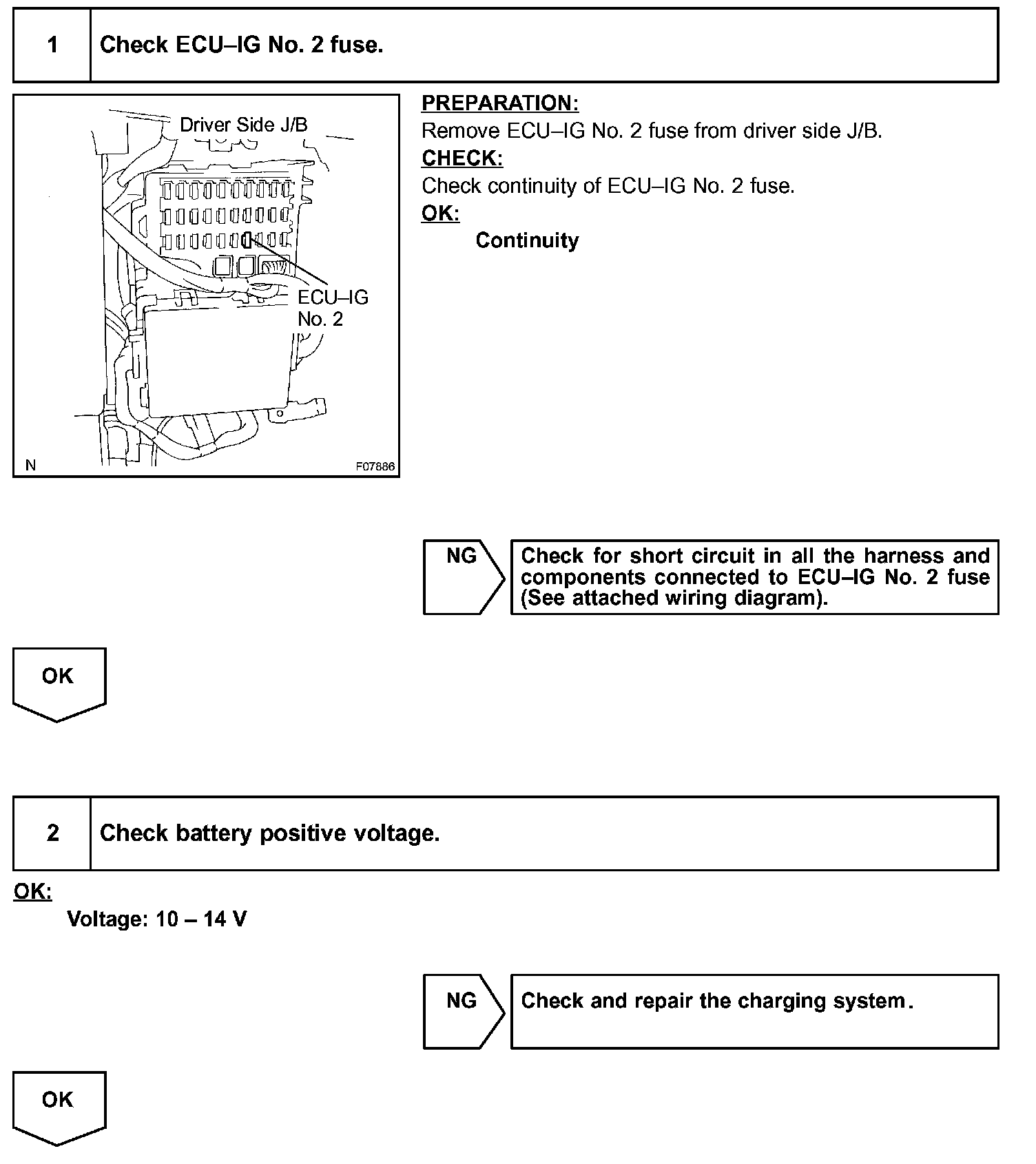

Step 1 - 2:

Step 3 - 4:

INSPECTION PROCEDURE
