Airbag System

DTC 25 Seat Position Sensor Assembly Malfunction

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The seat position sensor circuit consists of the airbag sensor assembly and seat position sensor assembly.

For details of the function of each components, see DESCRIPTION AND OPERATION.

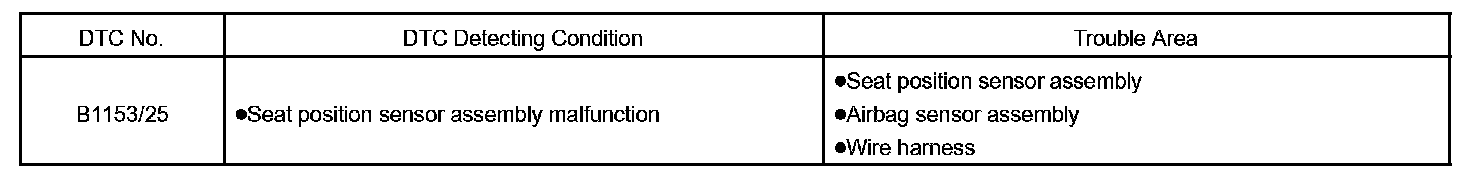

B1153/25 is recorded when a malfunction is detected in the seat position sensor circuit.

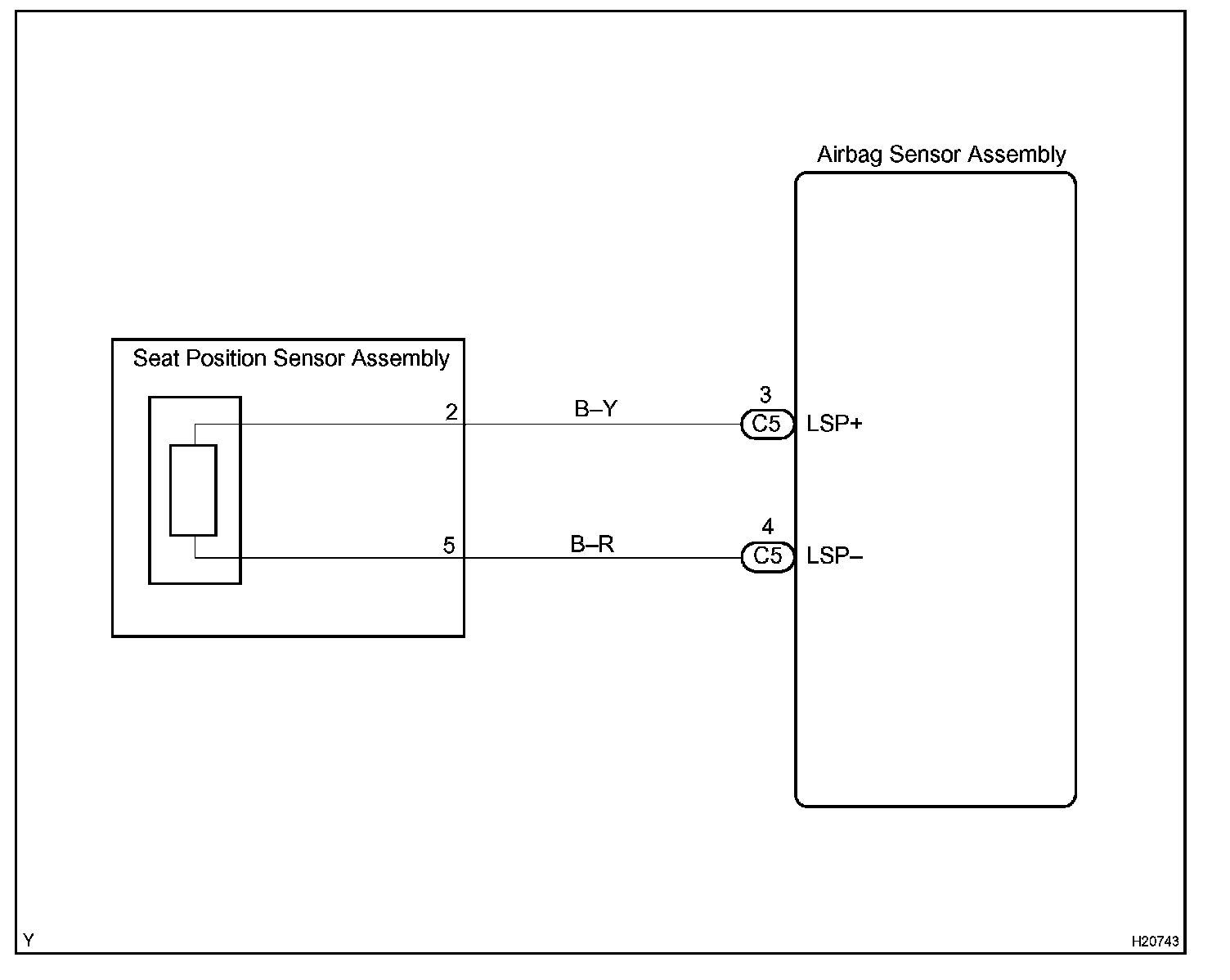

Wiring Diagram:

Step 1 - 3:

Step 4:

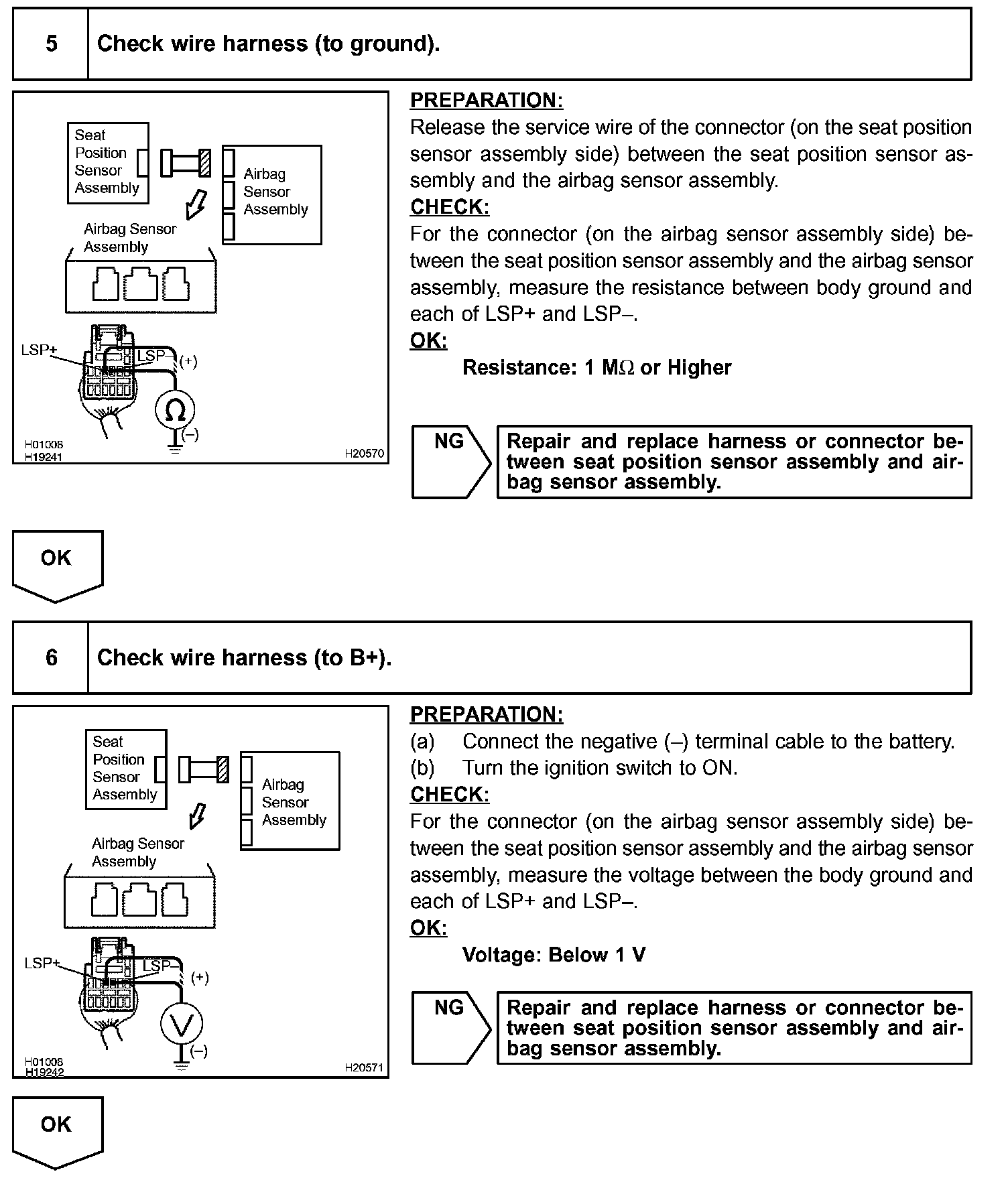

Step 5 - 6:

Step 7:

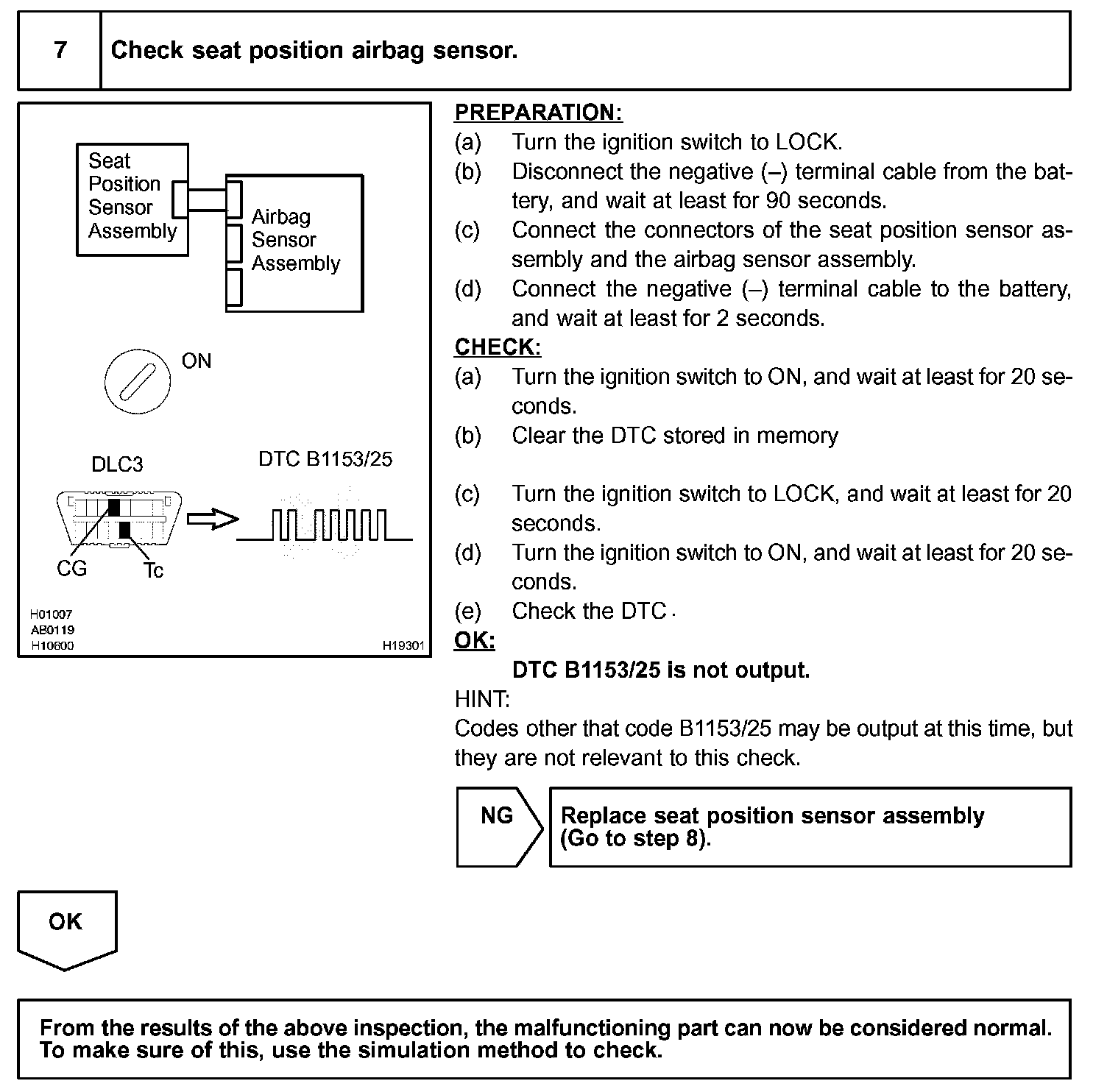

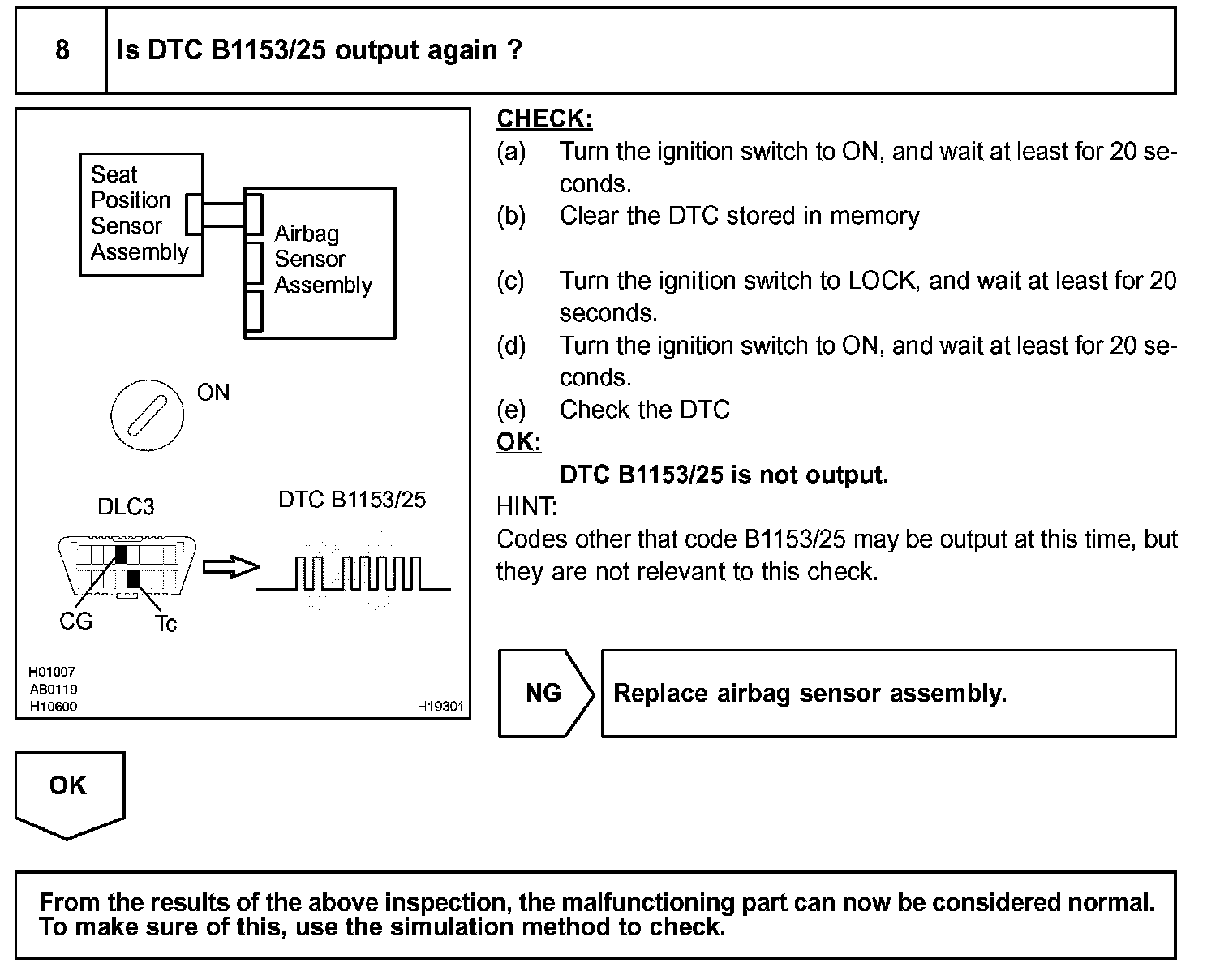

Step 8:

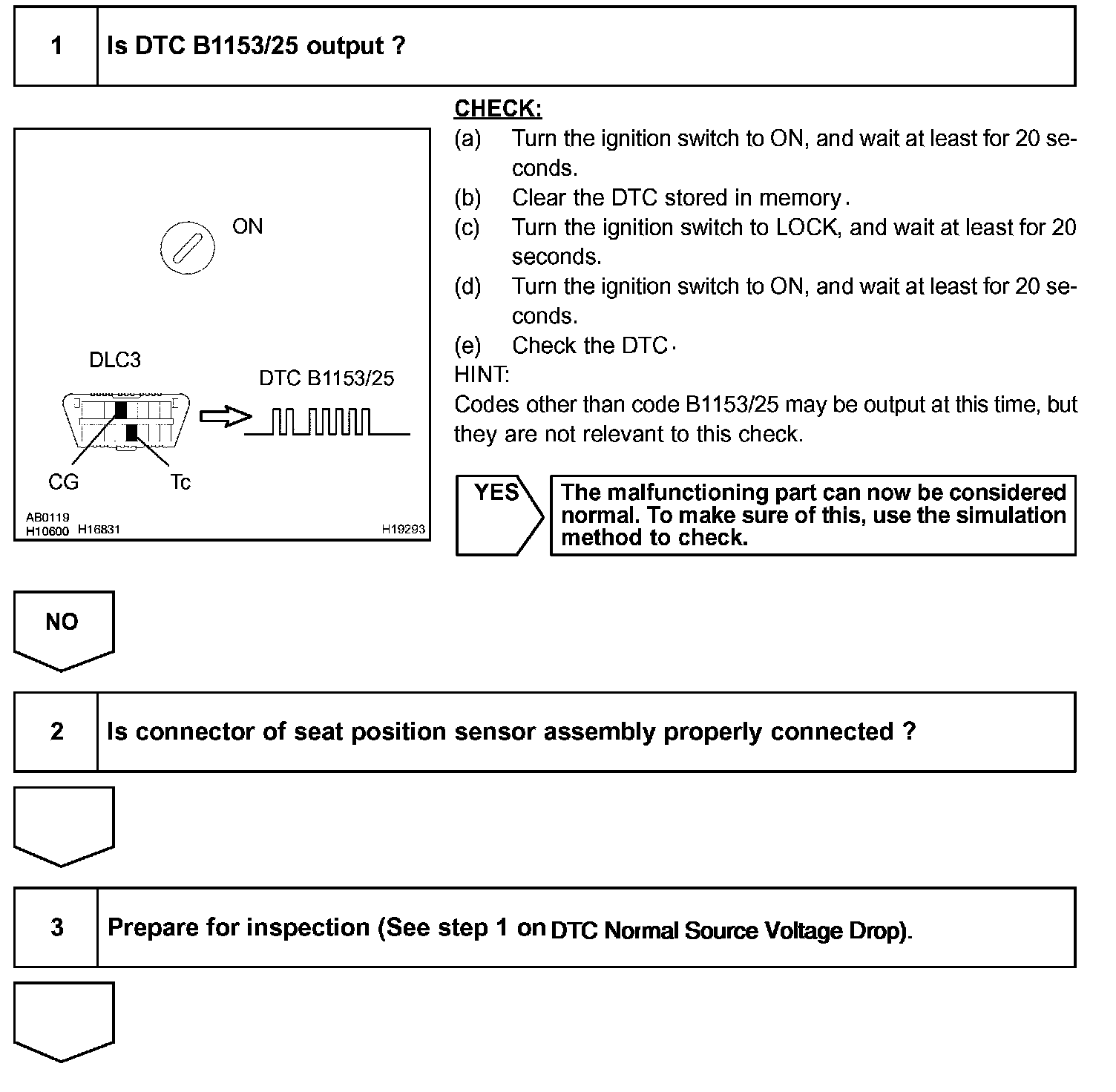

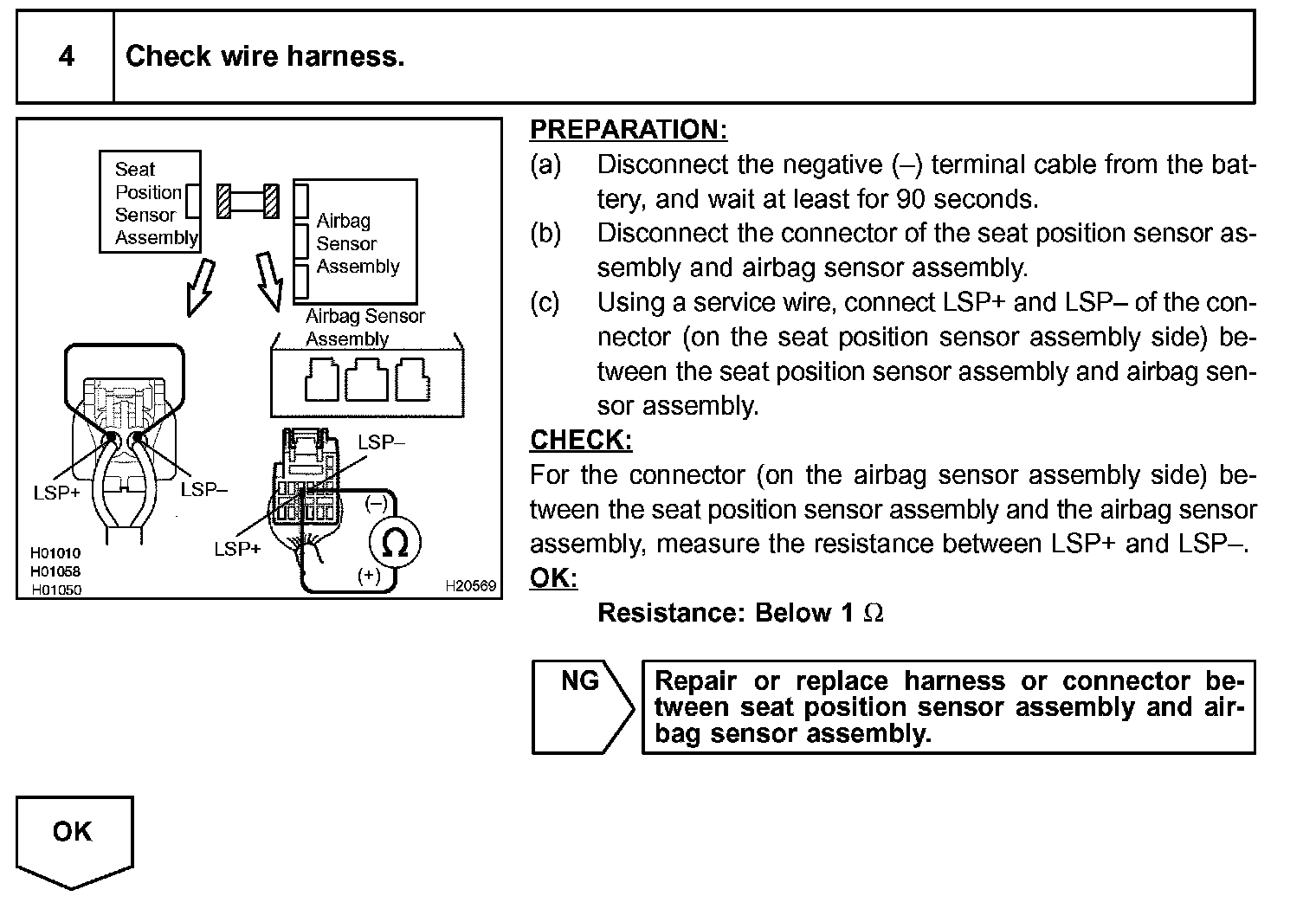

INSPECTION PROCEDURE
