Air Bag System

DTC 22 Short in D Squib (2nd step) Circuit (to B+)

CIRCUIT DESCRIPTION

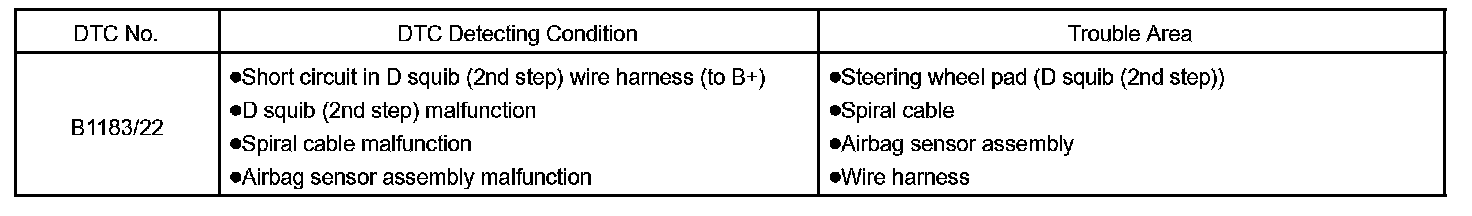

DTC Detecting Condition:

The D squib (2nd step)circuit consists of the airbag sensor assembly, spiral cable and steering wheel pad.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B1183/22 is recorded when a B+ short is detected in the D squib (2nd step) circuit.

Wiring Diagram:

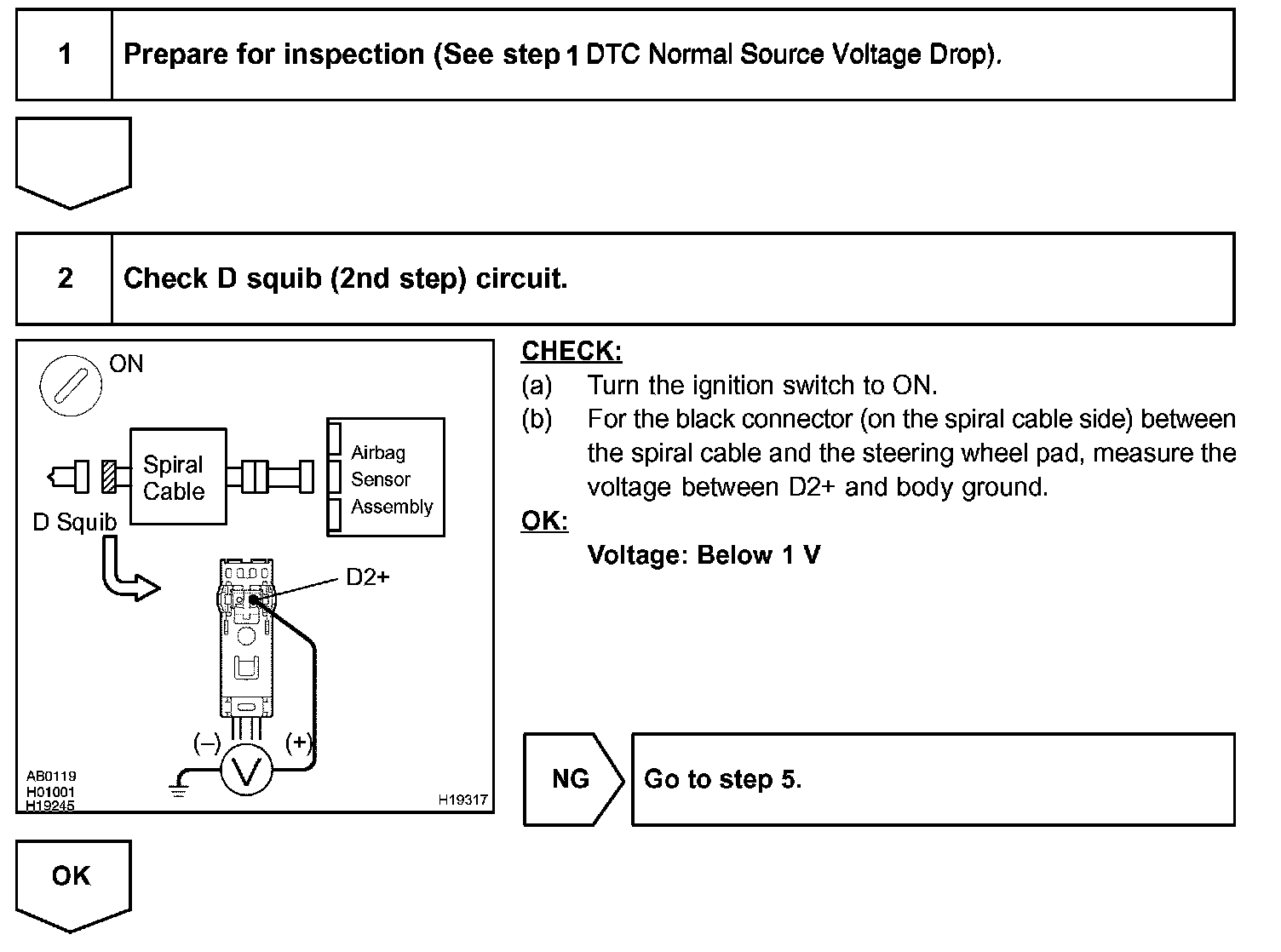

Step 1 - 2:

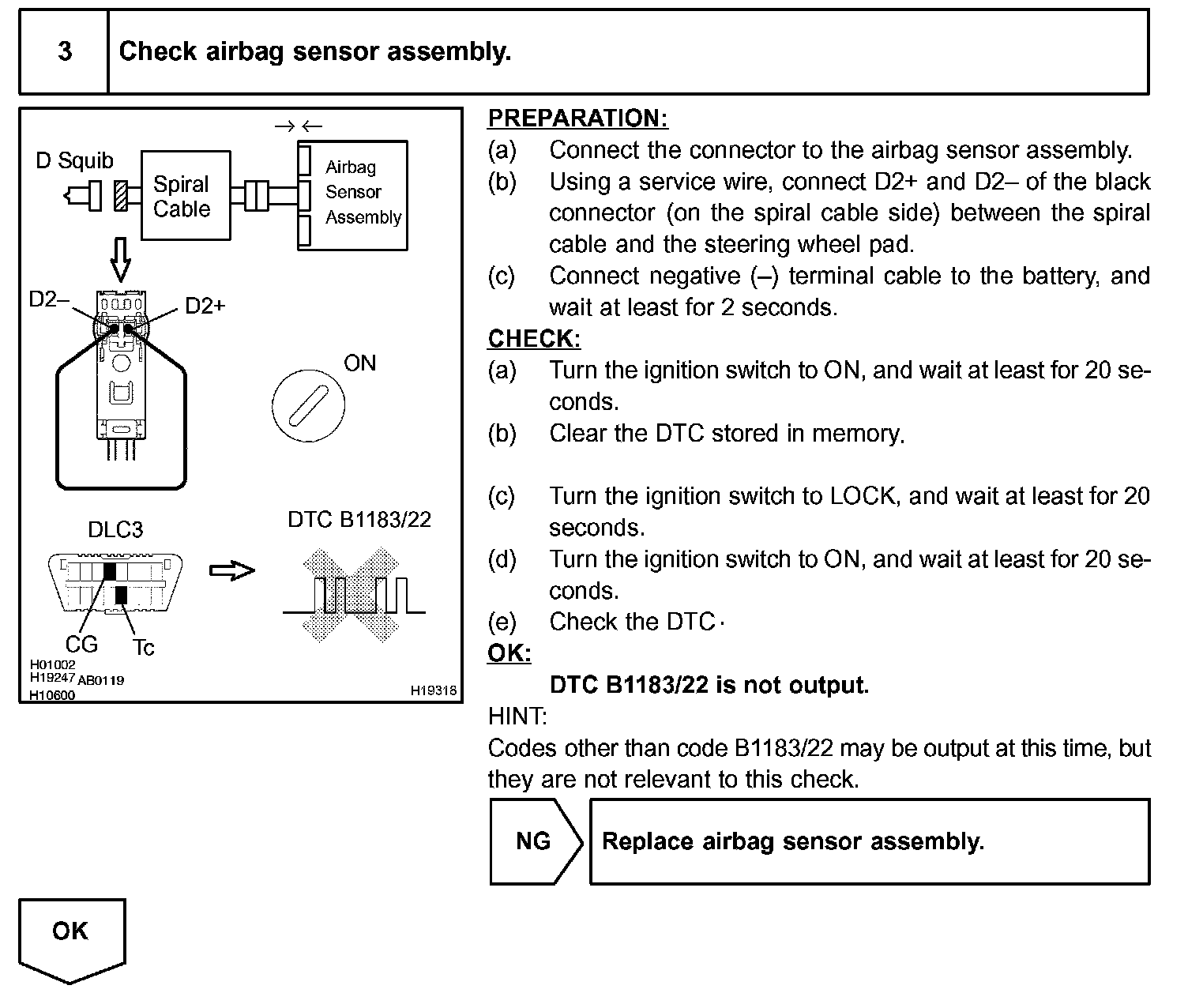

Step 3:

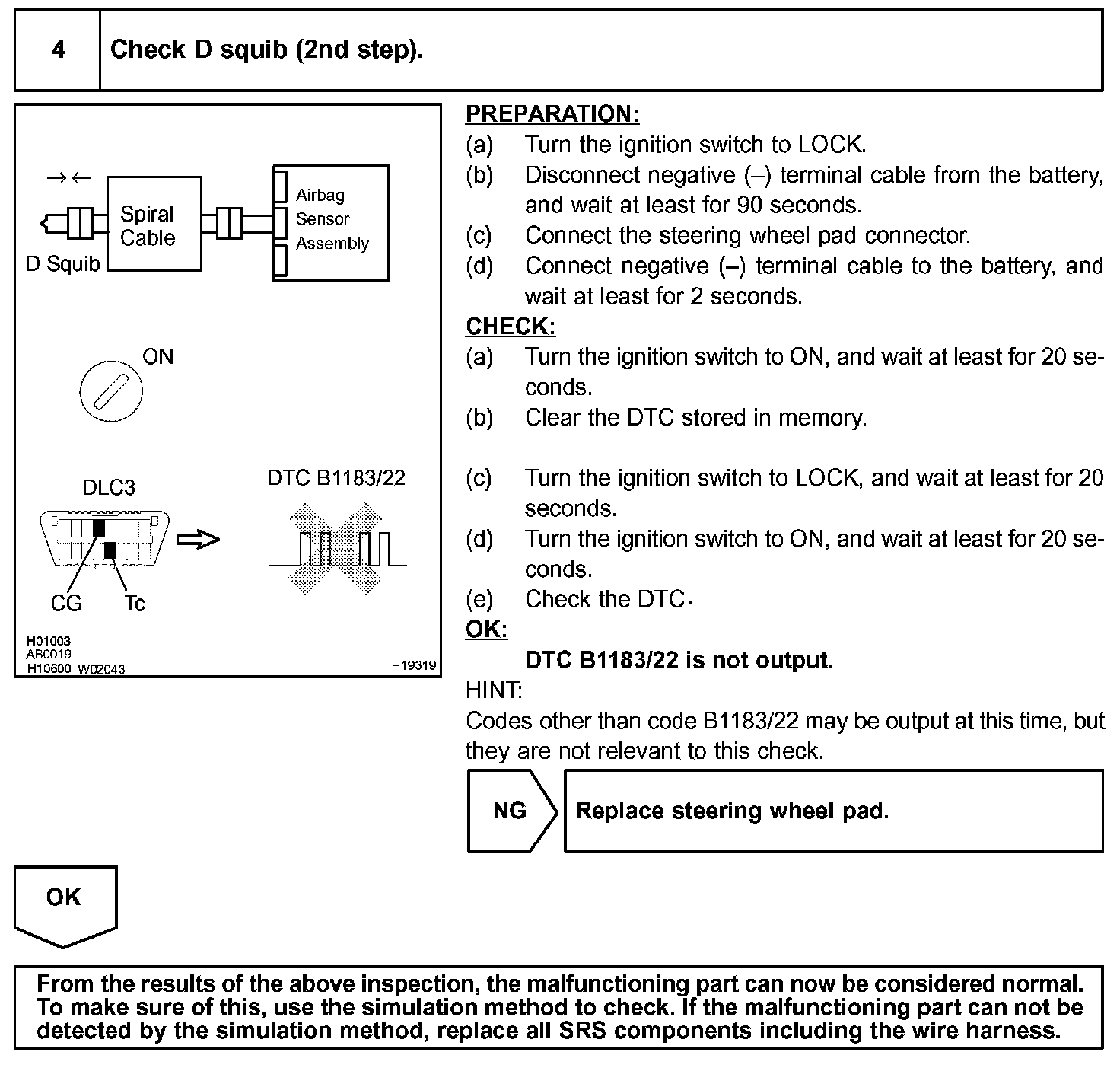

Step 4:

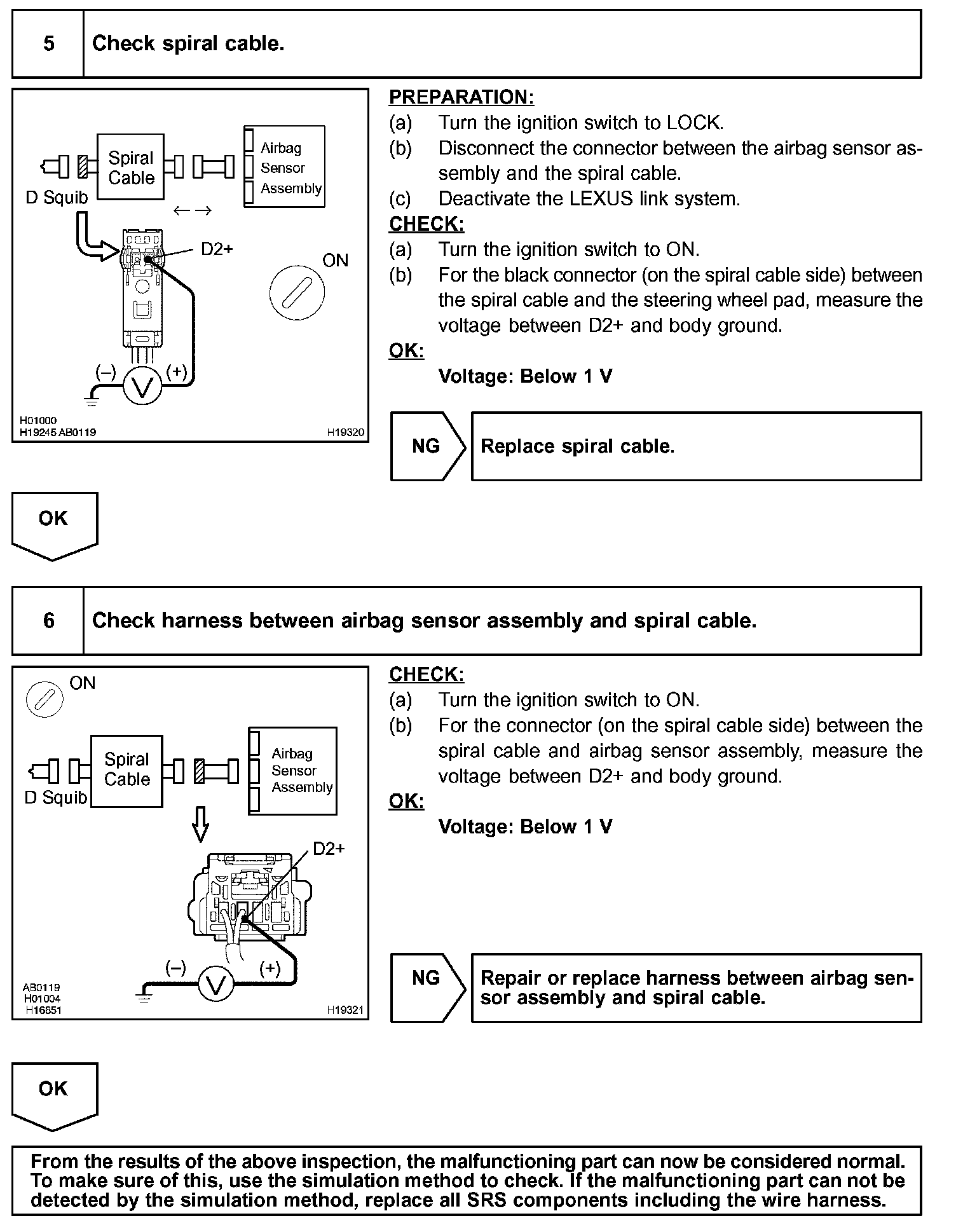

Step 5 - 6:

INSPECTION PROCEDURE
