Air Conditioning System (for Automatic Air Conditioning System)

DTC 21 Solar Sensor Circuit (Passenger side)

CIRCUIT DESCRIPTION

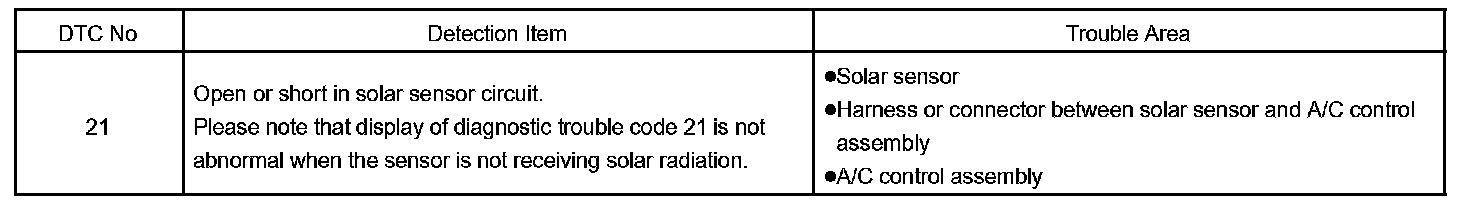

Detection Item:

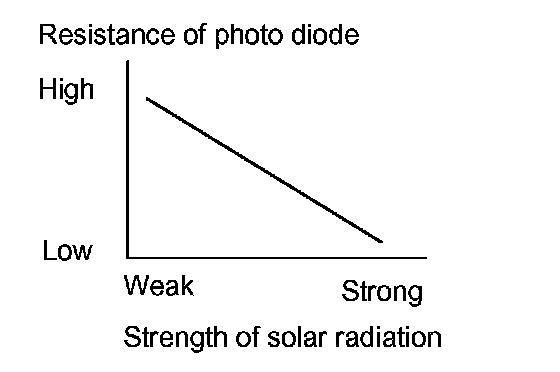

A photo diode in the solar sensor detects solar radiation and sends signals to the A/C control assembly.

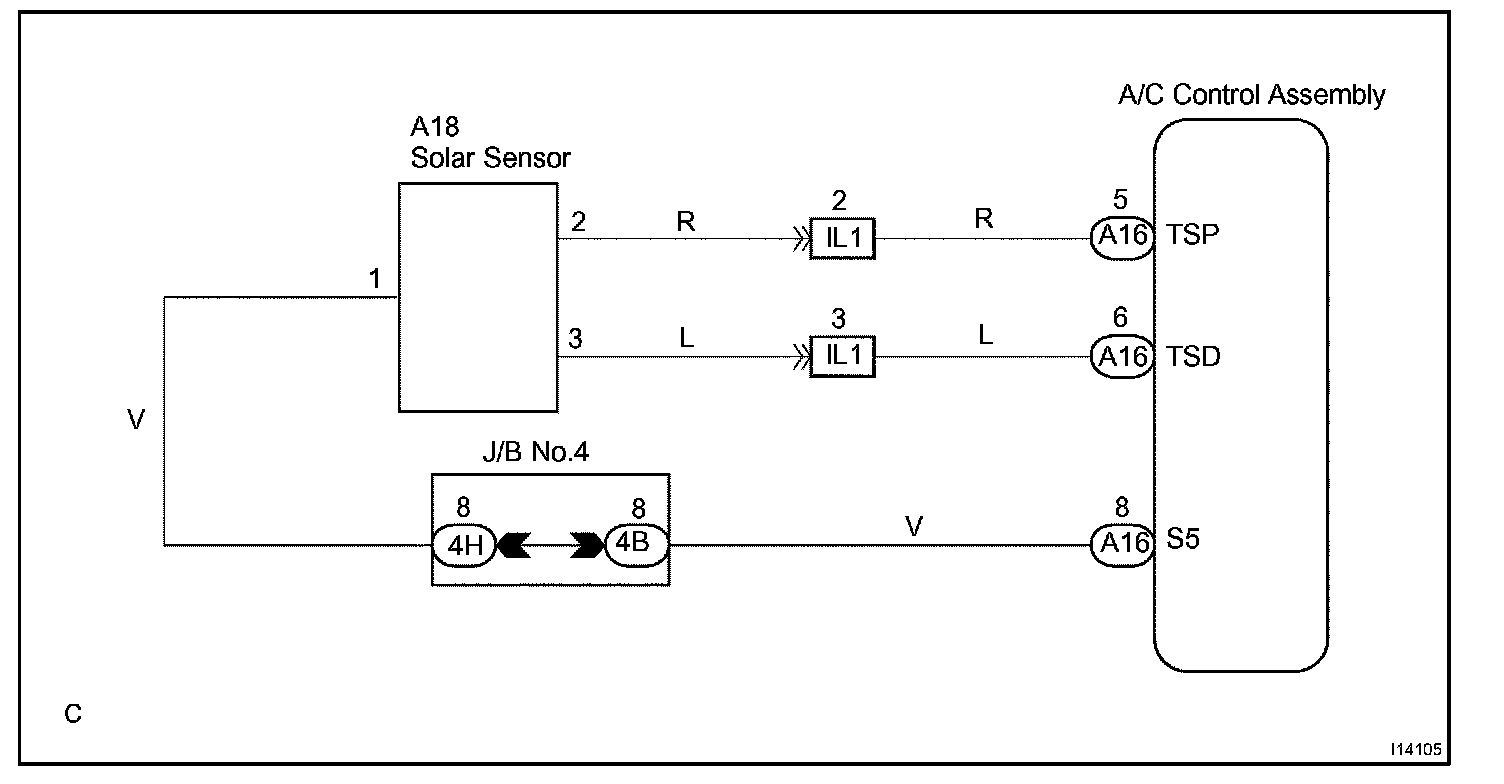

Wiring Diagram:

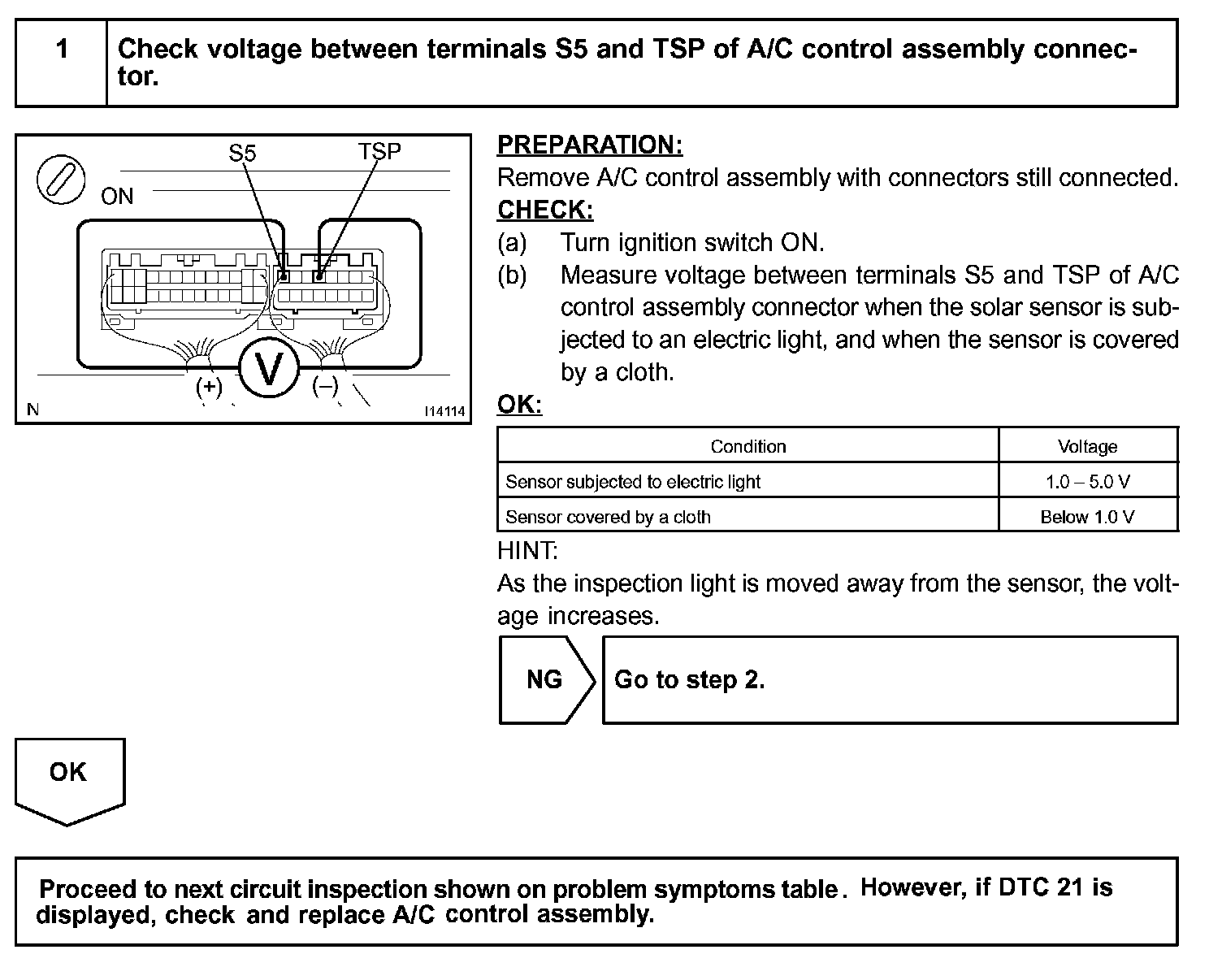

Step 1:

Step 2 - 3:

INSPECTION PROCEDURE
