ABS W/EBD System

DTC 21 Open or Short Circuit in Brake Actuator

CIRCUIT DESCRIPTION

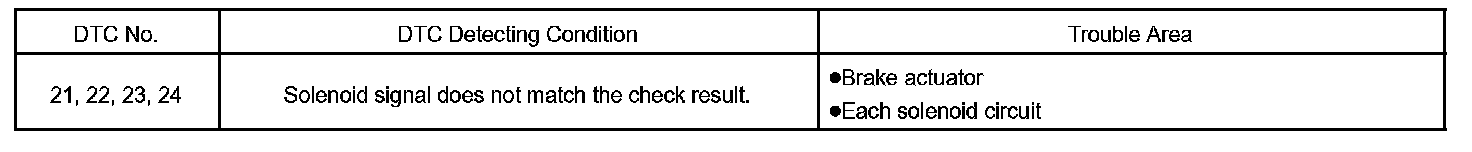

DTC Detecting Condition:

This solenoid goes on when signals are received from the ECU, and controls the pressure acting on the wheel cylinders thus controlling the braking force.

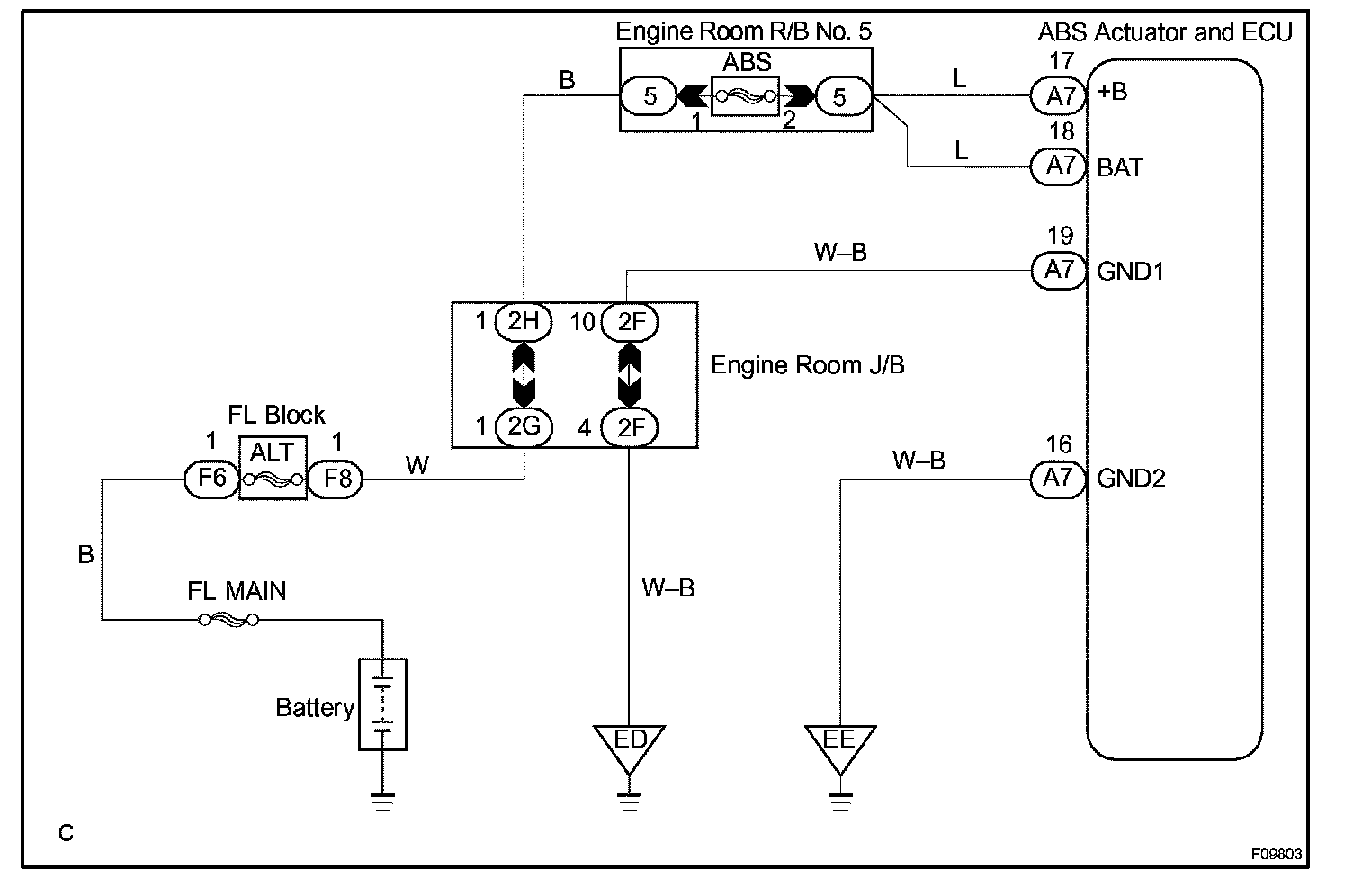

Wiring Diagram:

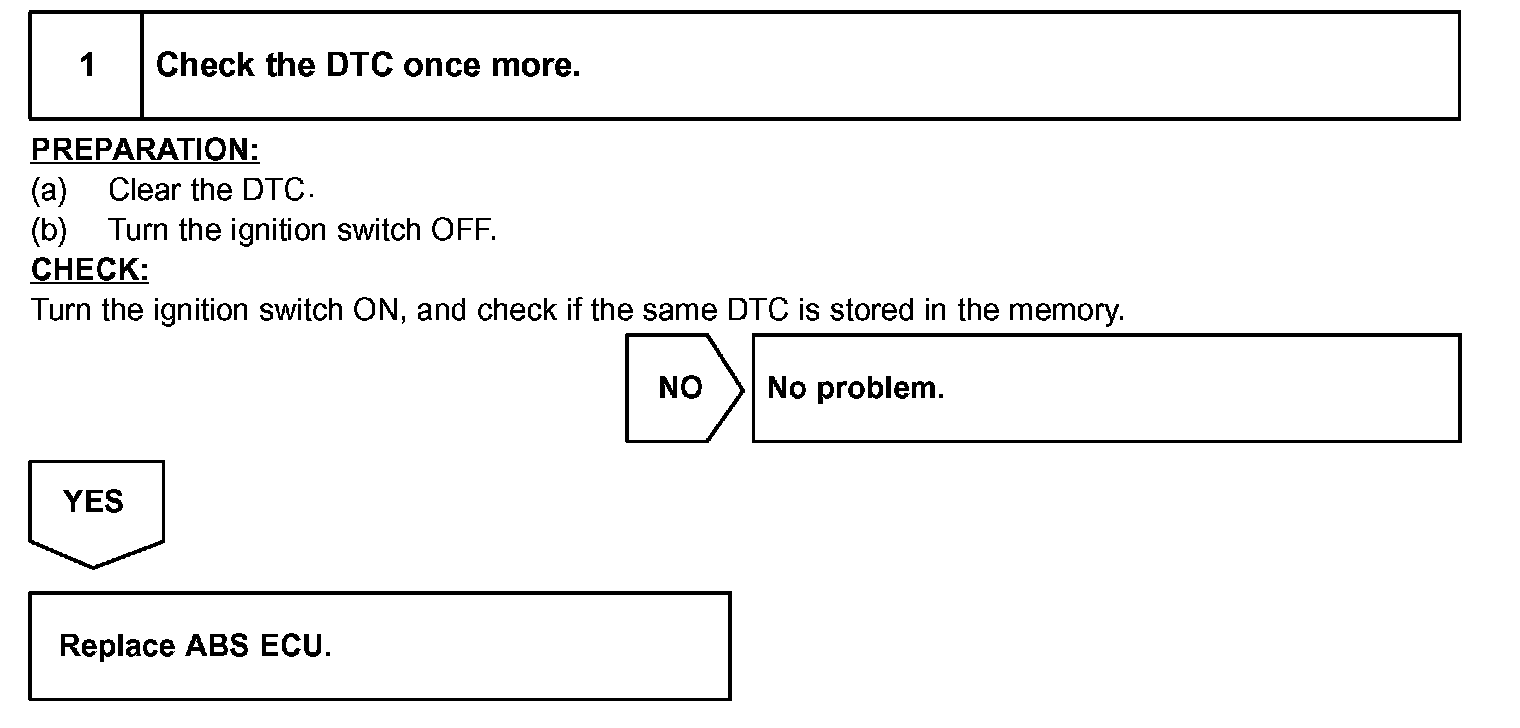

Step 1:

INSPECTION PROCEDURE
