DTC 17

DTC 17 Short in D Squib (2nd step) Circuit

CIRCUIT DESCRIPTION

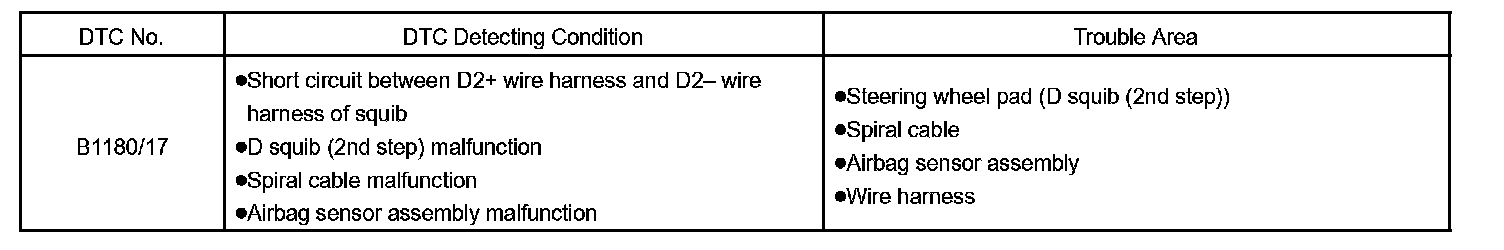

DTC Detecting Condition:

The D squib (2nd step) circuit consists of the airbag sensor assembly, spiral cable and steering wheel pad.

It causes the airbag to deploy when the airbag deployment conditions are satisfied.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B1180/17 is recorded when a short is detected in the D squib (2nd step) circuit.

Wiring Diagram:

Step 1 - 2:

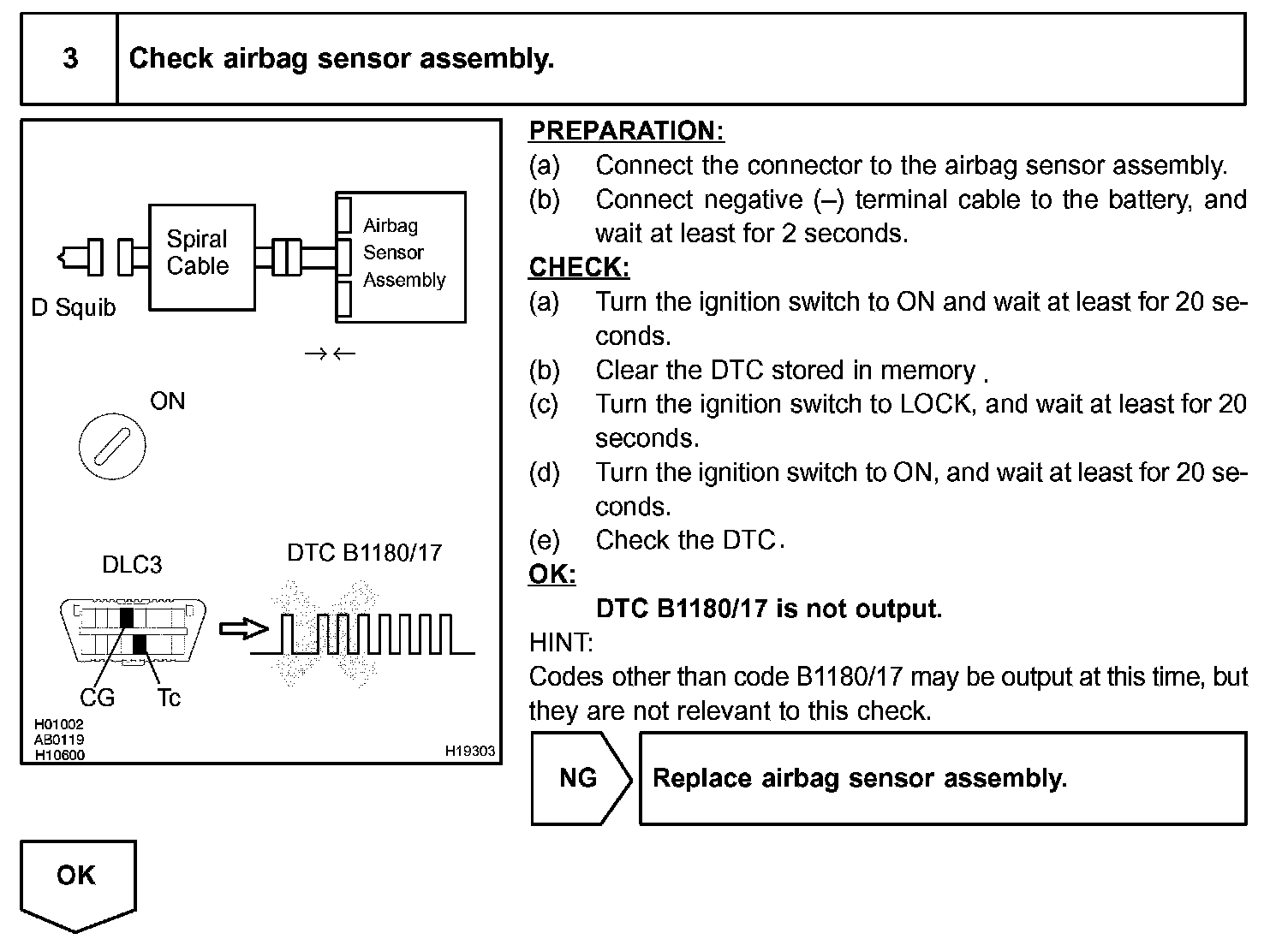

Step 3:

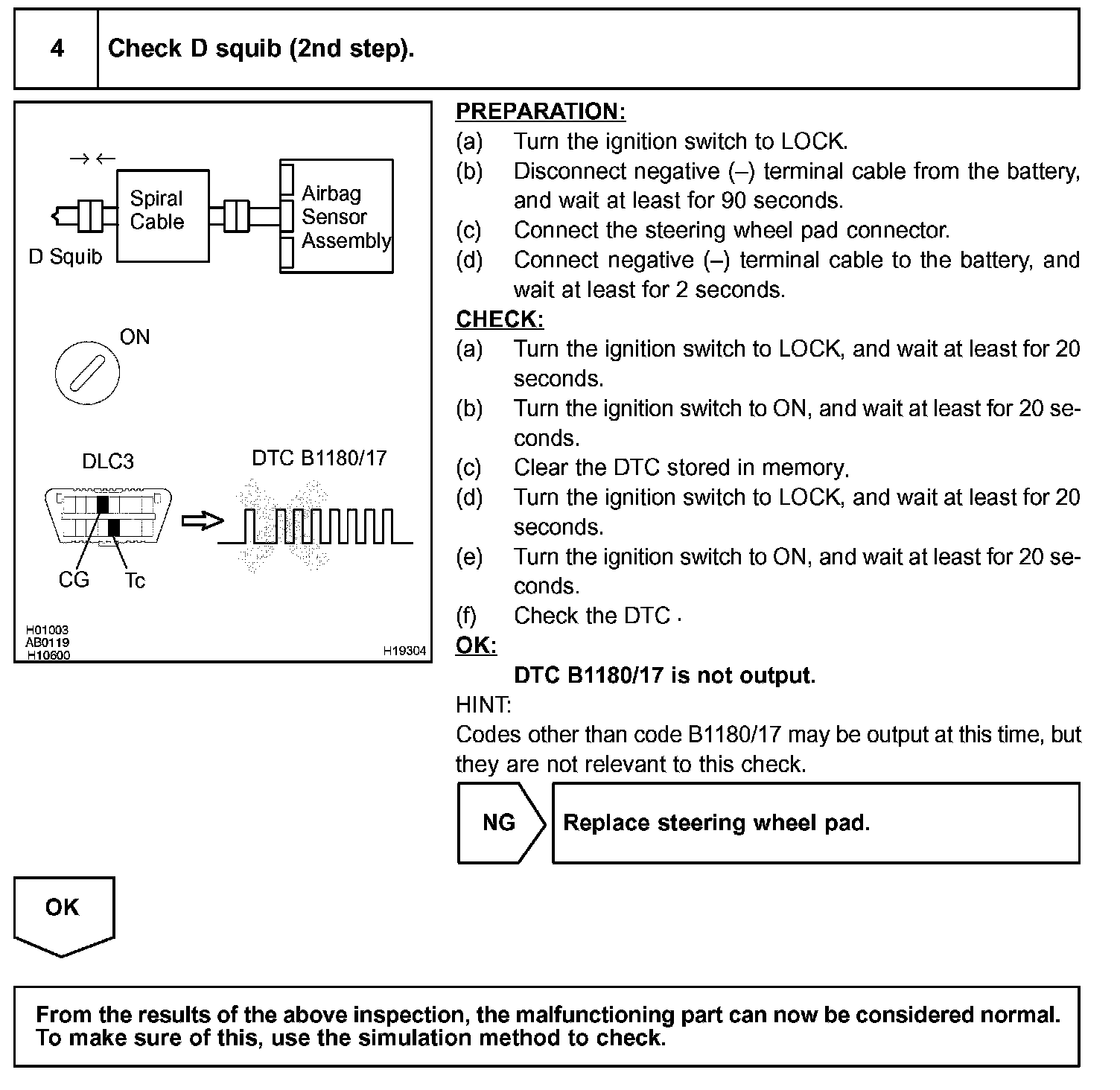

Step 4:

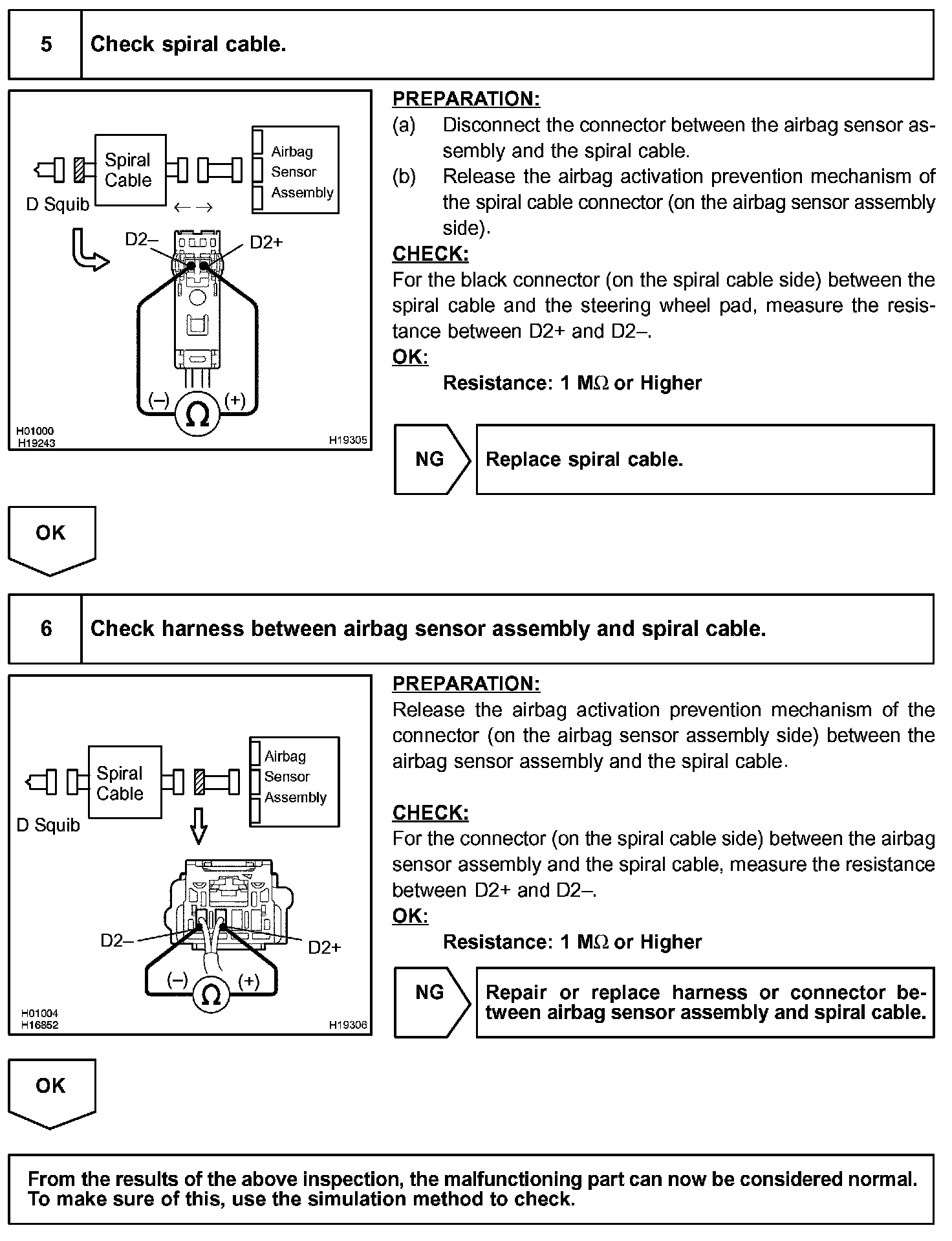

Step 5 - 6:

INSPECTION PROCEDURE
