Cruise Control System

DTC 14 Actuator Mechanical Malfunction

CIRCUIT DESCRIPTION

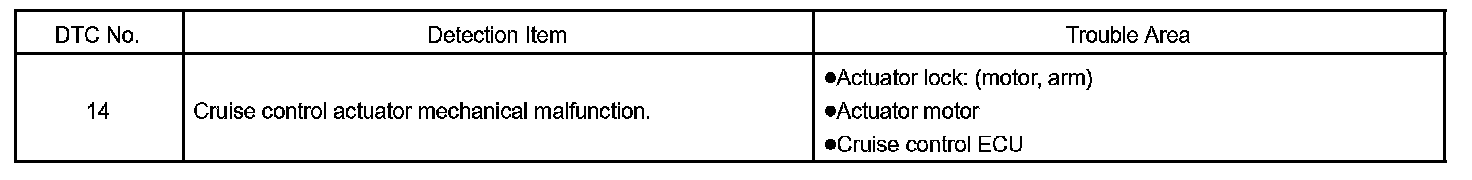

Detection Item:

The circuit detects the rotation position of the actuator control plate and sends a signal to the ECU.

Wiring Diagram:

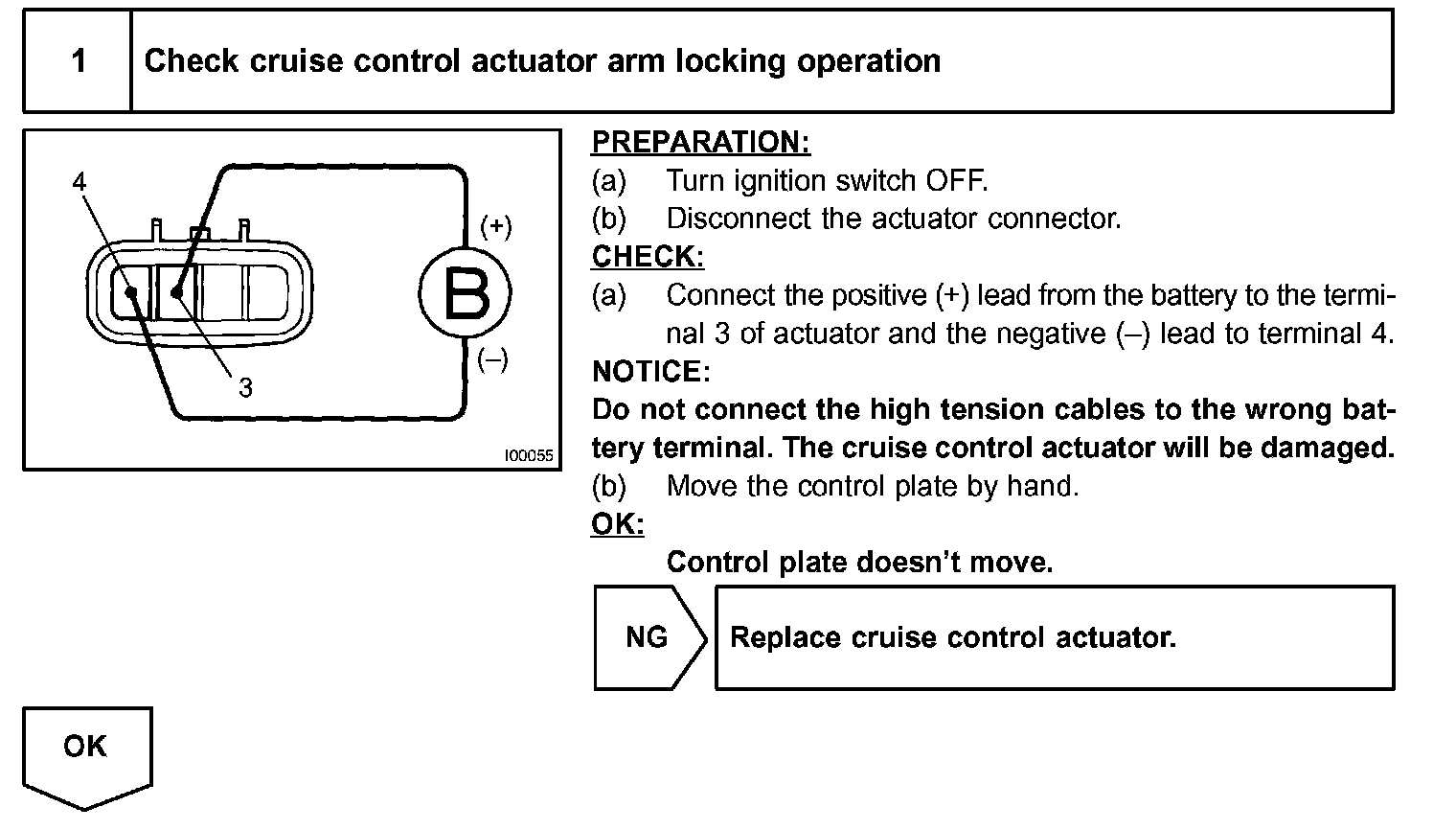

Step 1:

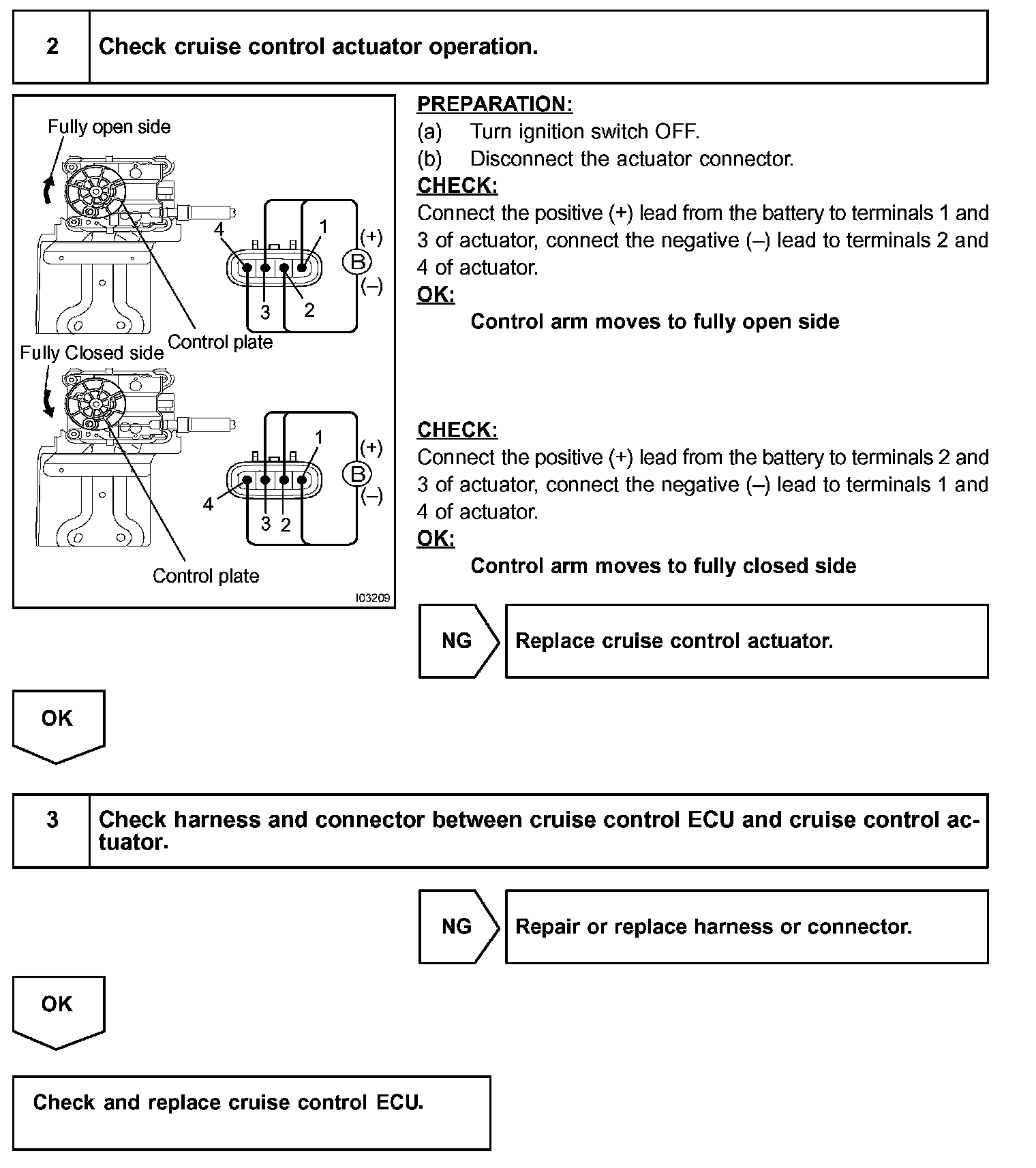

Step 2 - 3:

INSPECTION PROCEDURE
