Air Conditioning System

DTC 13 Evaporator Temperature Sensor Circuit

CIRCUIT DESCRIPTION

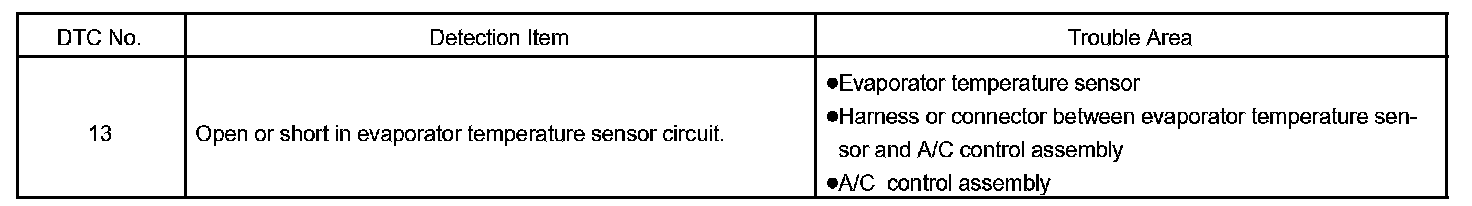

Detection Item:

This sensor detects the temperature inside the A/C unit and sends the appropriate signals to the A/C control assembly.

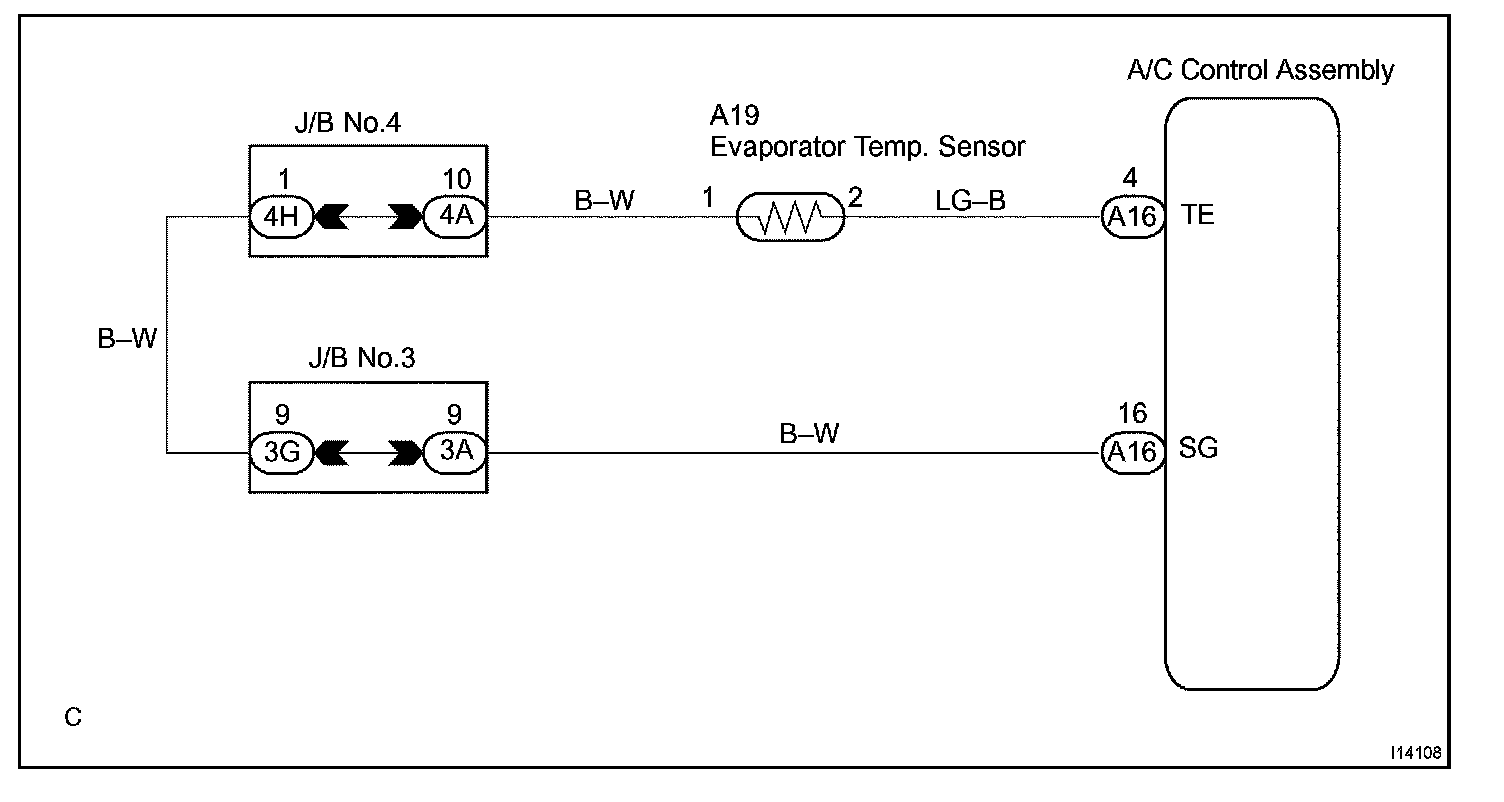

Wiring Diagram:

Step 1 - 2:

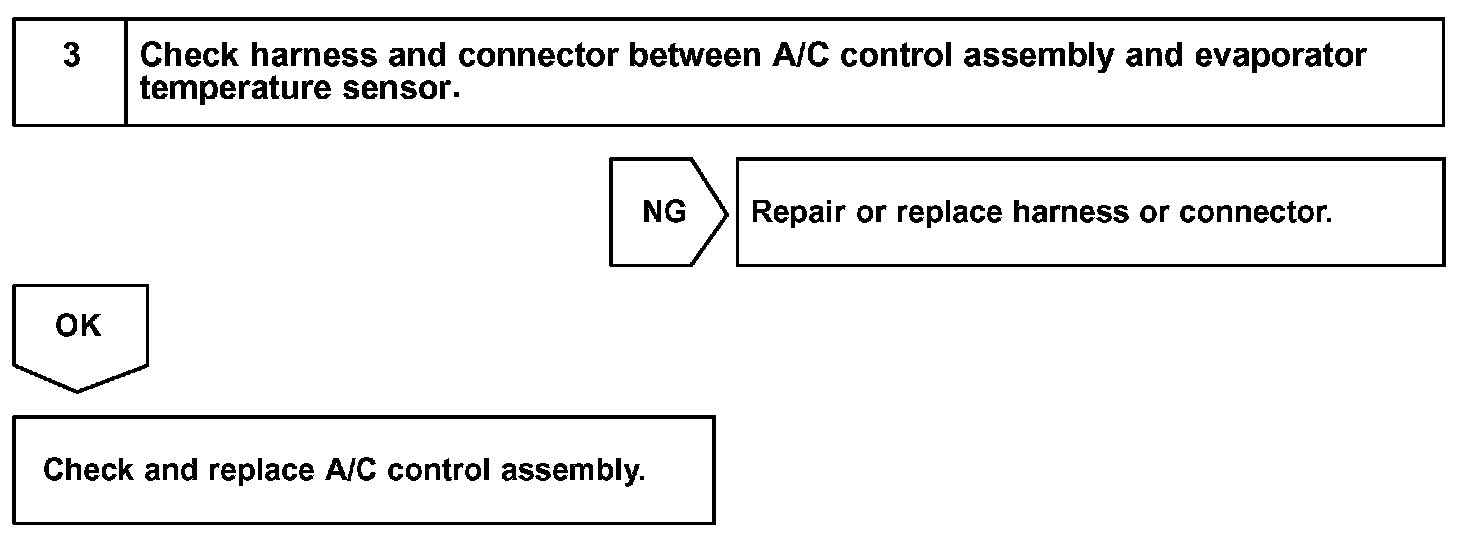

Step 3:

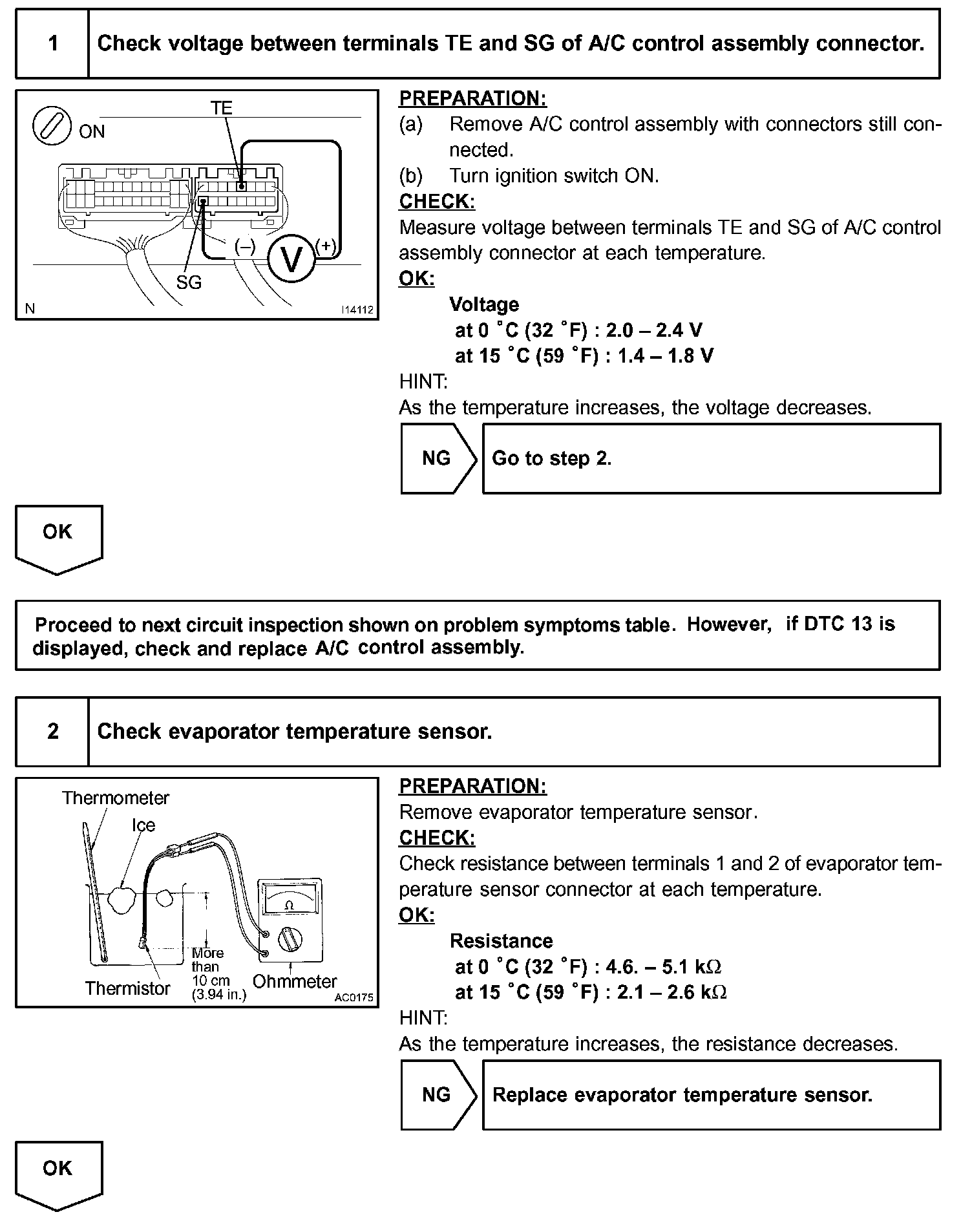

INSPECTION PROCEDURE
