ABS W/EBD System

DTC 13 ABS Motor Relay Circuit

CIRCUIT DESCRIPTION

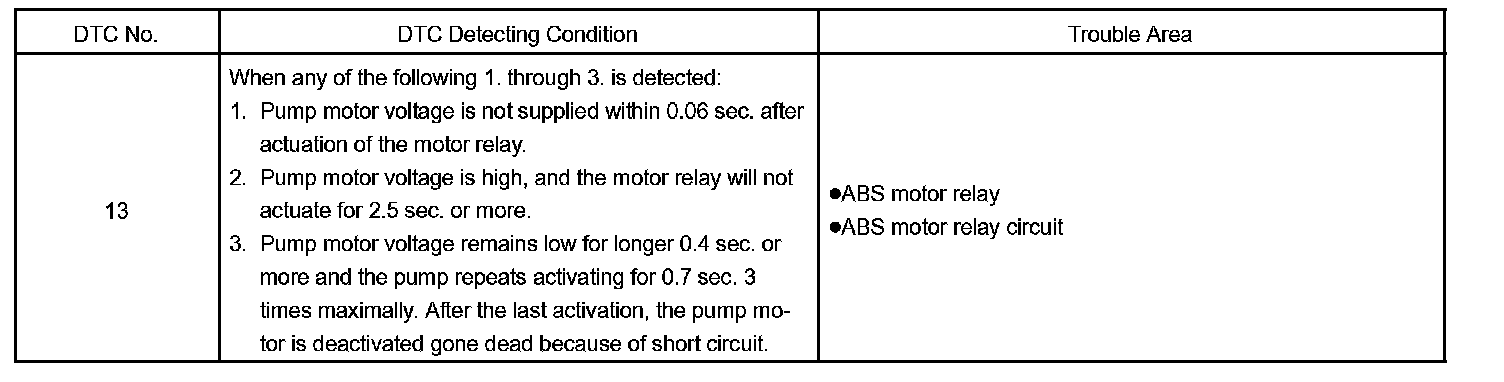

DTC Detecting Condition:

The ABS motor relay supplies power to the ABS pump motor. When the ABS is activated the ECU switches the ABS motor relay ON and operates the ABS pump motor.

Wiring Diagram:

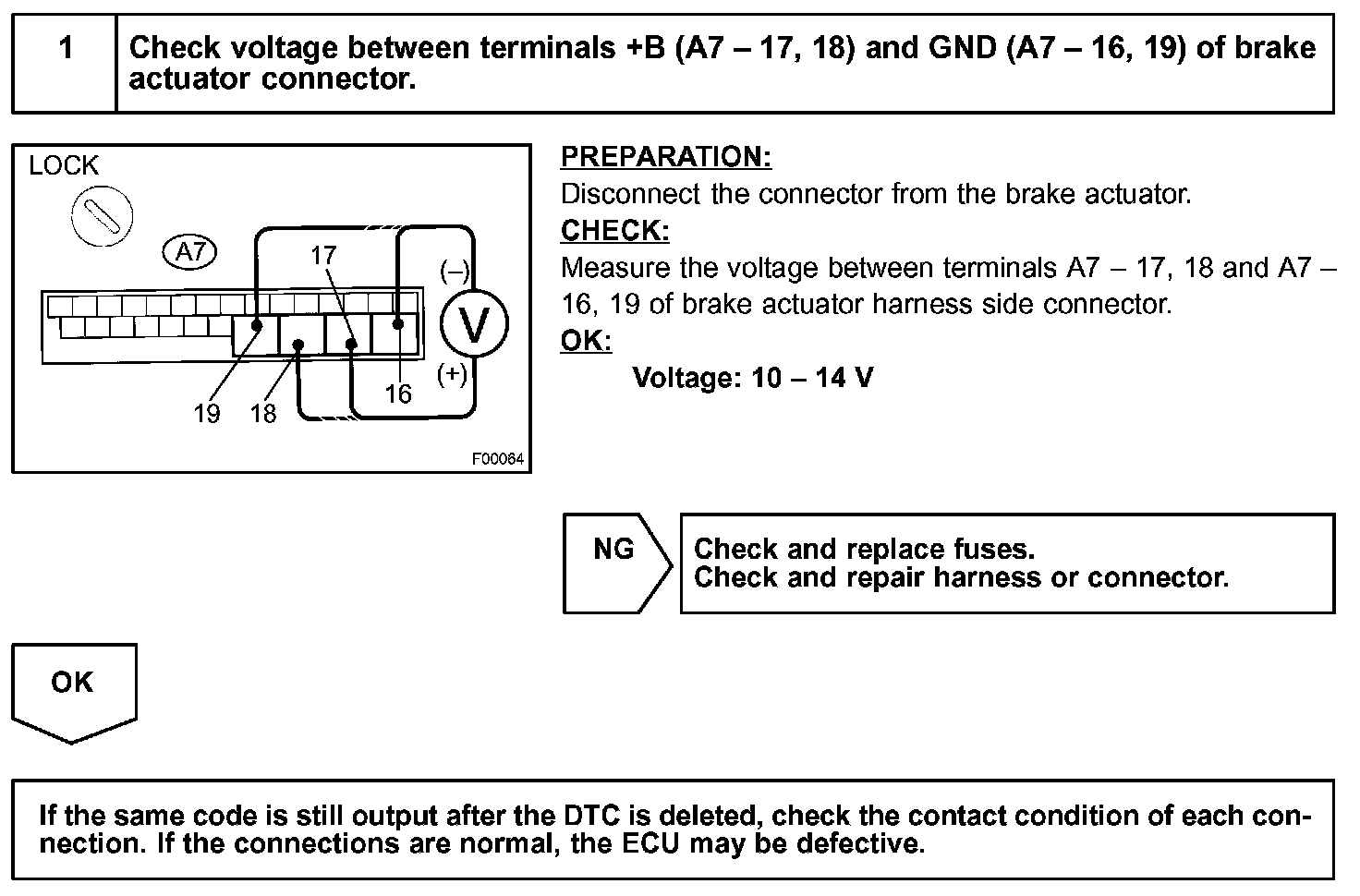

Step 1:

INSPECTION PROCEDURE
