Air Conditioning System

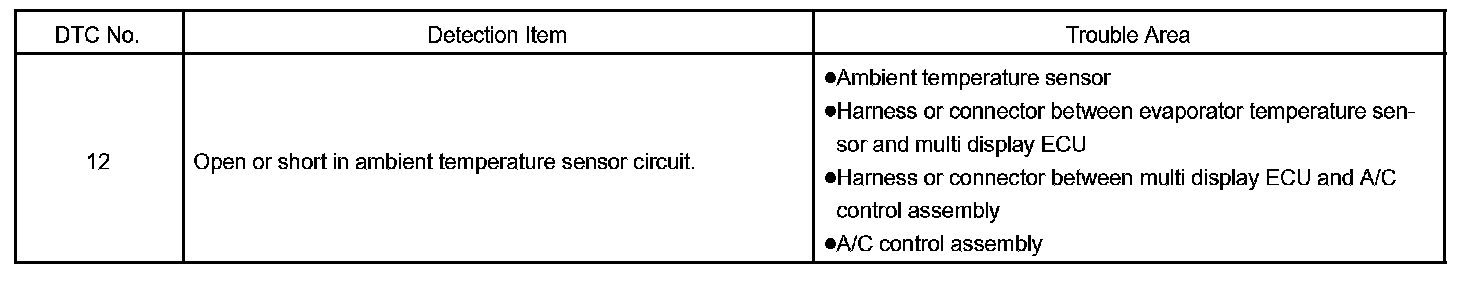

DTC 12 Ambient Temperature Sensor Circuit

CIRCUIT DESCRIPTION

Detection Item:

This sensor detects the ambient temperature and sends the appropriate signals to the A/C control assembly.

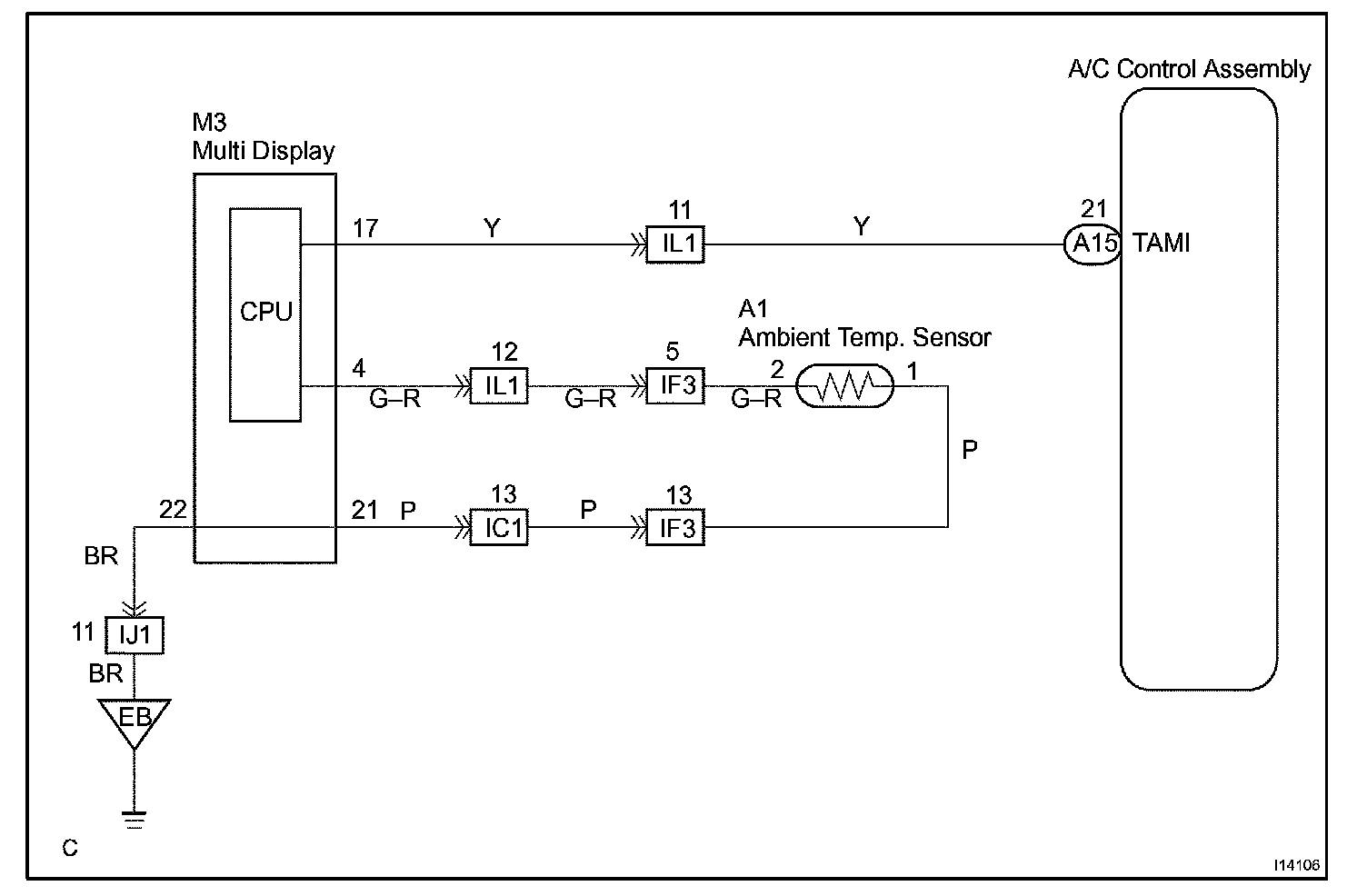

Wiring Diagram:

Step 1 - 2:

Step 3 - 5:

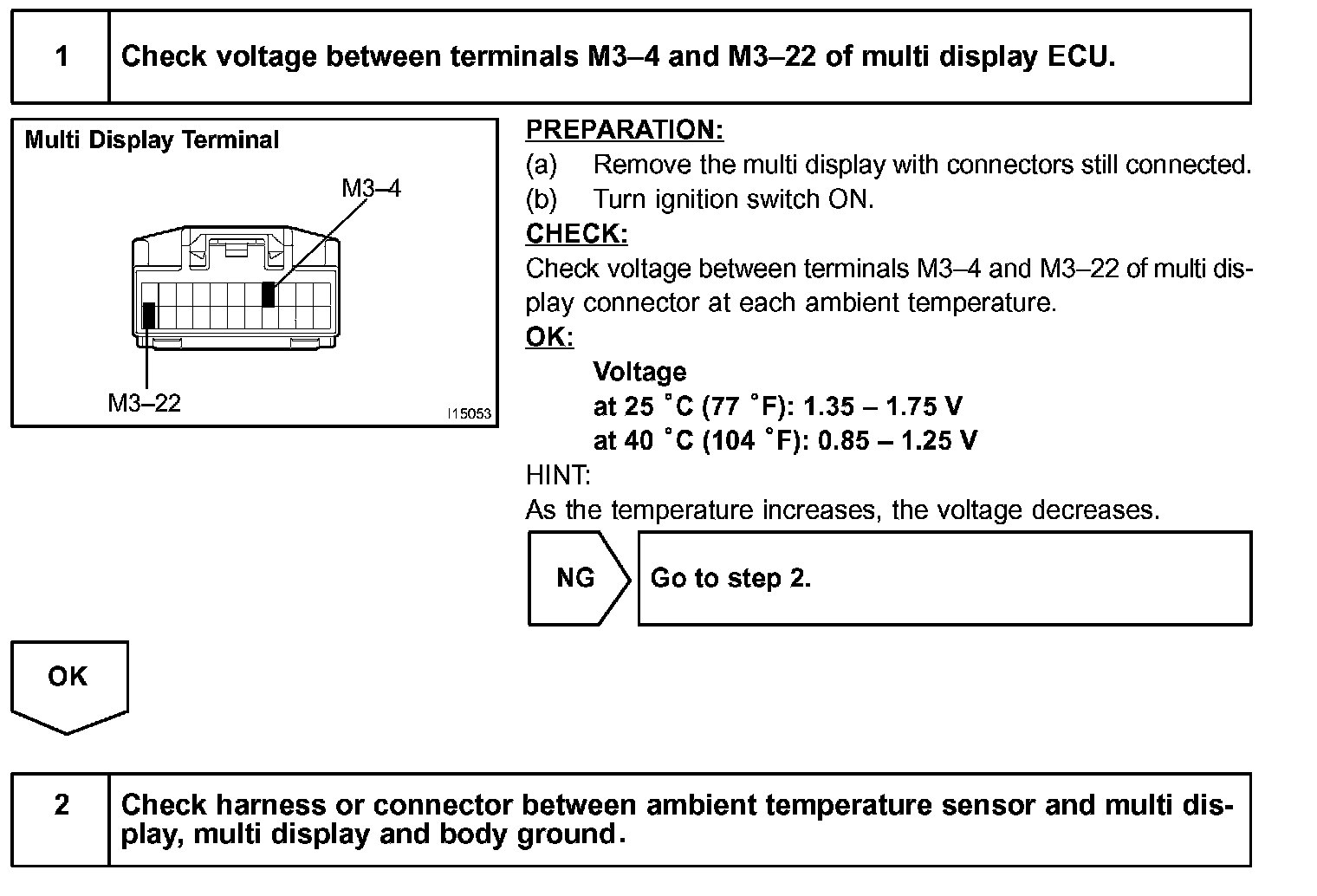

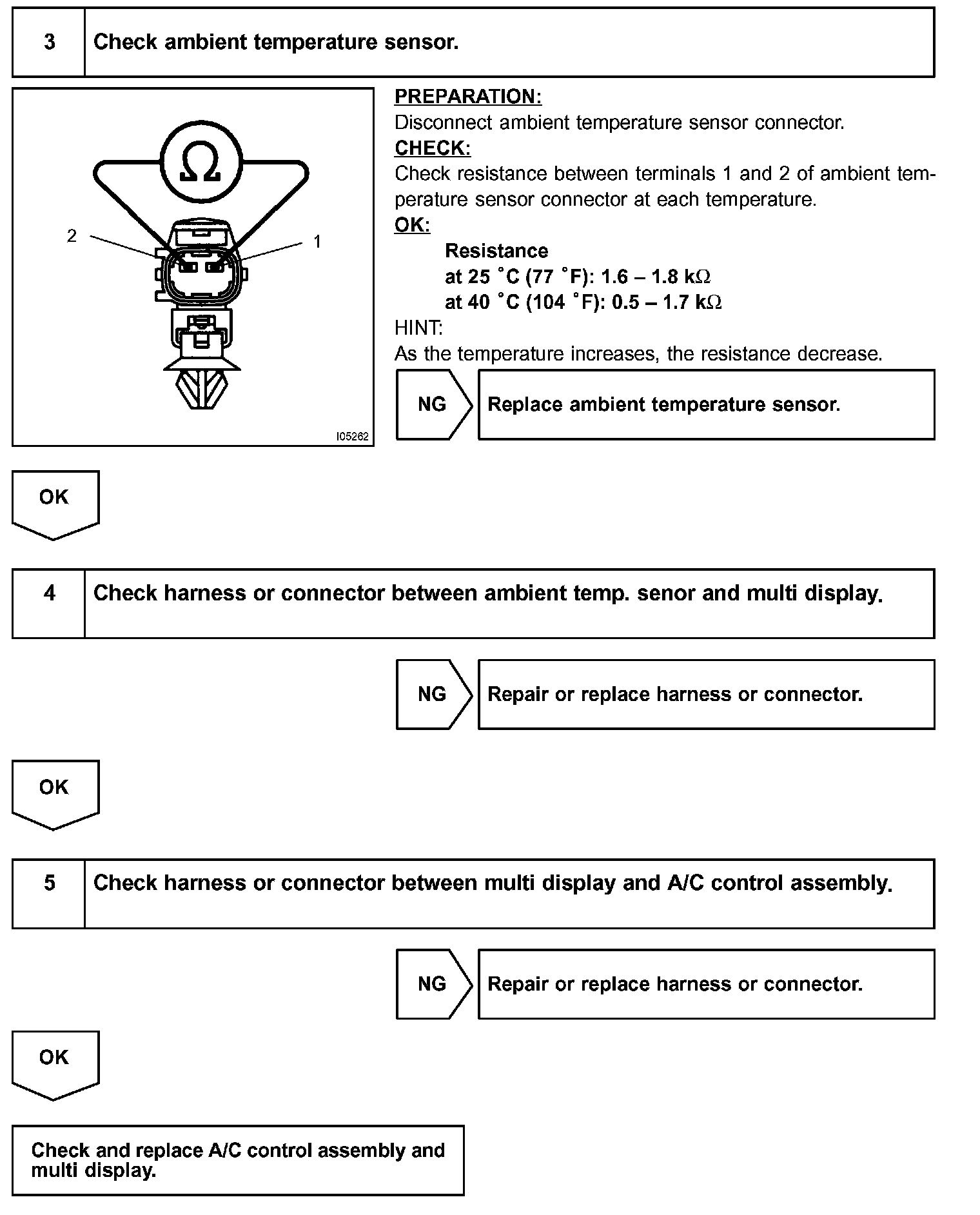

INSPECTION PROCEDURE
