ABS W/EBD System

DTC 11 ABS Solenoid Relay Circuit

CIRCUIT DESCRIPTION

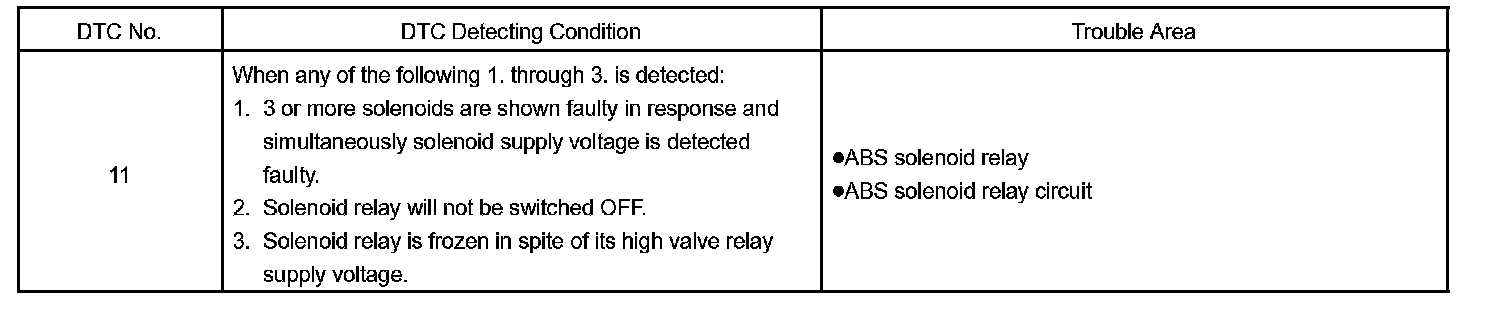

DTC Detecting Condition:

This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is OK, the relay goes on.

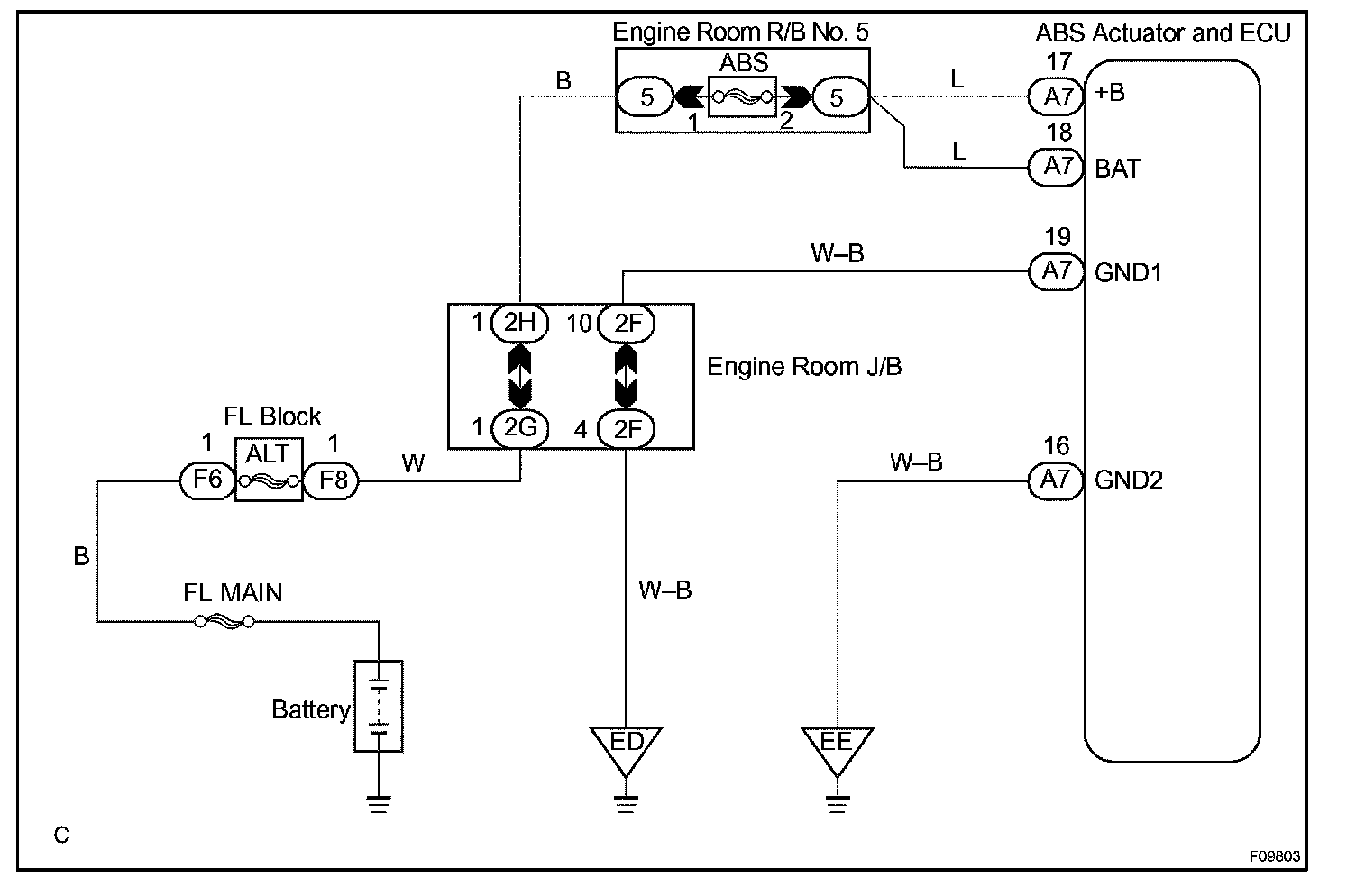

Wiring Diagram:

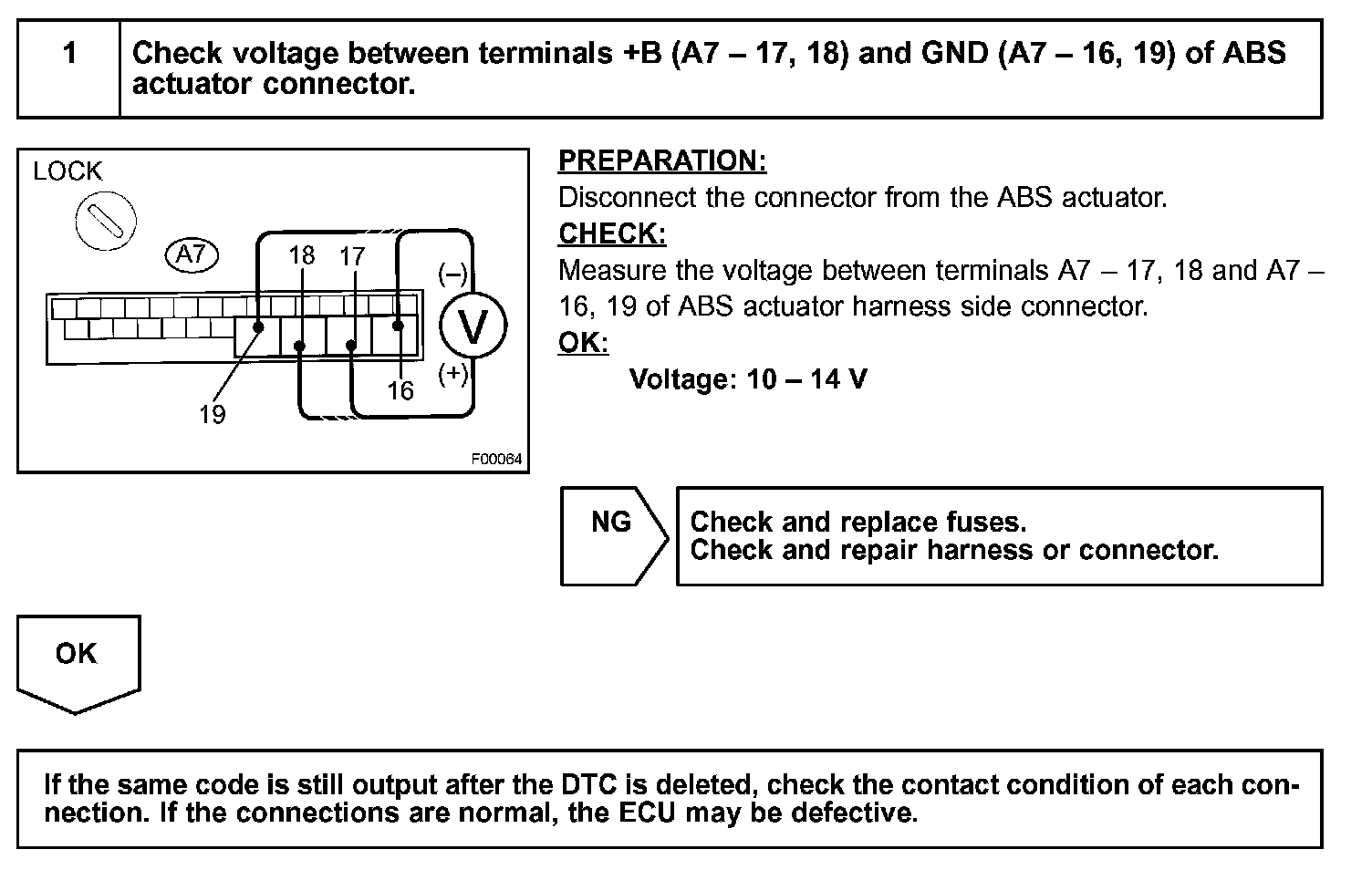

Step 1:

INSPECTION PROCEDURE
