ABS W/EBD & BA & TRAC & VSC System

DTC 11 ABS Solenoid Relay Circuit

CIRCUIT DESCRIPTION

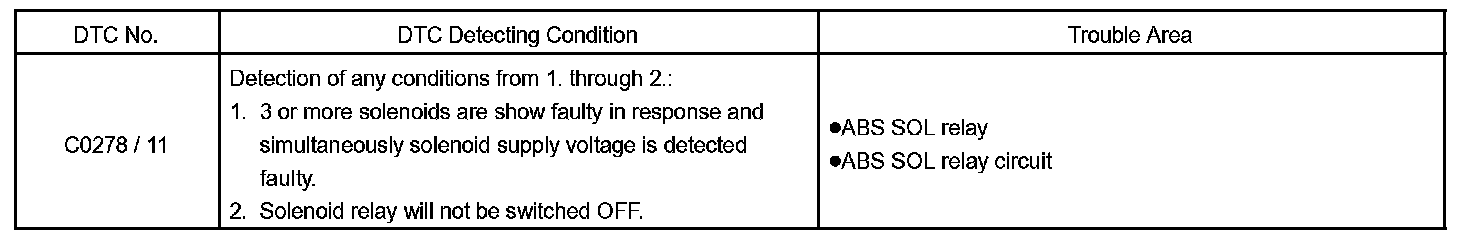

DTC Detecting Condition:

This relay supplies power to each ABS SOL. After the ignition switch is turned ON, if the initial check is OK, the relay goes on.

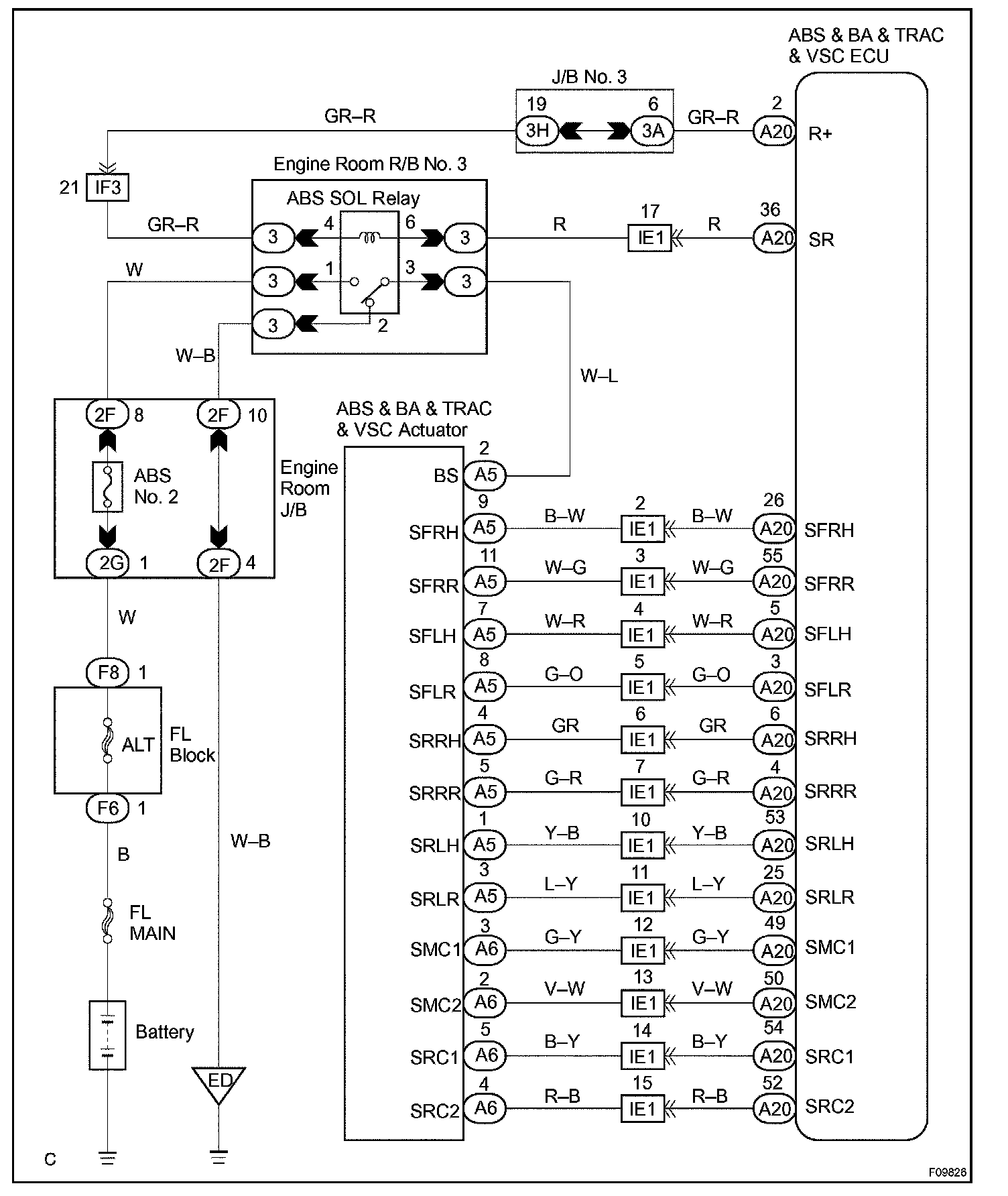

Wiring Diagram:

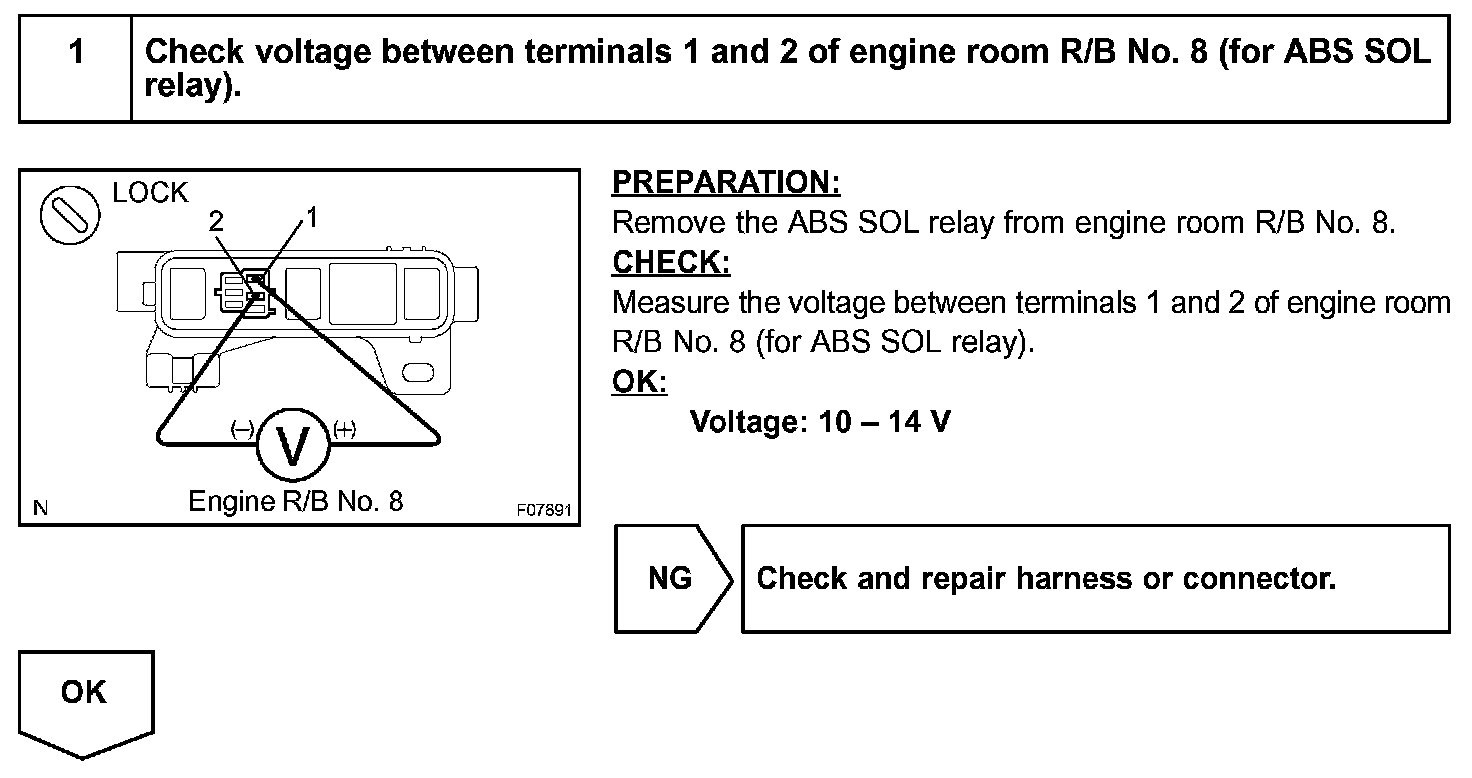

Step 1:

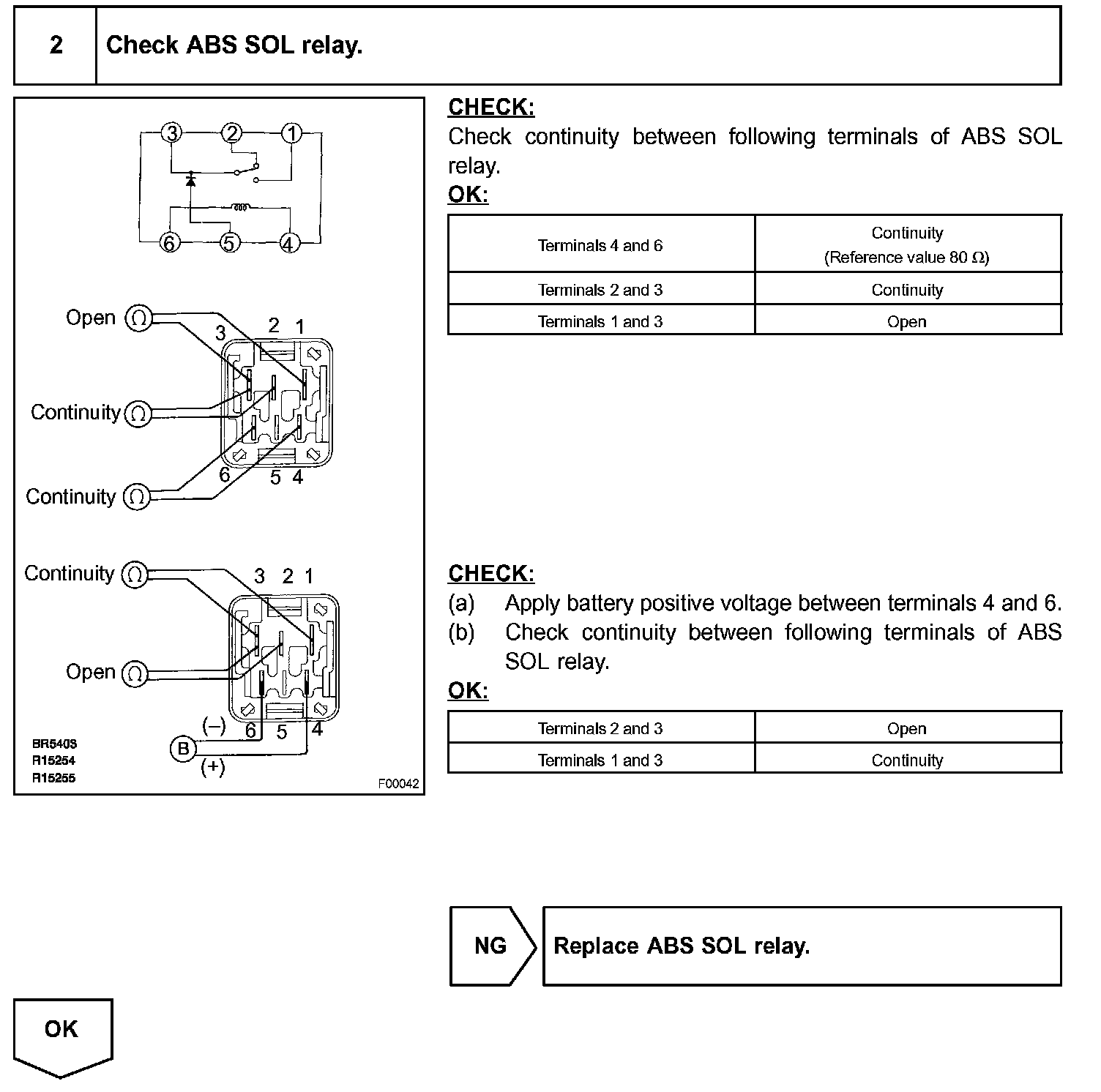

Step 2:

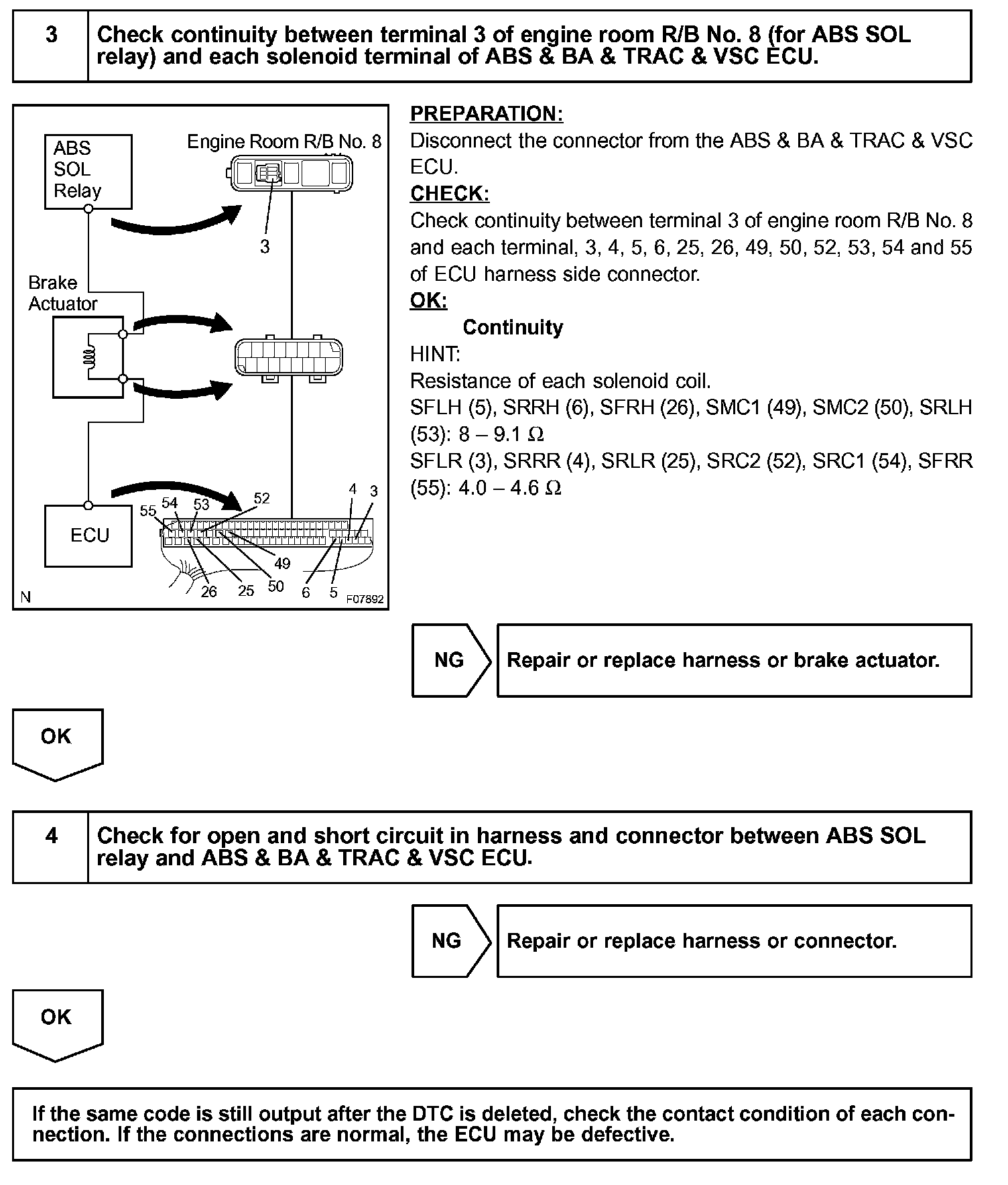

Step 3 - 4:

INSPECTION PROCEDURE
