ABS w/ EBD & BA & TRAC & VSC System

DIAGNOSTIC TROUBLE CODE CHART

NOTE:
- When removing the part, turn the ignition switch OFF.
- When replacing the steering angle sensor or ECU, make sure to perform steering angle sensor zero point calibration.

HINT:
- Using SST 09843-18040, connect the terminals Tc and CG.
- If any abnormality is not found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit corresponding the code. For details of each code, refer to the respective "DTC No." under "Trouble Code Diagnostic Charts".

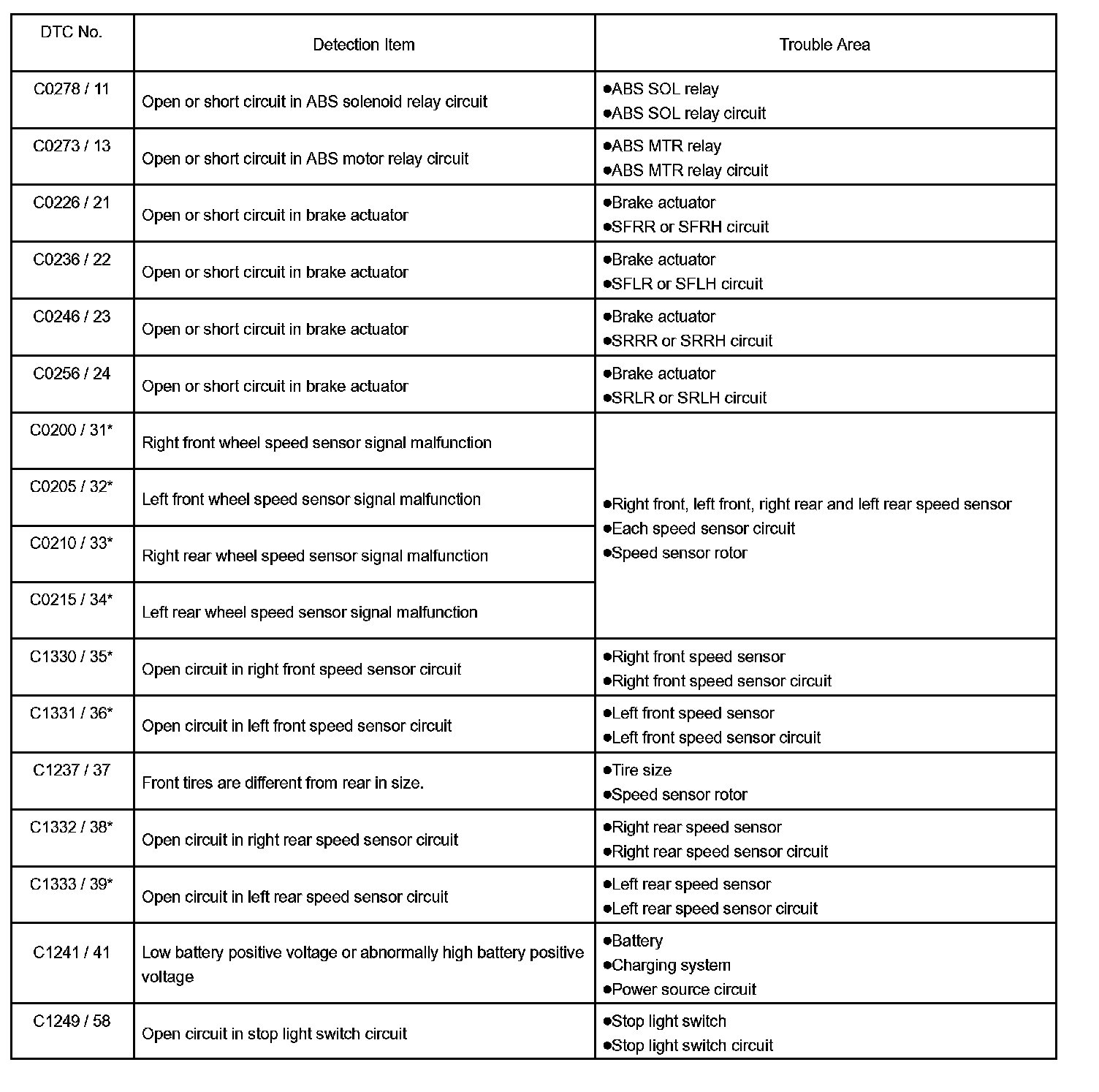

C0273/11 - C1249/58:

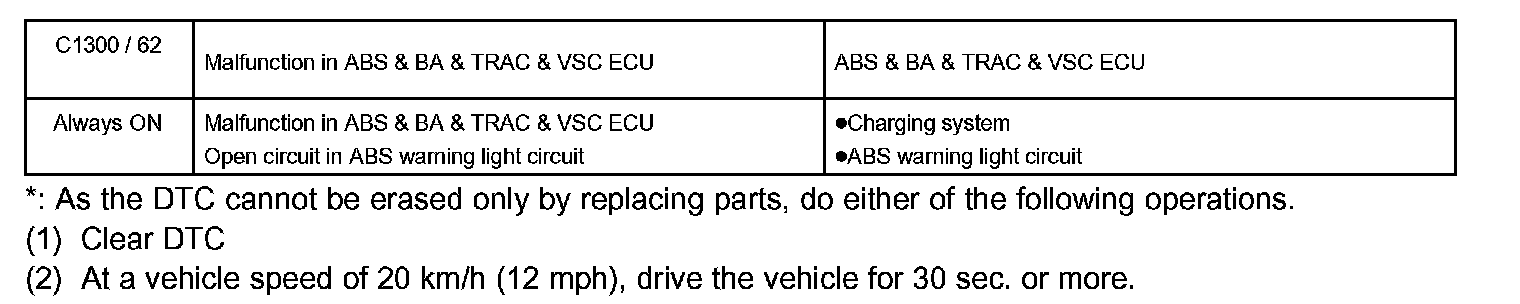

C1300/62 - Always ON:

DTC chart of ABS system

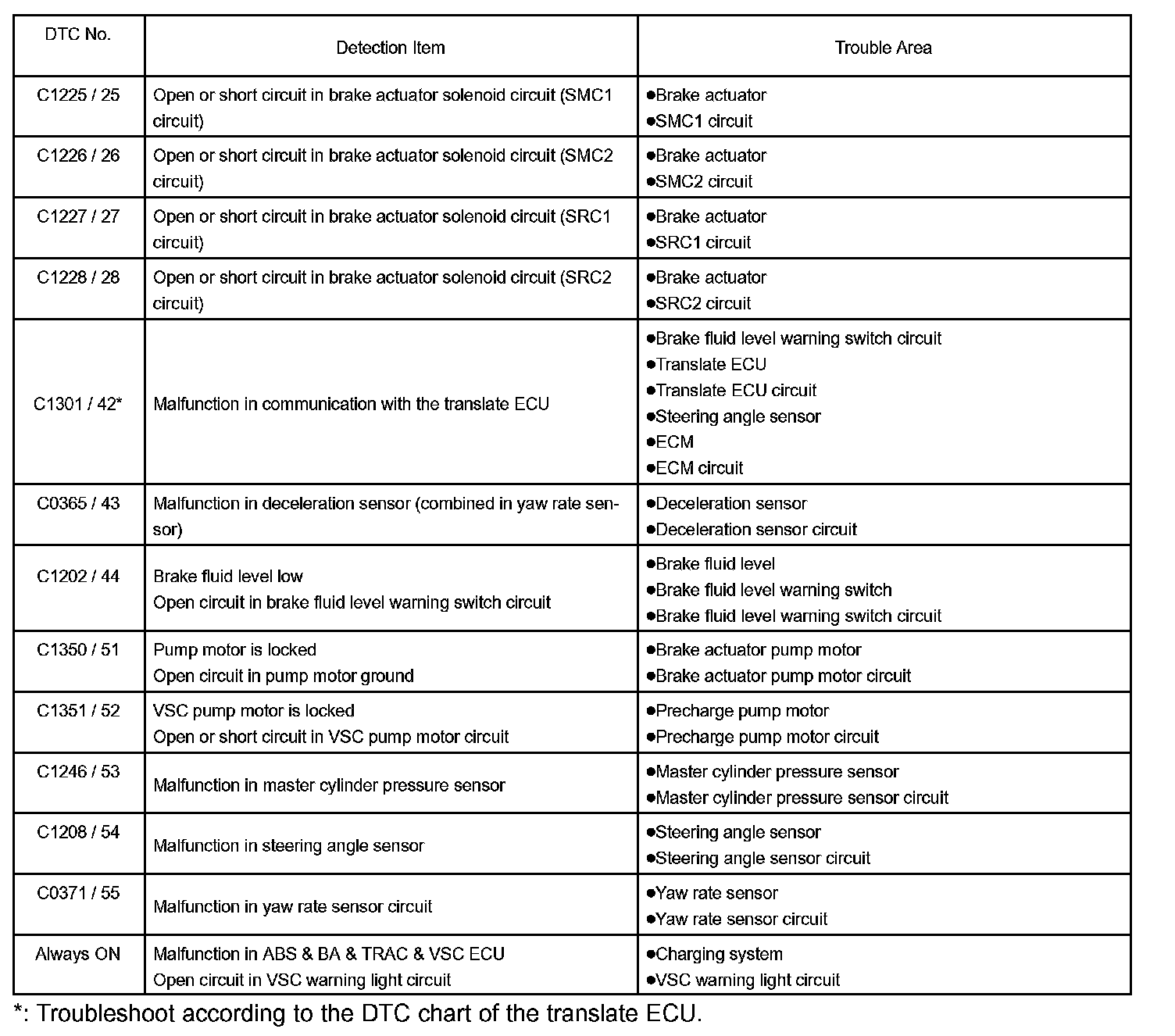

C1225/25 - Always ON:

DTC chart of VSC system

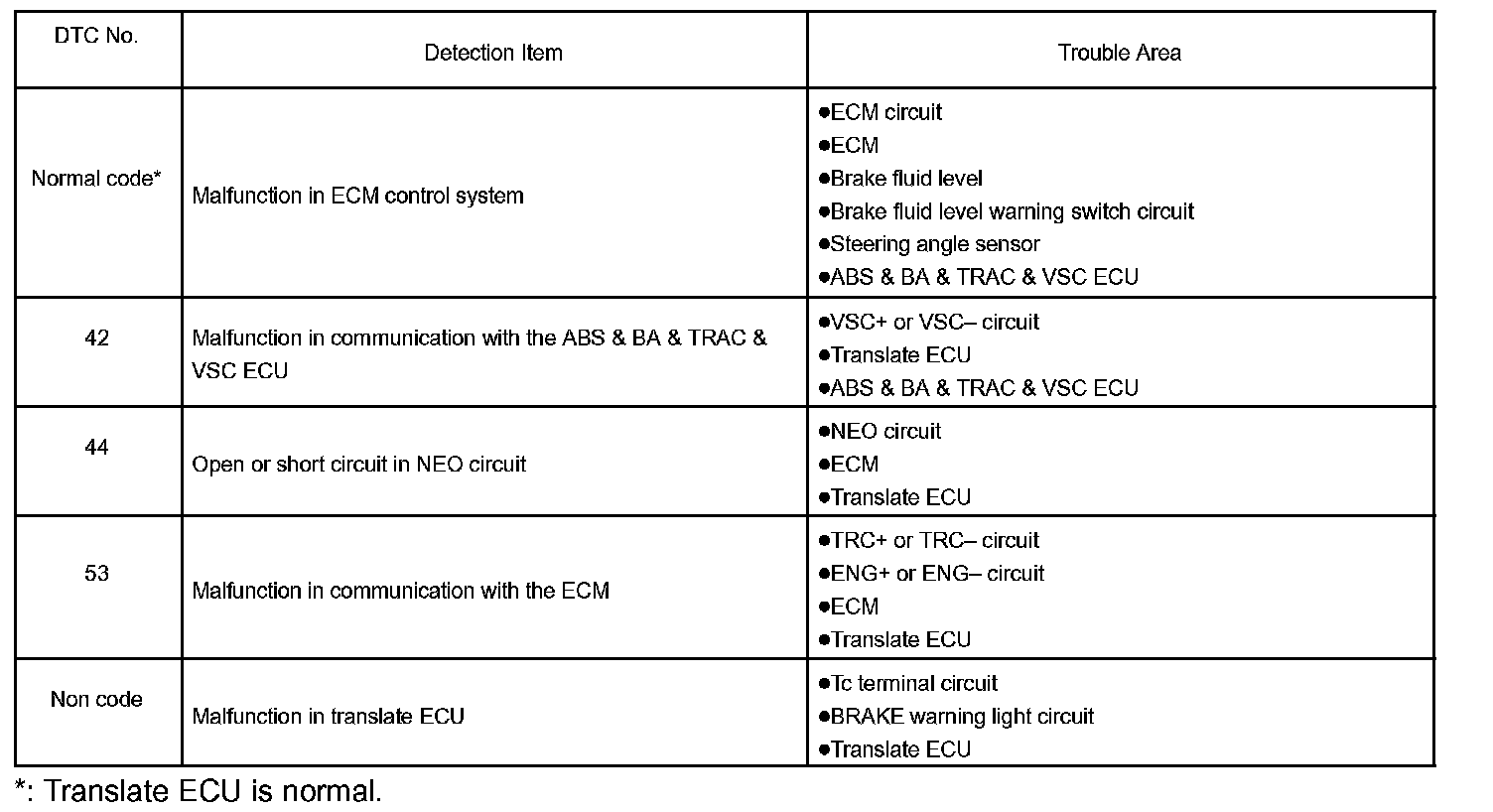

Normal Code - Non Code:

DTC chart of translate ECU (When DTC "C1301/42" of VSC system is output)

HINT: The BRAKE warning light does not turn on due to an error in VSC.
If it is on, check that the parking brake pedal is released, the brake fluid level is normal and no malfunction is identified in the fluid level warning switch system.

DTC Of Speed Sensor Check Function:

DTC of speed sensor check function
