C1246

DTC C1246 Master Cylinder Pressure Sensor Circuit

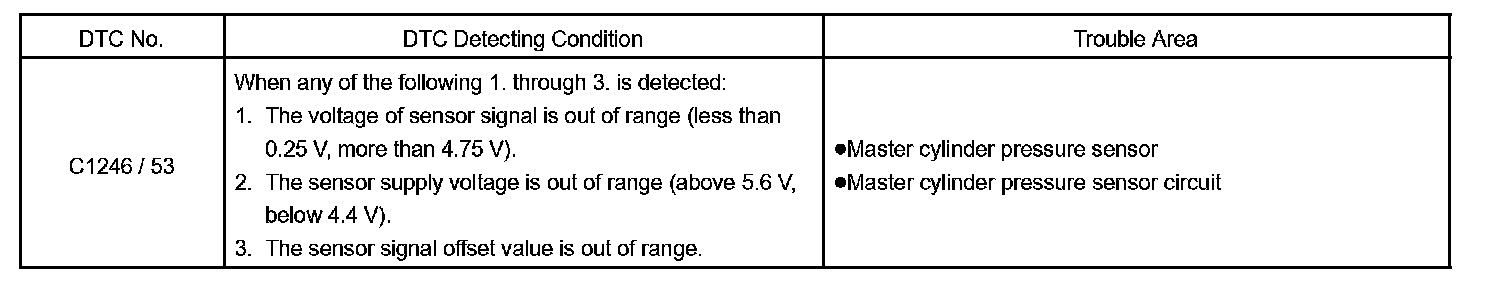

DTC Detecting Condition:

CIRCUIT DESCRIPTION

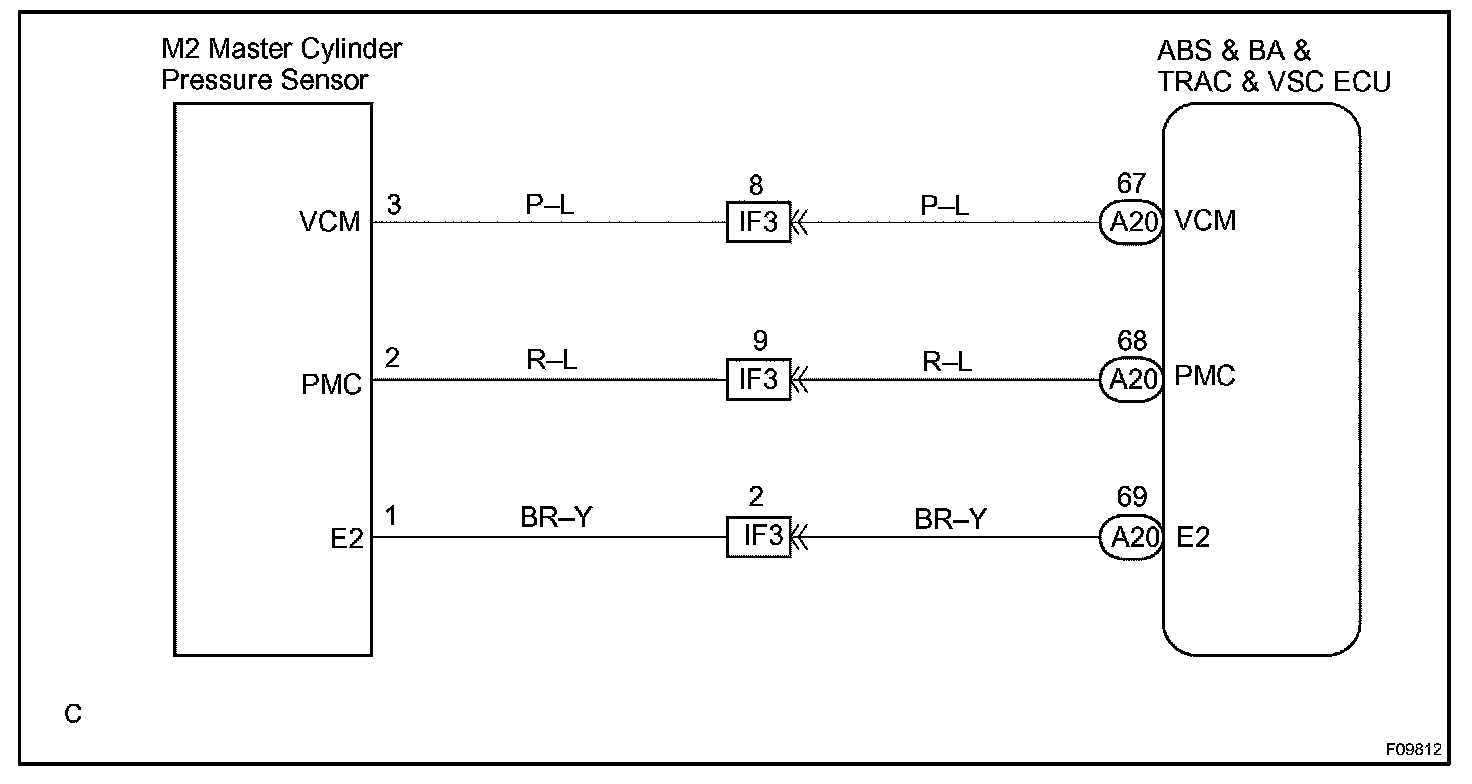

Wiring Diagram:

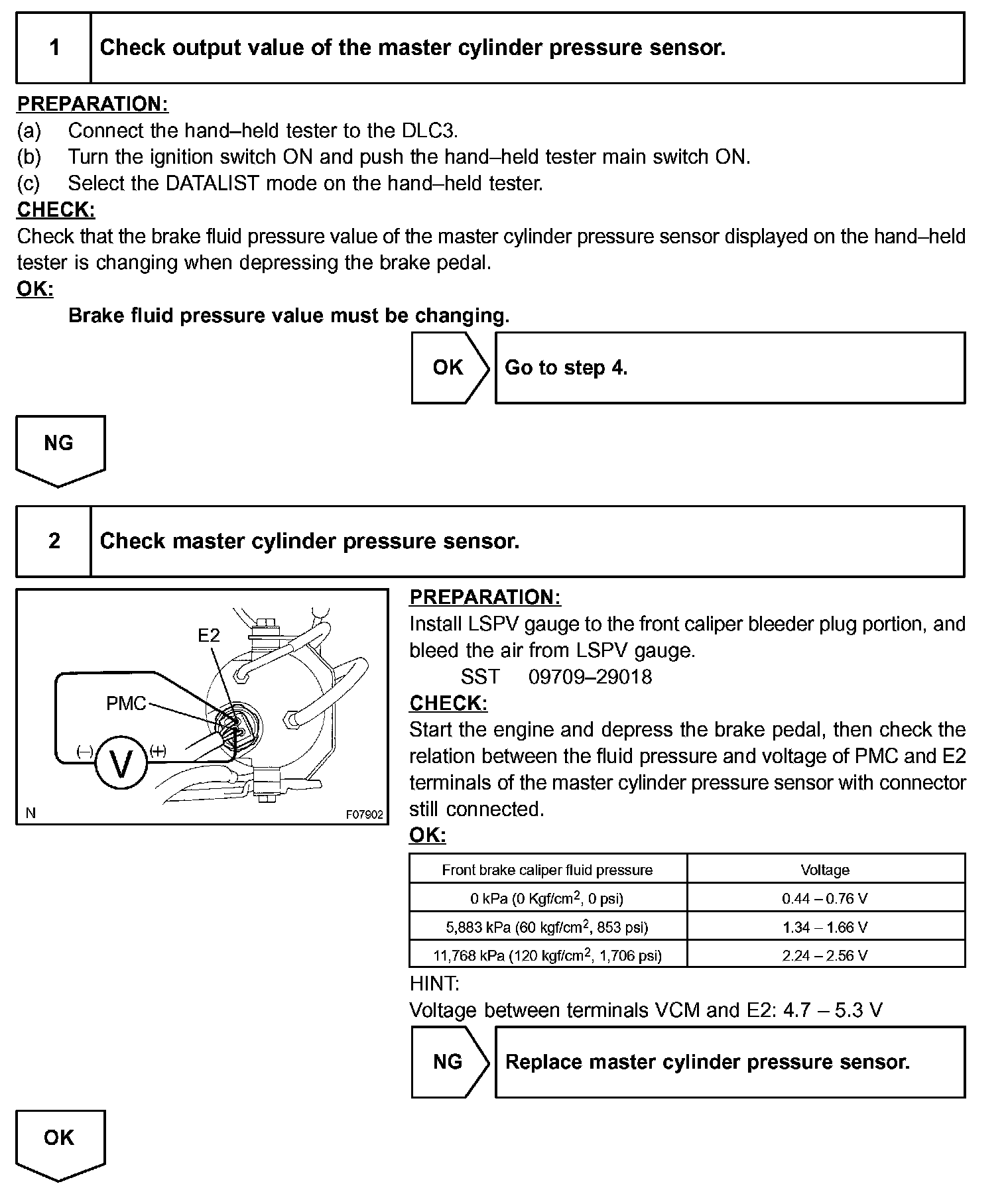

Step 1 - 2:

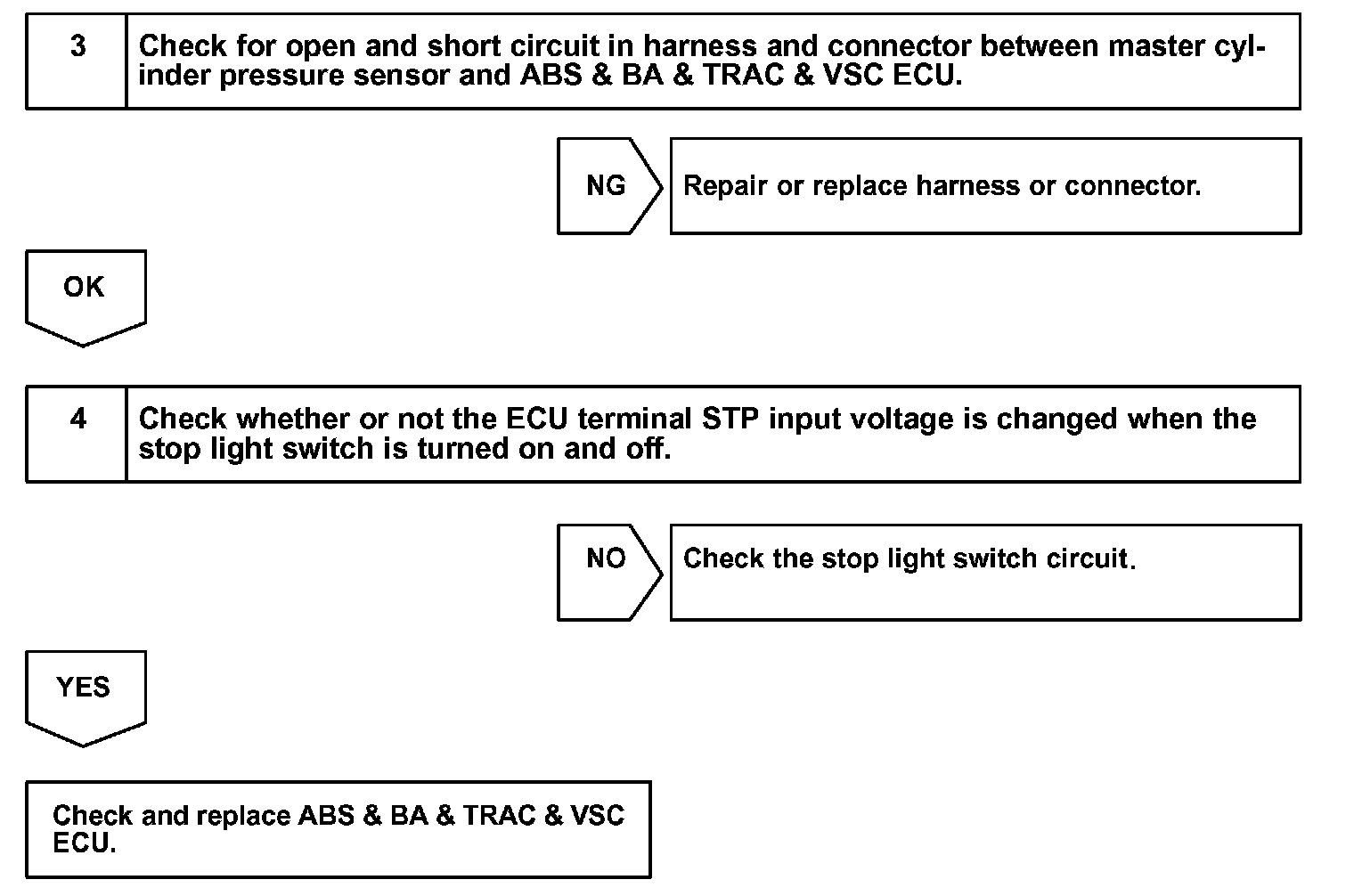

Step 3 - 4:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1, in case of using the hand-held tester and start from step 2, in case of not using the hand-held tester.
