C1241

DTC C1241 IG Power Source Circuit

CIRCUIT DESCRIPTION

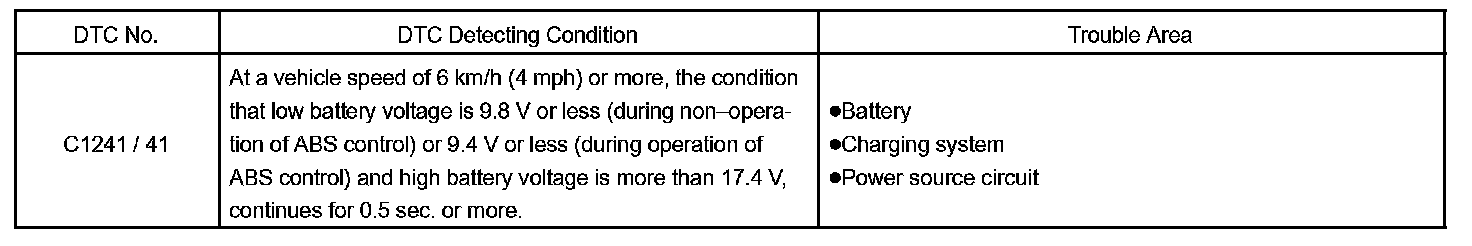

DTC Detecting Condition:

This is the power source for the ECU, hence the brake actuators.

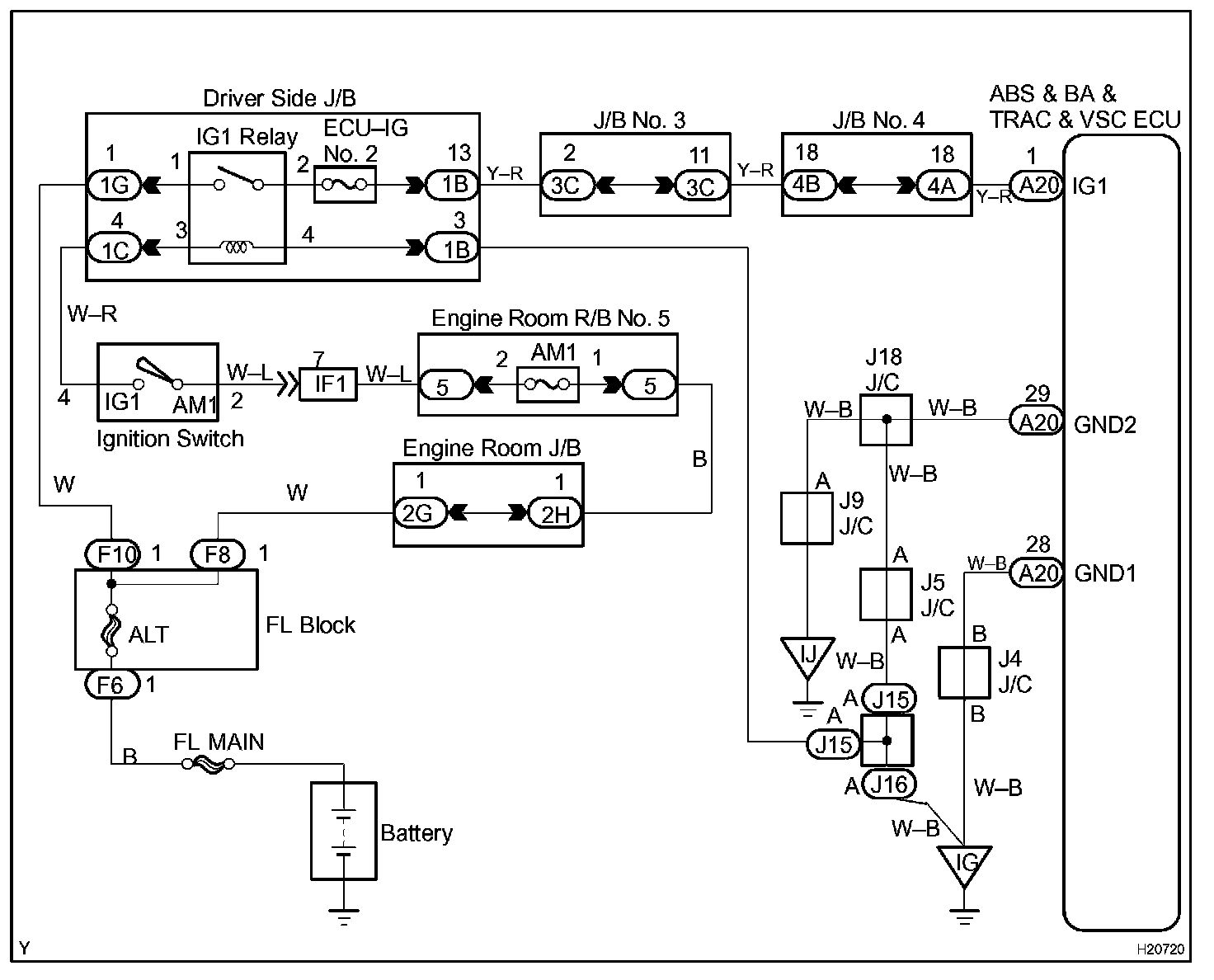

Wiring Diagram:

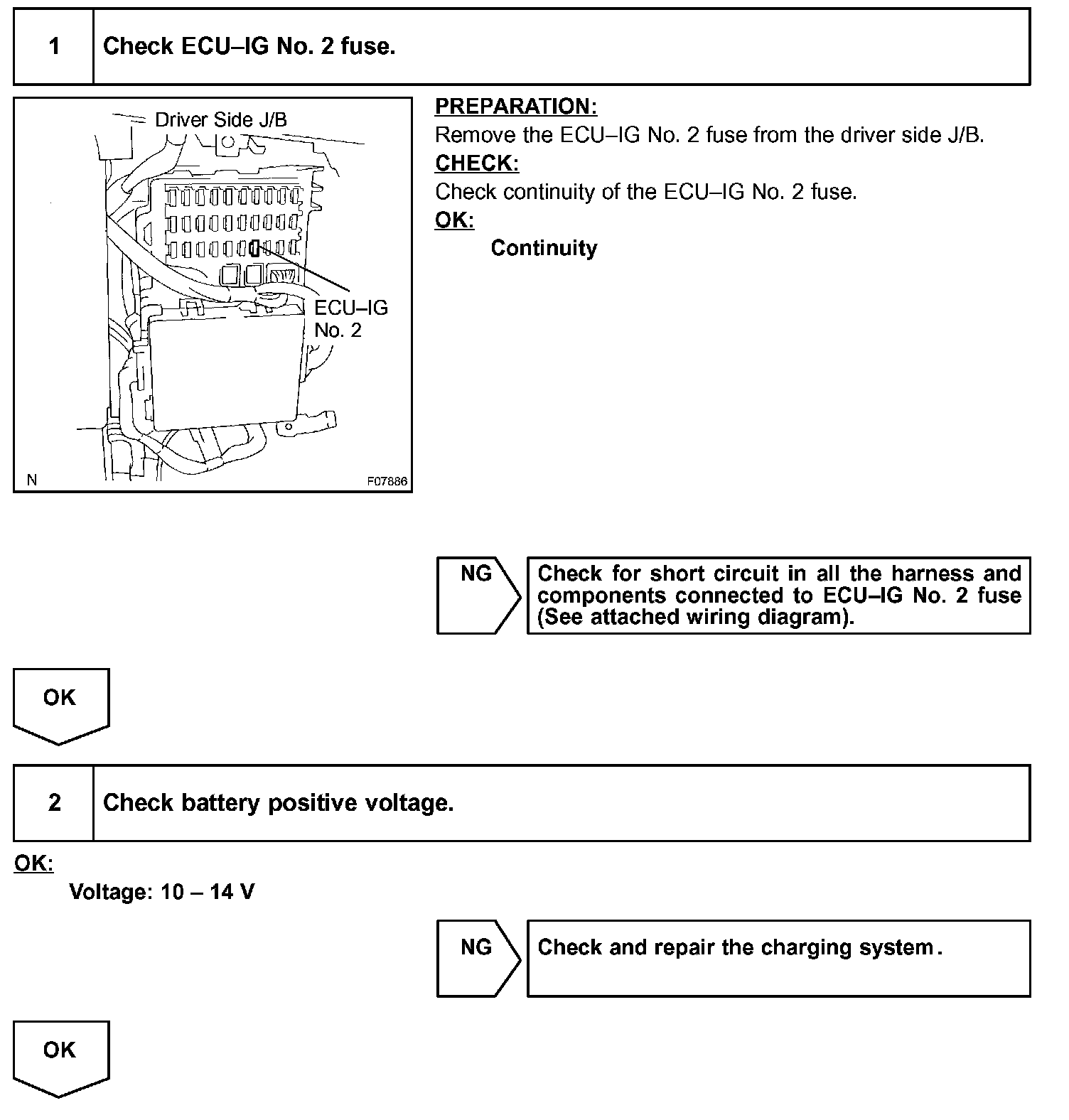

Step 1 - 2:

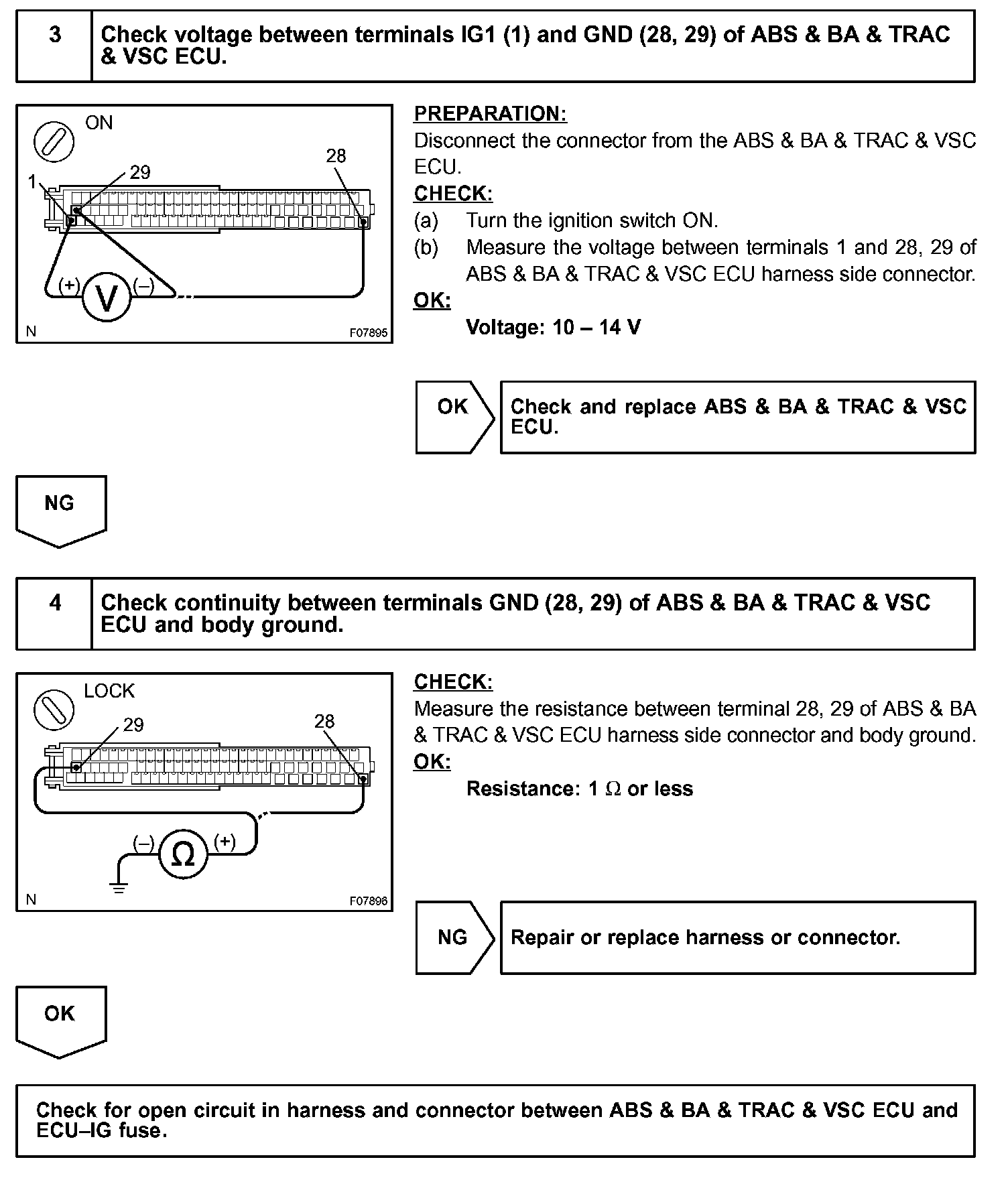

Step 3 - 4:

INSPECTION PROCEDURE
