C1208

DTC C1208 Steering Angle Sensor Circuit

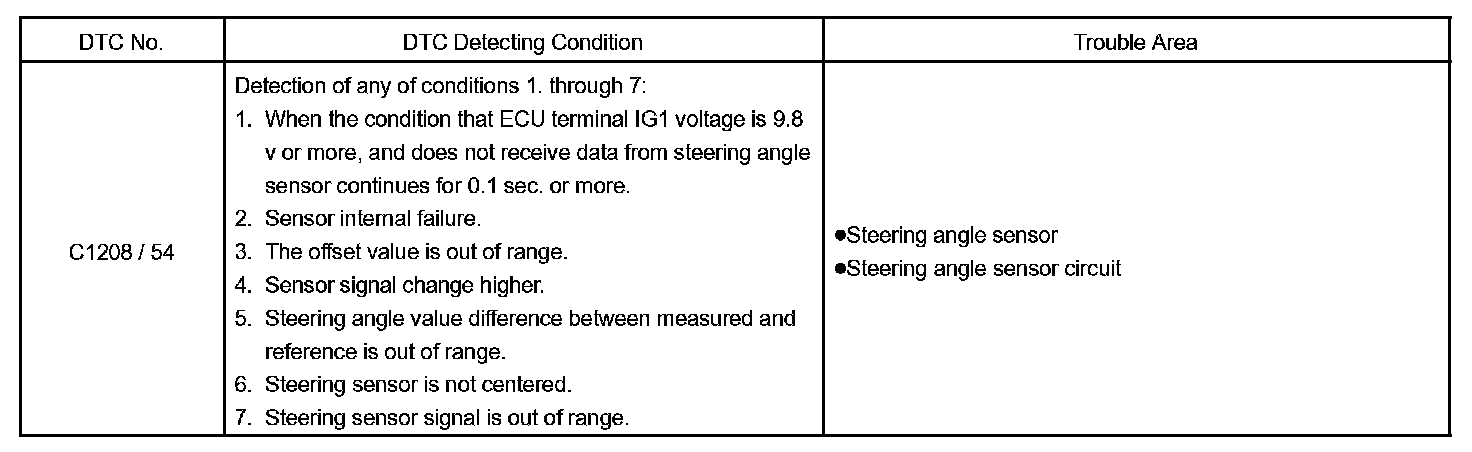

DTC Detecting Condition:

CIRCUIT DESCRIPTION

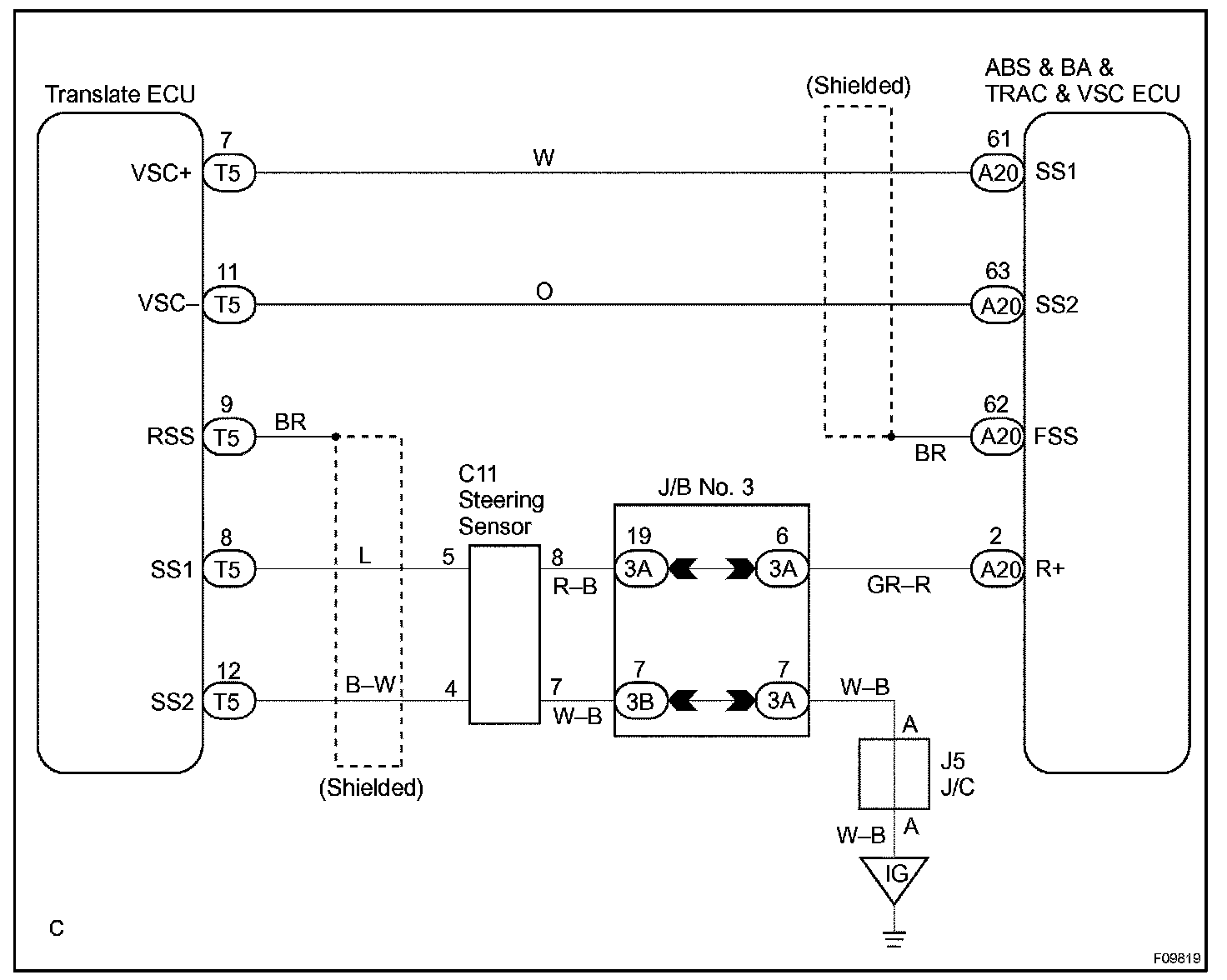

Wiring Diagram:

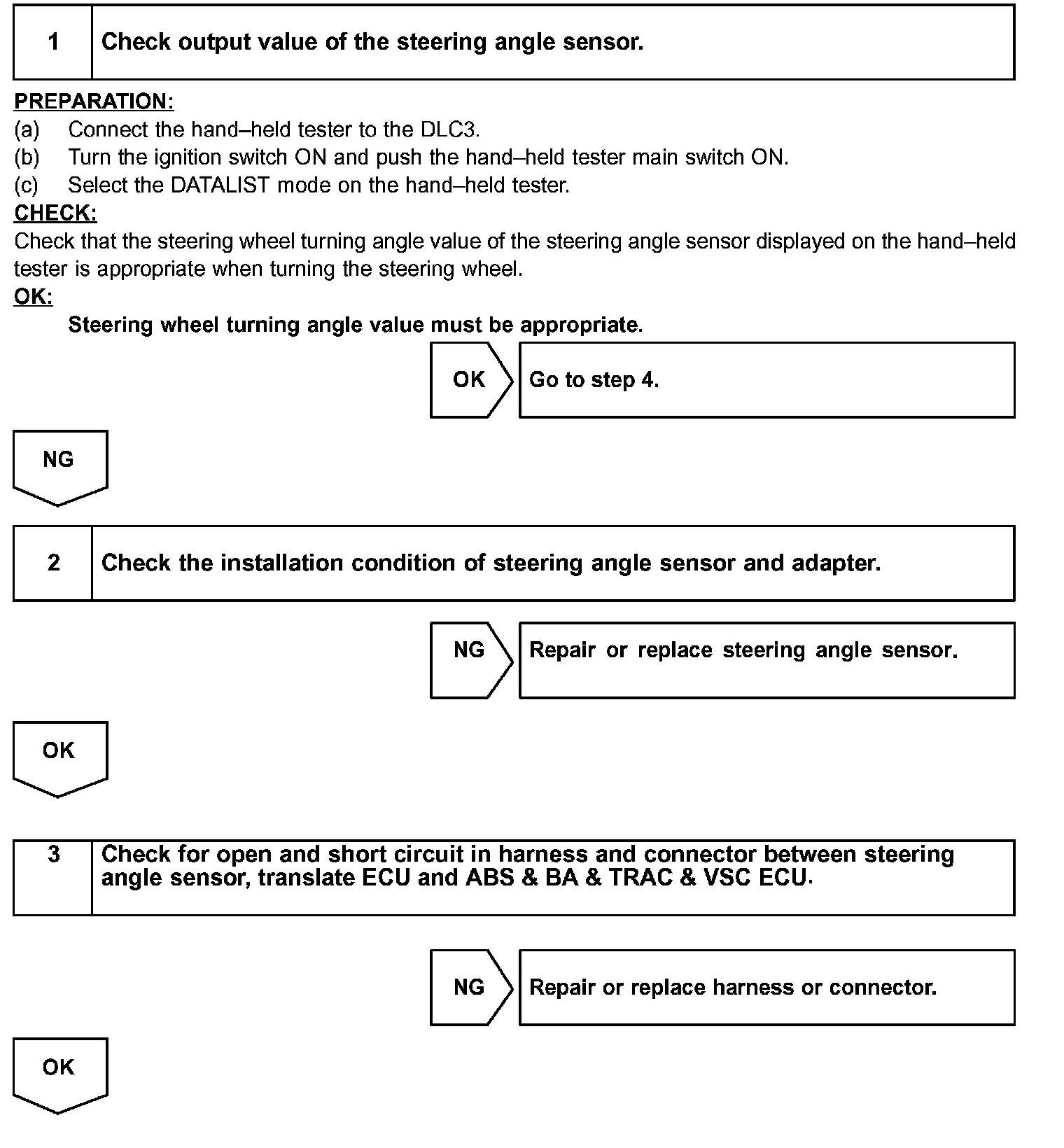

Step 1 - 3:

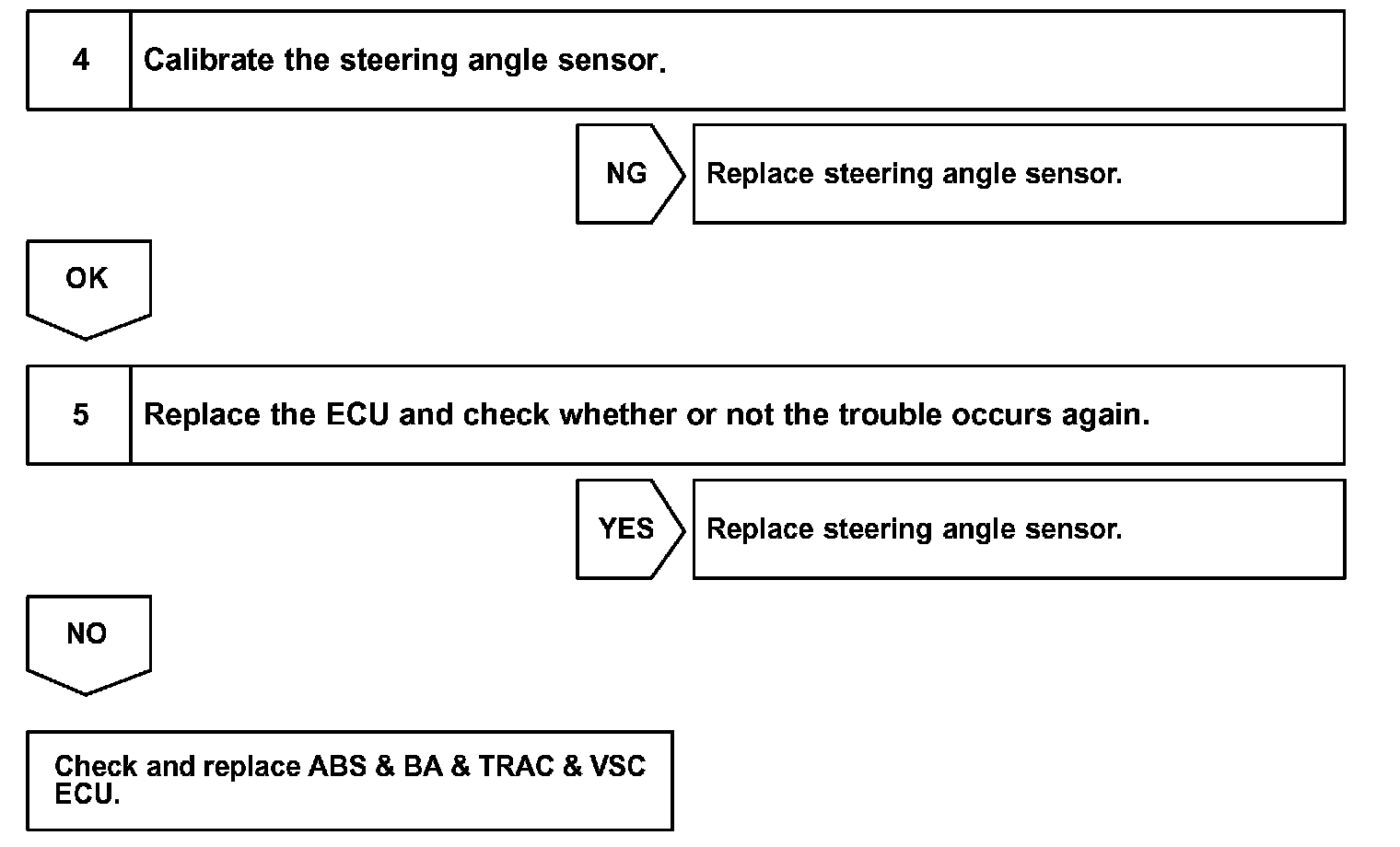

Step 4 - 5:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the hand-held tester and start from step 2 in case of not using the hand-held tester.

NOTICE:
When replacing the skid control ECU, perform the zero point calibration. Refer to applicable TSBs for updated or revised information.
