B1272

DTC B1272 Power Seat ECU Communication Stop (w/ Seat Memory Vehicle Only)

CIRCUIT DESCRIPTION

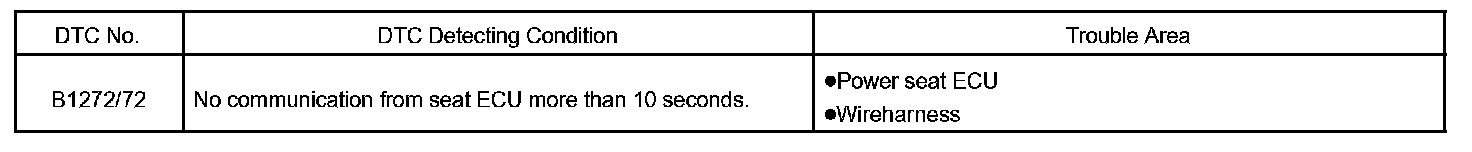

DTC Detecting Condition:

This DTC is output when communication stops between power seat ECU and Body ECU.

Wiring Diagram:

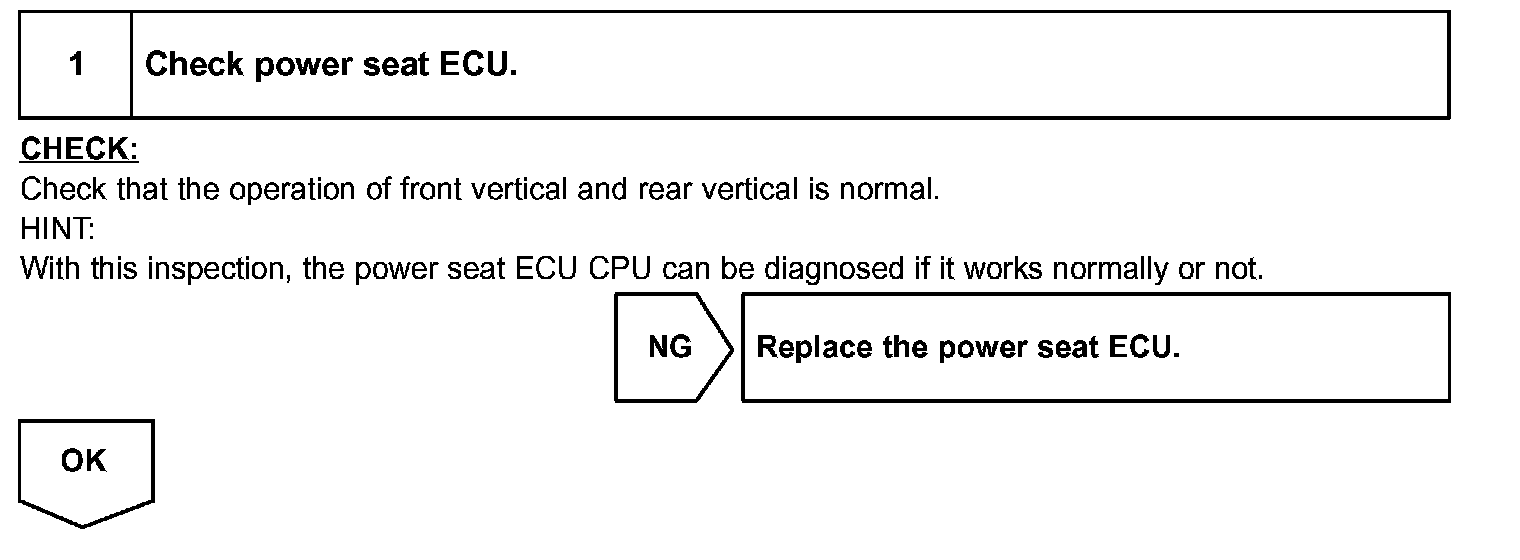

Step 1:

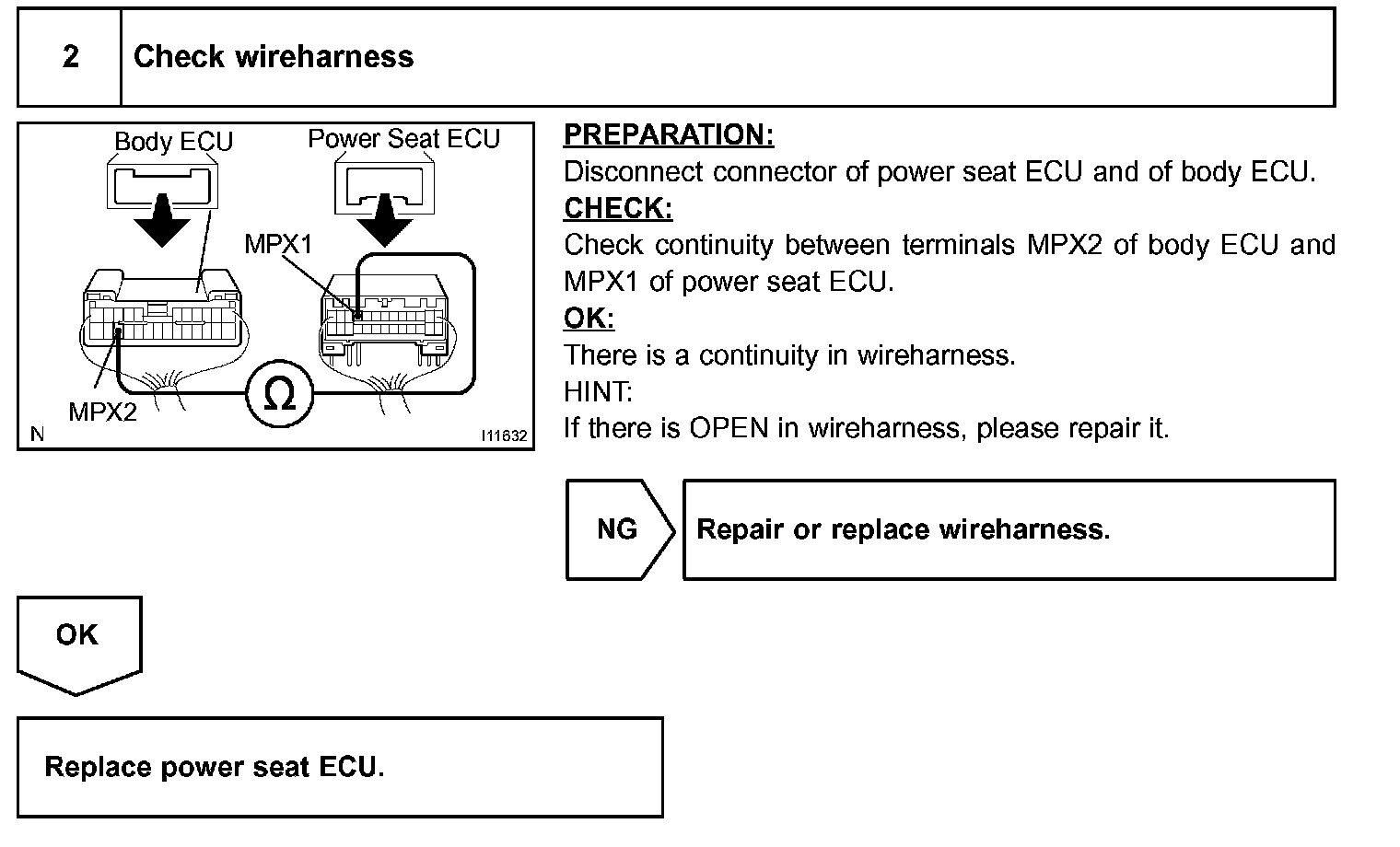

Step 2:

INSPECTION PROCEDURE
