Park/Neutral Position Switch Circuit

CIRCUIT DESCRIPTION

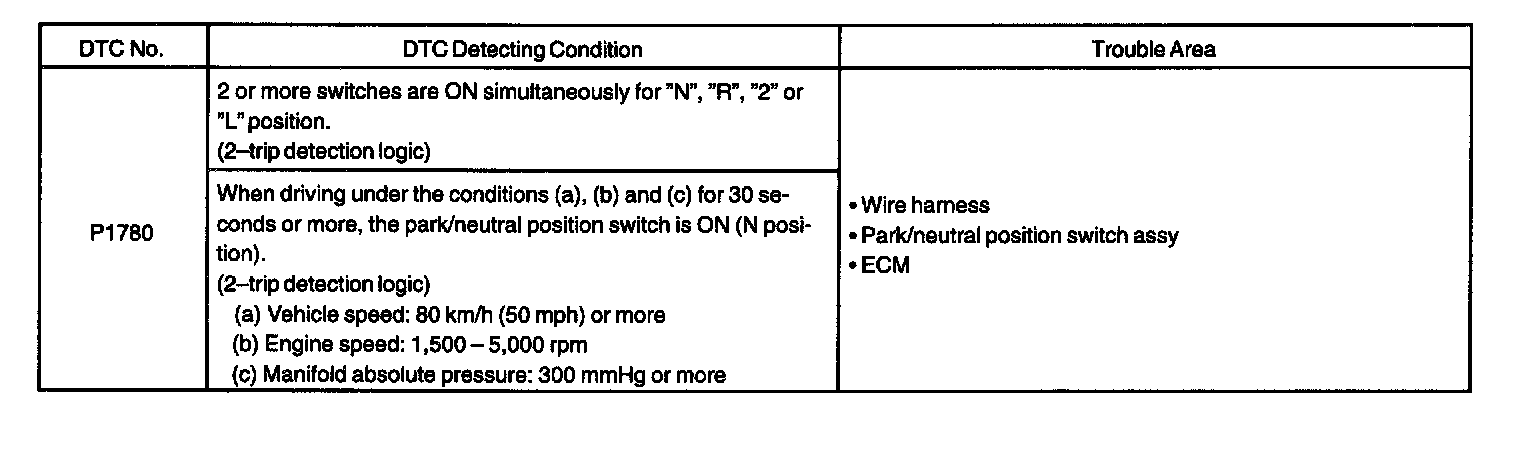

DTC Detecting Condition:

The park/neutral position switch detects the shift lever position and sends the signals to the ECM.

Wiring Diagram:

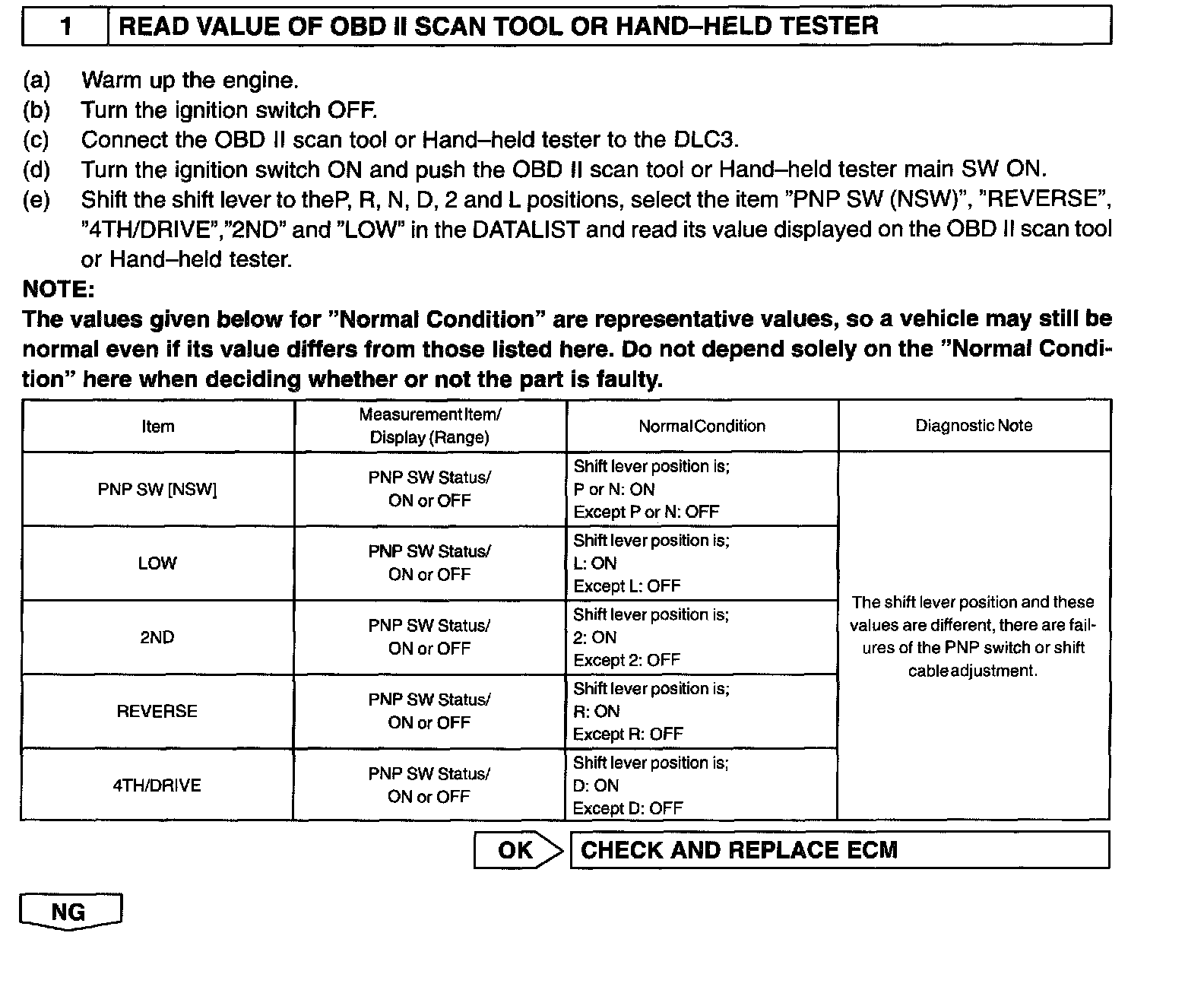

Step 1:

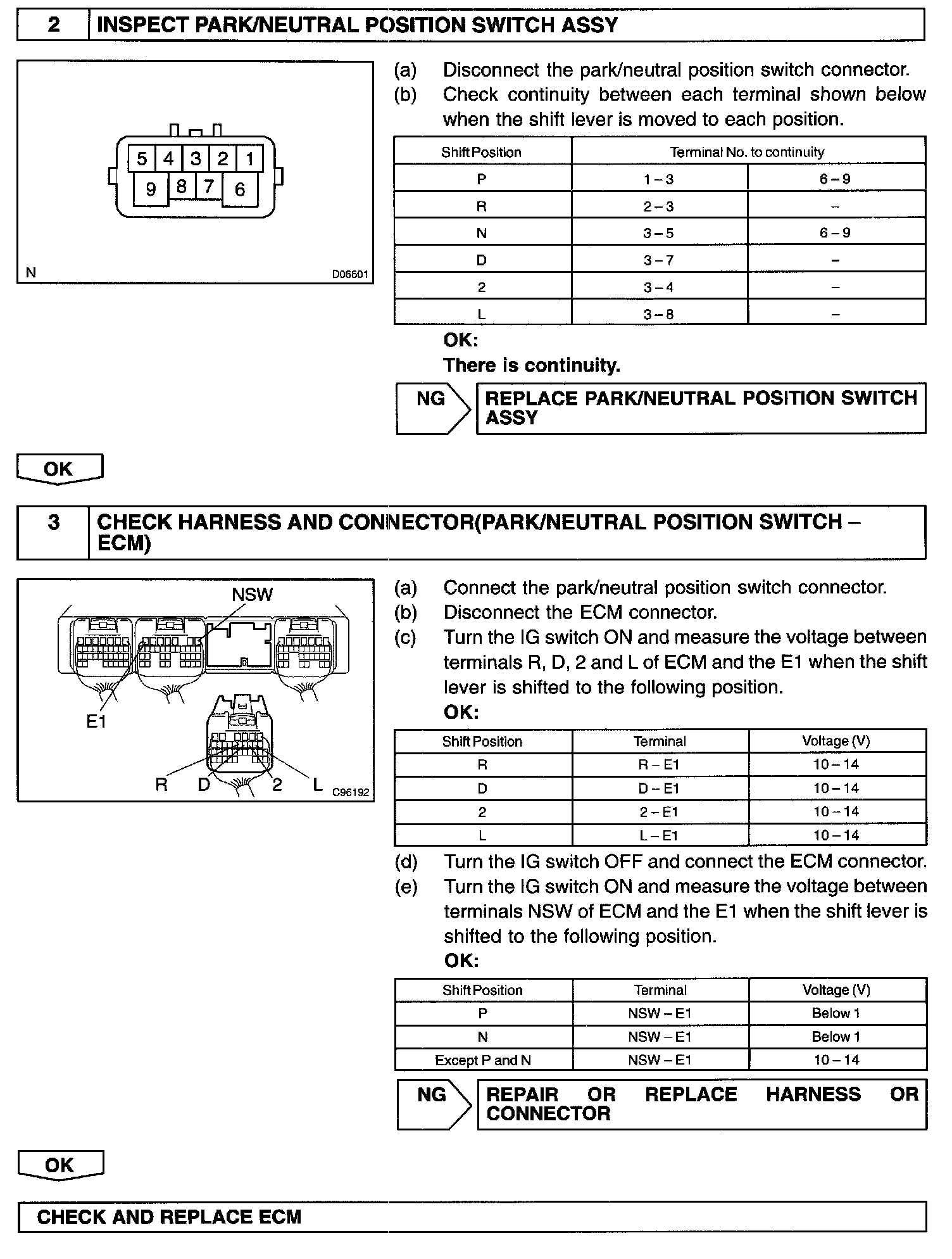

Step 2 - 3:

INSPECTION PROCEDURE
