Component Inspection

INSPECTION








1. INSPECT CLUTCH START SWITCH ASSY

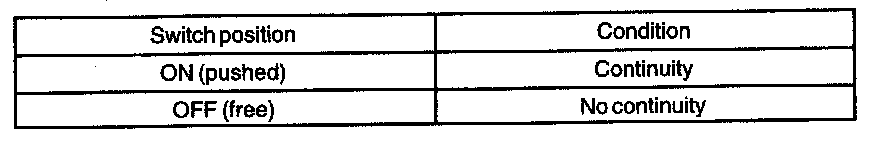

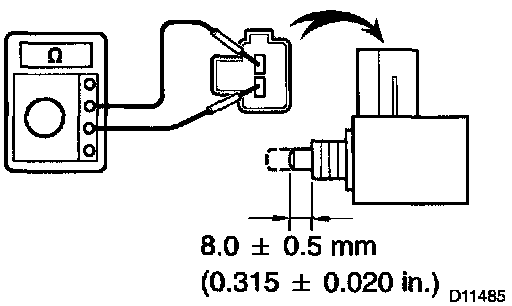

a. Check the continuity between the terminals when the switch is ON and OFF.
