Mechanical Specifications

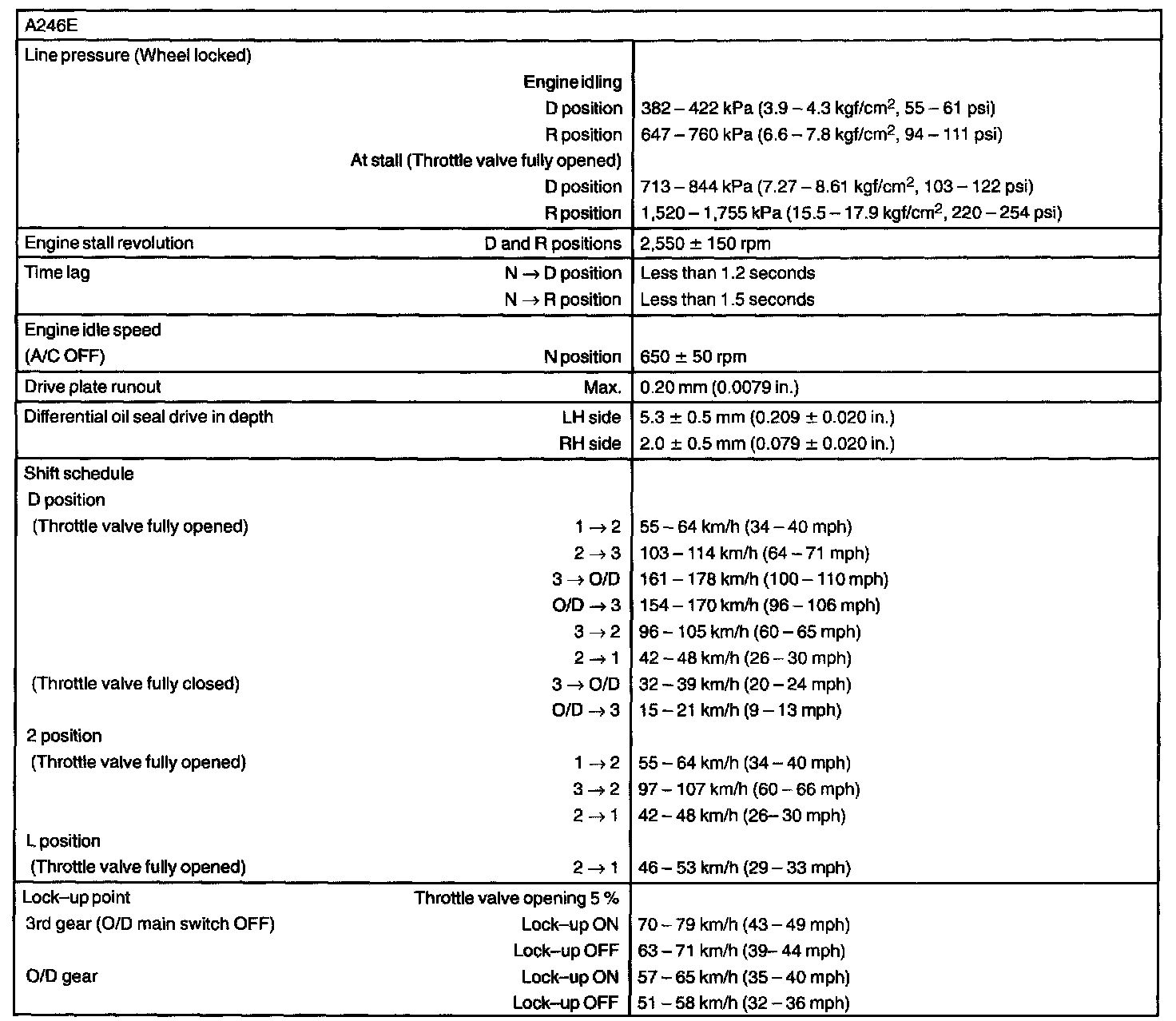

A246E Automatic Transmission/Transaxle - Service Data:

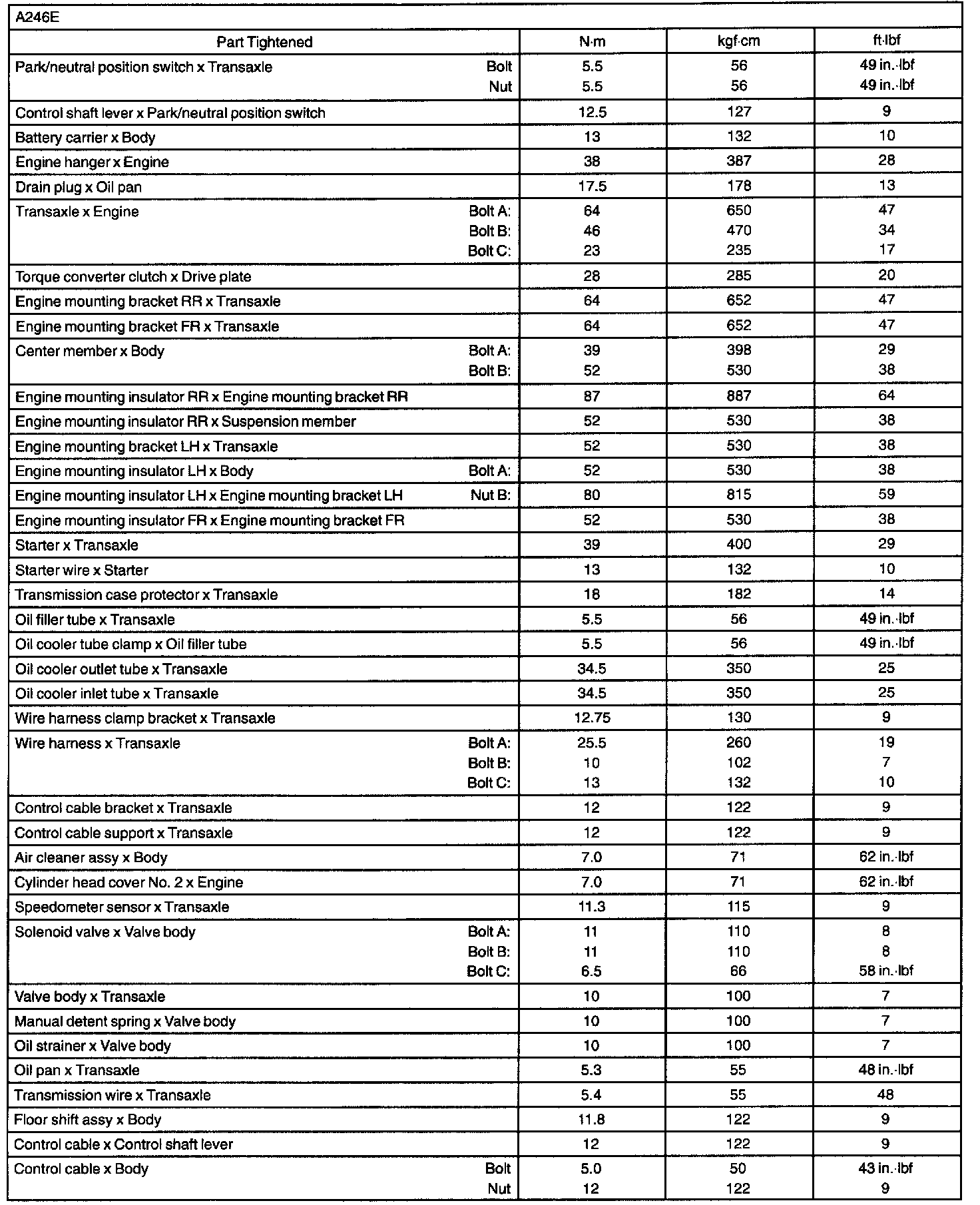

A246E Automatic Transmission/Transaxle - Torque Specification:
