Home >> Toyota >> 2003 >> Matrix XR 2WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Technical Service Bulletins >> All Technical Service Bulletins >> Emissions - OBD II Readiness Monitor Drive Patterns >> Readiness Monitor Drive Pattern >> Application Tables

Application Tables

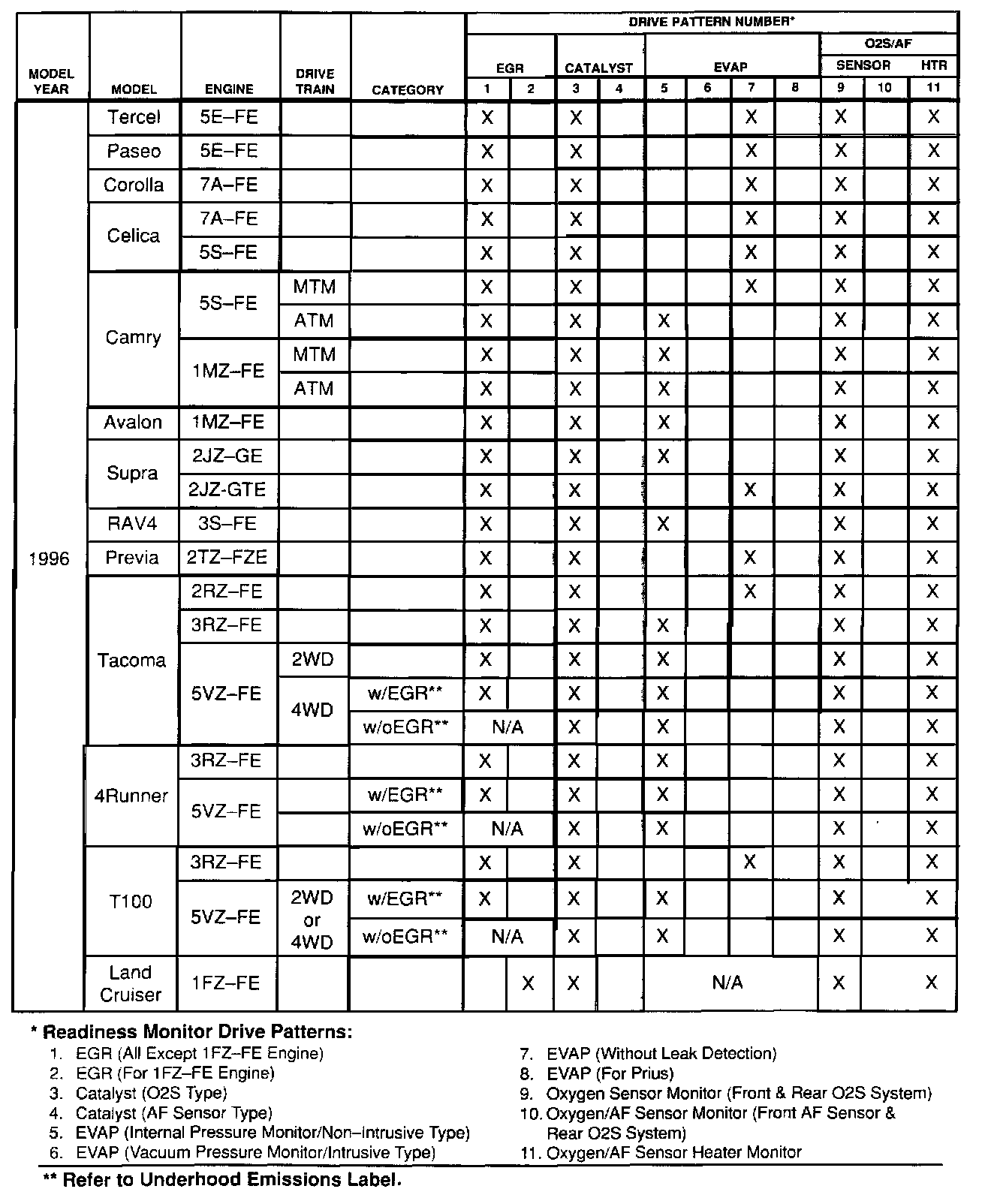

1996

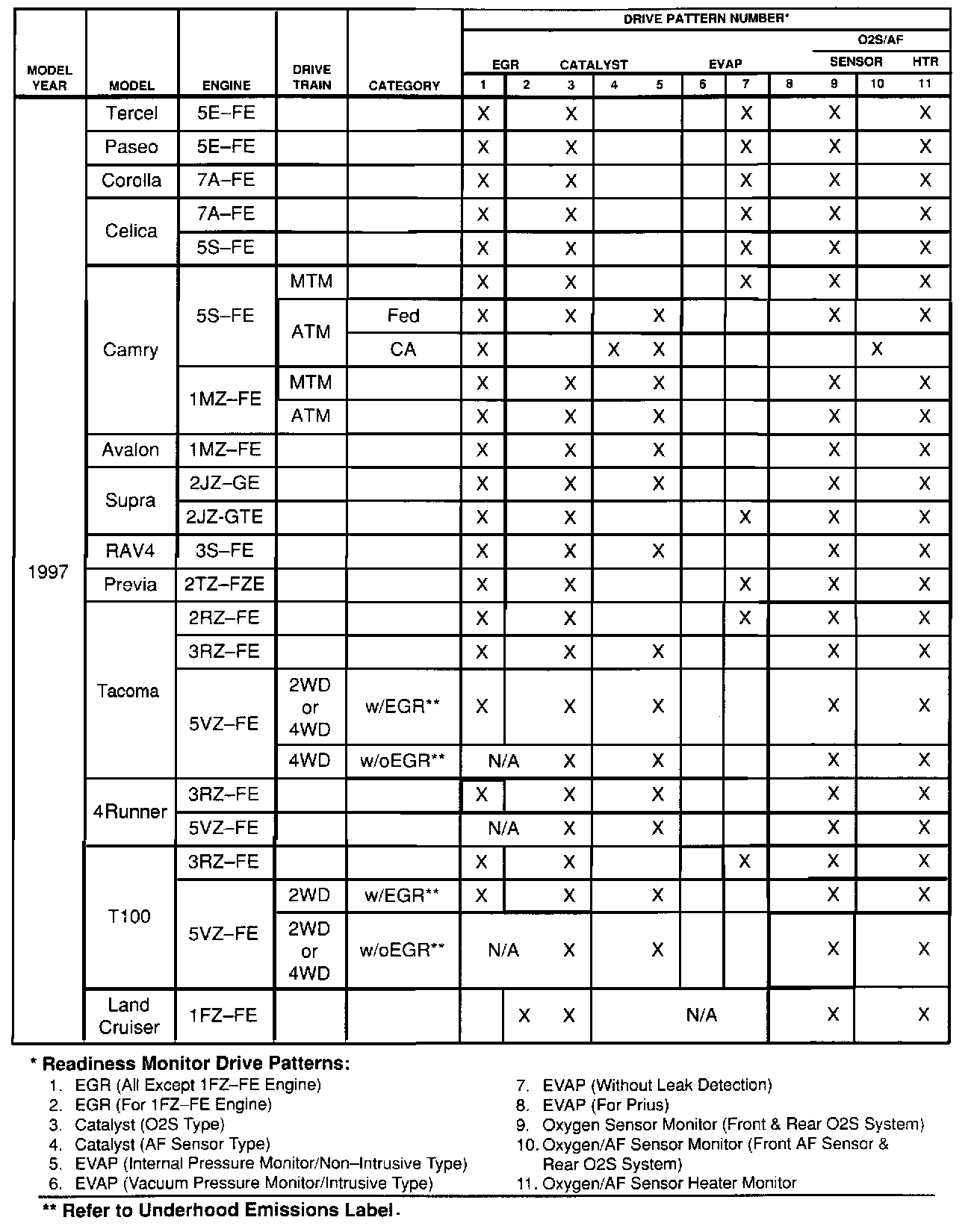

1997

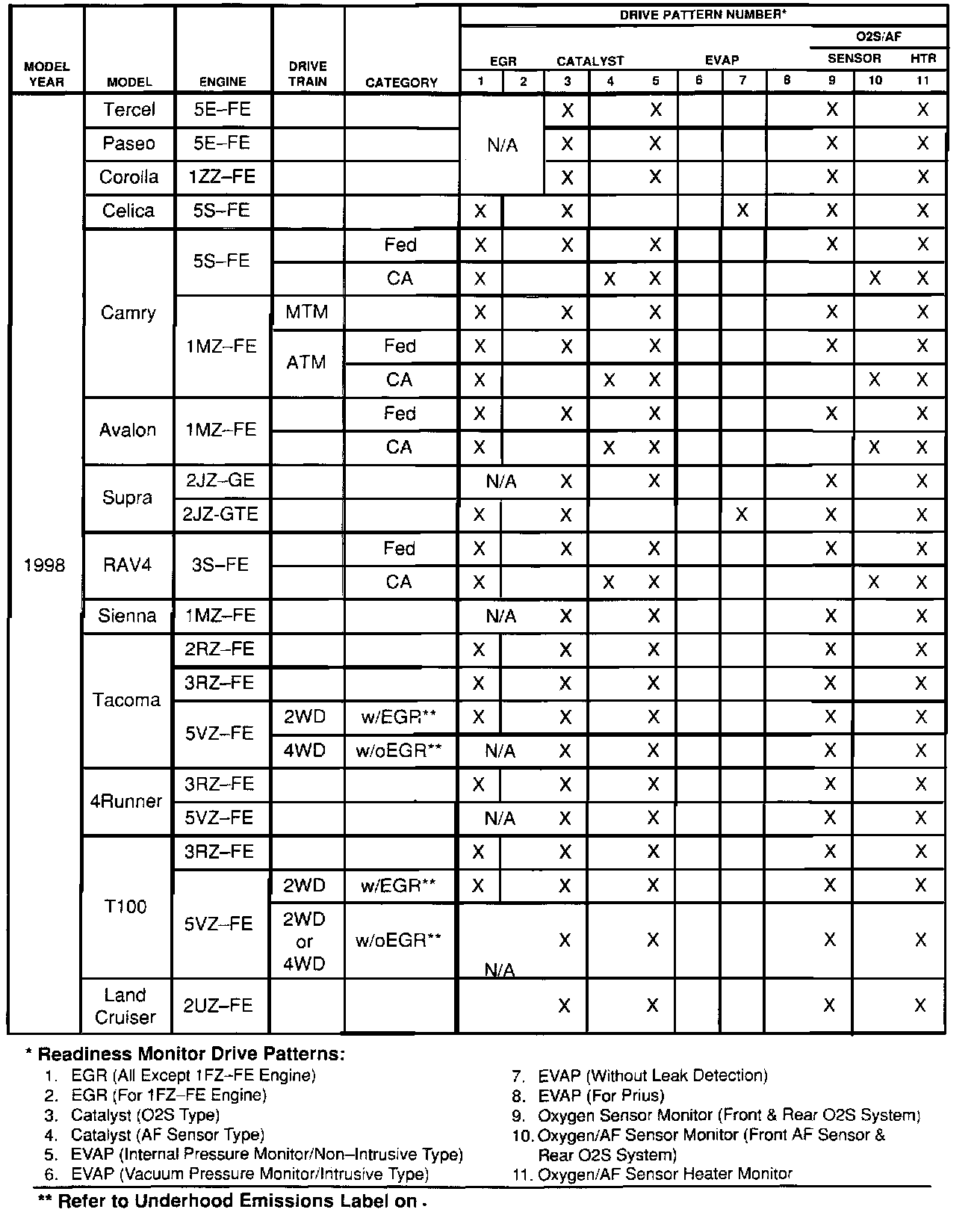

1998

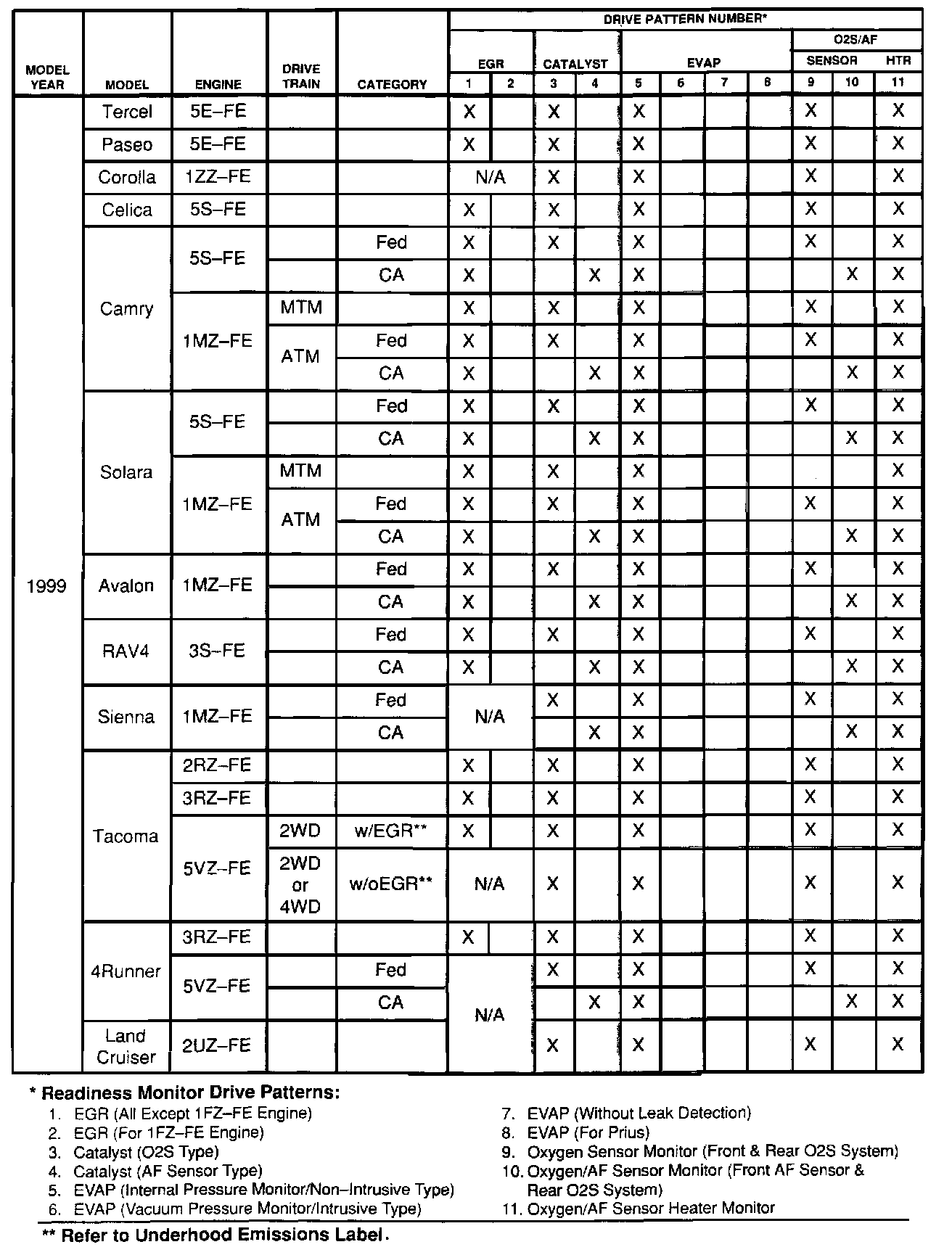

1999

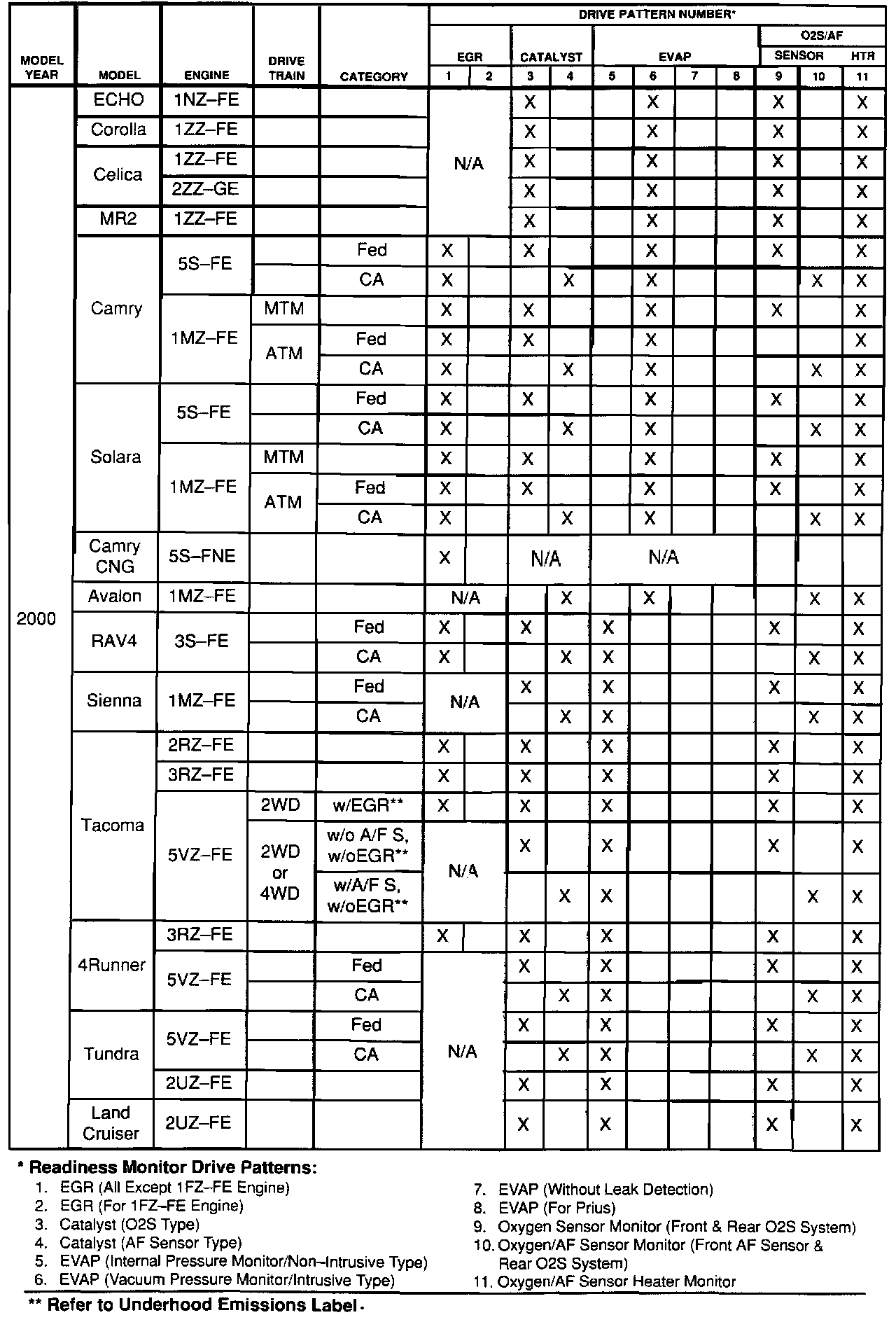

2000

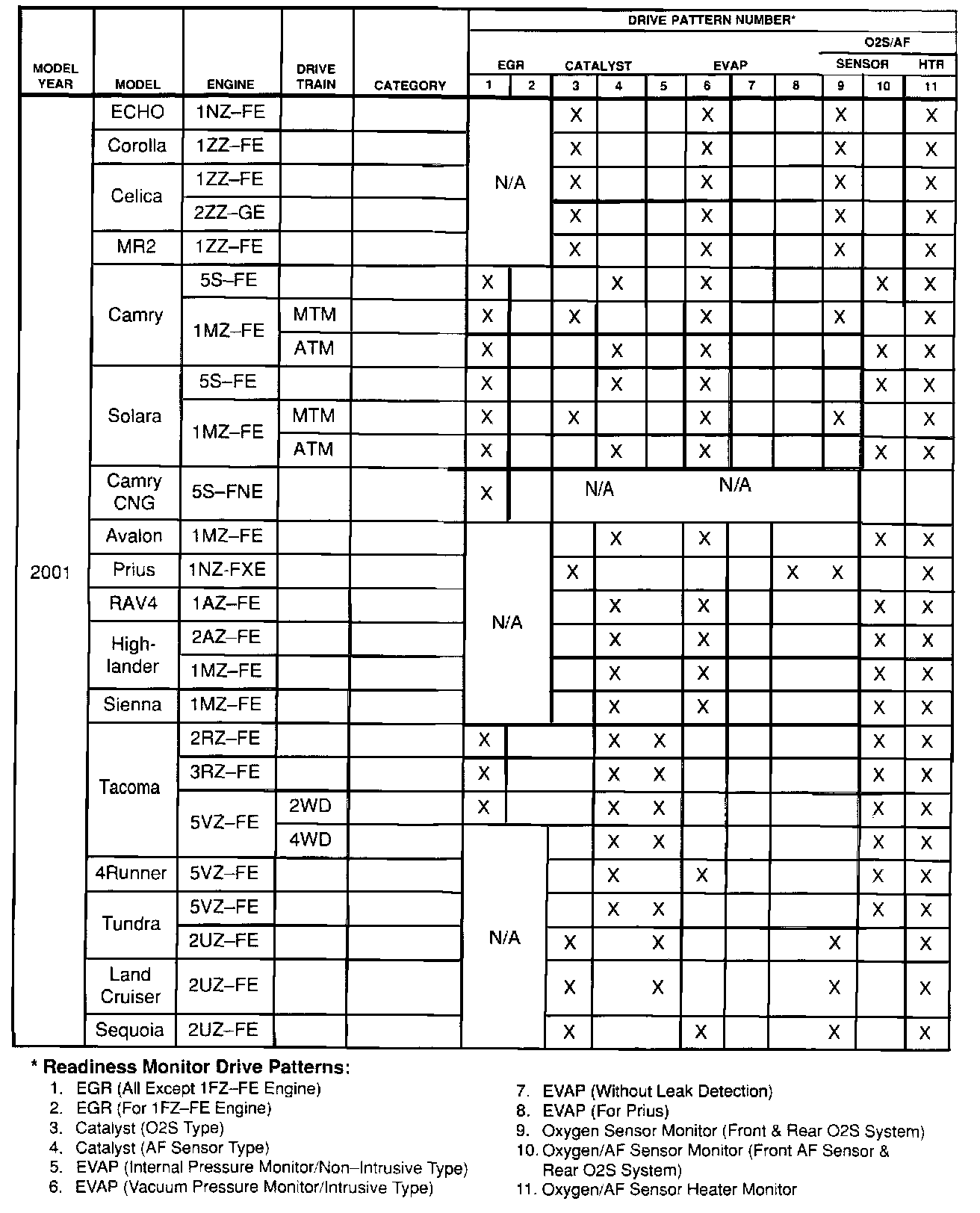

2001





2002
