Removal and Installation

STARTER ASSY

REPLACEMENT

1. REMOVE ENGINE UNDER COVER RH

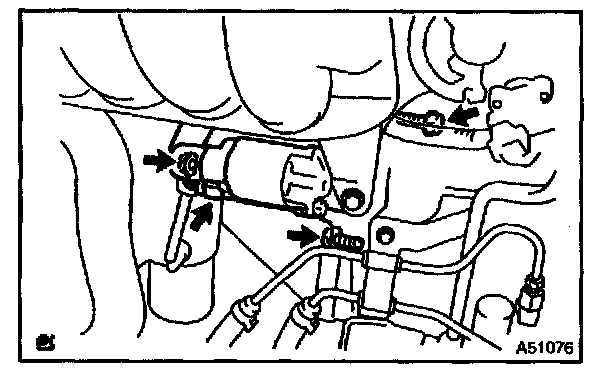

2. REMOVE STARTER ASSY
a. Disconnect the starter connector.
b. Remove the nut and disconnect the starter wire.
c. Remove the 2 bolts and starter.

3. INSTALL STARTER ASSY

Torque:
Bolt 37 N.m (378 kgf.cm, 27 ft.lbf)
Nut 9.8 N.m (100 kgf.cm, 7 ft.lbf)
