Component Inspection







STOP LAMP SWITCH ASSY
a. Inspect stop lamp switch assy continuity.
1. Disconnect the stop lamp switch assy connector.

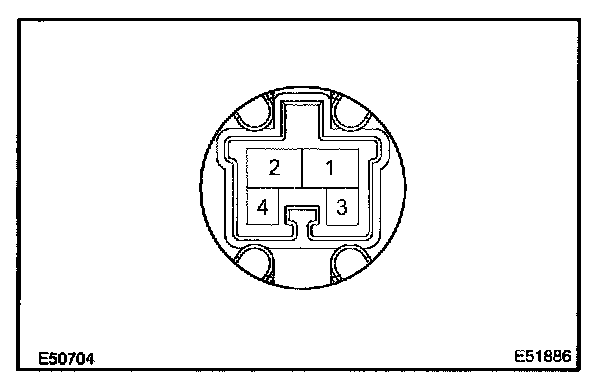

2. Check that there is continuity between terminal 1 and 2.
